New · 1280 HD Flagship
Thanks for entering! Get a first look at our new flagship thermal scope, built around a 1280×1024 HD sensor.
Now available for pre-order.
New
The original thermal scope. Perfected.

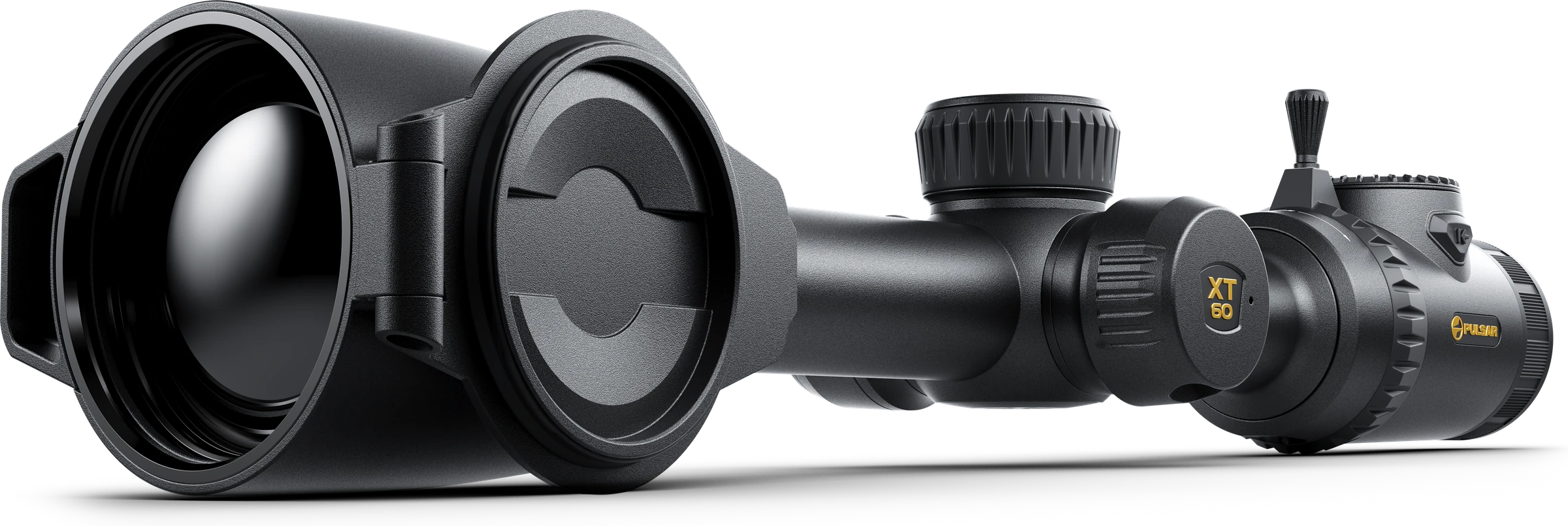

A 1280×1024 HD thermal sensor, a 1200 m laser rangefinder and classic zoom and focus rings, built on a 30 mm tube that mounts like the riflescope you already trust.

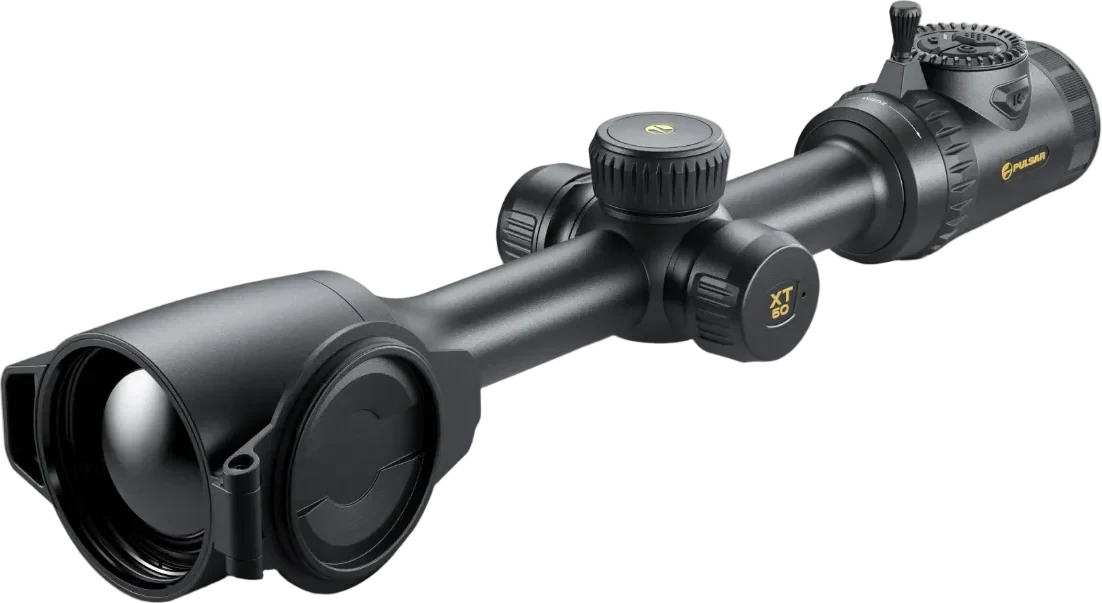

$6,699.97Thermion 3 LRF XT60
The flagship
For maximum detail and a wider view.
The original
Through the scope
Real footage recorded through Thermion 3. Pick a scene.
Scene 1 of 4
Picture-in-picture puts a magnified window over your aim point while the full field stays in view.
Scene 2 of 4
Nine color palettes, switchable on the fly: white hot, black hot, green and more.
Scene 3 of 4
Recoil-activated video starts recording on the shot, saved to 128 GB of built-in memory.
Scene 4 of 4
Zeroing profiles with windage and elevation set right in the menu.
01 · Sensor
Premium image quality with a 12 µm pitch, with NETD under 20 mK and a 50 Hz refresh. The 14.6° field of view is twice as wide as the XR60's, so you can scan more ground before you zoom in.
02 · Rangefinder
The built-in laser rangefinder reads out to 1200 m (1312 yd). An integrated ballistic calculator sits alongside it, so range and holdover live in the same view.
03 · Display
A high-contrast 2560×2560 AMOLED display sits behind 65 mm (2.6 in) of eye relief, with the scope rated for 6000 J of recoil.

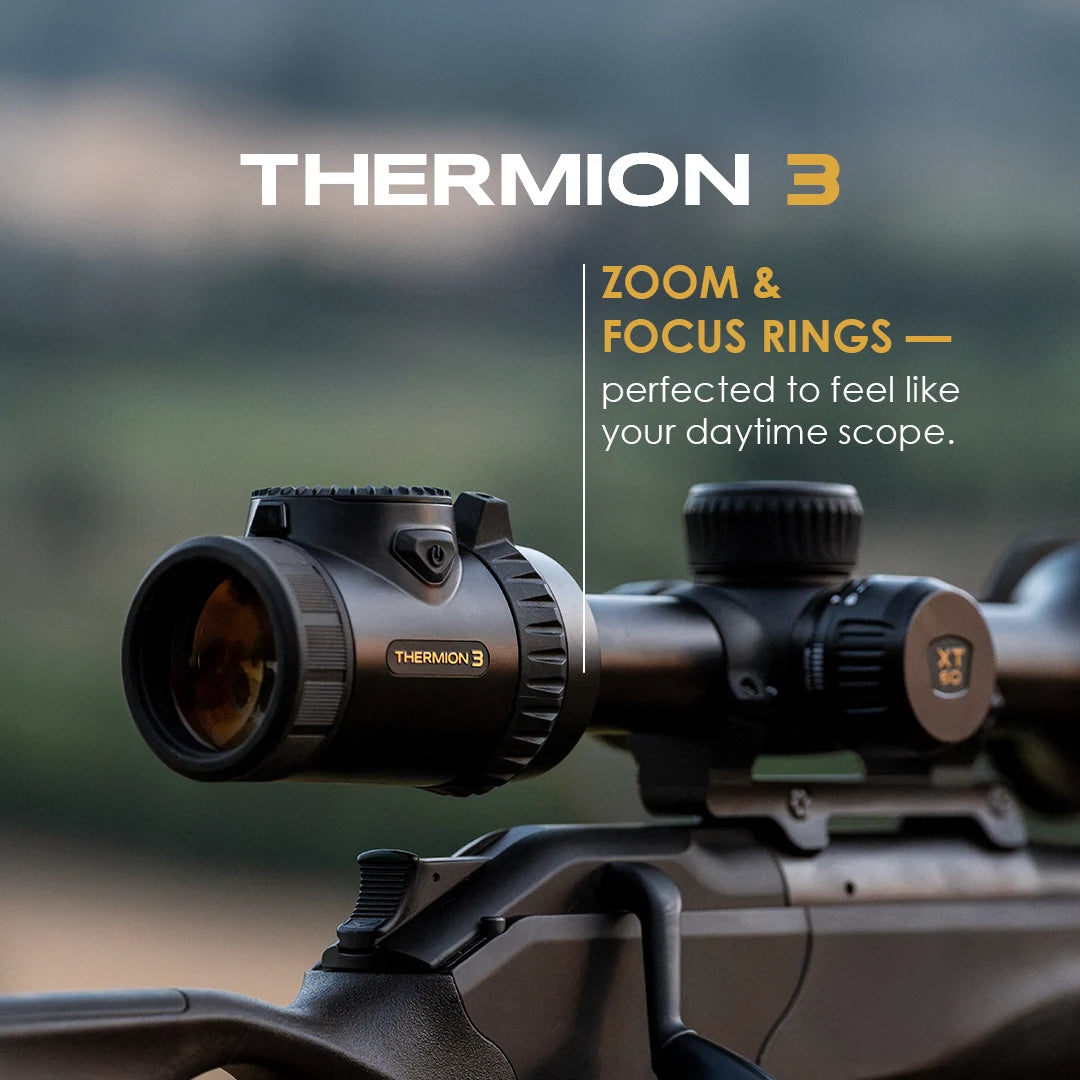

04 · Controls
Rings for zoom and focus, top turret wheel for focus, and a 30 mm tube that takes standard rings. Nothing new to learn at the bench or in the dark.

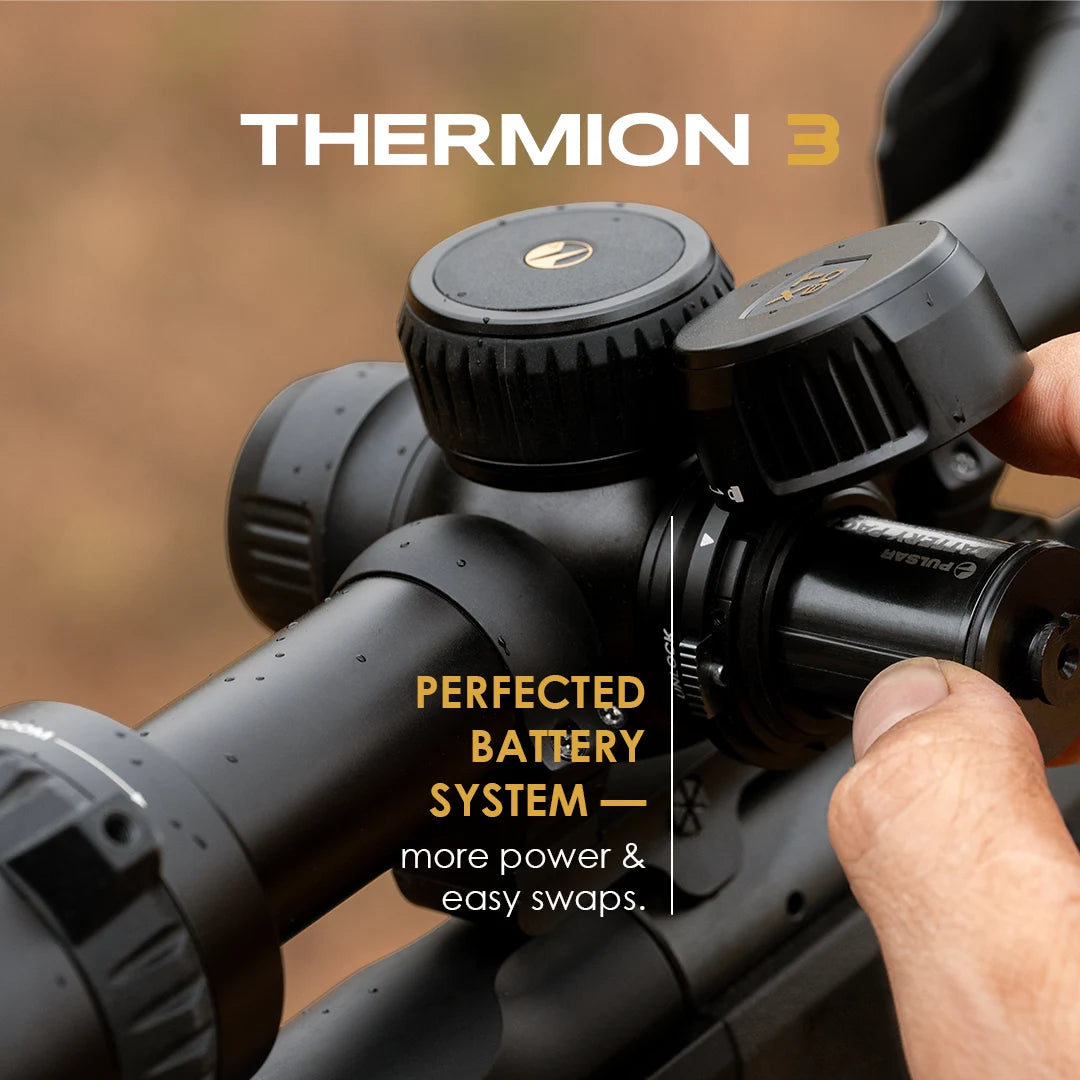

05 · Battery
A swappable APS5 battery runs the XT60 up to 8.5 hours and the XR60 up to 14 hours. Plug into USB-C (5 V / 9 V PD) for external power on long sits.
Also on board
Switch palettes on the fly, with Normal, High and Ultra sensitivity and a smoothing filter.
Rated up to 6000 J on rifled weapons, in an aluminum alloy housing.
A safe 2.6 in of eye relief behind a 2560×2560 AMOLED display.
Live view, remote control and file transfer over Wi-Fi and Bluetooth. Ballistic profiles via Stream Vision Ballistics.
Waterproof, dustproof and built to work from freezing cold to summer heat.
Recording starts on the shot and saves to 128 GB of built-in memory.
Swap batteries in the field, or run on 5 V / 9 V USB-C power delivery.
Detect heat signatures out to 3100 m (3390 yd).
Specifications
| Specification | XT60 | XR60 |
|---|---|---|
| SKU (without mount) | 76590 | 76589 |
| Sensor resolution | 1280×1024 | 640×480 |
| NETD | <20 mK | <18 mK |
| Magnification | 2–24× | 4–40× |
| Field of view | 14.6° · 25.7 m @ 100 m | 7.3° · 12.8 m @ 100 m |
| Click value | 20 mm @ 100 m | 10 mm @ 100 m |
| Click range (H/V) | 4000 / 4000 mm @ 100 m | 2000 / 2000 mm @ 100 m |
| Battery life | 8.5 h | 14 h |
| Pixel pitch · frame rate | 12 µm · 50 Hz | |
| Objective lens | 60 mm F1.0 | |
| Detection range | 3100 m / 3390 yd | |
| Laser rangefinder | 1200 m / 1312 yd · Class 1 | |
| Display | AMOLED 2560×2560 | |
| Eye relief | 65 mm / 2.6 in | |
| Recording · memory | Video & photo · 128 GB | |
| Connectivity | Wi-Fi 2.4/5 GHz · Bluetooth · USB-C | |
| Battery · external power | APS5 · 5 V / 9 V USB-C PD | |
| Max recoil (rifled) | 6000 J | |
| Protection · operating temp | IP67 · -25 to +50 °C | |
| Dimensions · weight | 391×96×90 mm · 1.3 kg / 45.9 oz | |
Questions
The XT60 has the 1280×1024 sensor, a 2–24× range and a 14.6° field of view, for maximum detail and a wide view while you scan. The XR60 uses a 640×480 sensor with 4–40× magnification and up to 14 hours of battery, for more reach and longer sits. Both share the 60 mm F1.0 lens, the 1200 m rangefinder and the AMOLED display.
Yes. Thermion 3 connects to Stream Vision 2 and Stream Vision Ballistics over 2.4/5 GHz Wi-Fi and Bluetooth.
Thermion 3 is sold without a mount. It has a 30 mm tube and fits standard 30 mm rings.
Yes. Thermion 3 has an integrated ballistic calculator that works with the built-in 1200 m laser rangefinder. Ballistic profiles can be set up in the Stream Vision Ballistics app.
Up to 8.5 hours on the XT60 and up to 14 hours on the XR60, on a swappable APS5 battery. Both also run on external power through USB-C (5 V / 9 V PD).
Yes. Thermion 3 is rated IP67 and operates from -25 to +50 °C (-13 to 122 °F). It is rated for recoil up to 6000 J on rifled weapons.
Ready when you are
For maximum detail and a wider view.

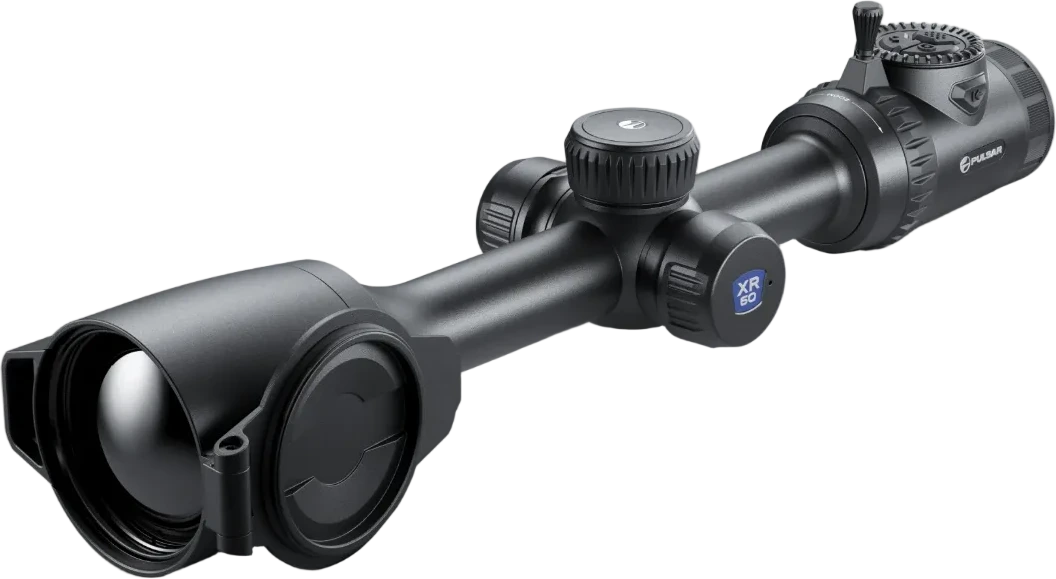

For more magnification and longer sits.
