What Is a Thermal Scope?
A thermal scope detects heat. It does not need visible light, moonlight or an infrared illuminator. Instead, it reads temperature differences between animals, trees, grass, dirt, rocks and other objects.
That is why thermal scopes are useful for night hunting. A warm animal can stand out against a cooler background, even in complete darkness. Thermal can also help in daylight when animals are hidden in brush or standing in shadows.
Thermal imaging is not the same as night vision. Night vision needs some light to work well. Thermal reads heat. That makes thermal especially useful for hog hunting, predator hunting, varmint control and spotting animals before they are visible to the naked eye.
A thermal scope does not magically identify every animal at every distance. It shows heat signatures. The quality of that image depends on the sensor, sensitivity, lens, display and image processing inside the scope.
Day optics
Show reflected visible light. They provide natural detail but lose usefulness when light disappears.
Night vision
Amplifies available light or uses infrared illumination. It can show visual detail, but it still depends on light.
Thermal imaging
Reads heat differences. It works in complete darkness and helps reveal animals in shadows, grass and brush.
Thermal Scope Specs That Actually Matter
No single number tells you whether a thermal scope is right for your hunt. Read the sensor, sensitivity, lens, magnification and display as one system.
Sensor Resolution
Sensor resolution tells you how many thermal pixels the scope uses to build the image. More pixels usually mean more detail.
Common thermal sensor resolutions include 384×288, 640×480 and 1024×768. A 384×288 sensor can work well for normal hunting distances. A 640×480 sensor gives more detail and usually performs better when you zoom in. A 1024×768 sensor gives even more detail and is better suited for hunters who want a high-definition thermal image.
This matters because hunters do not just need to see a hot shape. They need to know what that shape is. More sensor resolution can help you see body shape, legs, ears, movement and background detail more clearly.
HD with a wider starting view

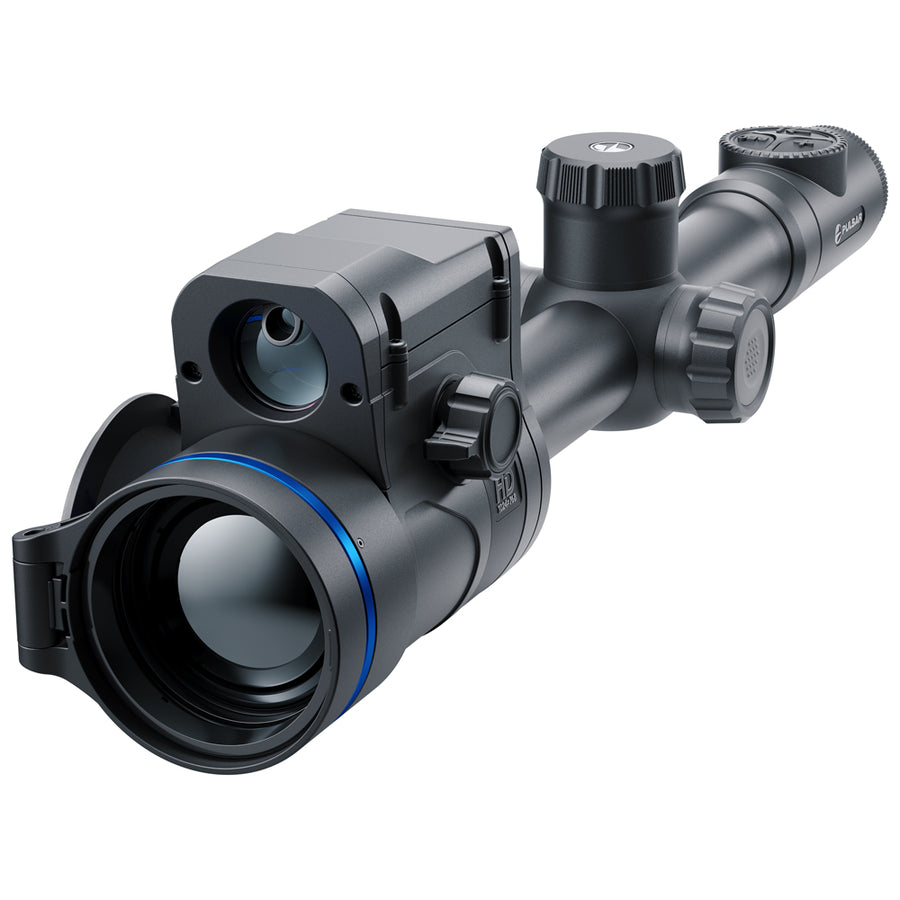

The Thermion 2 LRF XL50 uses a 1024×768 thermal sensor with lower 1.75x base magnification, giving hunters high detail without giving up as much field of view.
HD with more reach

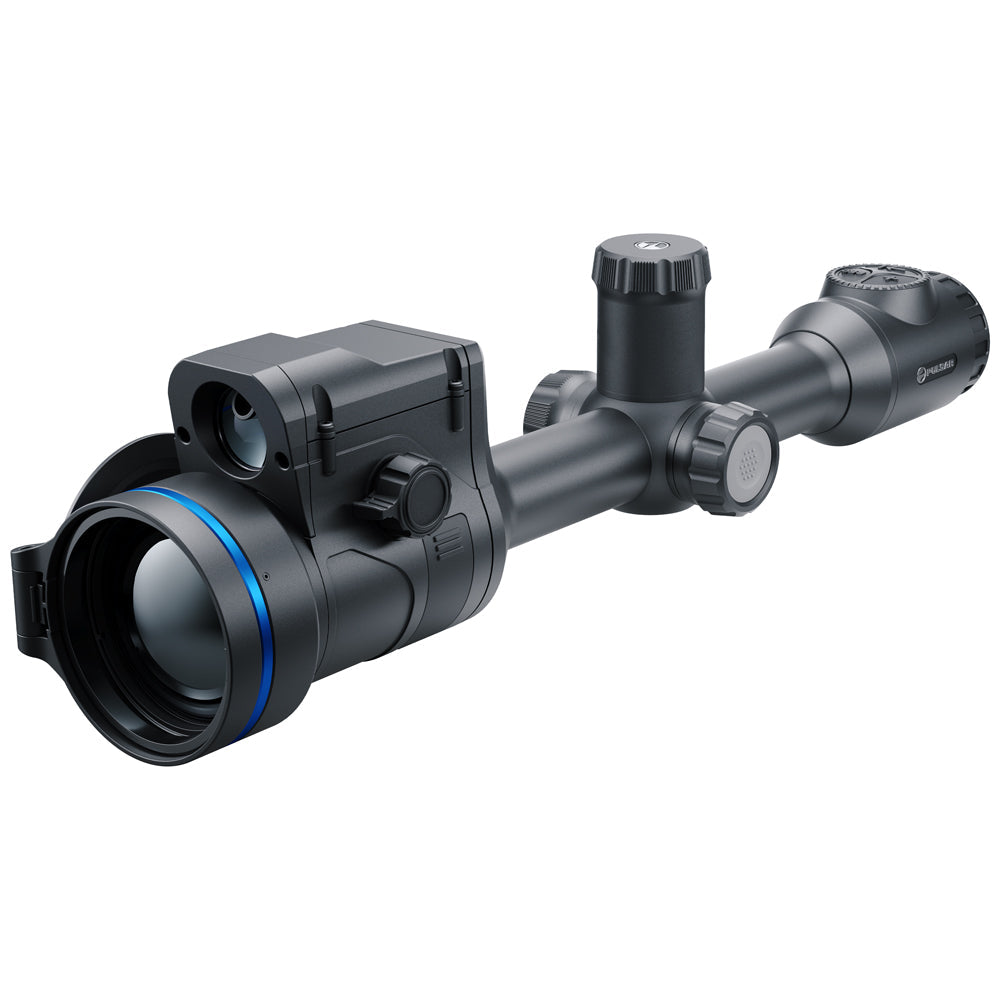

The Thermion 2 LRF XL60 combines a 1024×768 sensor with a larger 60mm objective and 2.5–20x magnification for hunters working across larger properties and open terrain.
NETD and sNETD
NETD stands for Noise Equivalent Temperature Difference. It measures how well a thermal device can detect small differences in temperature. Lower NETD is better.
This specification matters most when the weather makes thermal imaging harder. On a cool, dry night, animals usually stand out well. In humidity, fog, rain or warm weather, the animal and background may be closer in temperature. A scope with better thermal sensitivity can give you a cleaner image.
A lower NETD can help separate a hog from wet grass, a coyote from a warm field or a deer from brush with similar heat.
Some Pulsar models also list sNETD, or system NETD. It considers the complete thermal system rather than the bare sensor alone. That matters because the hunter uses the lens, sensor, processor, display and image software together.
Pixel Pitch
Pixel pitch tells you the size and spacing of the pixels on the thermal sensor. You will usually see this listed as 12µm or 17µm.
A 12µm sensor can help with fine detail and can support a more compact optical system. A 17µm sensor can perform well in low-contrast conditions, depending on the full design of the scope.
Do not buy a thermal scope based on pixel pitch alone. Pixel pitch only tells part of the story. You also need to look at sensor resolution, NETD, objective lens size, display resolution and magnification.
12µm example: Thermion 2 LRF XG60
A 640×480 sensor, 12µm pixel pitch and 4–32x magnification range make the XG60 a better fit for crop fields, long senderos and other open areas.
17µm example: Thermion 2 LRF XP60
A 640×480 sensor and 17µm pixel pitch support a design aimed at sensitivity in difficult thermal conditions rather than maximum magnification.
Display Resolution
If sensor resolution is what the scope captures, display resolution is what your eye sees.
A good display makes the thermal image easier to read. It also makes reticles, menus and zoomed images clearer. This matters during long hunts because your eye spends a lot of time looking at a screen.
A high-resolution sensor needs a good display. If the display is weak, the hunter may not see all the detail the sensor captures. Most modern Pulsar thermal scopes use AMOLED displays for contrast and performance in dark conditions.
Detection Range Is Not Identification Range
Detection range tells you how far away the scope can detect a heat source. It does not tell you how far away you can identify an animal, and it does not tell you how far you should shoot.
A thermal scope may detect a heat signature at a very long distance. That heat signature may only look like a small bright spot. At that distance, you may not be able to tell whether it is a coyote, dog, calf, deer, hog or another animal.
Identification happens closer than detection. A hunter needs enough detail to know what the animal is, how it is standing and what is behind it. That takes more than a heat signature. The thermal detection range guide explains how detection, recognition and identification differ and what changes those distances.
Magnification, Field of View and Objective Lens Size
Magnification affects how close the image appears. Field of view affects how much ground you can see. Higher magnification usually narrows the field of view.
A wide field of view helps when animals are close, moving fast or traveling in groups. This matters for hog hunting, brush hunting and feeder setups. If hogs scatter, you need to find the next target quickly. Too much magnification can make that harder.
Higher magnification helps when animals are farther away. This matters for coyote hunting, open fields, crop ground and long senderos. It helps you study the target before you shoot.
Base magnification is especially important. A low base magnification gives you a wider starting view. A high base magnification gives you more reach, but it can feel too tight at close range.
Mixed terrain and closer animals
The Thermion 2 LRF XL50 starts at 1.75x, making it a strong HD option for hunters who want a wider field of view and faster target acquisition.
Open country and distant animals
The Thermion 2 LRF XG60 offers 4–32x magnification for hunters who need more reach across crop fields, senderos and open predator country.
Objective Lens Size
The objective lens is the front lens of the scope. Its size affects detection range, image performance, field of view, weight and overall handling.
A larger objective lens can help with long-range detection and image quality. It can also make the scope larger, heavier and more expensive. A smaller objective lens can make the scope easier to carry and handle.
Rangefinders, Ballistics, Batteries and Field Features
Image quality gets most of the attention, but the features around the sensor decide whether the scope is practical through a full night in the field.
Laser Rangefinders
Distance is harder to judge at night and through thermal. A built-in laser rangefinder gives you a fast reading without switching to a separate device.
This matters most for predator hunters and anyone shooting across fields, pastures or long senderos. If shots are usually close, an LRF may not be required. Beyond short feeder distances, it becomes much more useful.
Ballistic Tools and Reticles
Multiple reticles, zeroing profiles and ballistic tools help a thermal scope work across different rifles, loads and distances.
Do not pay for ballistic features you will never use. For changing distances and open-country shooting, however, they can reduce guesswork and make the scope more useful.
Battery Life
Thermal scopes use power constantly. The sensor, display, processor, rangefinder, recording system and Wi-Fi all draw from the battery.
Look beyond the listed runtime. Check whether the battery can be swapped, whether the scope can use external power and how easy it is to recharge in the field.
Recording, Wi-Fi and Apps
Photo and video recording can help review a shot, study animal behavior, document a hunt or compare observations across a property.
Pulsar’s Stream Vision system supports compatible-device connections, file transfer, firmware updates and supported remote features. These should not come before image quality or battery life, but they add practical value.
Durability and Weather Resistance
A thermal scope has electronics inside, but it still has to survive the field.
Night hunting often means dew, rain, mud, dust, cold weather, truck beds, ATVs, gates, fences and brush. Look for waterproof ratings, recoil resistance, operating temperature range and housing material.
Many Pulsar thermal scopes are IPX7 rated, meaning they are built to handle rain, snow and temporary water immersion.
Build the image package around real use
The strongest supporting photograph here is a recognizable Pulsar scope on a rifle in wet grass, rain, frost or mud. The environment should prove the claim instead of merely decorating the section.
Match the Thermal Scope to the Hunt
The easiest way to choose a thermal scope is to start with the animal, terrain, weather and distance—not the largest number on a specification sheet.
| Hunting situation | Prioritize | Why it matters | Pulsar direction |
|---|---|---|---|
| Hogs in mixed terrain | Wide field of view, fast acquisition, battery life, clear identification | Hogs move in groups and may scatter at close or medium range. | XL50, Talion XG35 or Talion XQ35 PRO |

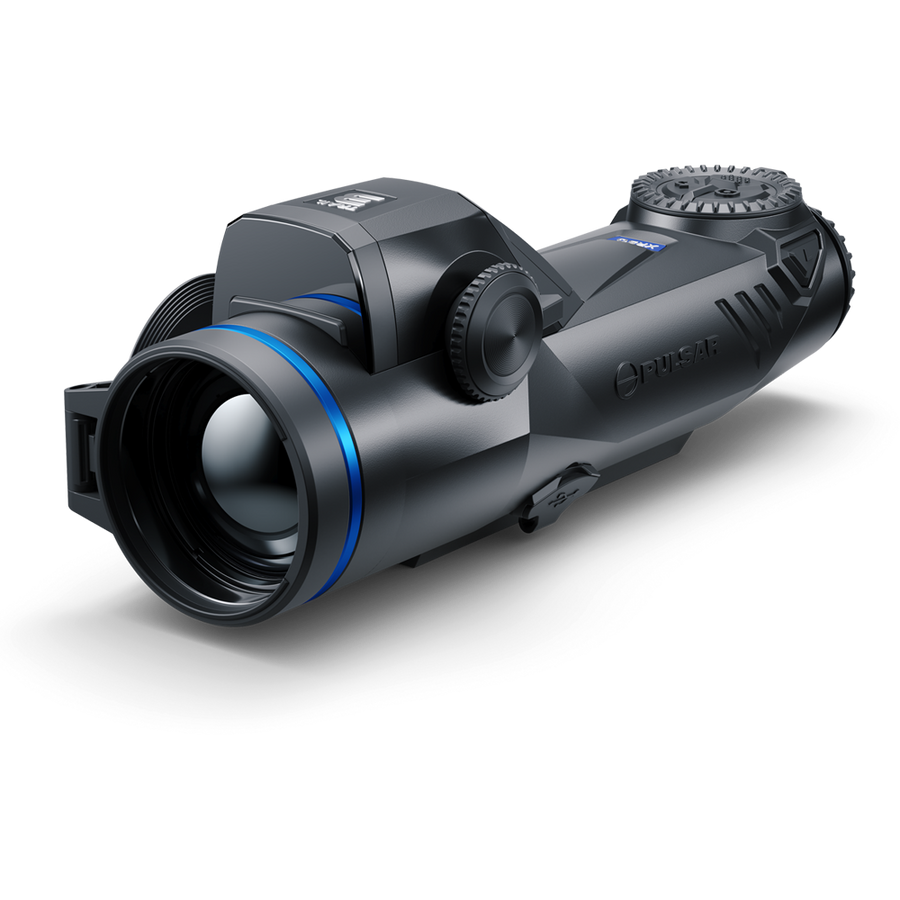

| Predators at distance | Image detail, detection range and magnification | Coyotes are smaller and often stay farther out. | XL60, XG60 or Trail 3 LRF XR50 |
| Open fields and senderos | Higher magnification, built-in LRF and ballistic tools | Distance estimation and target study matter more. | XG60, XL60 or Trail 3 LRF XR50 |

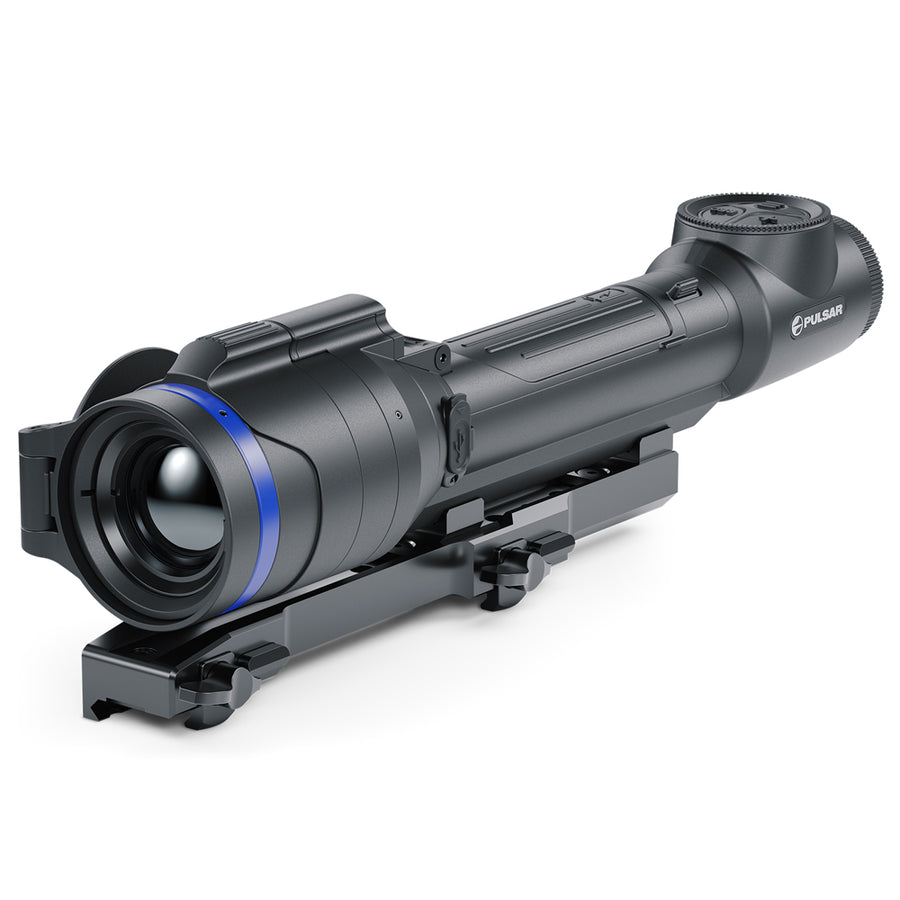

| Humidity, fog and wet fields | NETD and sNETD | Low temperature contrast can flatten the image. | XP60 or Talion XQ35 PRO |

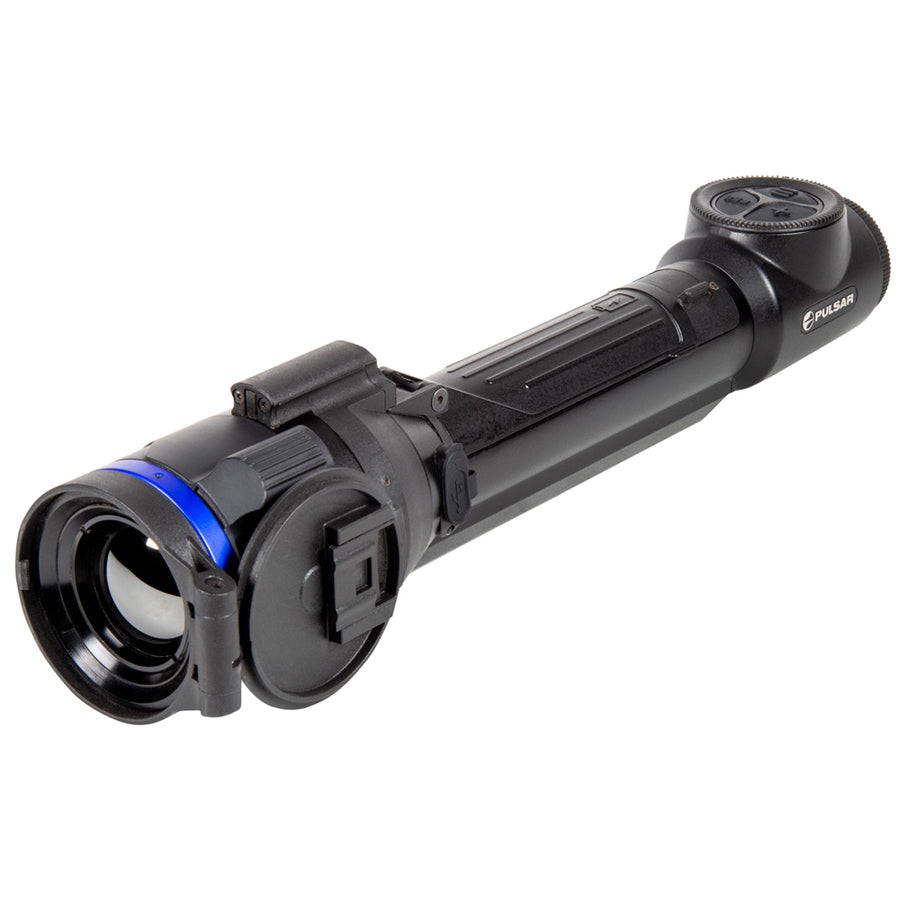

| Mobile hunting | Size, weight, handling and battery system | A compact optic is easier to carry between stands or across rough ground. | Talion XG35 or Talion XQ35 PRO |
Common Thermal Scope Buying Mistakes
Most bad purchases come from treating one impressive specification as the entire buying decision.
Which Pulsar Thermal Device Should You Choose?
Choose the device type based on whether you need to scan, aim, observe for long periods, retain a familiar day optic or combine thermal and digital imaging in one platform.
A riflescope is built for aiming from the rifle. A monocular is a compact handheld scanner. A binocular supports longer two-eye observation. A front attachment adds thermal capability to an existing daytime riflescope. A multispectral device gives you more than one imaging channel in a single unit.
Thermal Riflescopes
Choose a thermal riflescope when the device needs to identify, range and aim from the rifle. Riflescopes suit hog hunting, predator control and other shooting applications where a dedicated thermal sight is the primary optic.
Browse thermal riflescopesThermal Monoculars
Choose a thermal monocular for compact, one-handed scanning. Monoculars help hunters, landowners and wildlife observers search large areas without keeping a rifle shouldered.
Browse thermal monocularsThermal Binoculars
Choose thermal binoculars for extended observation with both eyes. The binocular form is useful when comfort, depth of viewing and steady scanning matter more than minimum size.
Browse thermal binocularsThermal Front Attachments
Choose a thermal front attachment when you want to add thermal capability ahead of an existing daytime riflescope. This keeps the familiar day optic, mounting position and rifle setup in use.
Browse thermal attachmentsMultispectral Devices
Choose a multispectral device when you want thermal and digital imaging channels in one unit. Pulsar Symbion models support multiple viewing modes, including Picture-in-Picture, for users who need more than a thermal-only image.
Browse Pulsar Symbion devicesExplore Pulsar Thermal Riflescope Families
Compare Pulsar riflescope series by form factor and intended use. Thermion models use a traditional riflescope profile, Talion models emphasize compact handling, and Trail models combine a field-oriented design with integrated ranging options.
Thermal Imaging FAQ
Direct answers to the questions new thermal users ask most often.
How does a thermal scope work?
Does thermal imaging need light?
Is thermal imaging the same as night vision?
What thermal sensor resolution should I choose?
What does NETD mean on a thermal scope?
What is the difference between detection and identification range?
Do I need a built-in laser rangefinder?
Continue with the guide that matches your next decision.
Use the device categories above when you are still deciding between a riflescope, handheld, binocular, attachment or multispectral optic. When you know you need a rifle-mounted thermal sight, move to the buying guide for use-case recommendations and model comparisons.
Explore Thermal Imaging Topics
Use these focused guides for direct answers about device selection, hunting applications, image sensitivity and practical range.
