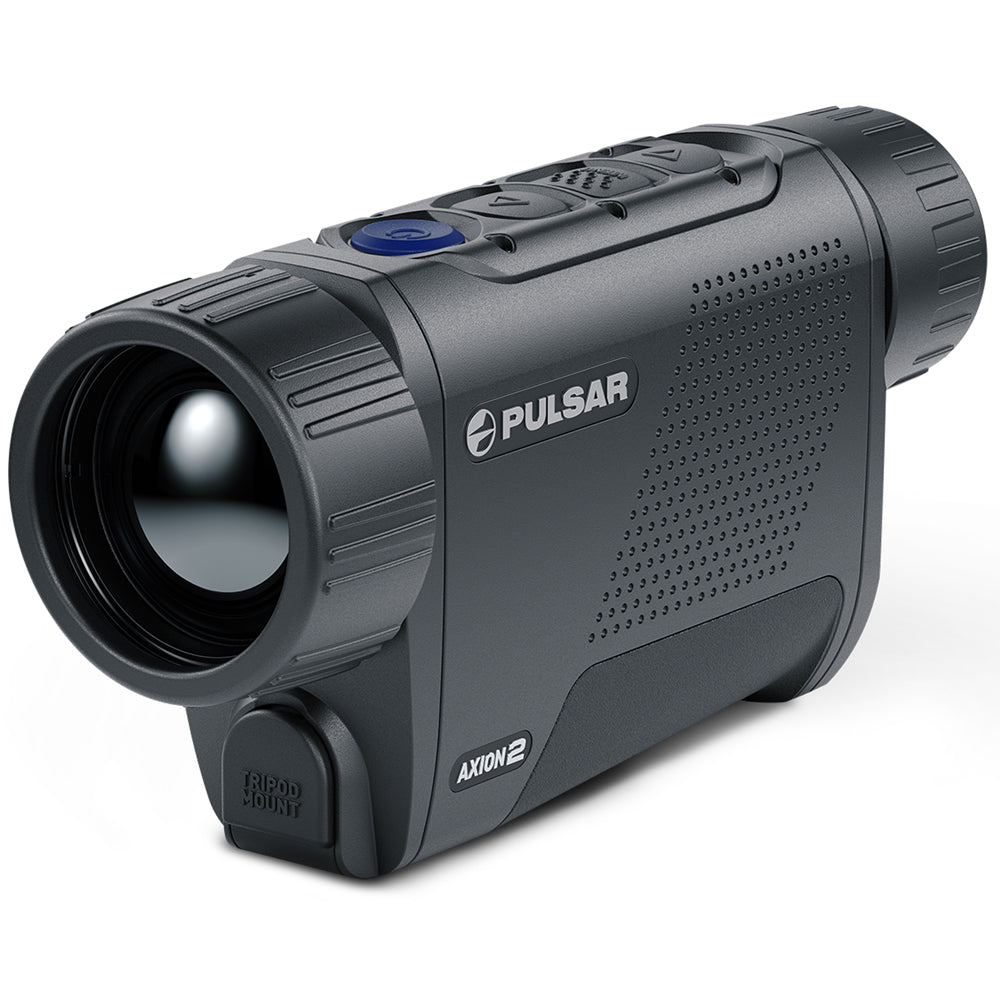

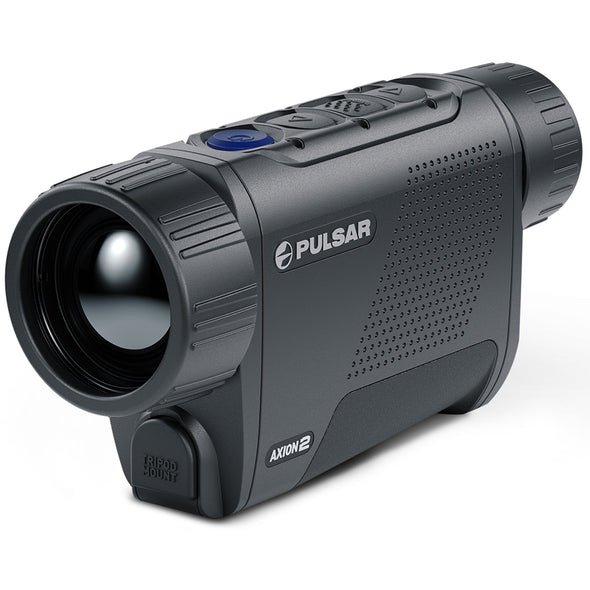

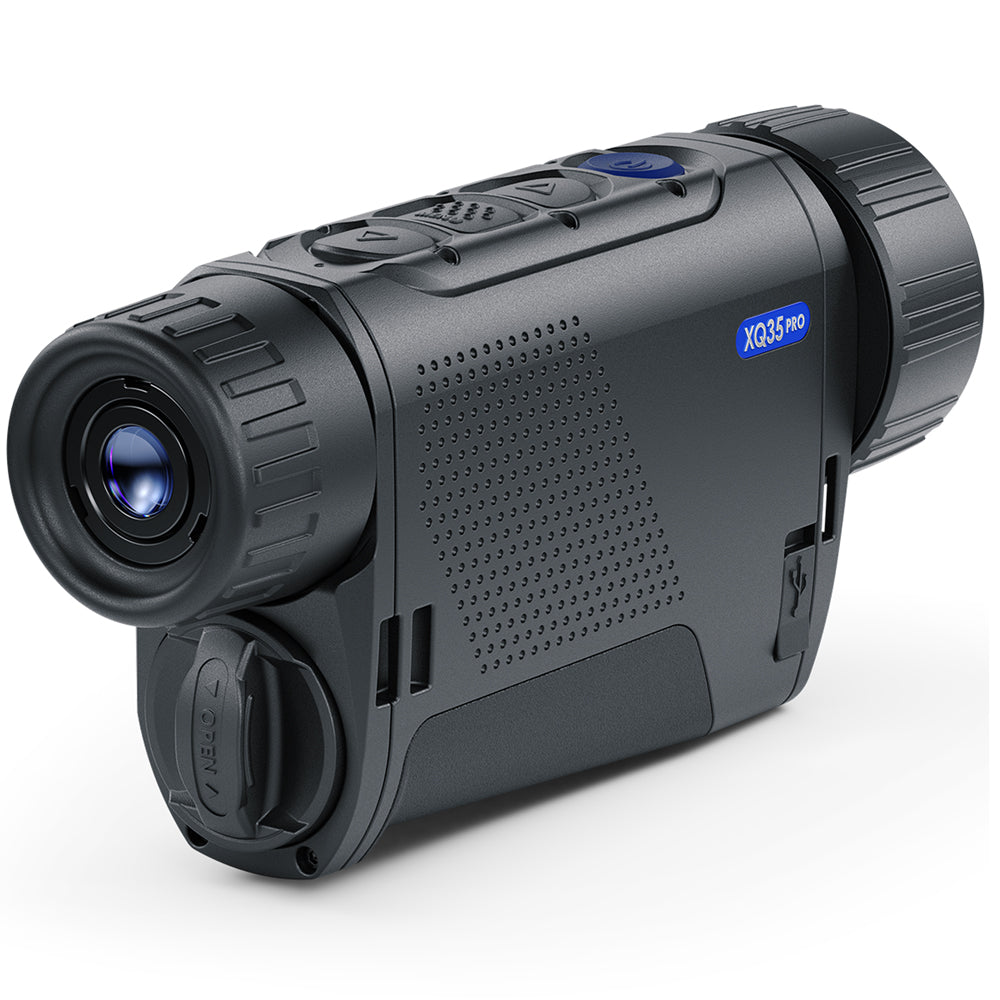

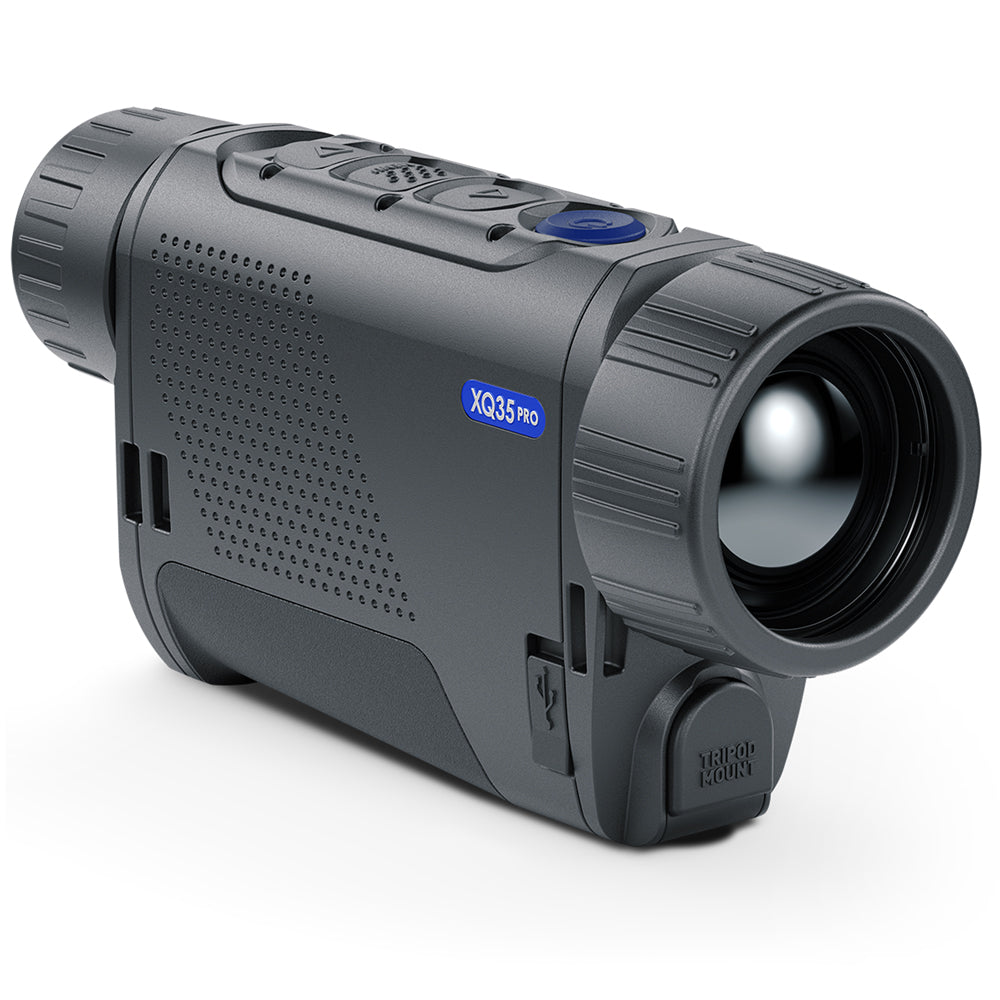

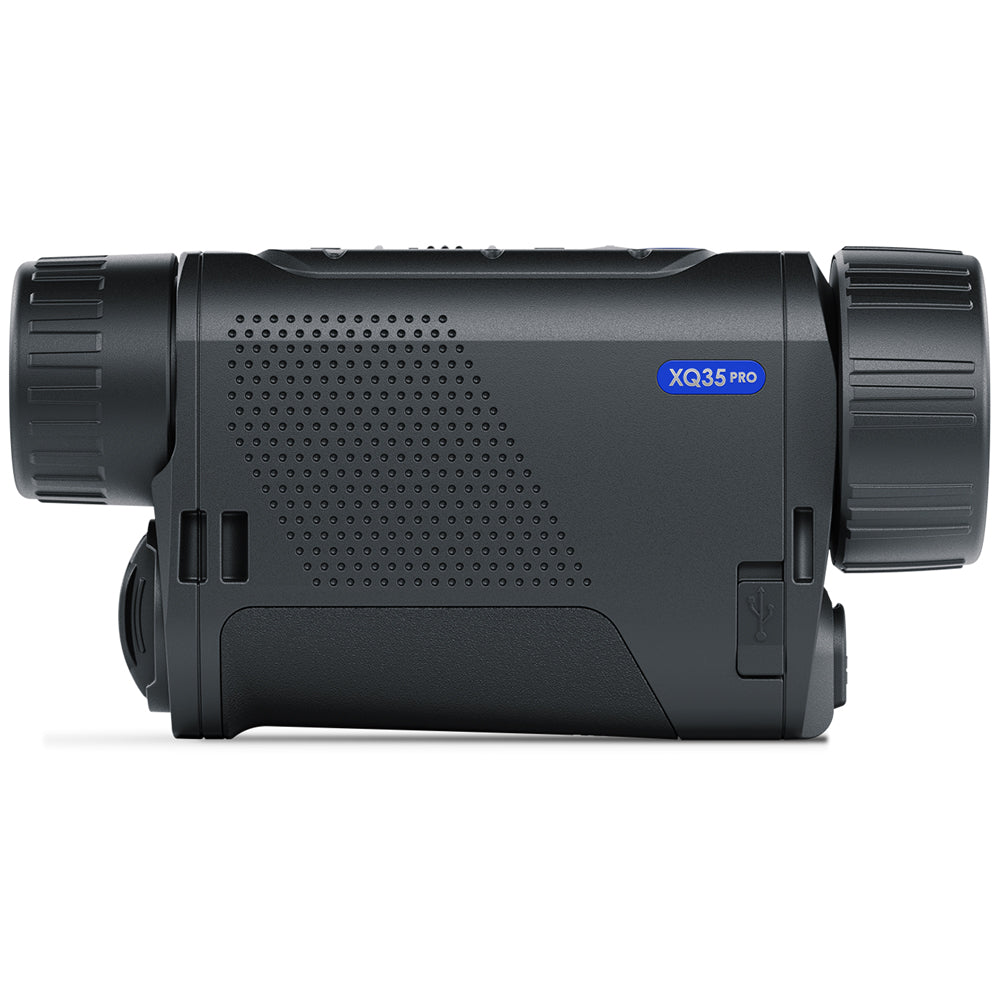

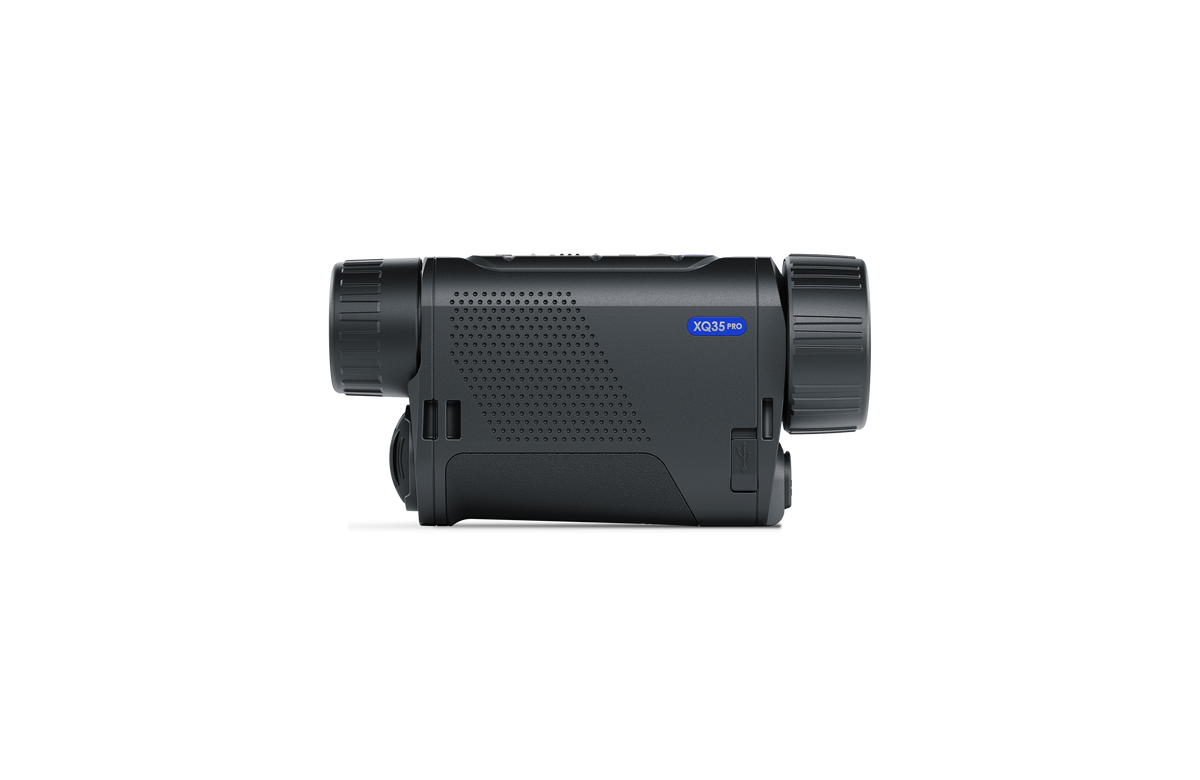

Axion 2 XQ35 PRO Thermal Monocular

Name: Axion 2 XQ35 PRO Thermal Monocular
Brand: pulsarnv
SKU: PL77501
Price: 1499.97 USD
Availability: OutOfStock

Price: $1,499.97

$1,499.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL77501

Product variants

Quantity

Description

Description

Pulsar’s pocket-sized Axion 2 XQ35 Pro thermal monocular has received an upgrade. With a new 384x288 microbolometer sensor boasting a highly refined thermal sensitivity of <25mK, the new Axion 2 XQ35 Pro can detect more subtle changes in infrared heat from over 1400 yards away, resulting in unprecedented image quality. This is an excellent device for outdoor observation at any hour, even over longer distances. The Axion 2 XQ35 Pro’s clear, crisp field-of-view imaging is delivered via a pristine 640x400 AMOLED display.

With 2-8x magnification, along with built-in photo and video recording, Wi-Fi connectivity, a 16GB memory card and pocket-size design, the Axion 2 XQ35 Pro is a technological wonder. The Axion 2 is also supported by the Stream Vision 2 app, enabling shooters to record and preserve all their precious shooting memories, download firmware upgrades, wirelessly transfer files, and use a smartphone or tablet as a secondary display.

Weighing a mere 0.6 lbs., the Axion 2 XQ35 Pro is made of a high-quality reinforced magnesium alloy that boasts IPX7 protection and operates in temperatures between -13F to 122F. Utilizing a Pulsar APS5 Li-ion battery, the Axion 2 XQ35 Pro operates for up to 11 hours.

Features:

<25mK NETD sensor
384x288 Microbolometer
1400+ yard detection range
640x400 AMOLED display
Built-in photo and videorecording
Wi-Fi connectivity and Stream Vision 2 App Supported
8 color palettes
IPX7 Fully Waterproof

Downloads

Axion 2 XQ35 PRO Specifications Sheet

Free shipping on orders over $1,000
Ships from Mansfield, Texas in 1–2 business days
3-year warranty, 5 years with registration
15-day returns on new-condition units — details

View full details

Main

Sensor 384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens F35 / 1.0
Magnification, x 2 - 8 (x4 zoom)
Field of view (HxV), degrees / m@100m 10.7х8 / 18.2x13.7
Detection range, m 1300

Sensor

Type uncooled
Resolution, pixels 384x288
Pixel pitch, µm 17
NETD, mK <25
Frame rate, Hz 50

Optics

Objective lens F35 / 1.0
Magnification, x 2 - 8 (x4 zoom)
Field of view (HxV), degrees / m @ 100 m 10.7х8 / 18.2x13.7
Eye relief, mm 14

Display

Type AMOLED
Resolution, pixels 640x400

Range Performance

Detection range, m 1300

Video Recorder

Video / photo resolution, pixel 528x400
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPХ7
Operating temperature range, °С -25 – +40

Connections and Compatibilities

Mount, type 1/4"
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0 – 4.2
Battery type APS 5 Li-ion Battery Pack
Capacity, mAh 4900
Operating time on battery pack (at t=22°C), h * 11
External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Magnesium alloy
Dimensions, mm 152x50x74
Weight, kg 0.38 (with the APS5 battery)

Trade Data

SKU (Model #) 77501
Status production

View all specs

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Fast aperture F35/1.0 lens

Germanium F35/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Axion 2 thermal imaging device sensor is distinguished for its clarity and detailing.

3 levels of sensitivity amplification

The Axion 2 thermal imaging devices use a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

Pocket-sized dimensions and light weight

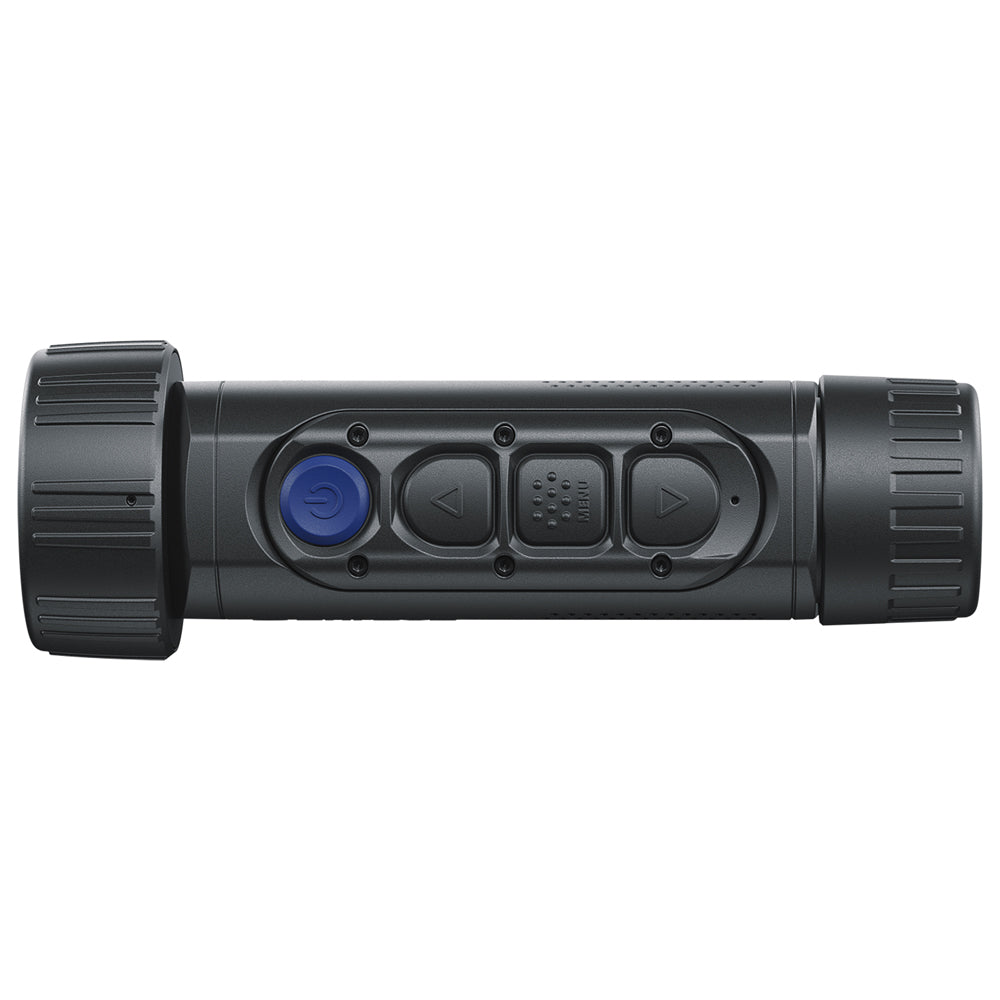

Axion 2 has a space-saving and pocket-sized design and weighing 300 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

Variable magnification

Digital zoom provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.

Built-in photo and video recorder. Free 16 GB cloud space

The Axion 2 has a built-in video recorder. The internal memory of the Axion 2 can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video. The footage is copied to a computer hard drive via a USB-C port. The Axion 2 owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via WiFi.

Distant operation and firmware update from smartphone via Stream Vision 2 App

Built-in WiFi connects the Axion 2 to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

Fast start-up

The Axion 2 features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button. Quick start-up helps save battery power: when hunting, the Axion 2 doesn't need to be kept ready at all times, simply turn it on when needed.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

High-contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
