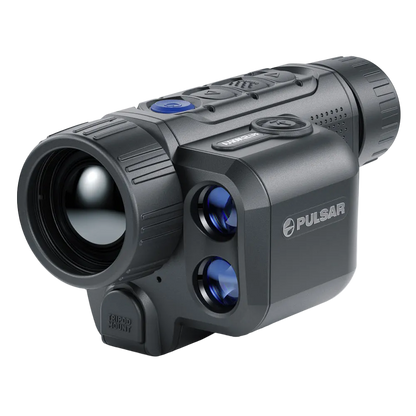

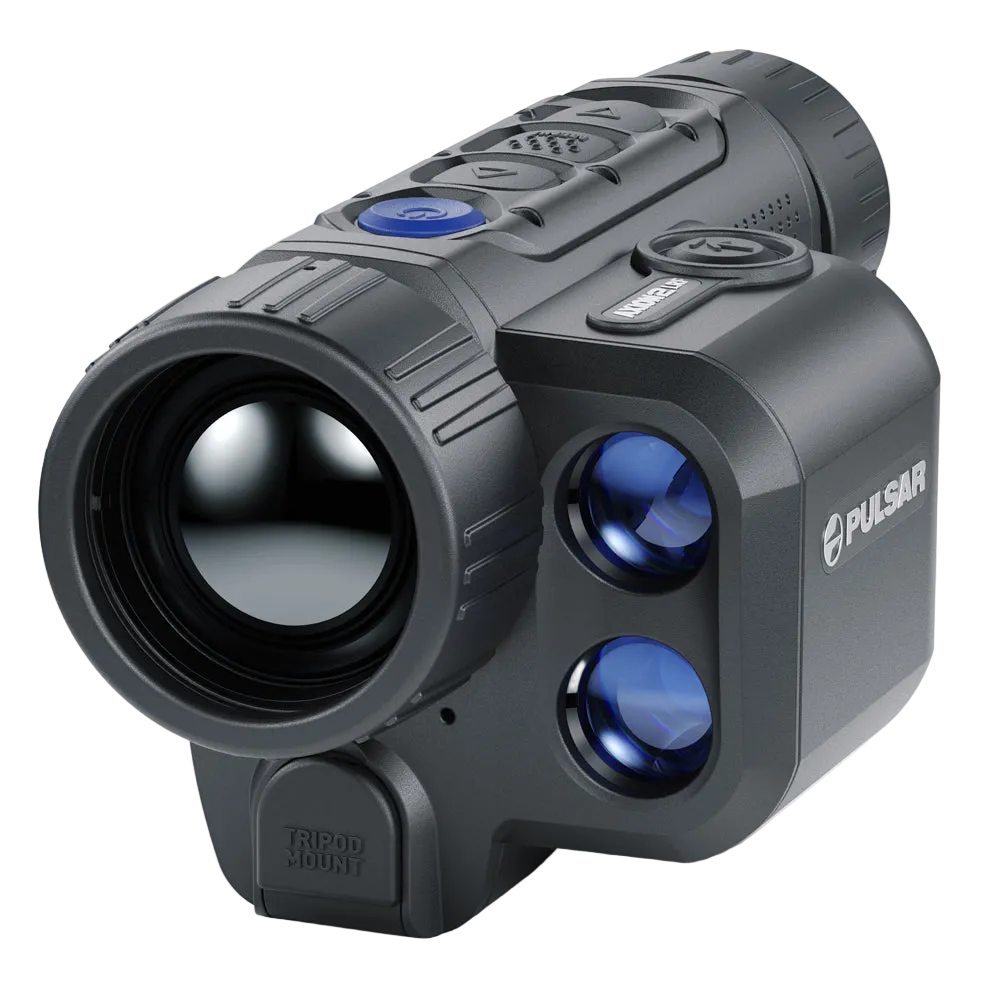

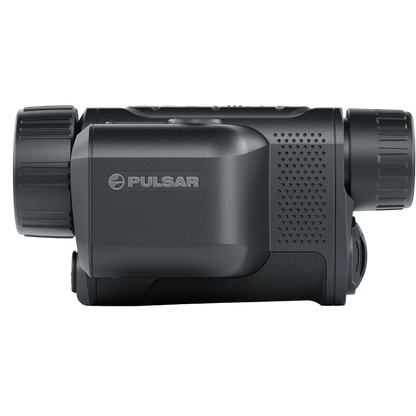

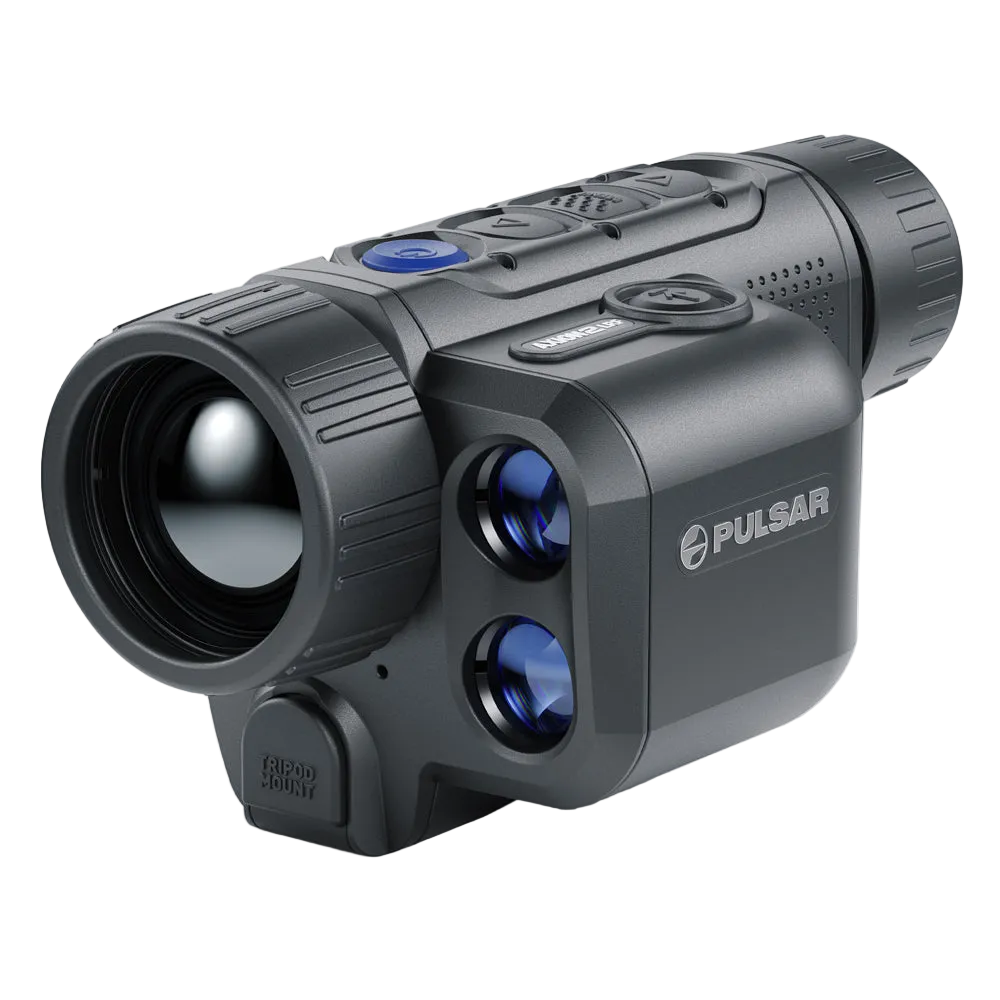

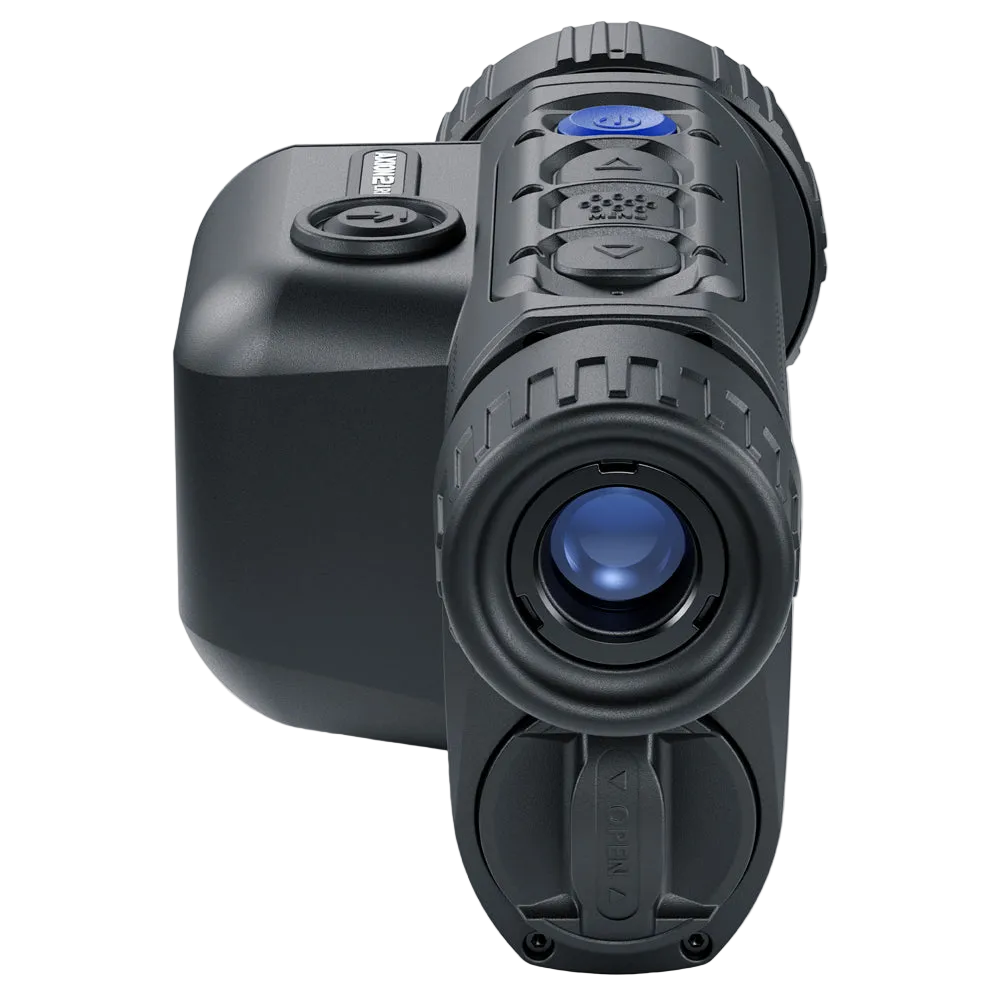

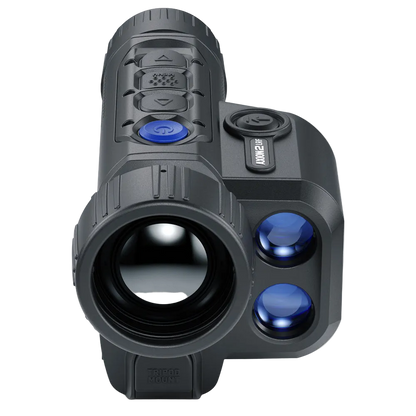

Axion 2 LRF XG35 Thermal Monocular

Name: Axion 2 LRF XG35 Thermal Monocular
Brand: pulsarnv
SKU: PL77477
Price: 2999.97 USD
Availability: OutOfStock

Price: $2,999.97

$2,999.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL77477

Product variants

Quantity

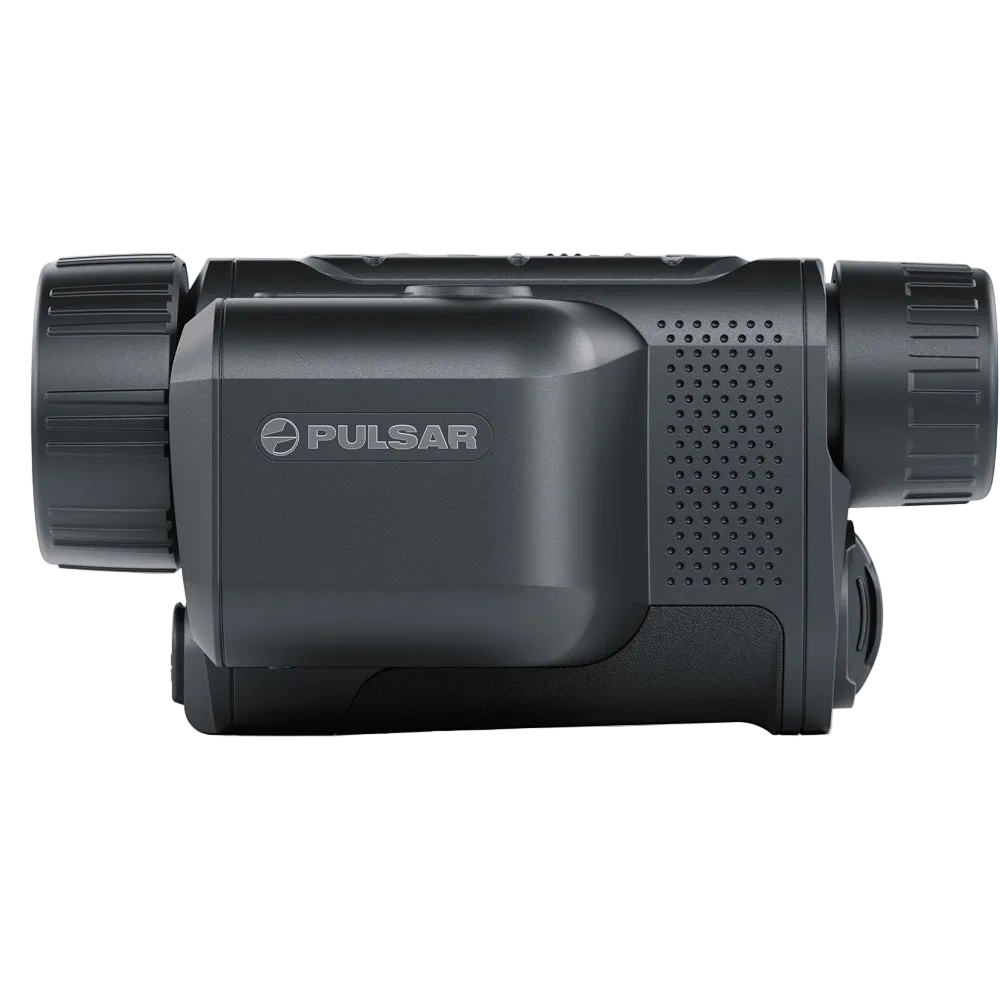

Pulsar’s pocket-sized thermal monocular family—the Axions—have another member – the Axion 2 LRF XG35! With a powerful 640x480 microbolometer that detects heat signatures over 1900 yards away, this is an excellent device for scoping large areas and locating prey. With an included 1100-yard laser rangefinder, this device gives shooters an accurate approximation of their target’s distance. It then transmits these images and information to a pristine 1024x768 AMOLED display, giving the user clear, crisp image of their target.

With 2.5-20x magnification along with built-in photo and video recording, Wi-Fi connectivity and a 16GB memory card, the Axion 2 LRF XG35 is a technological wonder. The Axion 2 is also supported by the Stream Vision 2 app, enabling shooters to record and preserve all their precious shooting memories.

Weighing a mere 0.6lbs, the Axion 2 LRF XG35 is made of a high-quality reinforced magnesium alloy that boasts IPX7 protection and operates in temperatures between -13F to 122F. Utilizing a Pulsar APS5 Li-ion battery, the Axion 2 LRF XG35 operates for up to 7 hours.

Battery Used

Type: Pulsar APS5 Li-ion
Quantity: 1

Product Downloads

Quick Start Guide

Features

640x480 Microbolometer
1900+ yard detection range
1024x768 AMOLED display
Built-in photo and video recording
Wi-Fi connectivity and Stream Vision 2 App Supported
8 color palettes
IPX7 Fully Waterproof

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Model # (SKU)	77477
Microbolometer resolution, pix	640x480
Frame rate, Hz	50
Sensor NETD, mK	<40
Pixel pitch, µm	12
Display type and resolution, pix	AMOLED 1024x768
Built-in photo & video recorder	Yes
Built-in memory, GB	16
Stream Vision 2 app support	Yes
Magnification, x	2.5-20x
Digital zoom, x	2/4/8
Lens focus, mm	35
Relative aperture, D/f'	1:1
Field of view, °	12.5
Eye relief, mm	14
Diopter adjustment, dptr. +4/-5	+4/-5
Detection range, m	1300
Battery type	Pulsar APS5 Li-ion
Battery life, h	7
External power supply	5V (USB Type-C)
Operating temperature, °С	-025… + 40
Level of protection (acc. to IEC 60529)	IPX7
Dimensions, mm	152x74x75
Weight, kg	0.35

Free shipping on orders over $1,000
Ships from Mansfield, Texas in 1–2 business days
3-year warranty, 5 years with registration
15-day returns on new-condition units — details

View full details

Main

Sensor 640x480 pix. @ 12 µm (NETD <40 mK)
Objective lens F35 / 1.0
Magnification, x 2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m@100m 12.5x9.4 / 21.9x16.4
Detection range, m 1750

Sensor

Type uncooled
Resolution, pixels 640x480
Pixel pitch, µm 12
NETD, mK <40
Frame rate, Hz 50

Optics

Objective lens F35 / 1.0
Magnification, x 2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m @ 100 m 12.5x9.4 / 21.9x16.4
Eye relief, mm 14

Display

Type AMOLED HD
Resolution, pixels 1024x768

Range Performance

Detection range, m 1750

Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. measuring range, m 1000
Measurement accuracy, m ± 1

Video Recorder

Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPХ7 (waterproof)
Operating temperature range, °С -25 – +40

Connections and Compatibilities

Mount, type 1/4"
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0 – 4.2
Battery type APS 5 Li-ion Battery Pack
Capacity, mAh 4900
Operating time on battery pack (at t=22°C), h * up to 7
External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Magnesium alloy
Dimensions, mm 152x74x75
Weight, kg 0.47 (with the APS5 battery)

Trade Data

SKU (Model #) 77477
Status production

View all specs

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

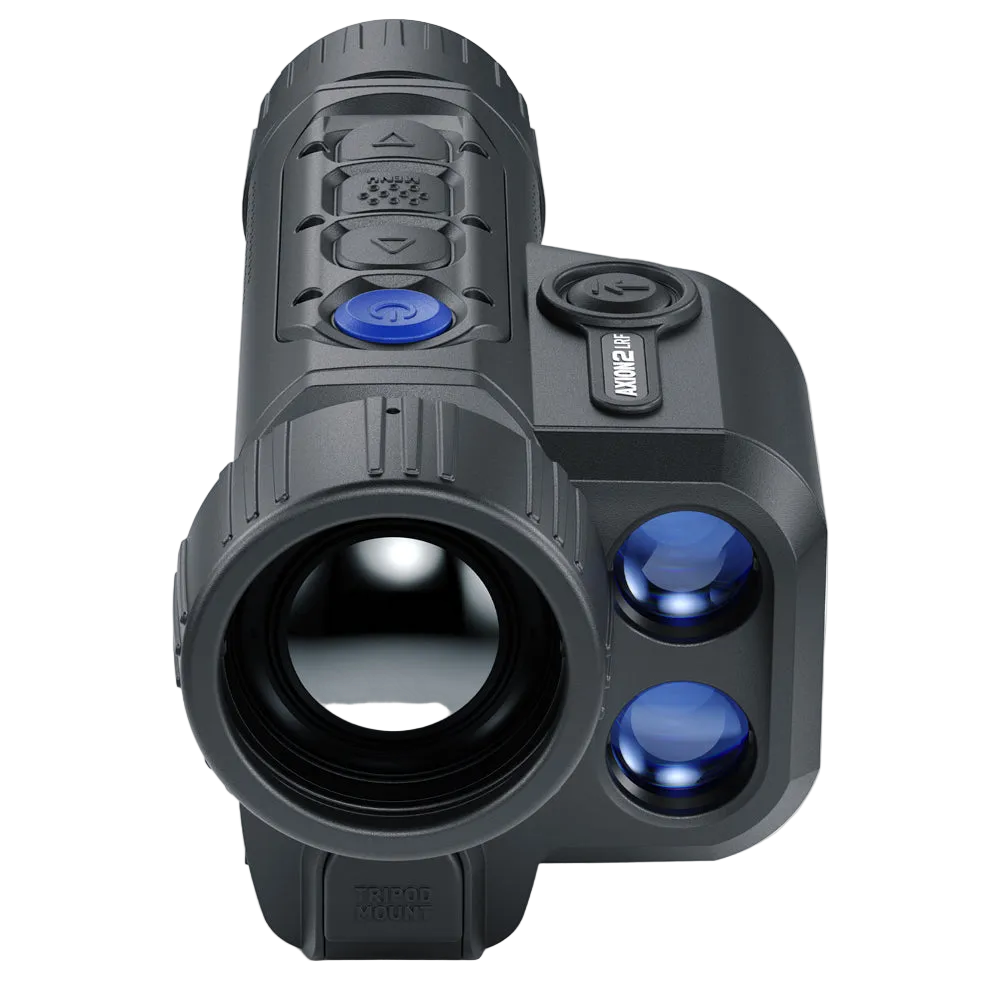

Long-distance laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

3 levels of sensitivity amplification

The Axion 2 thermal imaging devices use a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

Distant operation and firmware update from smartphone via Stream Vision 2 App

Built-in WiFi connects the Axion 2 to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

Variable magnification

Digital zoom provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.

Pocket-sized dimensions and light weight

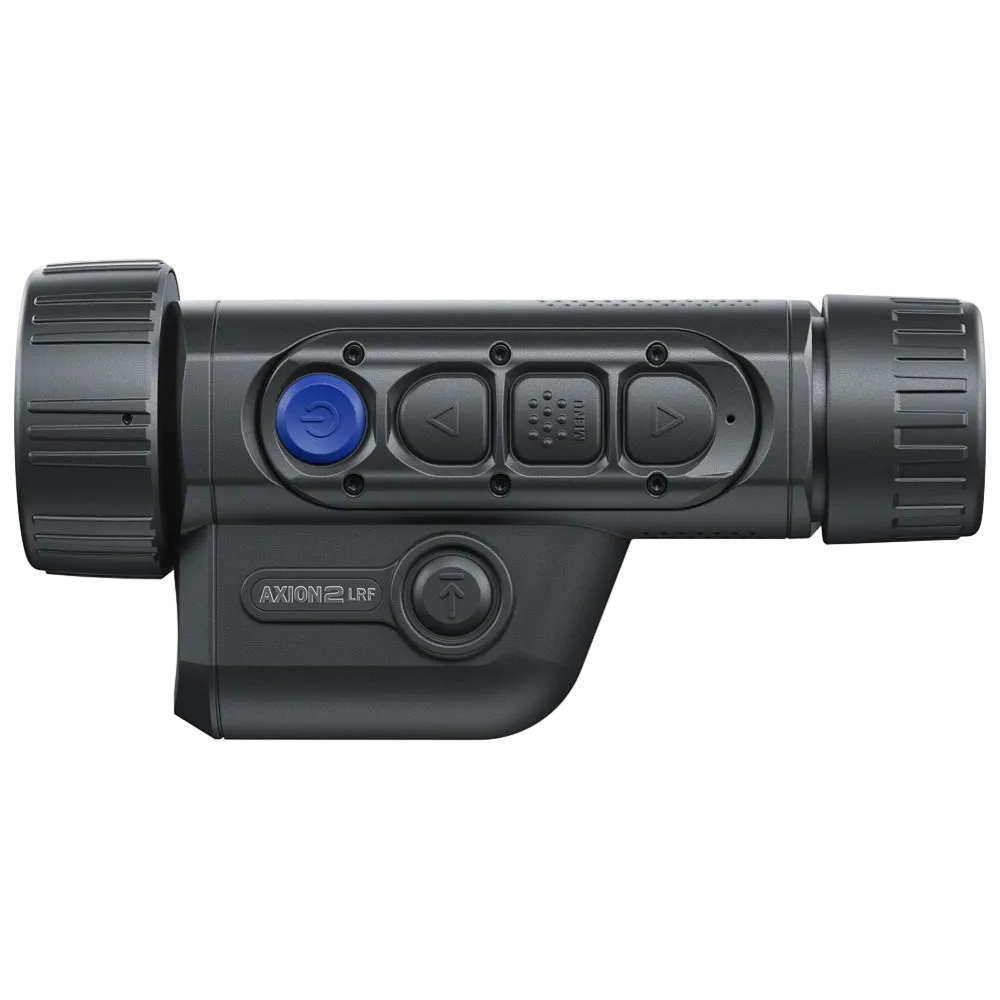

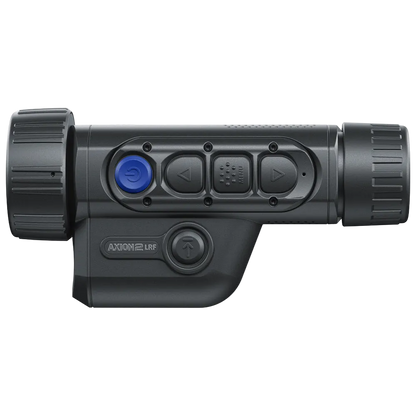

Axion 2 LRF has a space-saving and pocket-sized design and weighing 350 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

High-contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

Fast start-up

The Axion 2 features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button. Quick start-up helps save battery power: when hunting, the Axion 2 doesn't need to be kept ready at all times, simply turn it on when needed.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
