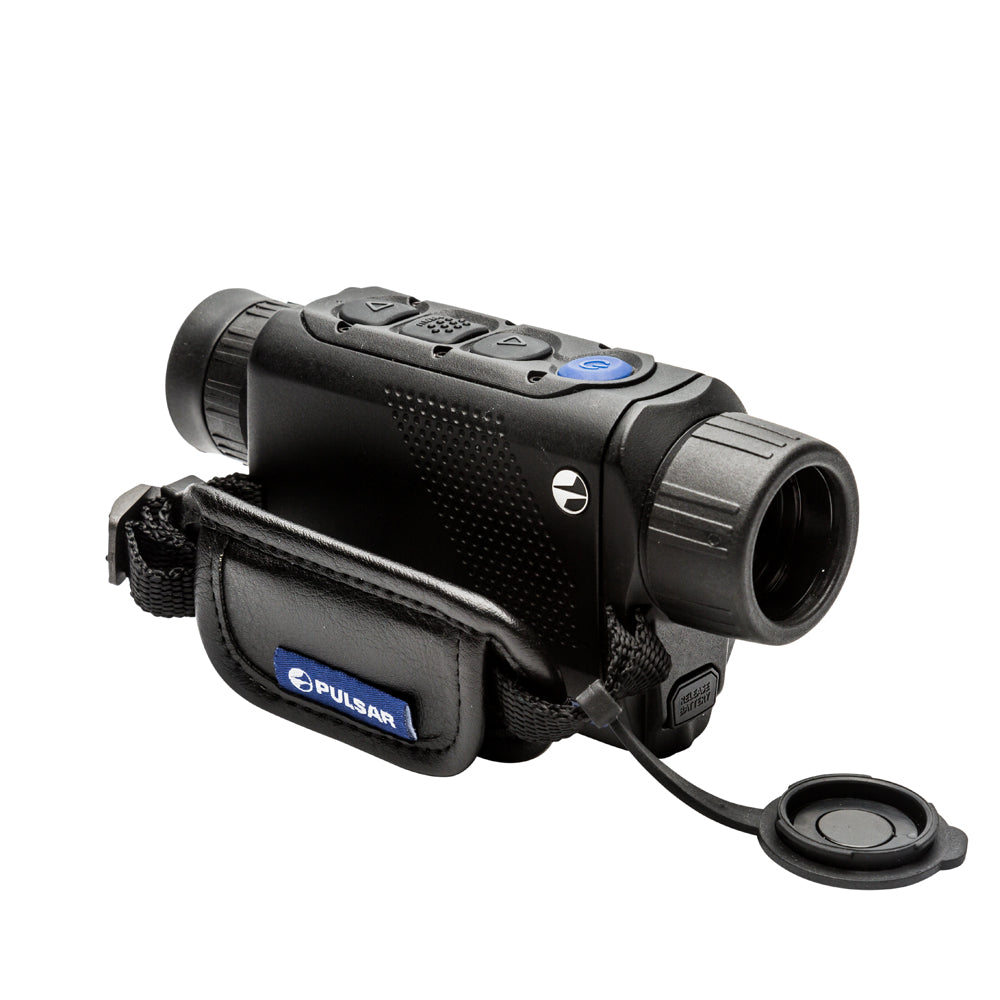

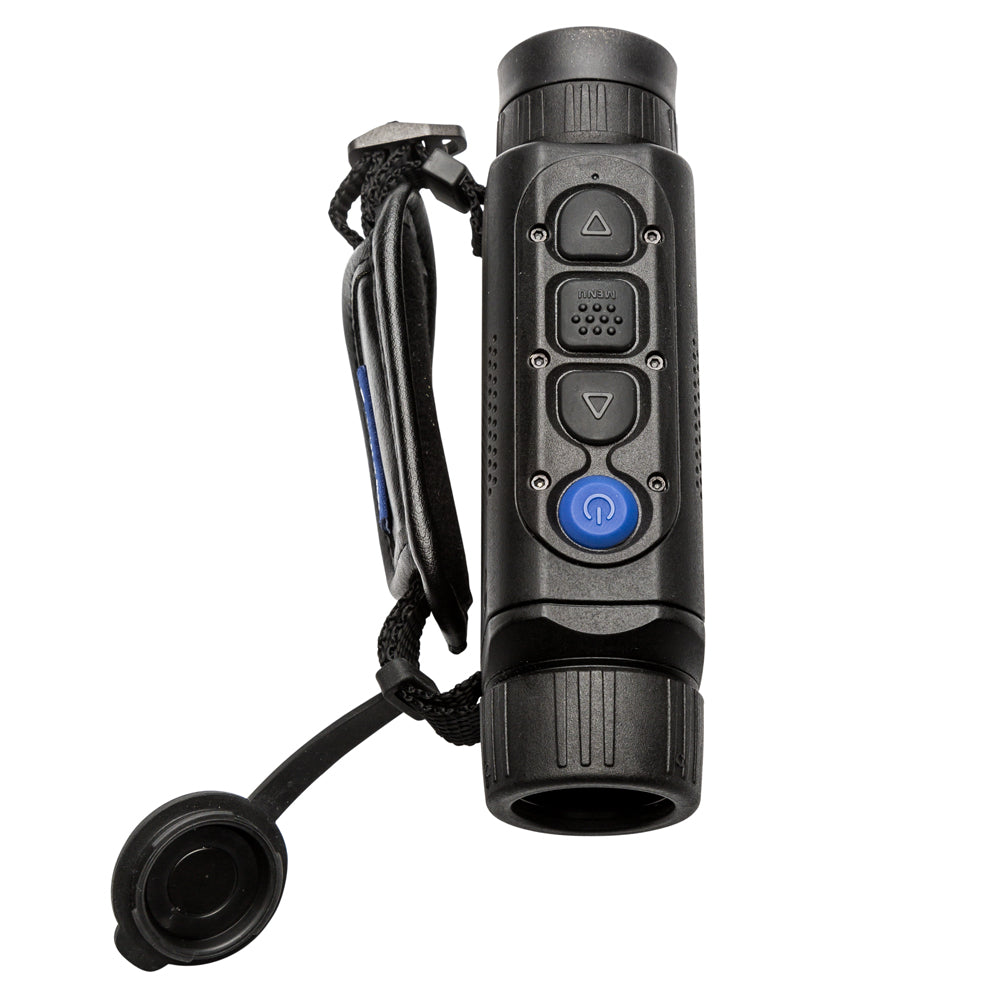

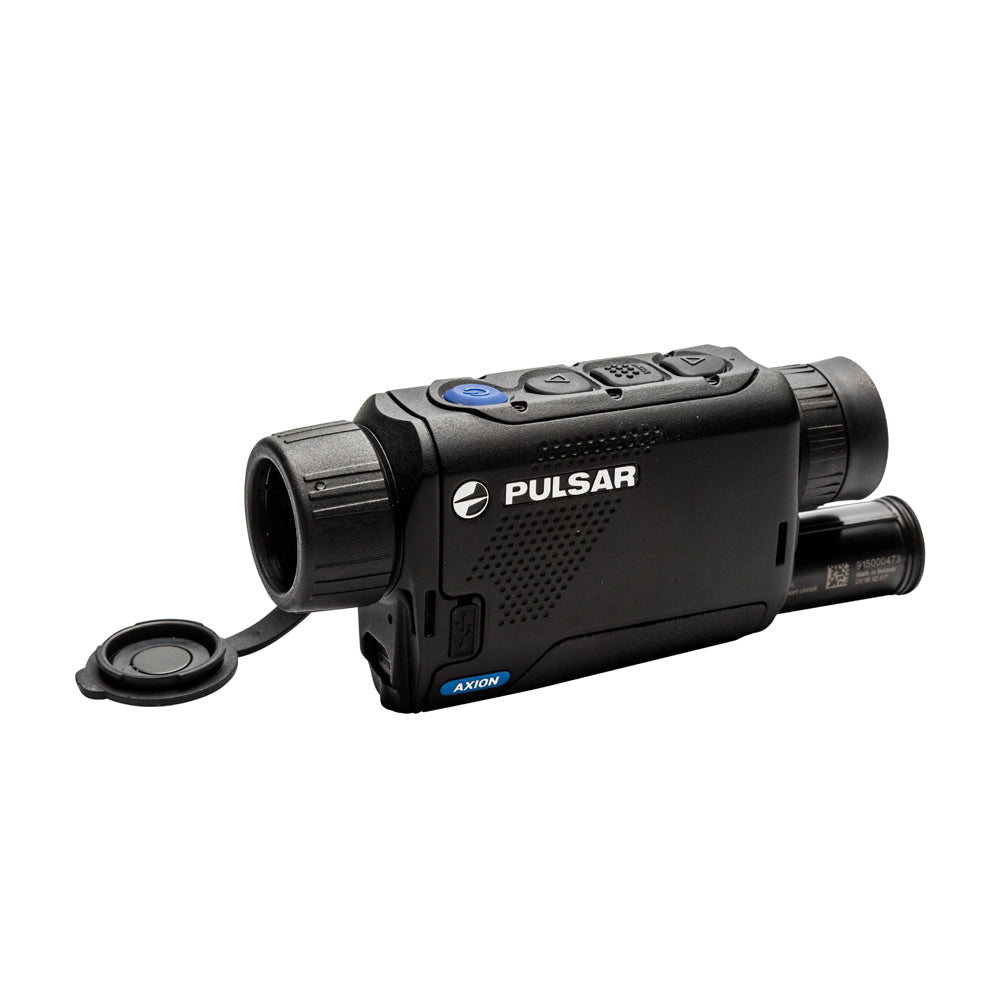

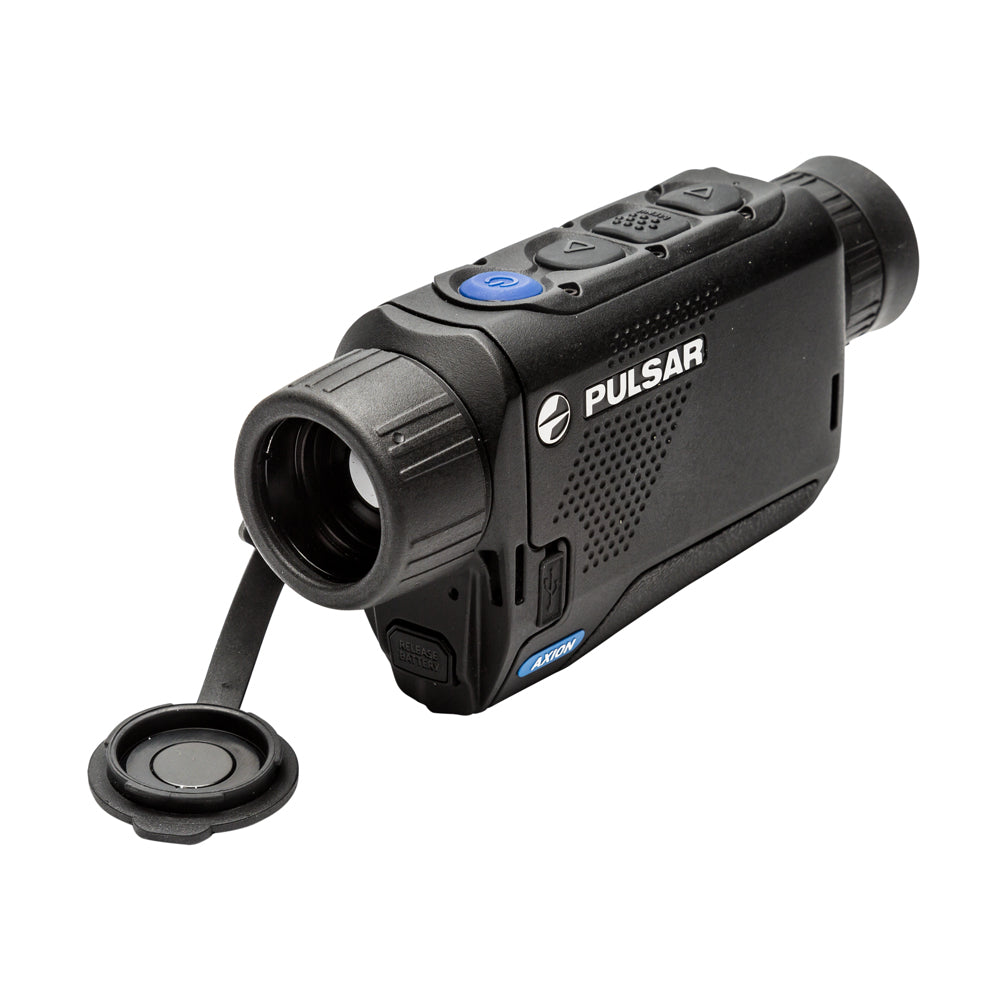

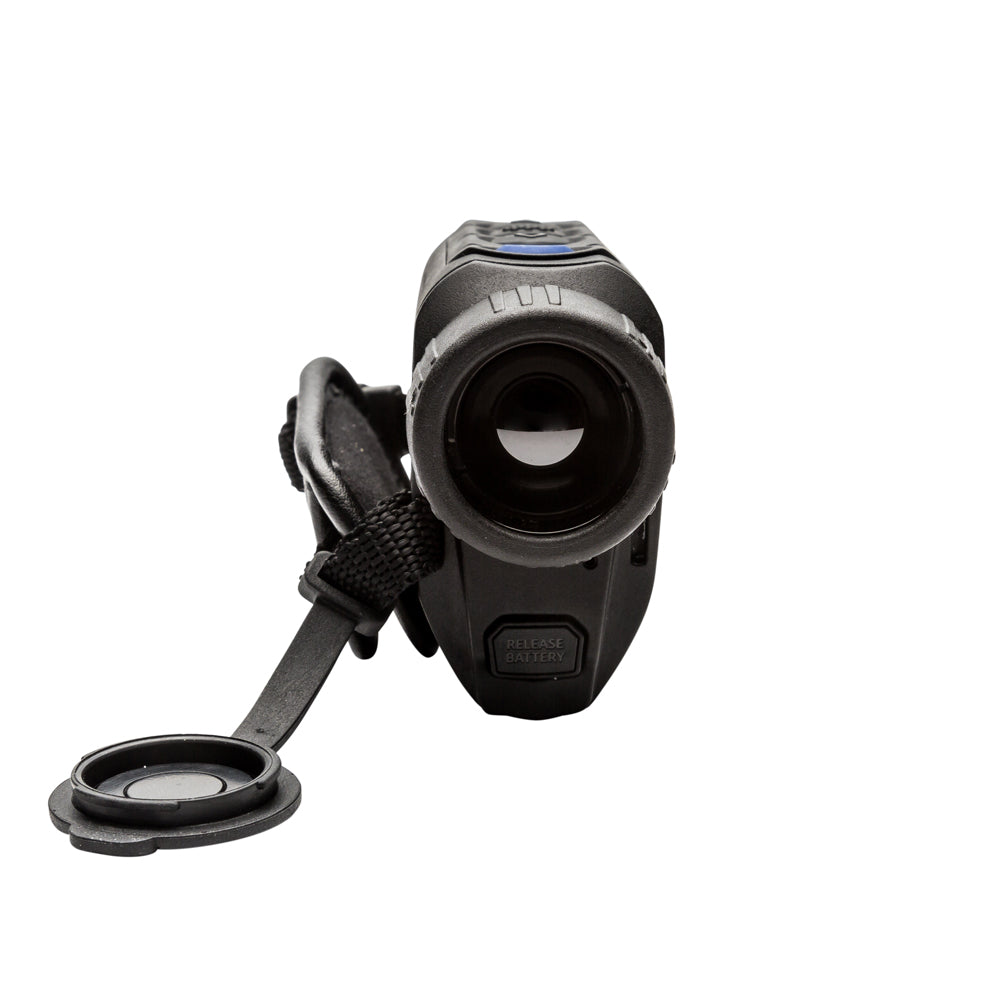

Weighing 8.8 ounces, the pocket-sized Axion XM30S Thermal Monocular packs a powerful punch. The Axion XM30S boasts an upgraded, full-color 1024x768 HD AMOLED display, 8-color palettes and 4.5x-18x digital magnification. Its 320x240, 12-micron thermal sensor provides a 1,400-yard detection range, and the simple user interface enables users of all skills to operate it. With a 3-second startup, the Axion XM30S has Wi-Fi connectivity, compatibility with the Stream Vision App, integrated still-image and video recording with audio, picture-in-picture mode and 16gb of internal storage. Built with rugged reliability in mind, the Axion XM30S features a textured magnesium-alloy body and is IPX7 waterproof-rated (submersible in 3 feet of water for up to 30 minutes).
4x digital zoom - continuous zoom and 2x / 4x stepped zoom

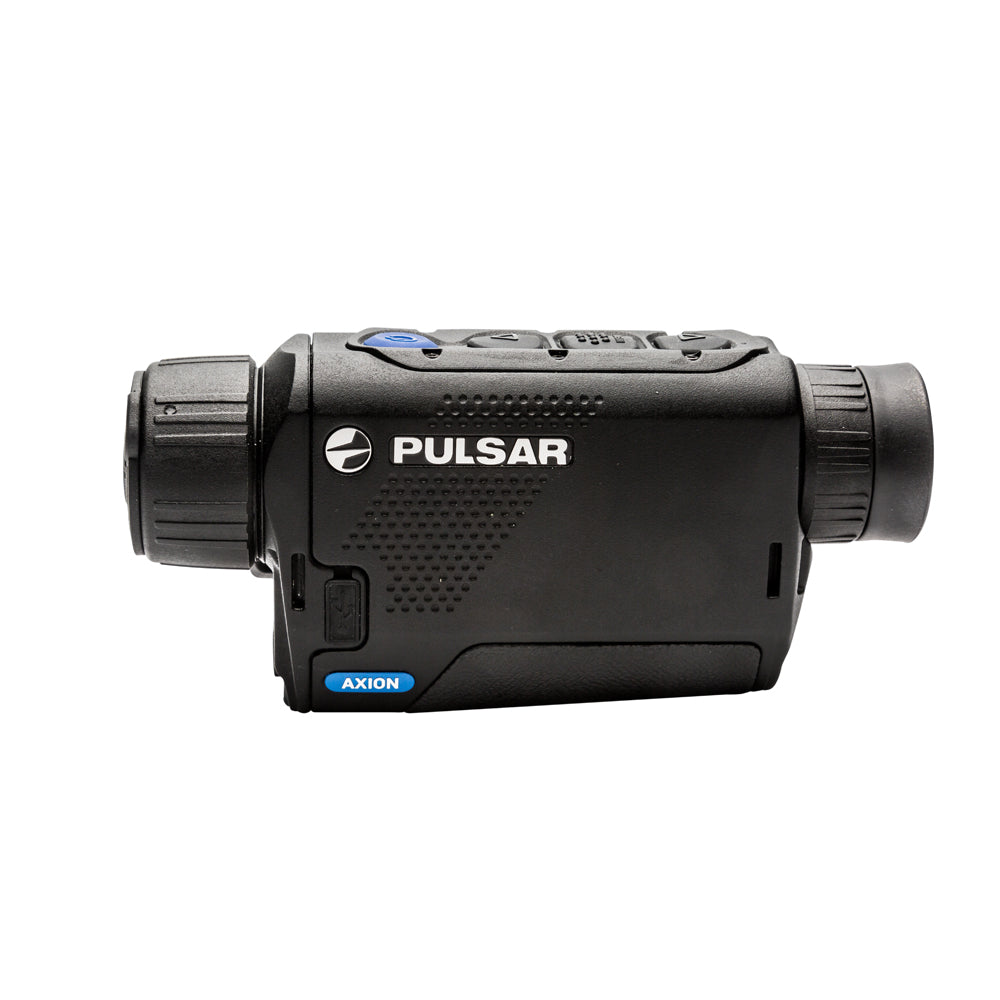

Lightweight and rugged magnesium alloy housing

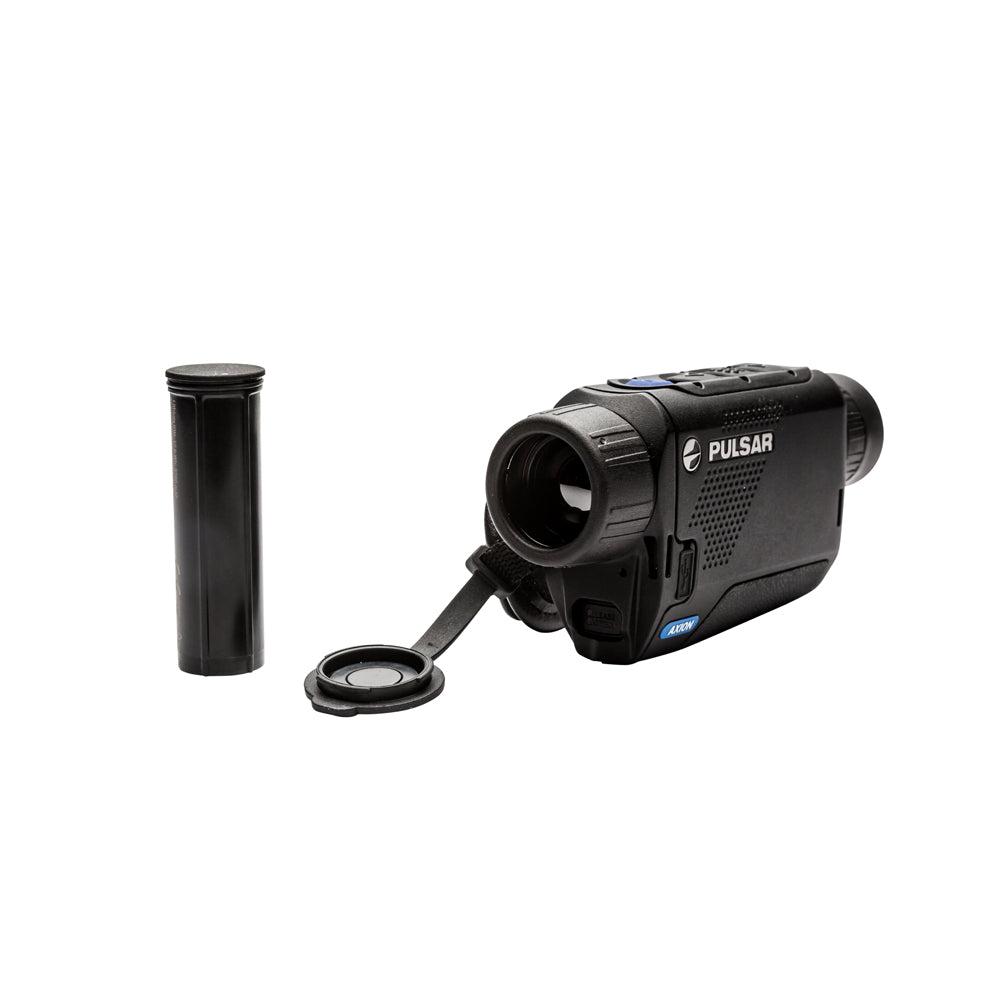

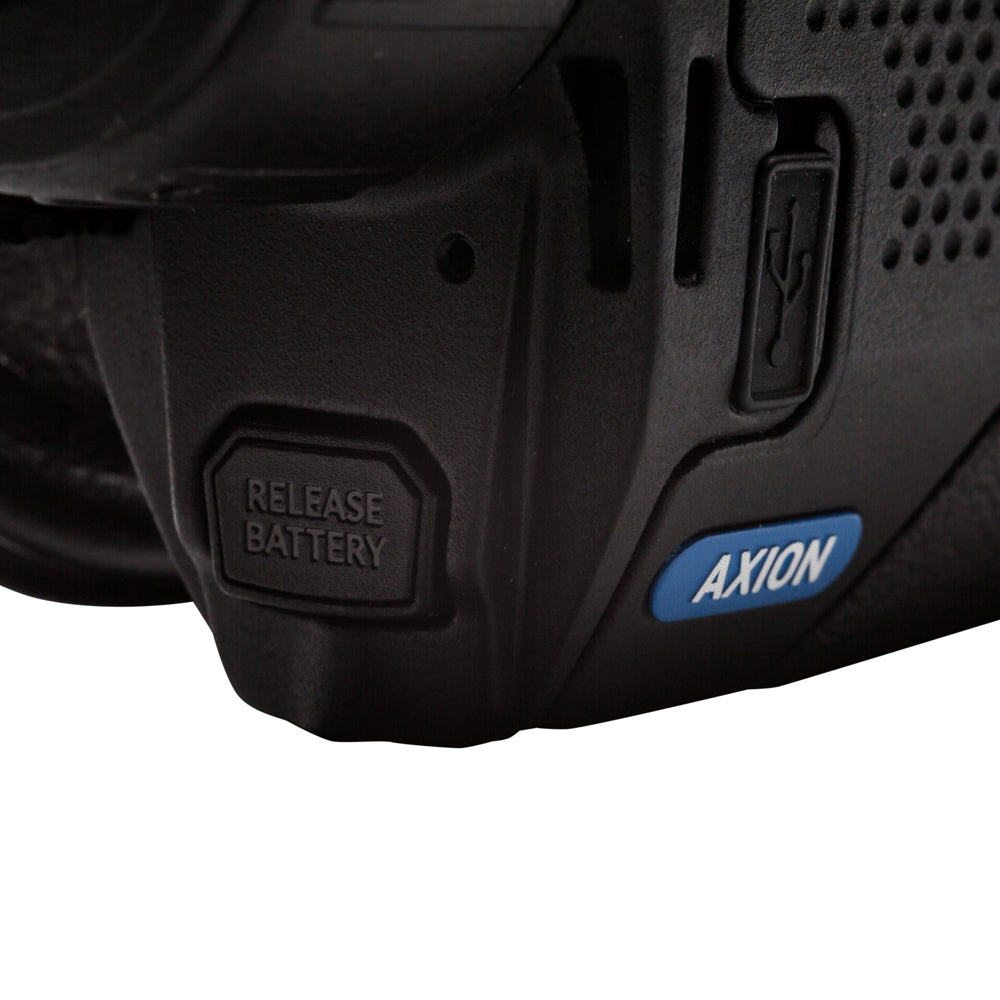

B-pack mini power system
Picture in picture digital zoom

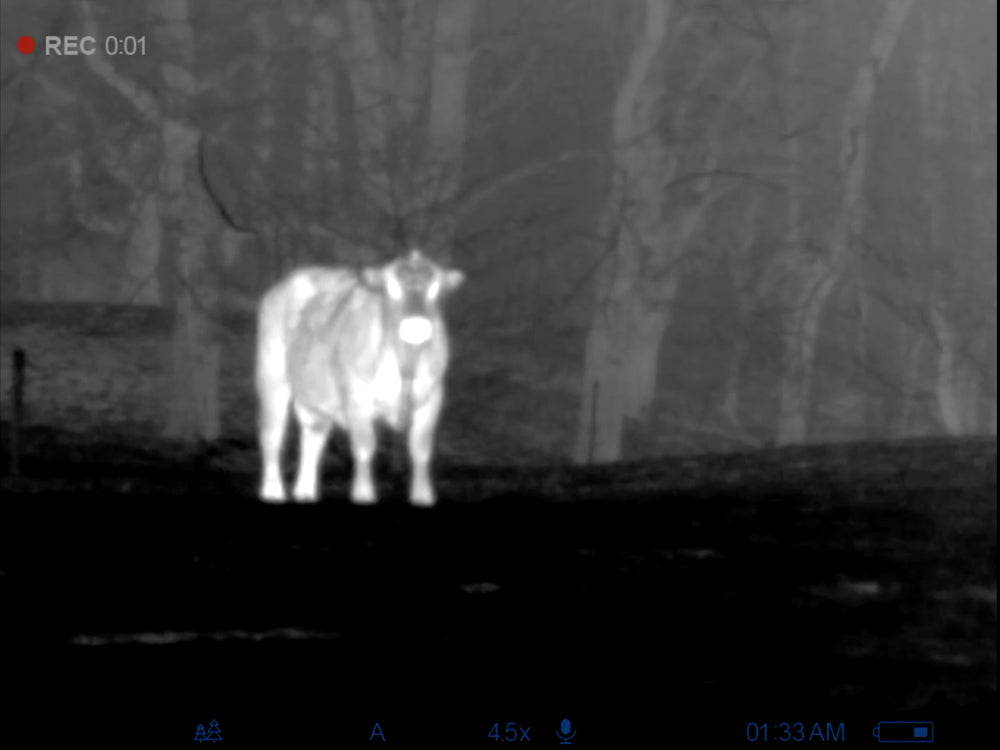

Video and photo recording
HD AMOLED microdisplay
Stream Vision app supported
External power supply adaptable

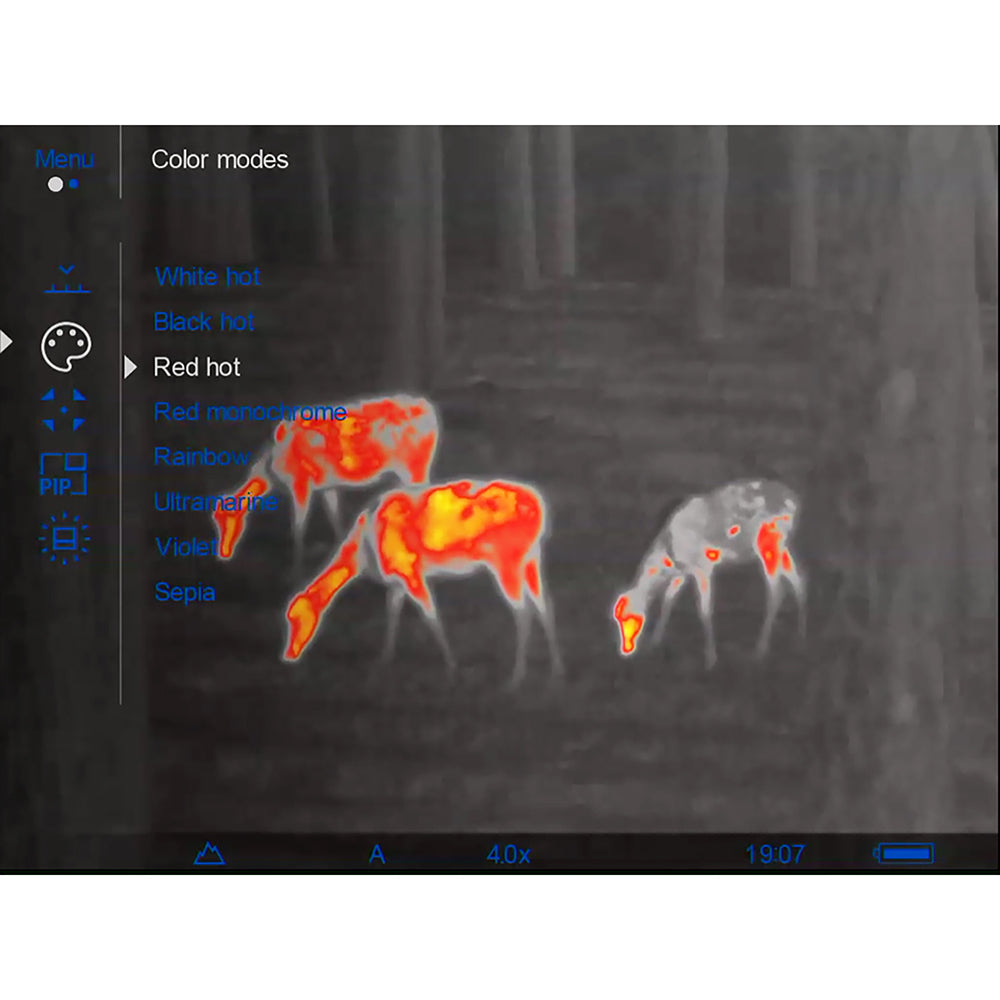

Multiple color viewing modes
Stradiametric rangefinder
IPX7 waterproof rated
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
Frame Rate, Hz
50
Microbolometer Resolution, pixels
320x240
Sensor response
LWIR
Spectral Sensitivity, µm
8-14
Pixel Pitch, µm
12
Display Type
AMOLED
Display Resolution, pix.
1024x768
Built-In Memory, Gb
16
Built-in Video Recorder Availability
Yes
Video Clip, Format
MP4
The Operation Modes
Rocks, Forest, Identification
Format of photo files
JPG

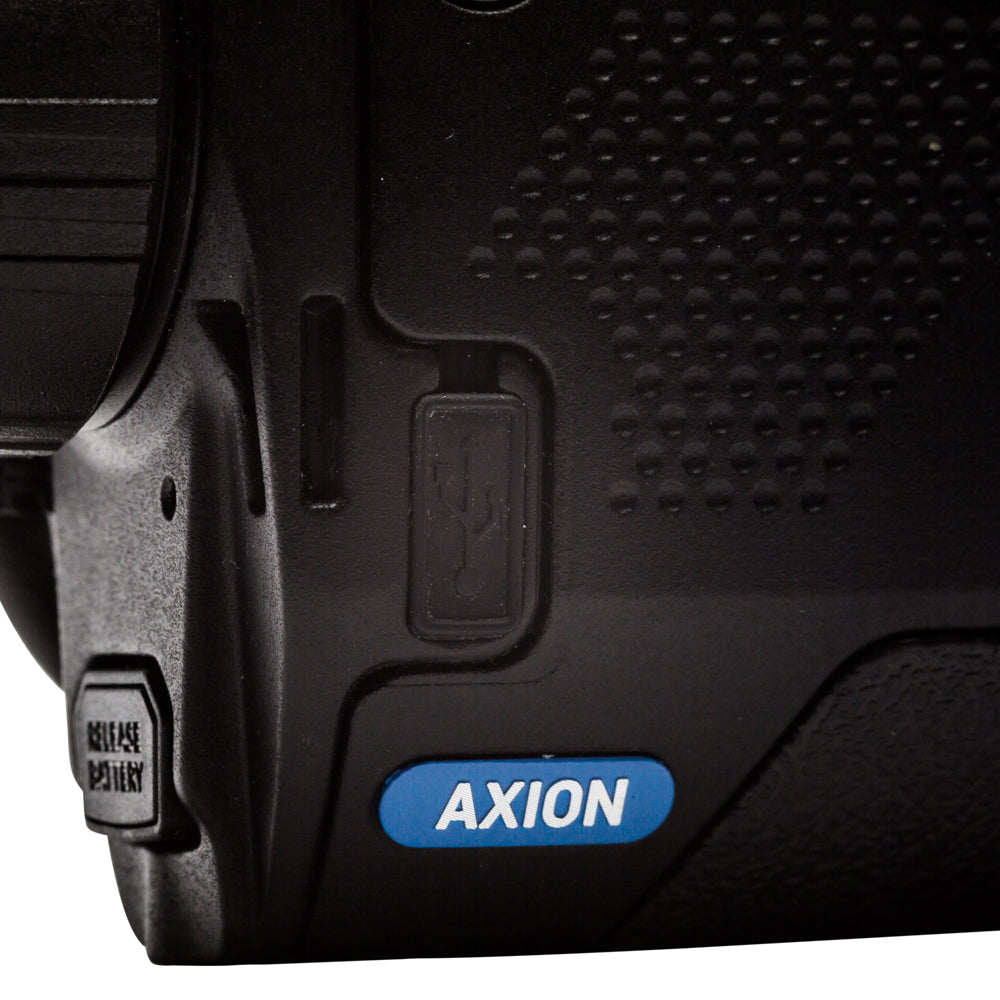

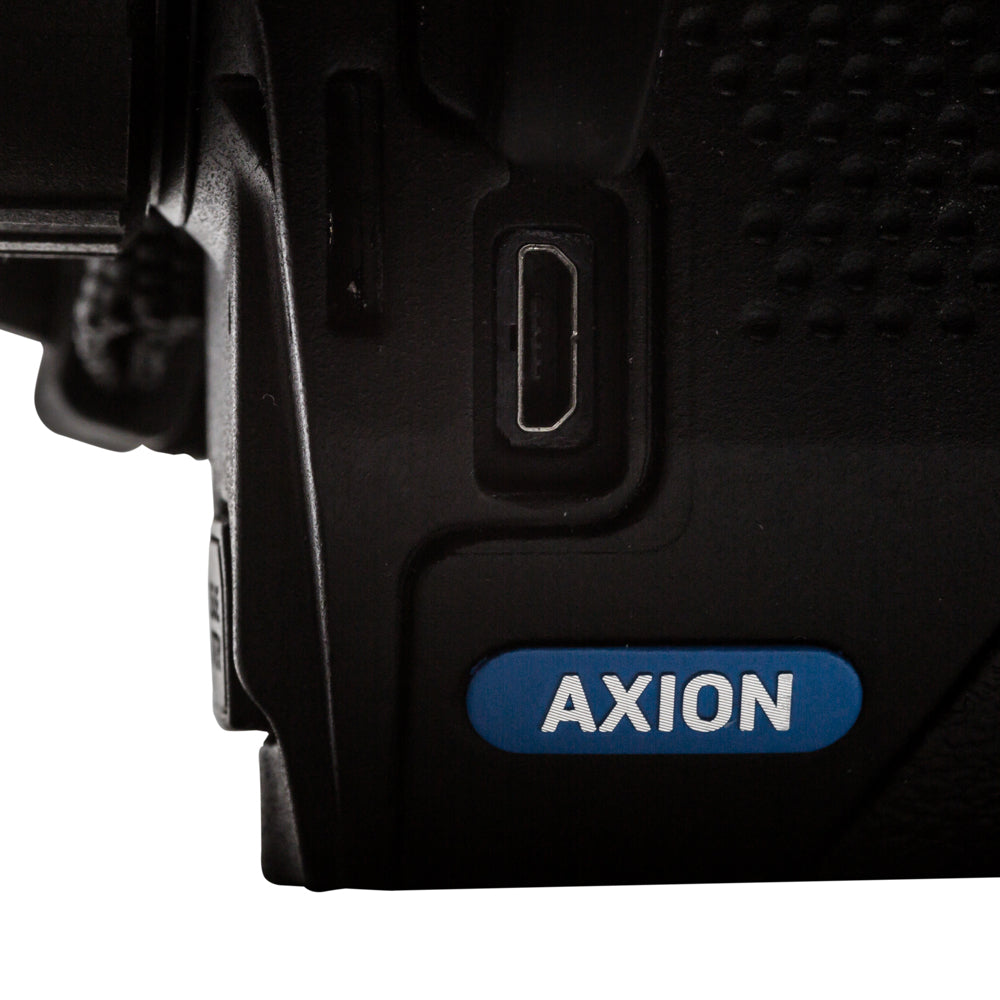

Micro USB Socket
Power/data
Resolution of photo files
1024x768
Defective Pixel Repair Option
Yes
Integrated Wi-Fi
Yes
Stream Vision support
Yes
Stadiametric Rangefinder
Yes
Multiple color palettes
Yes
Magnification
4.5-18 x
Digital Zoom
4x digital zoom - continuous zoom and 2x / 4x stepped zoom x
