        SKU : PL77423

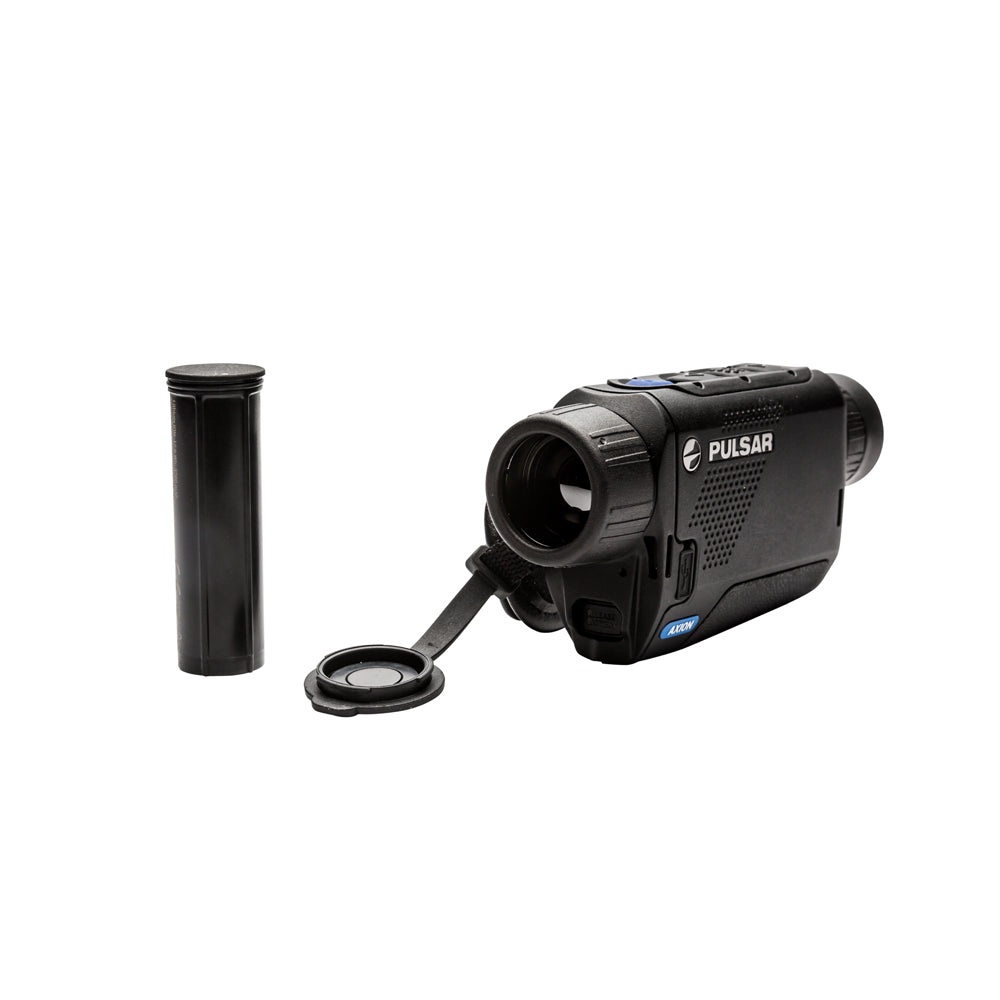

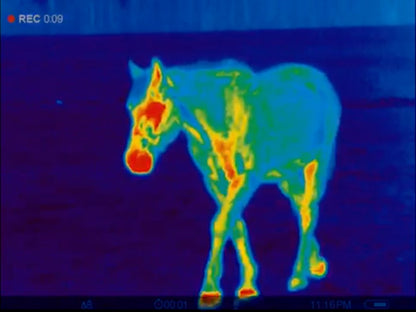

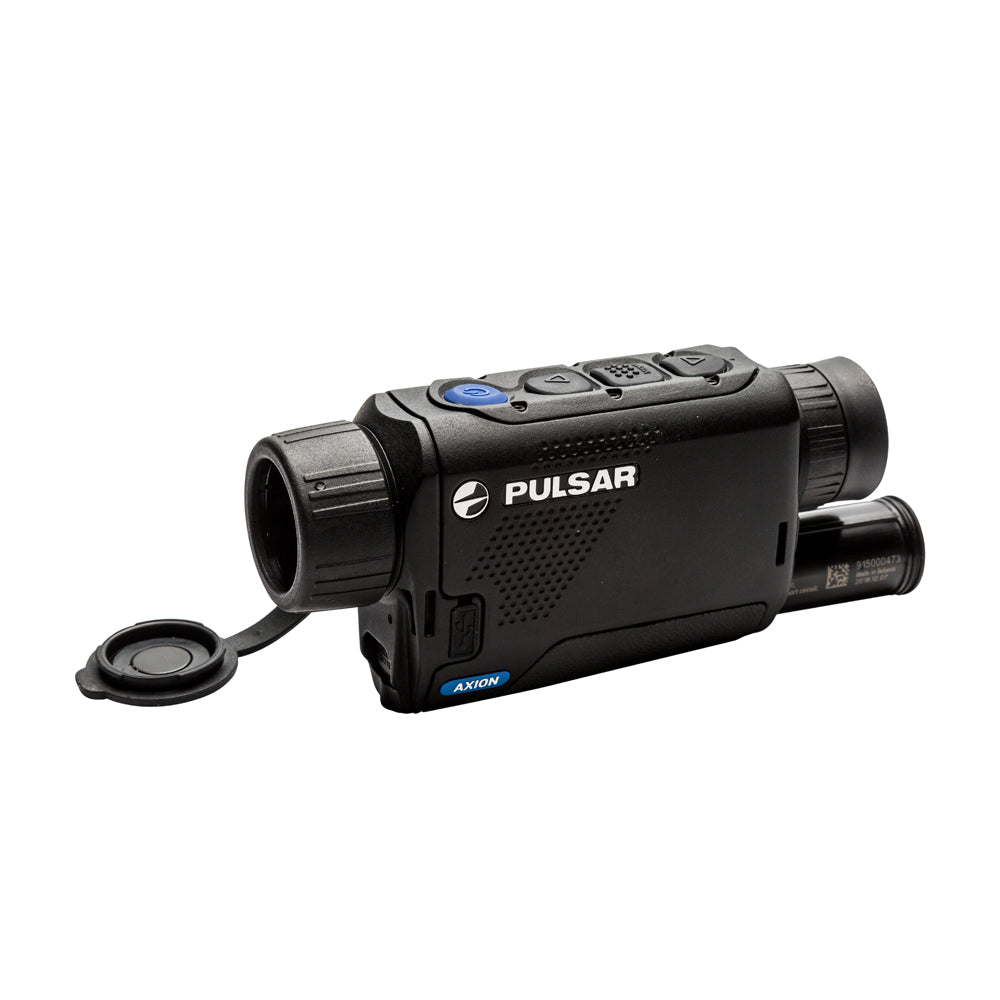

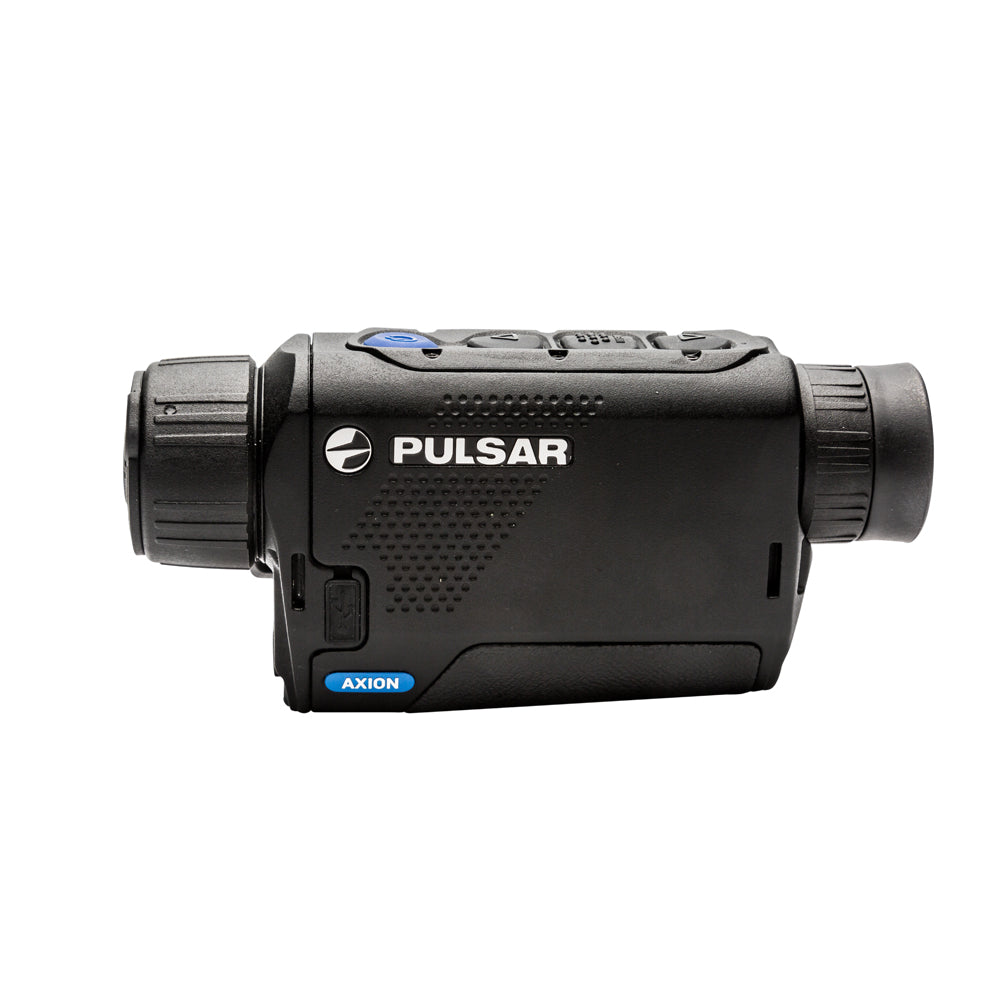

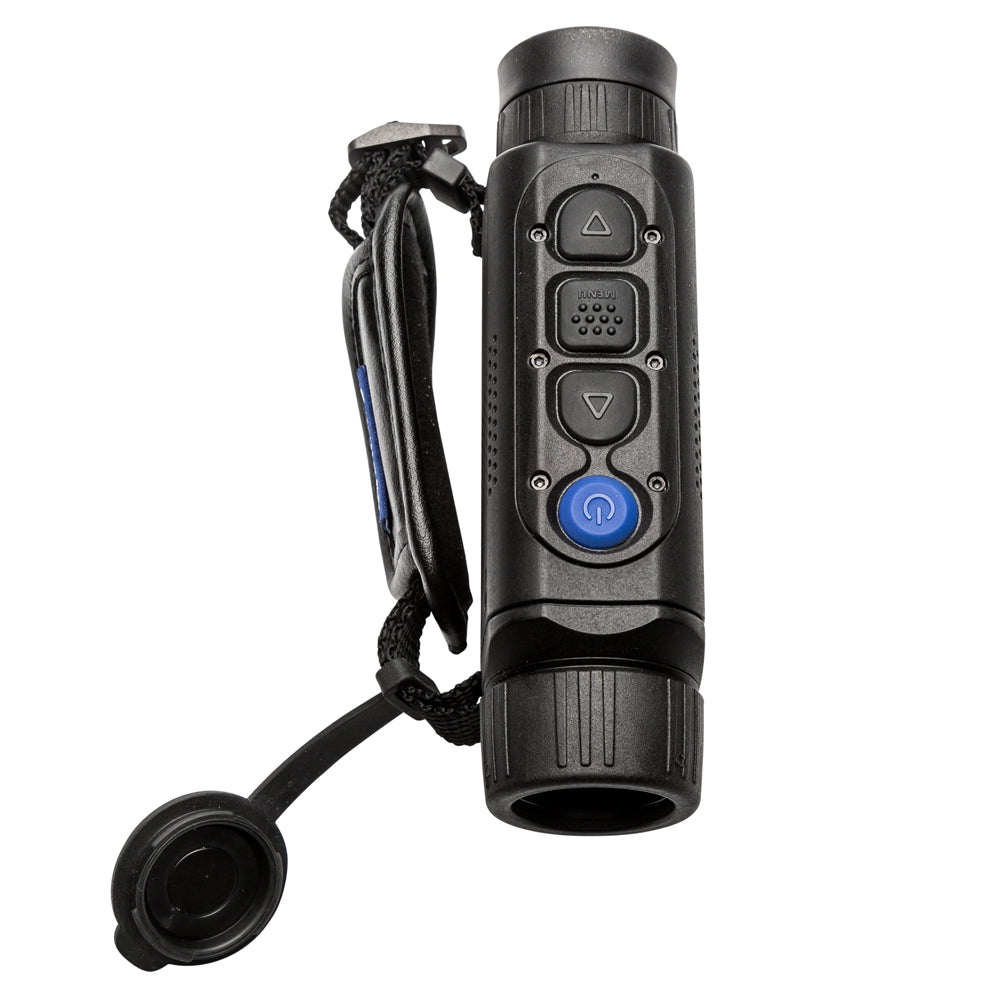

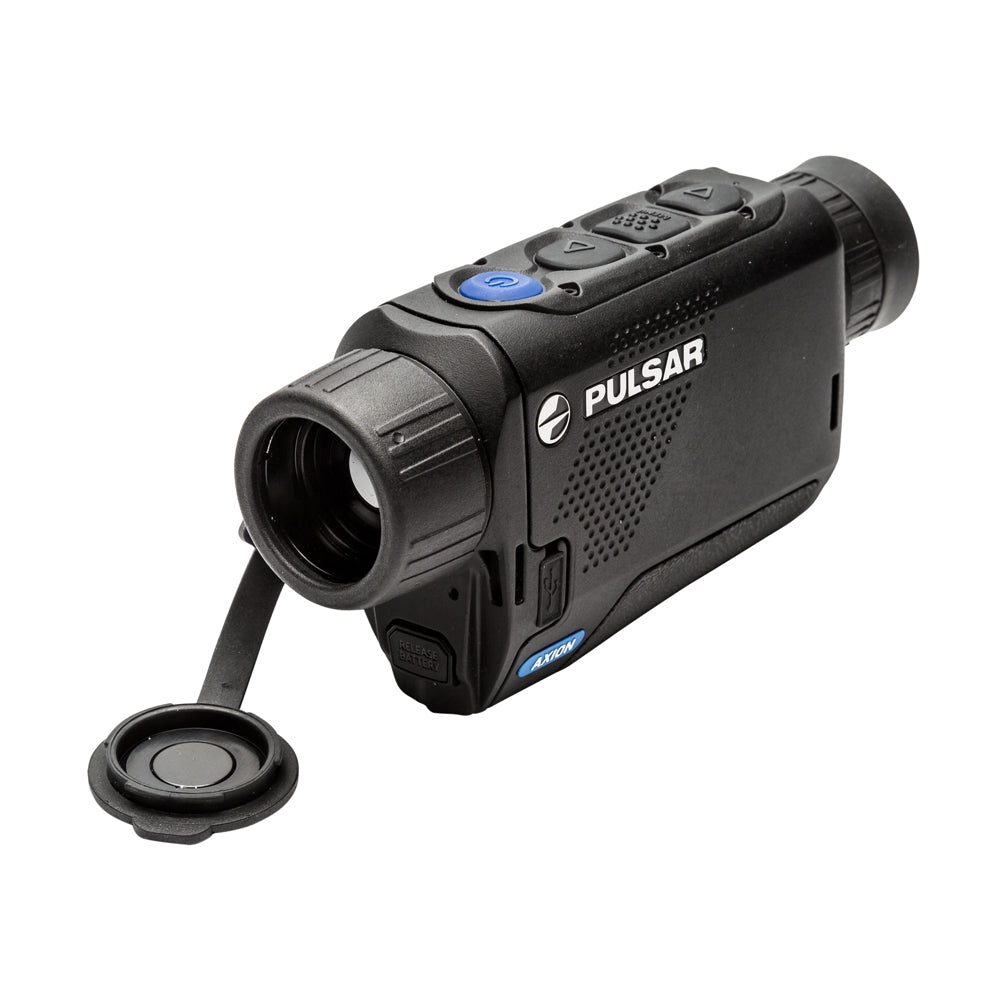

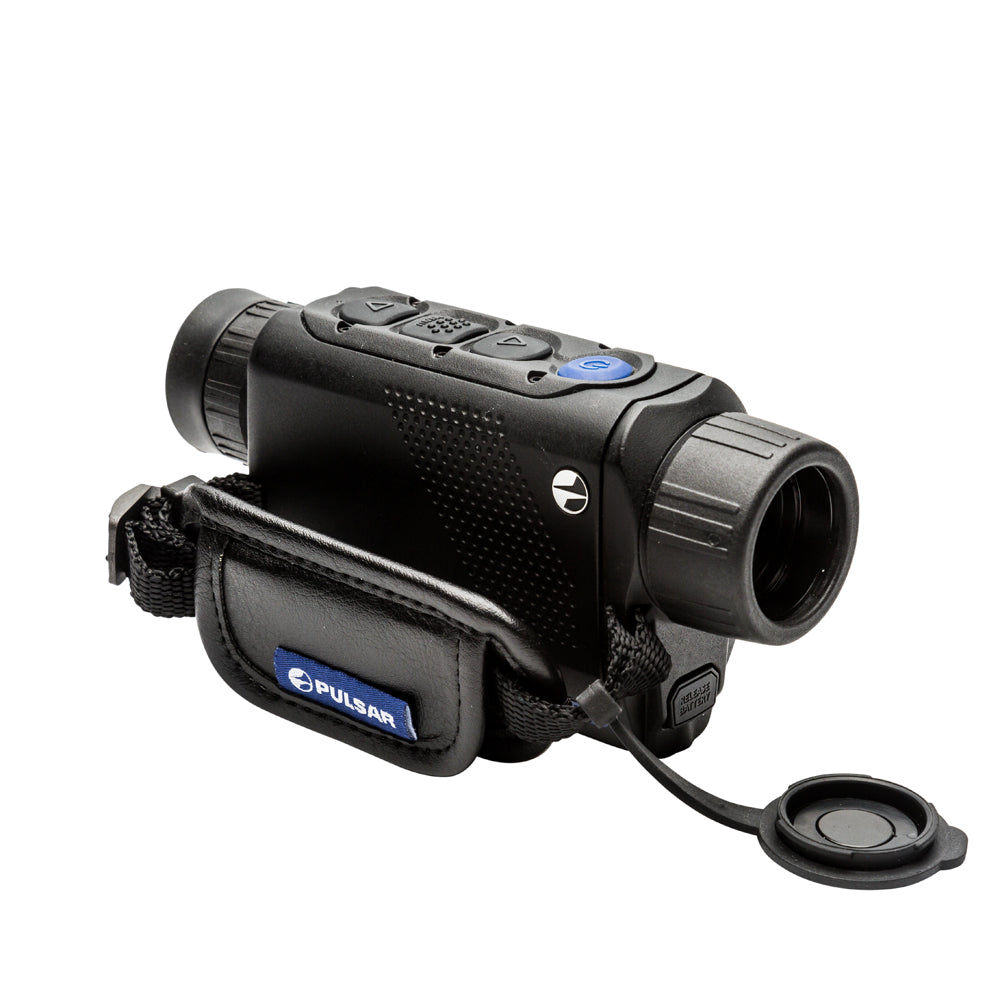

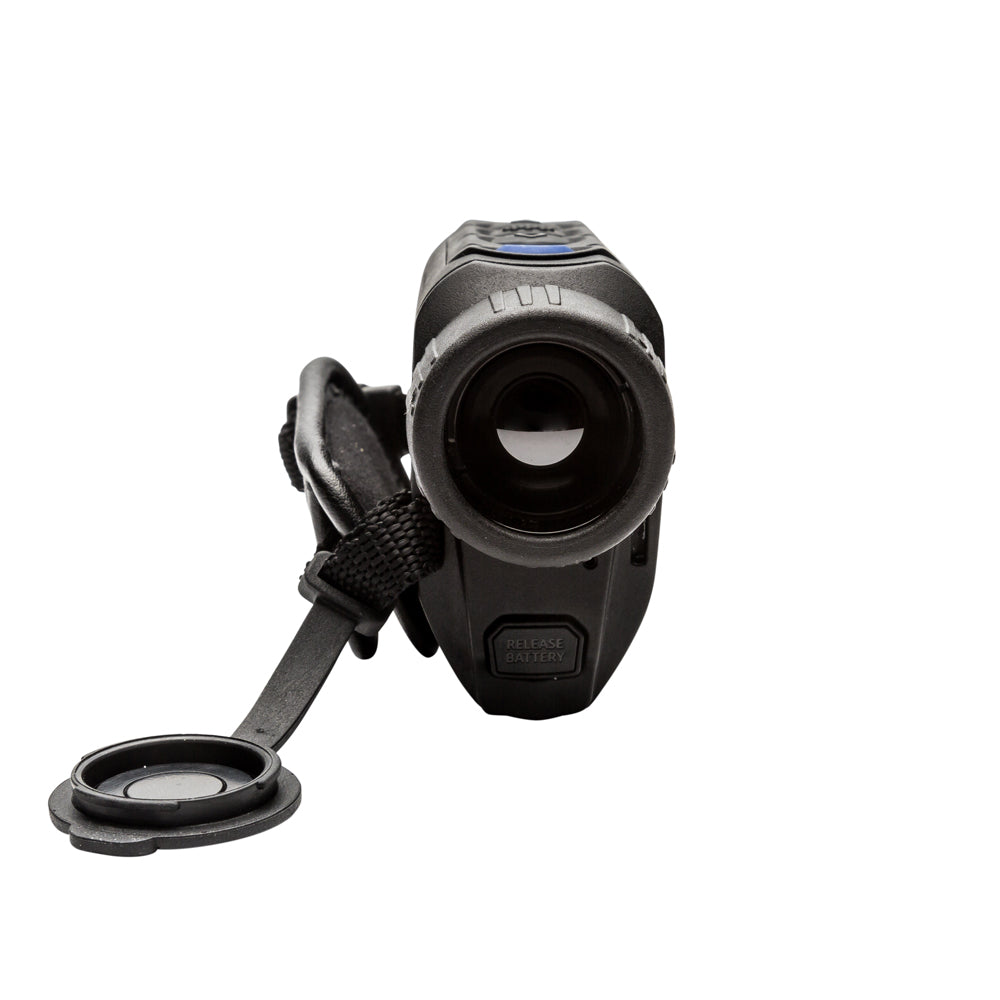

        Weighing 8.8 ounces, the pocket-sized Axion XM30S Thermal Monocular packs a powerful punch. The Axion XM30S boasts an upgraded, full-color 1024x768 HD AMOLED display, 8-color palettes and 4.5x-18x digital magnification. Its 320x240, 12-micron thermal sensor provides a 1,400-yard detection range, and the simple user interface enables users of all skills to operate it. With a 3-second startup, the Axion XM30S has Wi-Fi connectivity, compatibility with the Stream Vision App, integrated still-image and video recording with audio, picture-in-picture mode and 16gb of internal storage. Built with rugged reliability in mind, the Axion XM30S features a textured magnesium-alloy body and is IPX7 waterproof-rated (submersible in 3 feet of water for up to 30 minutes).

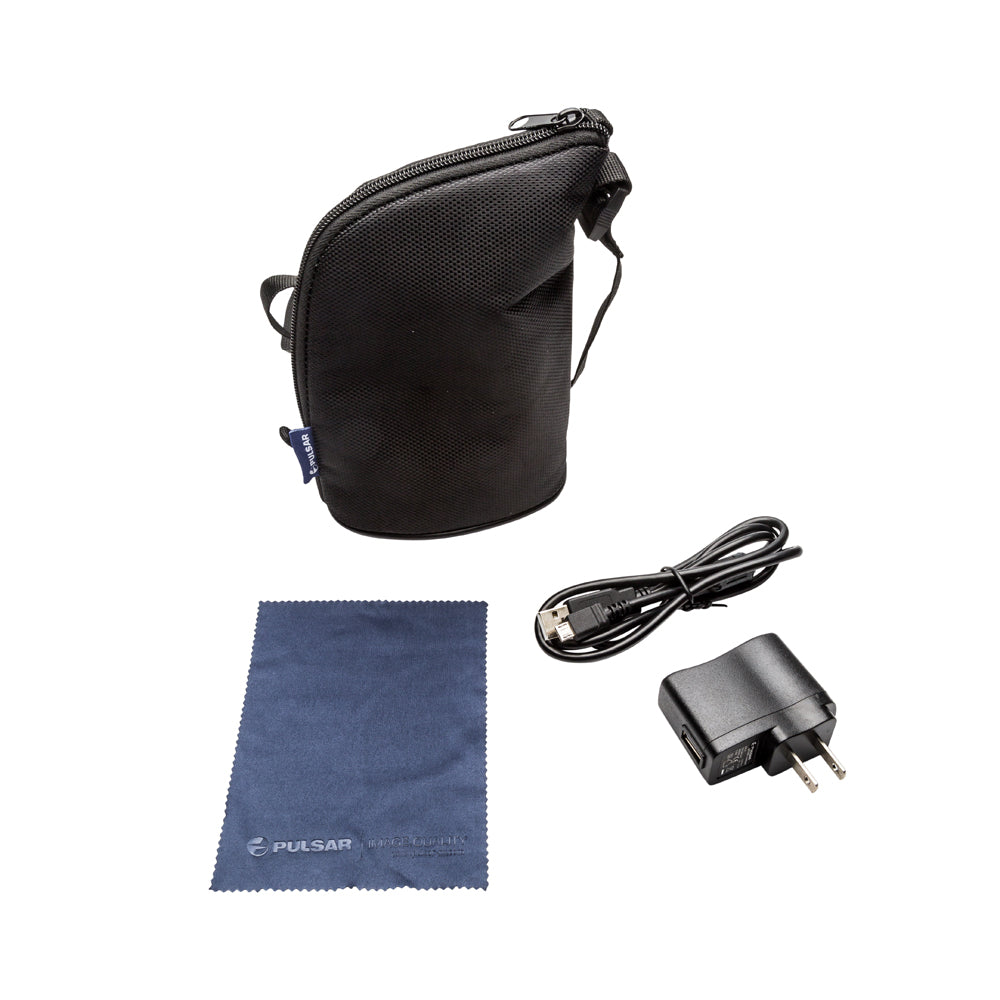

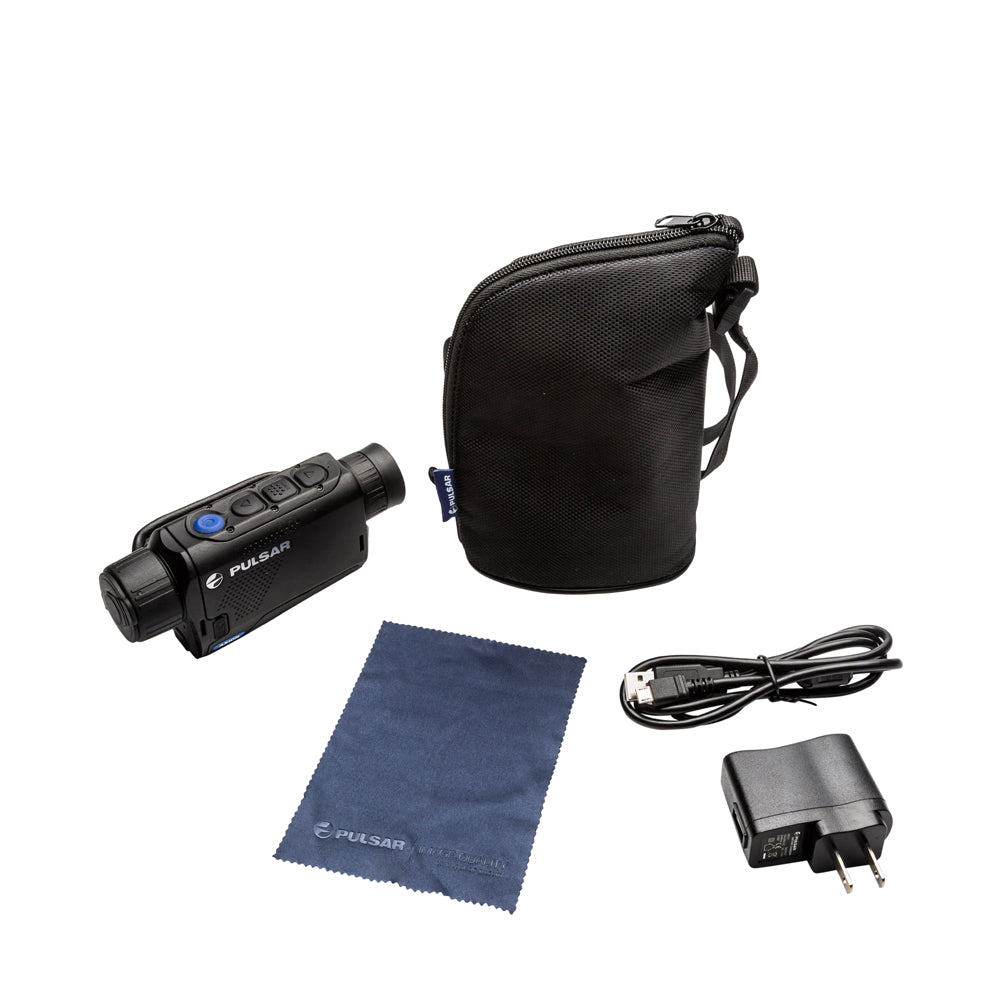

        Included in Package

        • APS 3 battery pack
        • Battery pack charging kit
        • USB cable

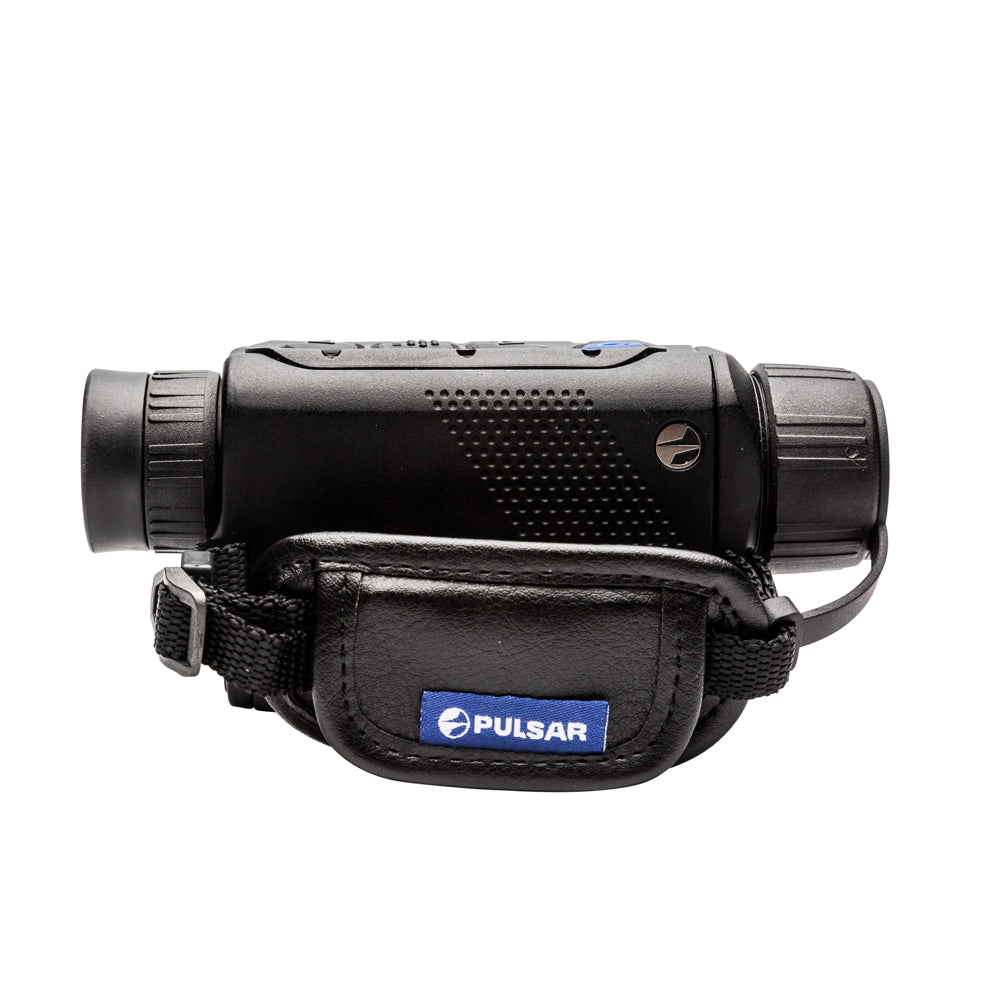

        • Hand strap
        • Lens cleaning cloth
        • Carrying case

        Battery Used

        • Type: APS 3 (Li-Ion) Battery Pack
        • Quantity: 1

        Product Downloads


        • 320x240 resolution - 12um pixel pitch core
        • 1400 yard detection range
        • High optical magnification
        • 4x digital zoom - continuous zoom and 2x / 4x stepped zoom
        • Lightweight and rugged magnesium alloy housing
        • B-pack mini power system
        • Picture in picture digital zoom
        • Video and photo recording
        • HD AMOLED microdisplay
        • Stream Vision app supported
        • External power supply adaptable

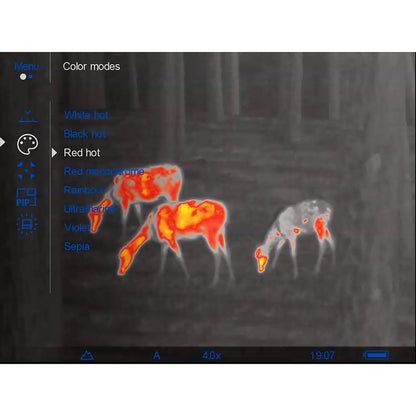

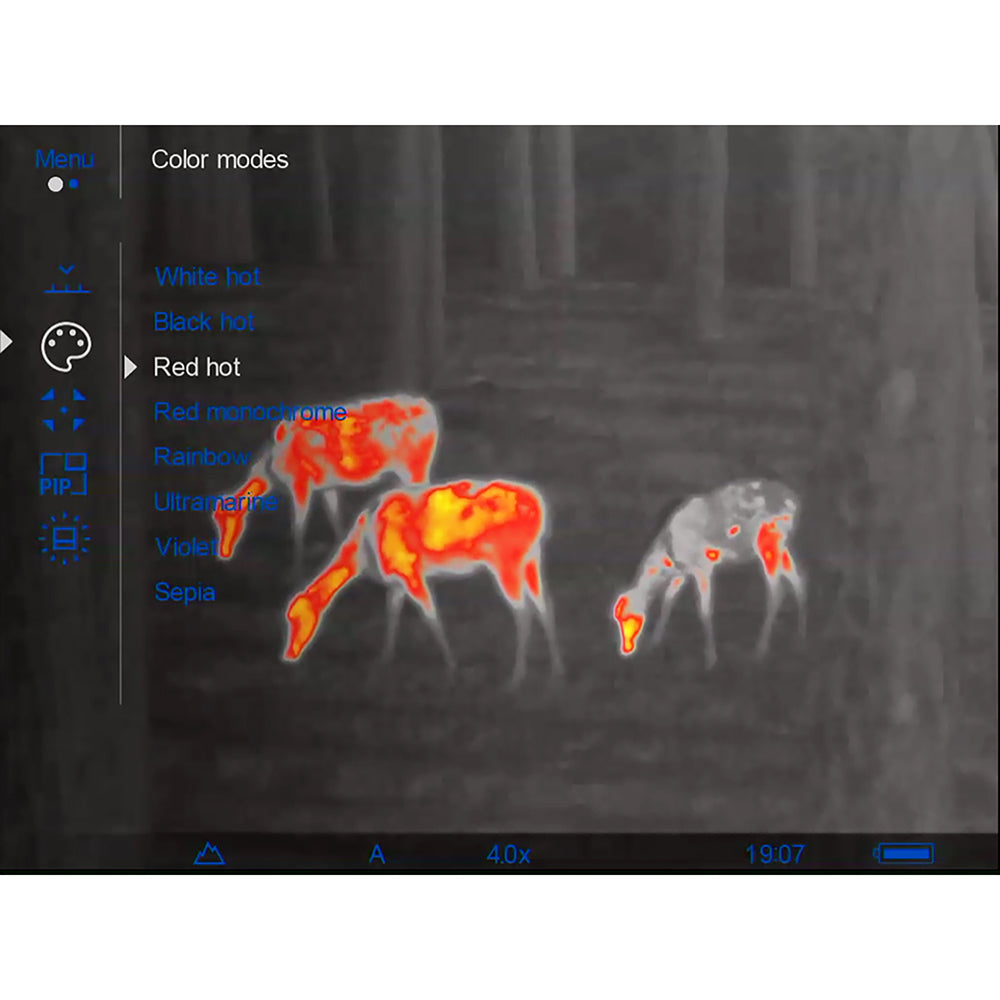

        • Multiple color viewing modes
        • Stradiametric rangefinder
        • IPX7 waterproof rated

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        Frame Rate, Hz 50
        Microbolometer Resolution, pixels 320x240
        Sensor response LWIR
        Spectral Sensitivity, µm 8-14
        Pixel Pitch, µm 12
        Display Type AMOLED
        Display Resolution, pix. 1024x768
        Built-In Memory, Gb 16
        Built-in Video Recorder Availability Yes
        Video Clip, Format MP4
        The Operation Modes Rocks, Forest, Identification
        Format of photo files JPG

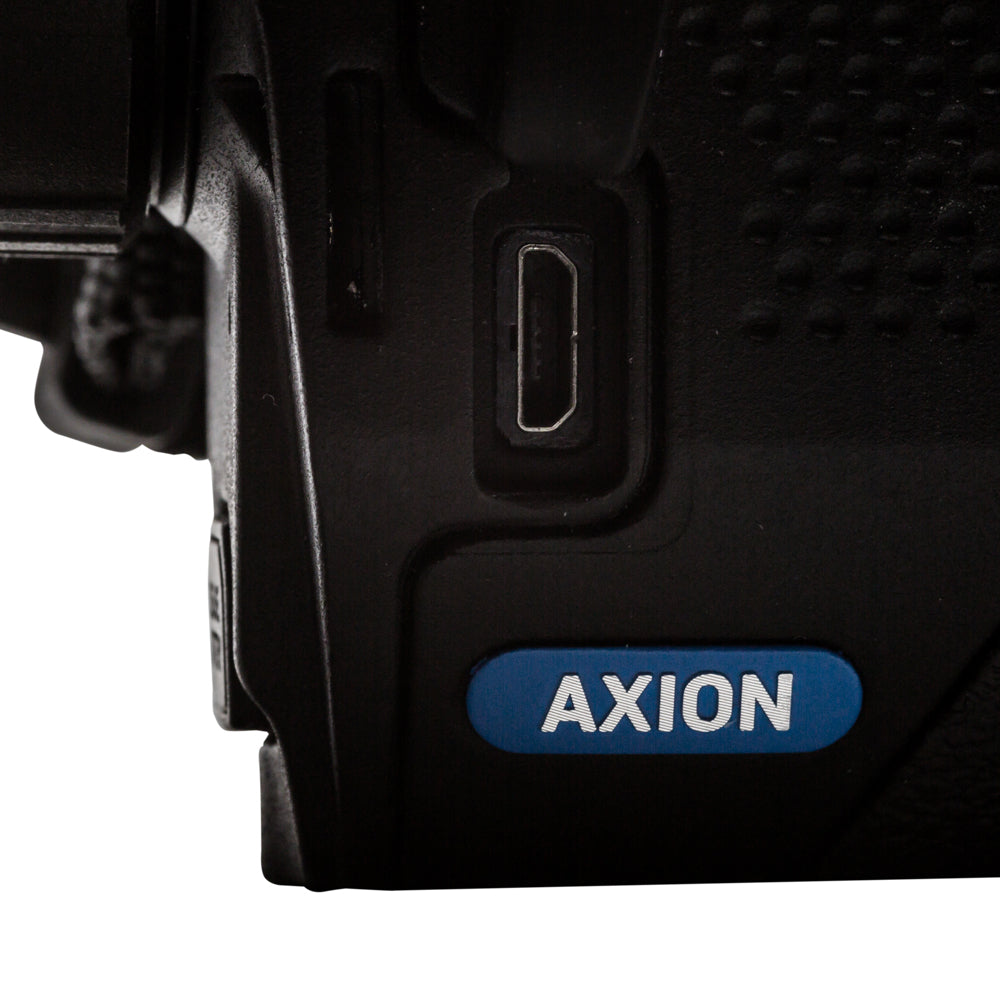

        Micro USB Socket Power/data
        Resolution of photo files 1024x768
        Defective Pixel Repair Option Yes
        Integrated Wi-Fi Yes
        Stream Vision support Yes
        Stadiametric Rangefinder Yes
        Multiple color palettes Yes
        Magnification 4.5-18 x
        Digital Zoom 4x digital zoom - continuous zoom and 2x / 4x stepped zoom x
        Lens diameter, mm 24
        Field of View, degrees 7.3
        Lens Focus, mm 30
        Relative aperture, D/f' 1:1.2
        Field of view, m@100m 12.8
        Field of view, ft@100yd 38.4
        Exit Pupil, mm 3.5
        Diopter Adjustment ± 5
        Eye Relief, mm 15
        Focusing Type of Distance Objective
        Minimum focusing distance, ft/m 10 / 3
        Range of Detection 1400/ 1300 yd/m
        Battery Life 4+(w/о video out ) hour
        Battery Type APS 3 (Li-Ion)
        Power Supply 3 - 4.3 V
        External Power Supply 5V MicroUSB
        Lens Material Germanium
        Body Material Magnesium alloy
        Operating Temp,?F/?C -13 to 104 / -25 to +40
        Level of Protection (acc. to IEC 60529) IPX7
        Tripod Mount, inch 1/4
        Weight, oz 8.8
        Calibration manual, automatic, semi-automatic
        Length (in/mm) 5.6 / 143
        Width (in/mm) 1.6 / 41
        Height (in/mm) 2.7 / 69
