Pulsar is once again at the forefront of innovation with the new Telos LRF XP50 digital thermal monocular. The rapid rate of technological advancement in today’s world requires modularity and precision. Pulsar has designed its new Telos LRF XP50 with this in mind. With components and parts that are capable of being upgraded and customized according to the user’s needs, The new Telos LRF XP50 ensures cutting edge thermal technology is at your fingertips for years to come.
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Main
Sensor1024x768 @ 12 µm (NETD <40 mK)
Objective lensF50 / 1.0
Magnification, x2.5 – 20 (x8 digital zoom)
Field of view (HxV), degrees / m@100m14x10.5 / 24.6х18.5
Detection range, m2300
Sensor
Typeuncooled
Resolution, pixels1024x768
Pixel pitch, µm12
NETD, mK<40
Frame rate, Hz50
Optics
Objective lensF50 / 1.0
Magnification, x2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m @ 100 m14x10.5 / 24.6х18.5
Eye relief, mm14
Display
TypeAMOLED
Resolution, pixels1024x768
Range Performance
Detection range, m2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:20141
Wavelength, nm905
Max. measuring range, m1000
Measurement accuracy, m± 1
Video Recorder
Video / photo resolution, pixel1024x768
Video / photo format.mp4 / .jpg
Built-in memory, GB64
Wi-Fi
Wireless ProtocolWi-Fi
Wireless StandardIEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529)IPХ7 (waterproof)
Operating temperature range, °С-25 – +40
Connections and Compatibilities
Mount, type1/4"
Supported ApplicationStream Vision 2
Power Supply
Output voltage, V3.0 – 4.2
Battery typeLPS 7i Li-Ion Battery Pack
Capacity, mAh6400
Operating time on battery pack (at t=22°C), h *7
External power supply, V5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body materialrubber armored reinforced plastic
Dimensions, mm243x72x90
Weight, kg0.58 (w/o battery) / 0.72 (with the LPS7i battery)
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
NETD: <40mK
Display resolution: 1024x768
Specs

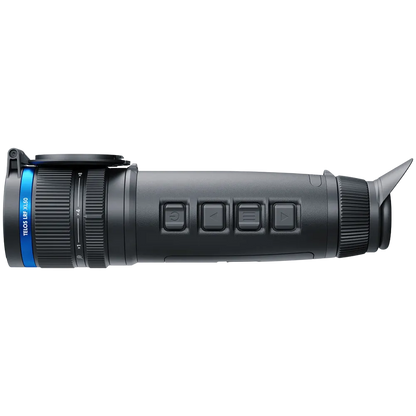

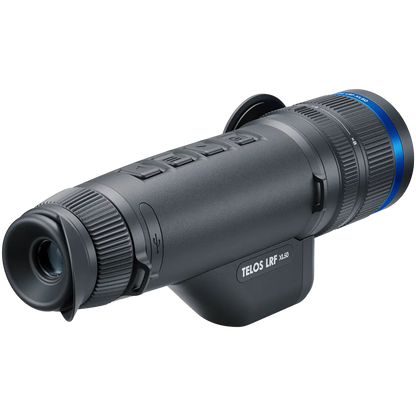

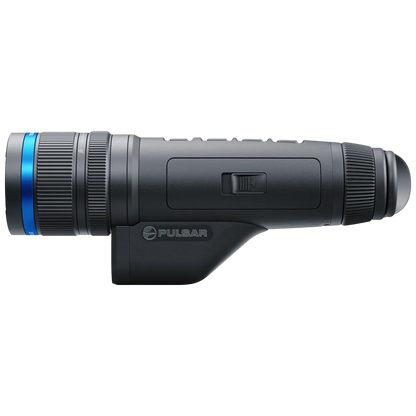

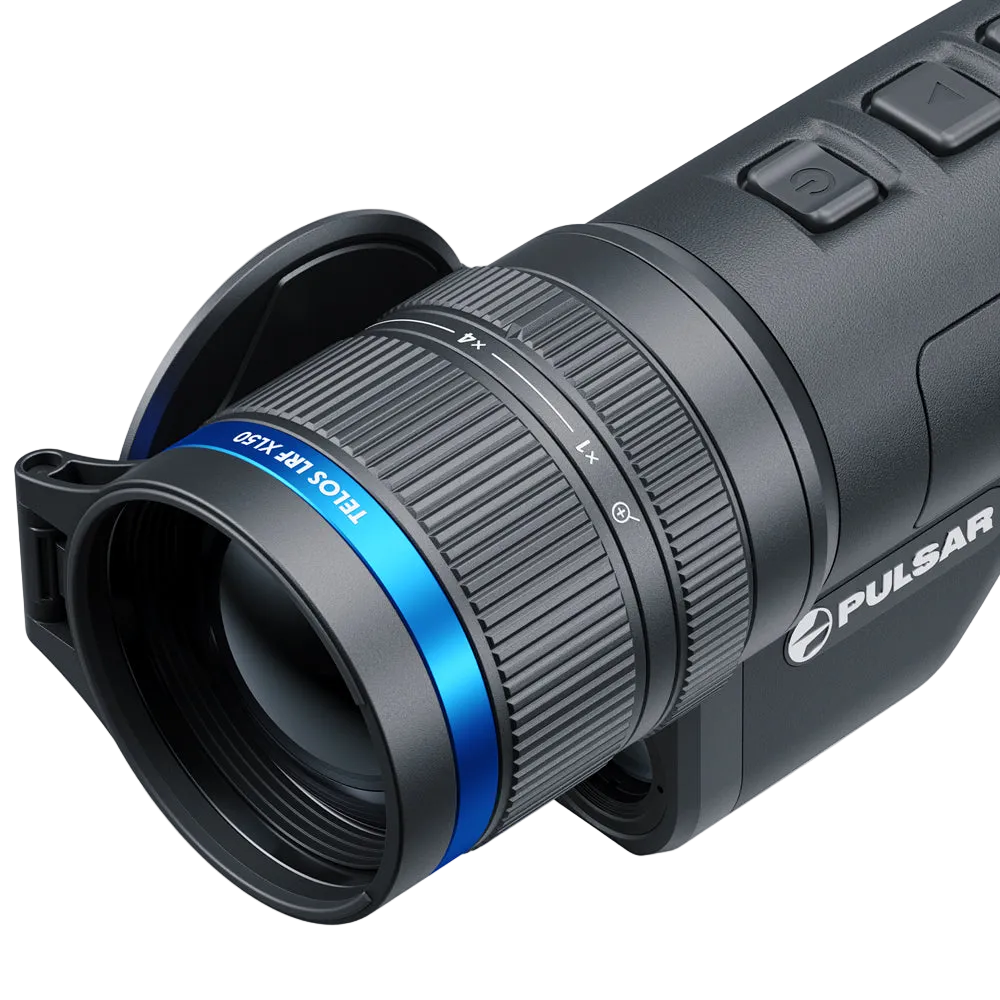

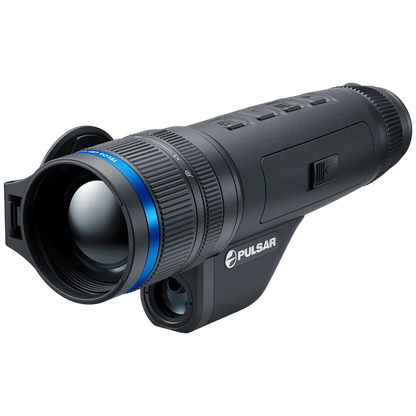

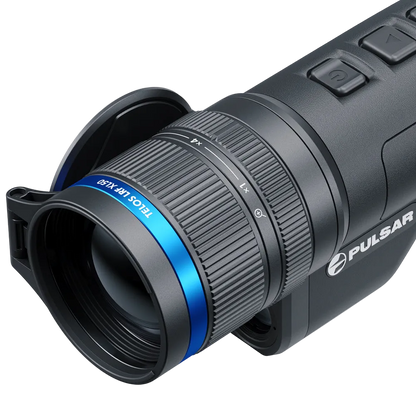

Telos LRF XL50 Thermal Monocular
Main
1024x768 @ 12 µm (NETD <40 mK)
F50 / 1.0
2.5 – 20 (x8 digital zoom)
14x10.5 / 24.6х18.5
2300
Sensor
uncooled
1024x768
12
<40
50
Optics
F50 / 1.0
2.5 – 20 (x8 zoom)
14x10.5 / 24.6х18.5
14
Display
AMOLED
1024x768
Range Performance
2300
Laser Rangefinder
1
905
1000
± 1
Video Recorder
1024x768
.mp4 / .jpg
64
Wi-Fi
Wi-Fi
IEEE 802.11 b/g/n/ac (WPA)
2.4 / 5
Environmental Characteristics
IPХ7 (waterproof)
-25 – +40
Connections and Compatibilities
1/4"
Stream Vision 2
Power Supply
3.0 – 4.2
LPS 7i Li-Ion Battery Pack
6400
7
5V, 9V (USB Type-C Power Delivery)
Weight & Size
rubber armored reinforced plastic
243x72x90
0.58 (w/o battery) / 0.72 (with the LPS7i battery)
