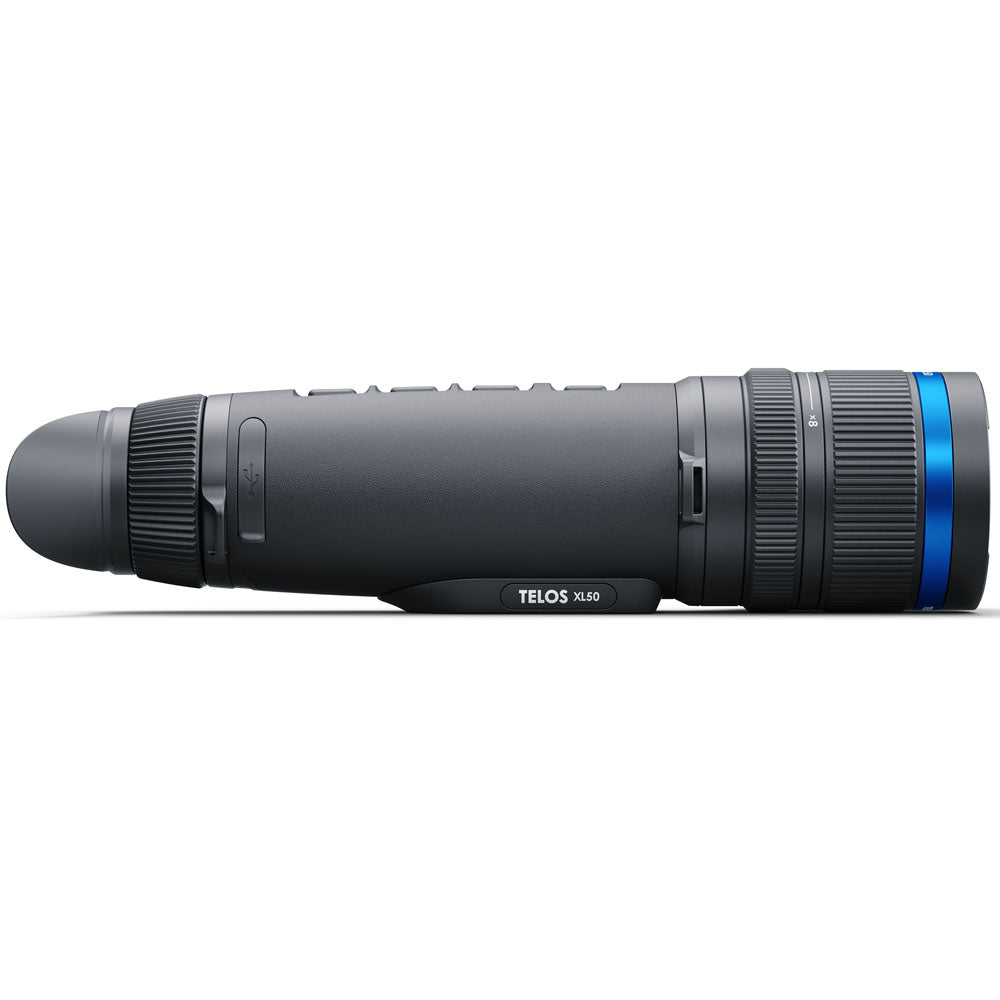

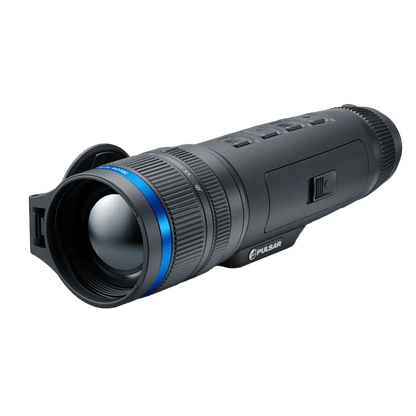

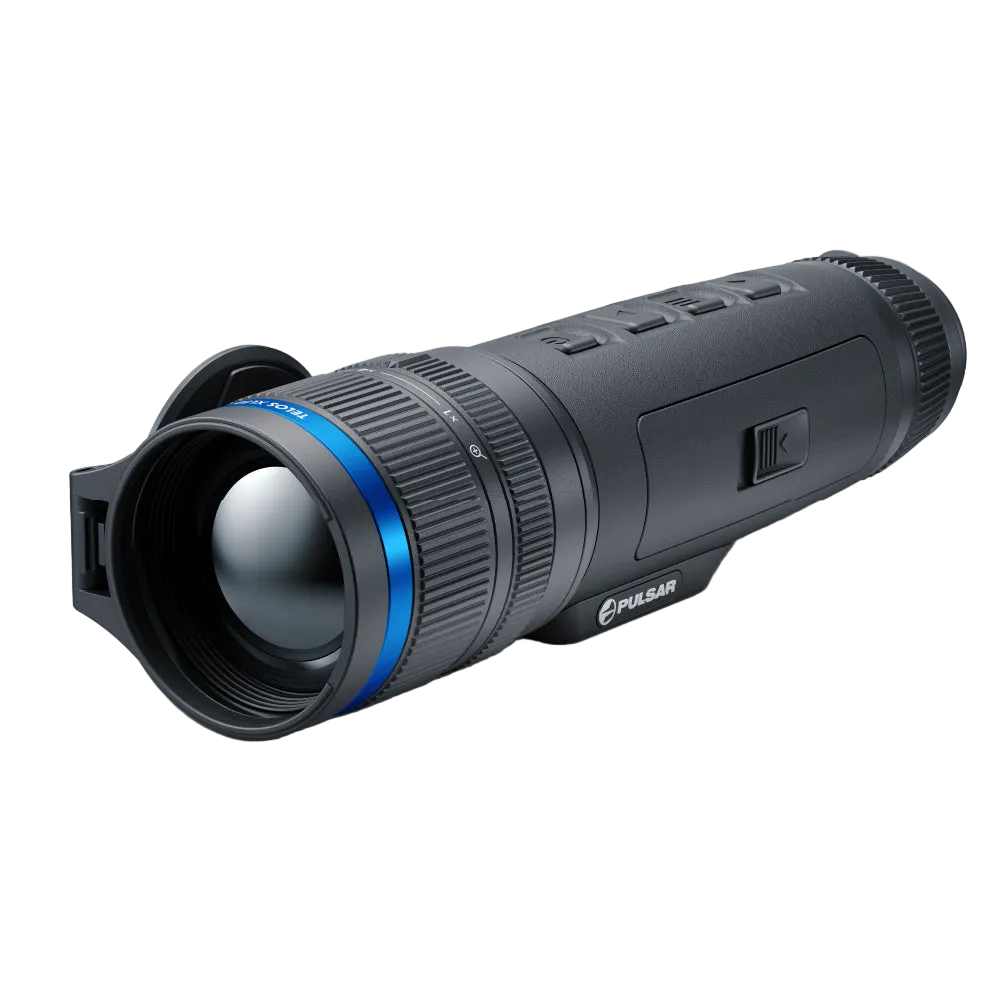

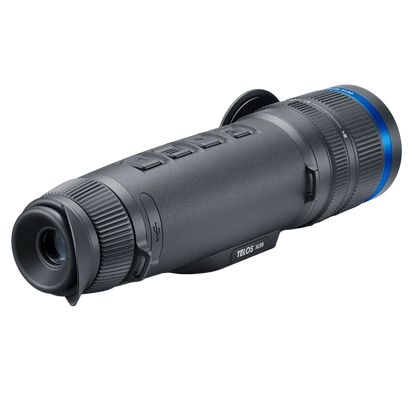

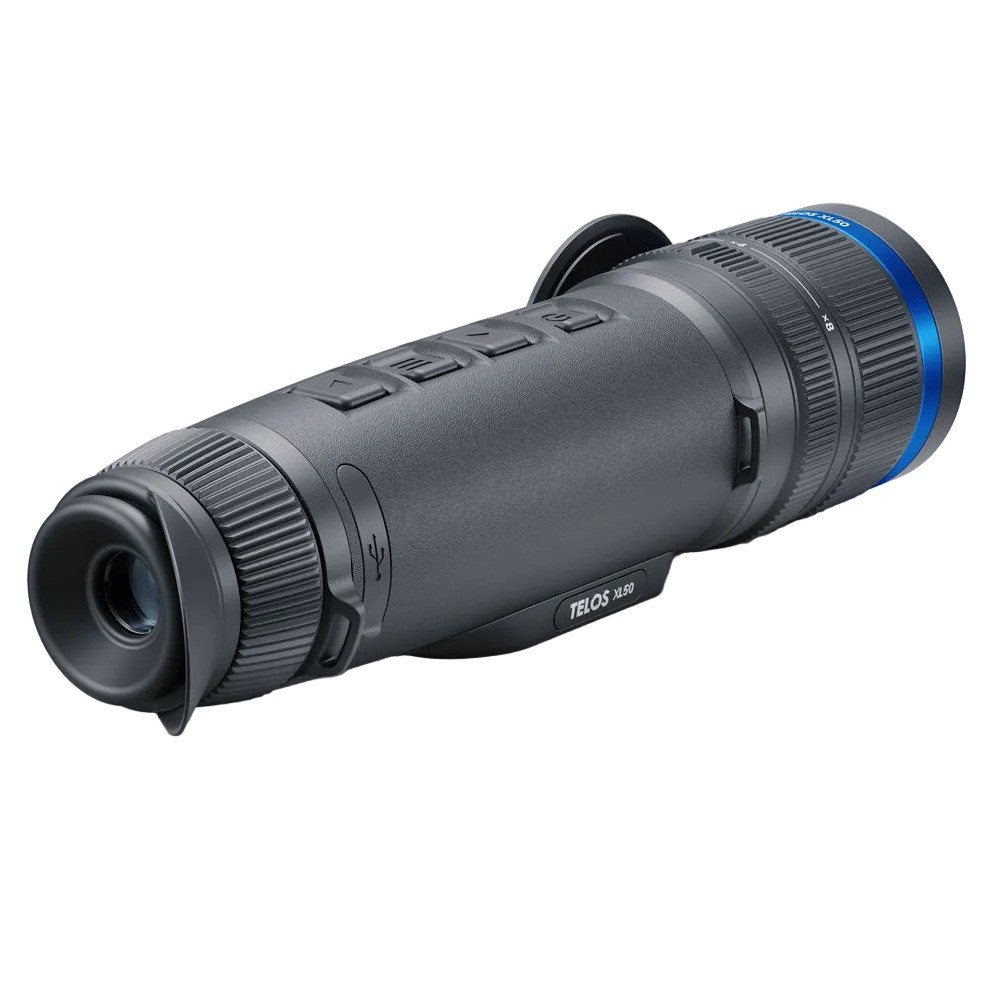

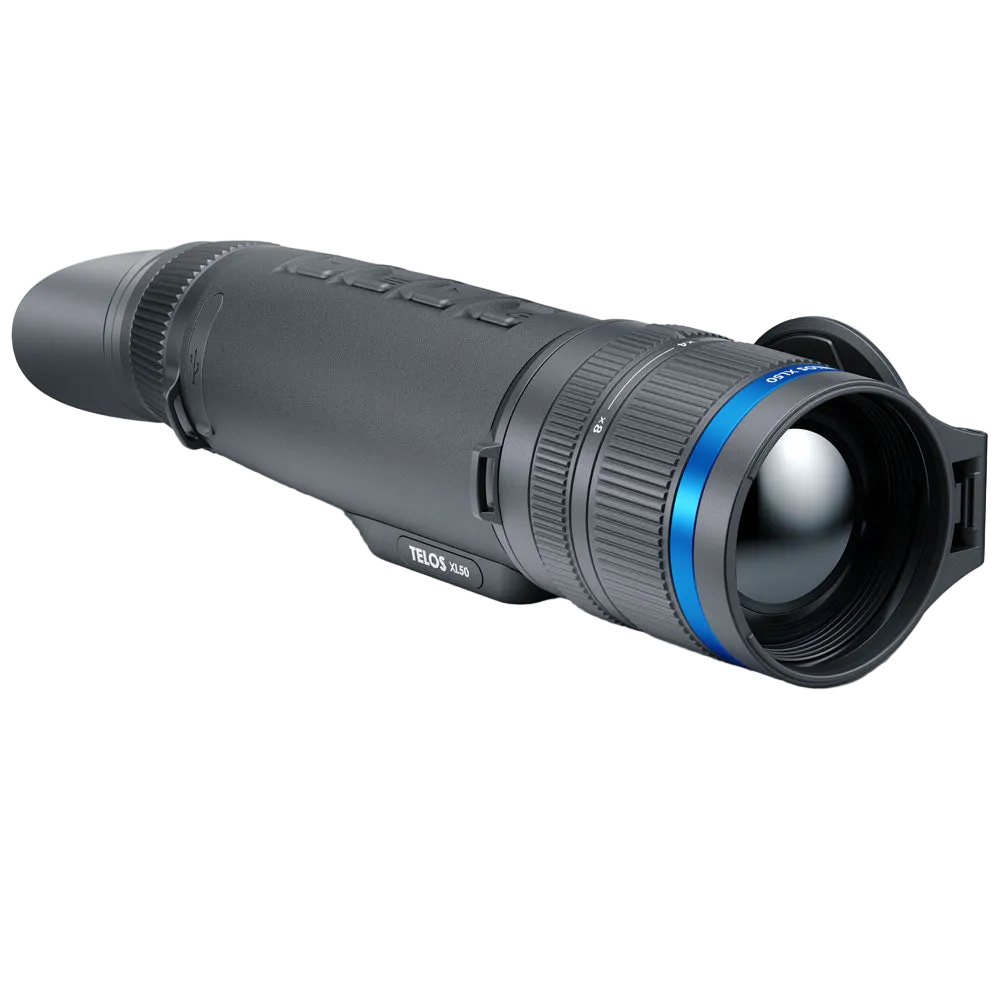

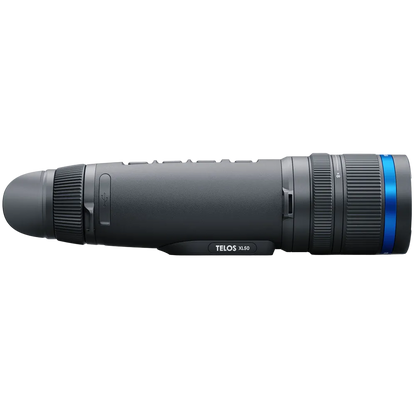

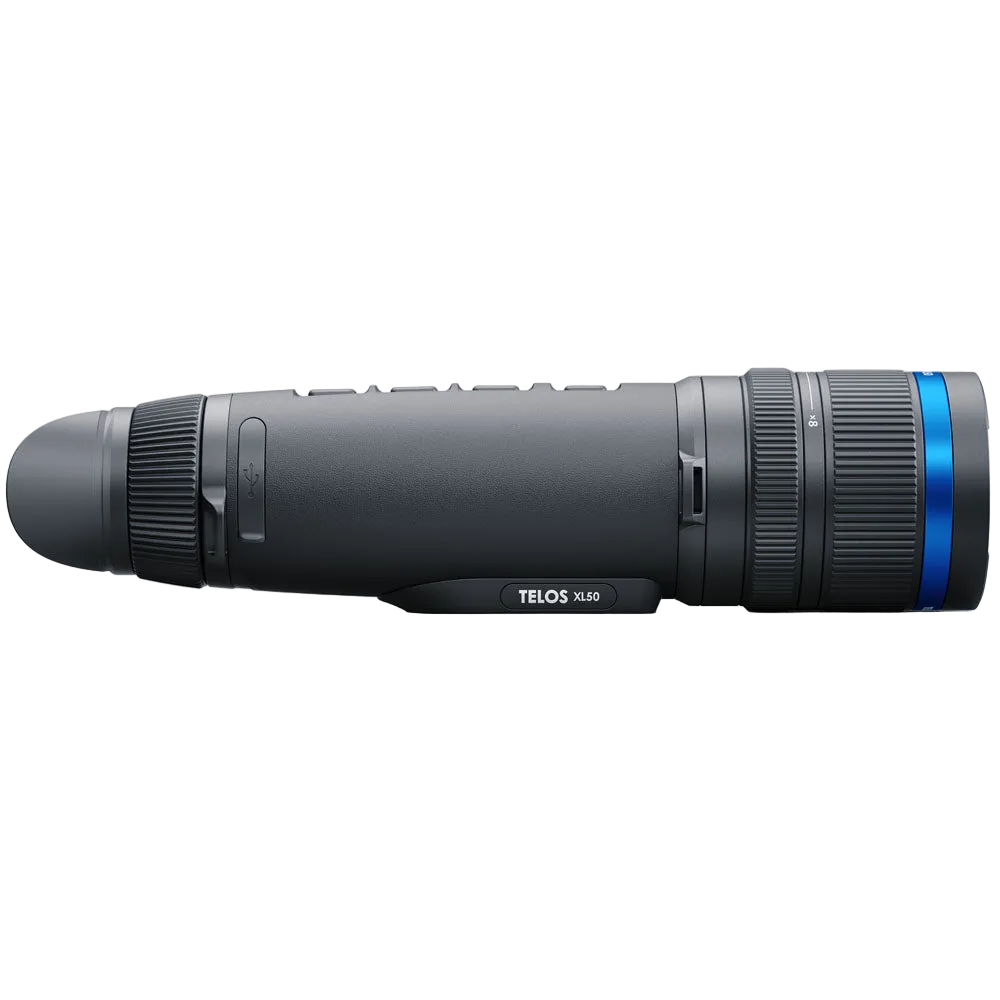

Telos XL50 Thermal Monocular

Main

• Sensor 1024x768 @ 12 µm (sNETD <20 mK)
• Objective lens F50 / 1.0
• Magnification, x 2.5 – 20 (x8 digital zoom)
• Field of view (HxV), degrees / m@100m 14x10.5 / 24.6х18.5
• Detection range, m 2300

Sensor

• Type uncooled
• Resolution, pixels 1024x768
• Pixel pitch, µm 12
• NETD, mK <40
• Frame rate, Hz 50
• sNETD, mK <20

Optics

• Objective lens F50 / 1.0
• Magnification, x 2.5 – 20 (x8 zoom)
• Field of view (HxV), degrees / m @ 100 m 14x10.5 / 24.6х18.5
• Eye relief, mm 14

Display

• Type AMOLED
• Resolution, pixels 1024x768

Range Performance

• Detection range, m 2300

Video Recorder

• Video / photo resolution, pixel 1024x768
• Video / photo format .mp4 / .jpg
• Built-in memory, GB 64

Wi-Fi

• Wireless Protocol Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529) IPХ7 (waterproof)
• Operating temperature range, °С -25 – +40

Connections and Compatibilities

• Mount, type 1/4"
• Supported Application Stream Vision 2

Power Supply

• Output voltage, V 3.0 – 4.2
• Battery type LPS 7i Li-Ion Battery Pack
• Capacity, mAh 6400
• Operating time on battery pack (at t=22°C), h * 7
• External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

• Body material rubber armored reinforced plastic
• Dimensions, mm 243x72x90
• Weight, kg 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
