Thermal Imaging Explained

Thermal imaging has moved well beyond its origins in military reconnaissance. Today it is a standard tool in industrial maintenance, building diagnostics, perimeter security, search and rescue, and serious field optics. If you are evaluating thermal imaging equipment for any of these purposes, understanding how the technology actually works—and what specifications matter in practice—will help you make a far better purchasing decision than relying on marketing copy alone.

This guide covers the underlying physics of thermal radiation, how thermal cameras translate that radiation into a viewable image, the specifications that determine real-world performance, the most common application categories and what each one demands from a device, and a look at how modern multispectral platforms like the Pulsar Symbion LRF are pushing the technology further by combining thermal, digital night vision, and full-color daytime imaging in a single instrument.

What Thermal Imaging Actually Is

All objects above absolute zero emit infrared radiation—energy in the form of heat that the human eye cannot see. The amount of radiation emitted by an object increases with its temperature, and it occupies a band of the electromagnetic spectrum that sits between visible light and microwave frequencies, roughly 0.7 to 1,000 micrometers. Thermal imaging cameras, often called infrared cameras or thermographic cameras, detect this radiation rather than reflected visible light. The result is an image built entirely from temperature differences rather than illumination.

This distinction has significant practical consequences. A thermal camera can see a person hiding in shadow, a hot bearing inside a machine casing, a water leak behind a dry-looking wall, or an animal standing motionless against a bush—scenarios where a visible-light camera would show nothing useful. Conversely, thermal images carry no color information and can struggle to resolve fine surface detail, which is why advanced platforms increasingly combine thermal sensors with conventional color cameras.

The term thermography is often used interchangeably with thermal imaging, though thermography more precisely refers to the quantitative measurement and analysis of surface temperatures, such as in industrial predictive maintenance or energy auditing. Infrared imaging is the broader descriptor that covers both qualitative and quantitative applications.

How a Thermal Camera Works

A thermal camera's detector array—called a focal plane array (FPA)—is the functional equivalent of the image sensor in a regular digital camera, but designed to respond to infrared wavelengths rather than visible light. Most commercial and professional thermal cameras use uncooled microbolometer sensors, in which each pixel consists of a tiny resistive element that changes its electrical resistance as it absorbs infrared energy. The camera's processor reads this pattern of resistance changes and converts it into a temperature map, which is then rendered as a visible image using one of several color palettes.

Cooled detectors, which use a cryogenic cooling mechanism to reduce sensor noise, are also available. They offer superior sensitivity and are standard in high-performance military and scientific systems, but they are significantly more expensive, heavier, and require startup time as the sensor cools to operating temperature. For most industrial, security, and hunting applications, uncooled microbolometer sensors provide adequate performance at a much more accessible price point.

The lens material matters as well. Standard glass is opaque to infrared radiation. Thermal camera lenses are typically made from germanium or chalcogenide glass, both of which transmit infrared wavelengths effectively. This is one reason thermal optics tend to cost more than their visible-light counterparts—germanium in particular is a relatively rare material.

Once the raw temperature data is captured, the camera applies image processing algorithms to stretch the temperature range across the display palette, enhance edges, and suppress noise. The output is what most people recognize as a thermal image: a grayscale or color-coded representation where brighter or warmer-toned pixels indicate higher temperatures and darker or cooler-toned pixels indicate lower ones.

Key Specifications and What They Mean

Thermal camera specifications can be confusing because the same numbers mean very different things depending on the application context. The following are the most important parameters to understand before comparing devices.

Sensor Resolution

Thermal sensor resolution describes how many individual detector elements are in the focal plane array. Common resolutions range from 160×120 on entry-level devices to 640×480 and 1280×1024 on premium models. Higher resolution means more thermal detail, which becomes important when identifying the precise location of a fault, distinguishing closely spaced targets at range, or reading temperature gradients across a surface. That said, thermal resolution requirements scale with the task: a security camera monitoring a parking lot needs far less resolution than an industrial endoscope documenting transformer hotspots.

NETD (Noise Equivalent Temperature Difference)

NETD measures thermal sensitivity—the smallest temperature difference the sensor can reliably detect against background noise. It is expressed in millikelvin (mK), and a lower number indicates better sensitivity. A sensor rated at 18 mK can detect temperature differences roughly half as small as one rated at 40 mK, which translates into sharper images, more distinct thermal edges, and better performance in challenging conditions like rain, fog, or scenes with minimal thermal contrast. For the detection of living animals or personnel at range, NETD is arguably more important than raw resolution.

Pixel Pitch

Pixel pitch is the center-to-center distance between adjacent pixels on the sensor, measured in micrometers. Smaller pixel pitch allows more pixels to fit into a given sensor area, enabling higher-resolution sensors without a proportionate increase in sensor size. A 12 µm pitch is currently near the leading edge of commercial uncooled sensors, enabling 640×480 and 1280×1024 detectors in a compact housing. Larger pixel pitch (17 µm, 25 µm) is still common in older or lower-cost designs.

Field of View and Magnification

Field of view (FOV) and optical magnification are interrelated. A wide FOV covers more area but provides less angular magnification, making it well-suited for area surveillance or hunting scenarios where situational awareness matters more than resolving distant detail. Narrow-FOV, high-magnification configurations are better for long-range observation of specific targets. Many thermal devices offer digital zoom, which enlarges the image by interpolation but does not add detail the way optical zoom does—a useful distinction when evaluating spec sheets.

Detection Range

Detection range is the farthest distance at which the sensor can flag a target as present. Recognition range is closer—the distance at which the operator can determine that the target is a person rather than an animal. Identification range is closer still, requiring enough resolution to distinguish individuals. When a manufacturer quotes a detection range of 2,500+ yards, that figure refers to the D criterion, not the more operationally useful R or I criteria.

Common Applications and What Each Demands

Industrial Predictive Maintenance and Inspections

Industrial thermography is one of the most mature and validated applications for thermal imaging. Electrical panels, motors, bearings, switchgear, and power distribution equipment all exhibit temperature anomalies before they fail, and thermal cameras make those anomalies visible without requiring physical contact or system shutdown. A bearing running hot from insufficient lubrication, a bus bar connection developing resistance from corrosion, or a transformer with a failing insulation layer all produce characteristic thermal signatures that trained technicians can identify and prioritize for corrective maintenance.

For this type of work, NETD and temperature measurement accuracy matter more than detection range. A 640×480 sensor with a NETD below 35 mK and a calibrated temperature measurement function is generally sufficient for most electrical and mechanical inspections. Reporting applications often require devices that can overlay temperature data on the image and export measurements in standard formats for inclusion in maintenance records.

Building Energy Audits and Envelope Inspection

Building thermography uses thermal cameras to identify heat loss, moisture infiltration, missing or displaced insulation, and HVAC distribution problems. When a building envelope is imaged under the right conditions—typically when there is a temperature differential of at least 10°C between interior and exterior—thermal cameras reveal cold spots at insulation gaps, warm patches where moisture has saturated wall cavities, and air leakage paths around windows, doors, and penetrations.

Energy auditors working to standards like ASTM E1186 or ISO 6781 require cameras capable of accurate relative temperature measurement and sufficient resolution to detect small anomalies across large wall areas. The practical challenge is that building thermography is highly condition-dependent: wind, solar loading on facades, and inadequate temperature differential can all render an inspection inconclusive. Understanding these limitations is as important as understanding the equipment.

Security, Surveillance, and Perimeter Protection

Thermal cameras are a natural fit for perimeter security because they operate in complete darkness, are not affected by headlights or spotlights that would blind conventional cameras, and can detect people or vehicles attempting to use vegetation or dark terrain as concealment. Unlike visible-light cameras, which depend on ambient or artificial illumination, thermal cameras produce usable images regardless of lighting conditions.

For long-range perimeter work, NETD and optical magnification are the primary performance drivers. Wide-area coverage applications tend to prioritize wide FOV and integration with video management software. In regulated environments, thermal surveillance systems may need to comply with local privacy regulations, which in some jurisdictions restrict the use of devices capable of identifying individuals at range.

Hunting, Wildlife Observation, and Field Optics

Hunters and wildlife observers use thermal optics primarily for two purposes: locating game in low-light conditions and recovering wounded animals after dark. In both cases, detection range and NETD matter significantly, because the goal is typically to detect a warm-bodied animal against a background that may include brush, tree cover, or terrain that masks visible-light signatures entirely. A deer bedded in tall grass at 300 yards in pre-dawn conditions is effectively invisible to conventional optics and night vision unless there is ambient illumination; thermal imaging turns this into a straightforward detection problem.

Handheld optics used in field hunting environments must also survive rough handling, exposure to rain and humidity, and operation in temperature extremes. IP67 waterproofing, magnesium alloy housings, and wide operating temperature ranges are practical prerequisites rather than premium features. Battery life is another underappreciated specification: a device that fails after four hours in cold weather is inadequate for all-day hunting use.

Choosing a Thermal Imaging Device: Practical Considerations

Matching a thermal device to its application means resisting the temptation to optimize purely for the highest-resolution sensor or the longest detection range. The following questions provide a more useful frame for evaluating options.

• What temperature differential will you typically be working with? Scenes with low thermal contrast—such as a human target in warm weather, or a building exterior in mild conditions—require better NETD than high-contrast scenarios.

• What is the typical target range and required identification level? Detection at 2,000 yards is not the same as identification at 200 yards, and the sensor resolution and magnification requirements are very different.

• Do you need quantitative temperature data or qualitative detection? Industrial and energy audit applications often require calibrated measurement; hunting and security applications typically require only relative contrast.

• What environmental conditions will the device face? IP rating, operating temperature range, and housing durability all affect long-term reliability.

• Is this a standalone tool or part of a larger workflow? Integration with mobile apps, recording capability, and connectivity matter if the device needs to feed data into reporting systems or stream to remote observers.

Beyond Thermal: Understanding Multispectral Imaging Modes

Pure thermal imaging is powerful, but it has a well-understood limitation: it trades color and fine visible detail for heat-based detection. A thermal image can tell you something warm is present and roughly where it is, but it will not show you the color of a piece of equipment labeling, the text on a sign, or the texture difference between a person and an animal at the edge of a field. This is why the most capable modern field optics now combine thermal sensors with conventional digital cameras in a single housing, giving the operator access to multiple imaging modes and the ability to fuse them.

Full-Color Daytime Mode

In full-color daytime mode, a multispectral device operates like a high-resolution digital camera, using its visible-light sensor to capture a conventional color image. The advantage is maximum spatial and color detail under adequate illumination—the kind of image quality needed for positive identification, target assessment, or any task where color distinction carries information. A 4K CMOS sensor in this mode captures roughly 8.3 megapixels per frame, producing images with enough resolution to read vehicle plates, identify animal species by markings, or document equipment condition for inspection records.

The limitation, of course, is illumination dependence. As ambient light drops below usable levels—in deep shade, at dusk, or at night—color imaging loses its advantage entirely. This is where the other modes become operationally essential.

Digital Night Vision Mode

Digital night vision amplifies available light—including near-infrared illumination invisible to the human eye—to produce a visible image in low-light or no-light conditions. Unlike traditional image intensification (the technology behind generation 1/2/3 night vision tubes), digital night vision uses a silicon-based CMOS sensor that is sensitive to near-infrared wavelengths, combined with an infrared illuminator that projects an invisible beam to light the scene.

The result is an image that retains more spatial structure and surface detail than thermal imaging while operating in darkness. Fine textures, surface markings, and close-range detail are all rendered more clearly than in thermal mode, because the image is based on reflected near-infrared light rather than emitted heat. The tradeoff is that digital night vision depends on either ambient near-infrared light (moonlight, starlight, and near-infrared environmental sources) or an active illuminator, which has a finite effective range and can, in principle, be detected by other night vision-equipped observers.

In practice, digital night vision excels at close-to-medium range tasks in partial darkness—reading map features, moving through terrain, or identifying something at 50 to 200 yards. The focusable infrared illuminator found on advanced devices like the Pulsar Symbion LRF extends effective range and allows the operator to concentrate the beam for long-range illumination or spread it wide for close-area work.

Thermal Mode

Thermal mode detects emitted infrared radiation independent of any illumination source, making it the only imaging mode that functions equally in total darkness, dense fog, smoke, and scenarios where targets are deliberately using low-light conditions for concealment. Because it responds to heat rather than light, thermal is the definitive tool for initial detection—finding whether a warm-bodied target is present in a scene, regardless of visual conditions.

The nine color palettes typically available on advanced thermal devices serve different detection and identification tasks. White-hot and black-hot palettes are standard for most observation work. High-contrast pseudo-color palettes like iron or rainbow are commonly used in industrial thermography to make temperature gradients visually distinct. Choosing the right palette for the ambient thermal conditions can meaningfully improve detection performance.

Picture-in-Picture Multispectral Fusion

The most sophisticated multispectral devices do not force a choice between modes—they allow simultaneous display of thermal and digital channels through Picture-in-Picture (PiP) overlays. In this configuration, the operator sees, for example, a full thermal image with a windowed digital inset, or vice versa. The thermal channel handles detection and flags any warm-bodied targets in the field of view, while the digital channel simultaneously delivers the spatial and visual detail needed for identification and assessment. The combination removes the operational cost of switching between modes when conditions change.

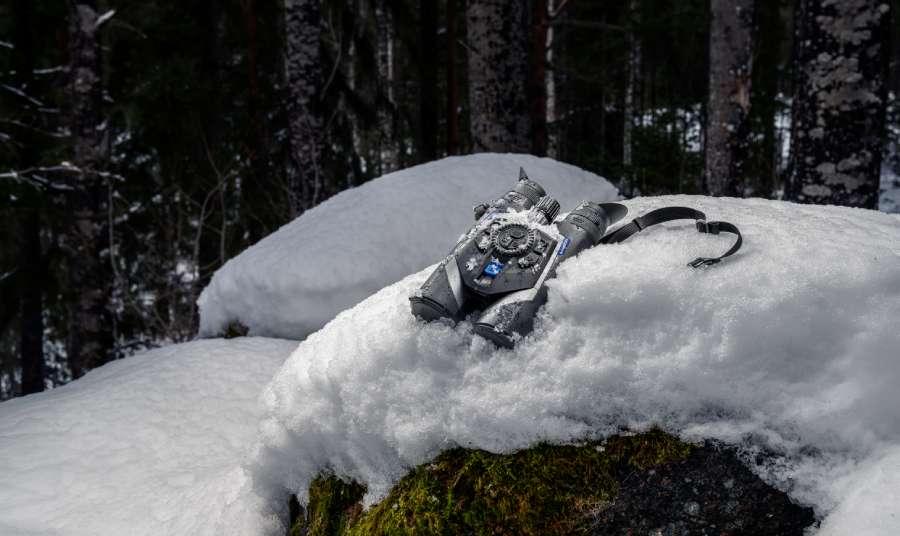

The Pulsar Symbion LRF: Multispectral Binoculars Built for All-Condition Use

The Pulsar Symbion LRF brings all three imaging modes—thermal, digital night vision, and full-color daytime imaging—together in a single binocular housing designed for field use by hunters and tactical professionals. The device is available in two configurations that share the same housing, display system, rangefinder, and digital imaging channel, differing primarily in their thermal sensor.

The Symbion LRF DXR50 uses a 640×480 resolution thermal sensor with a system NETD below 18 mK, providing excellent sensitivity for detecting warm-bodied targets at range. The Symbion LRF DXT50 uses a 1280×1024 resolution sensor which gives significantly greater thermal detail with a system NETD below 20 mK, making it better suited to long-range observation where resolving fine thermal structure matters. Both sensors use a 12 µm pixel pitch and an F50/1.0 objective, and both share a detection range of 2,500+ yards.

The digital imaging channel is identical across both models: a 4K CMOS sensor at 3840×2160 resolution, an F50/1.8 objective, 6.5–26× magnification, and digital zoom up to 8×. The laser rangefinder operates at 905 nm and provides ranging data out to 1,600+ yards, integrating directly with the observation workflow so that range is available without switching tools.

The housing is constructed from magnesium alloy and carries an IP67 waterproof rating—fully dust-tight and protected against immersion up to one meter for 30 minutes—with an operating temperature range of -13°F to +122°F. An APS5 battery delivers 10 hours of runtime on the DXR50 and 8 hours on the DXT50, with USB-C external power available when extended operation is required.

The device includes onboard photo and video recording with audio, image stabilization, a focusable infrared illuminator for active near-infrared illumination in night vision mode, and Stream Vision 2 connectivity for wireless streaming, remote control, and image transfer via iOS and Android. The control layout is optimized for one-handed operation, which is important in field hunting contexts where the other hand may be occupied.

For buyers evaluating the Symbion LRF against single-mode thermal monoculars, the operational argument is straightforward: thermal finds it, night vision resolves it, and color daytime imaging documents it—all without swapping devices. For hunters managing low-light conditions across morning, evening, and full dark, or for security professionals who need one instrument capable of transitioning across the full operational day, the multispectral platform removes a set of compromises that single-mode thermal optics necessarily require.

Final Thoughts

Thermal imaging technology has matured to the point where the fundamental physics are settled and the manufacturing is reliable across a wide range of price points. What separates good purchasing decisions from poor ones is understanding which specifications correspond to the actual performance demands of a given application, and being realistic about the tradeoffs that remain—particularly the tension between thermal sensitivity (NETD), thermal resolution, and cost.

For field observers, hunters, and security professionals working across variable lighting conditions, the more interesting frontier right now is multispectral integration: the ability to shift between thermal detection, near-infrared illuminated night imaging, and full-color daytime observation using a single device. The Pulsar Symbion LRF represents that direction—not as a conceptual prototype, but as a field-ready platform with the durability, battery life, and imaging performance to back the promise.

Visit pulsarnv.com to learn more about the Symbion LRF DXR50 and DXT50 and explore the full Pulsar thermal and multispectral lineup.
