What is NETD?

If you have spent any time comparing thermal optics, you have run into the term NETD, usually printed in small type next to a number like 25 mK. It is one of the most quoted specs in thermal imaging and also one of the most misunderstood, partly because the number alone does not tell you how the device behaves when you are standing in a wet field at two in the morning trying to pick a coyote out of the brush.

What NETD Measures

NETD stands for Noise Equivalent Temperature Difference, and it describes the smallest temperature difference a thermal sensor can distinguish before that difference disappears into the sensor's own electronic noise. It is expressed in millikelvins, where one millikelvin is a thousandth of a degree, so a 25 mK rating means the detector can resolve a temperature change of about 0.025 degrees.

Every thermal sensor produces a small amount of background noise that has nothing to do with the scene in front of it, the same way a camera produces grain in a dark room. When the temperature difference between an object and its surroundings drops below the level of that noise, the object stops standing out and effectively merges into the background. A lower NETD value means the sensor reaches that limit later, so it keeps separating objects from one another when the heat difference between them is very slight. That is why the industry treats lower numbers as better, with ratings under 25 mK generally considered excellent, the low 40s considered good, and anything climbing toward 60 mK considered merely acceptable.

It helps to think of NETD as the sensor's sensitivity rather than its sharpness. Resolution determines how much fine detail the sensor can render, while NETD determines how faint a heat difference it can detect in the first place. The two specs work together, and as we will see, the one that matters most depends heavily on the conditions you are hunting in.

How NETD Affects Your Experience Behind the Glass

The practical payoff of a low NETD rating shows up when thermal contrast is working against you, which in the field usually means moisture in the air. On a humid night, in fog, in light rain, or in heavy dew, the temperature gap between an animal and its surroundings narrows because the atmosphere carries and redistributes heat, and a warm body radiating through damp air looks far less distinct than it would on a crisp, dry evening. A sensor with a 25 mK rating can still tease a hog out of that soupy, low-contrast scene where its body heat blends closely with the ambient temperature, whereas a sensor sitting at 40 mK may let the same animal wash into its background until it is genuinely hard to identify.

The flip side is worth being honest about, because it changes how much weight you should put on the number when you shop. Under dry, clear, high-contrast conditions, a warm animal already stands out dramatically against a cool field, and the difference between a 35 mK device and a 25 mK device becomes close to negligible. In those situations the sensor's resolution and the optic's base magnification do far more to determine what you can see and identify than thermal sensitivity does. NETD earns its keep in bad weather and marginal contrast, and it quietly recedes into the background when the scene is already easy.

Can You Actually Change Your NETD?

Here is where a common misconception needs clearing up, because it is tempting to assume that fiddling with your device's settings somehow improves its sensitivity. The NETD printed on the spec sheet refers to the Native Sensor NETD, which is the raw, intrinsic sensitivity of the detector itself, and that figure is fixed in hardware the day the sensor is manufactured. No menu setting will lower the actual noise floor of the sensor or let it resolve a finer temperature difference than it physically can. As Pulsar's own approach to NETD reporting makes clear, the native rating is a constant, and the only thing software can act on is how that captured information gets processed and displayed.

What you genuinely can influence is how much of the sensor's sensitivity reaches your eye. A detector might be resolving a real temperature difference at the edge of its capability, but whether you perceive that difference depends entirely on how the device maps thermal data onto the display. If your contrast is set too low, fine gradations get flattened into a muddy gray sameness, and the subtle signal the sensor worked hard to capture never makes it into your perception. Nudge the contrast up, and those same gradations spread apart visually until the animal separates cleanly from the brush behind it. You have not changed the sensor's NETD at all, but you have changed how effectively its output is presented, and the practical result can feel like a meaningful jump in sensitivity.

This is the same principle behind the System NETD figure, sometimes written as sNETD. System NETD reflects what the device achieves after its image-processing algorithms reduce noise and amplify detail, which is why a well-tuned system can present a cleaner picture than the raw sensor number would suggest. The lesson for you as the operator is that your contrast, brightness, palette, and any image-boost or amplification modes are the manual equivalent of those algorithms. Spend a few minutes dialing them in for the conditions in front of you rather than leaving them at the factory default, and start with contrast, since it does the most to pull a low-contrast target out of its surroundings. Resist the urge to crank every setting to maximum, though, because over-processing introduces its own problems, blurring fine detail and adding lag when you pan across a moving scene, which defeats the clarity you were chasing in the first place.

Why Clarity at Distance Decides Everything

For a shooter on thermal optics, clarity is paramount for an ethical and confident shot, and its importance grows with every yard of distance you add. At close range, almost any modern thermal optic gives you enough to work with, but as the target moves out, it occupies fewer and fewer pixels on the sensor, the atmosphere between you and the animal attenuates the heat signal, and the margin for error in identifying what you are actually looking at shrinks accordingly.

Clarity at distance is what lets you confirm that the heat blob in your reticle is the animal you intend to take rather than livestock, a non-target species, or another hunter, and that single act of positive identification is the difference between a responsible shot and a serious mistake. It is also what lets you read the animal's orientation and posture well enough to place a clean, humane shot rather than a wounding one. This is where the interplay between sensor resolution and NETD becomes most apparent, because resolution governs how much of the animal's shape you can resolve at range while NETD governs whether the weakened, distance-attenuated heat signal still rises above the noise floor enough to be seen at all. In clear conditions, resolution and magnification carry most of the load at distance, and in damp or marginal conditions, NETD steps back to the front because the atmosphere has eaten so much of your thermal contrast. A device that holds a clean, legible image at the far edge of your effective range is doing the job that matters most, and that performance is exactly what the spec sheet is trying, imperfectly, to describe.

Why Thermal Beats Night Vision After Dark

All of this sensitivity and contrast discussion points toward the larger reason thermal has overtaken traditional night vision for nighttime shooting, and it comes down to a fundamental difference in how the two technologies work. Image-intensification night vision amplifies the small amount of ambient light already present in a scene, which means it depends on starlight or moonlight to function and degrades sharply on a truly dark, overcast night when there is little light to amplify. Because it works with reflected light, night vision also shows you the world more or less the way daylight would, which sounds like an advantage until you remember that an animal holding still in cover is camouflaged against that background exactly as it would be in the daytime.

Thermal imaging sidesteps both of those limitations because it does not care about visible light at all. It detects the heat that warm-blooded animals emit on their own, so it works in total darkness with no ambient light whatsoever, and a deer or hog radiating body heat lights up against a cooler field regardless of how well its coat blends into the brush. A bright light source that would bloom and wash out a night vision tube has no comparable effect on a thermal sensor, and the very low-contrast conditions that hurt thermal the most, the damp and foggy nights, are the situations where a low NETD device earns its rating. Detection, in other words, is thermal's home turf, and detection is the first and hardest problem to solve when you are working after dark.

None of this means night vision has no place, and it is worth being fair about its strengths. A quality intensifier tube can render finer detail and texture than thermal, which can aid in identification once a target is already located, and night vision generally costs less to get into. For the specific job of finding, identifying, and engaging warm targets in genuine darkness and across a range of weather, though, thermal's ability to see heat directly makes it the more viable tool, and the NETD and contrast factors covered above are precisely what determine how well a given thermal optic does that job.

Where the Trail 3 Fits In

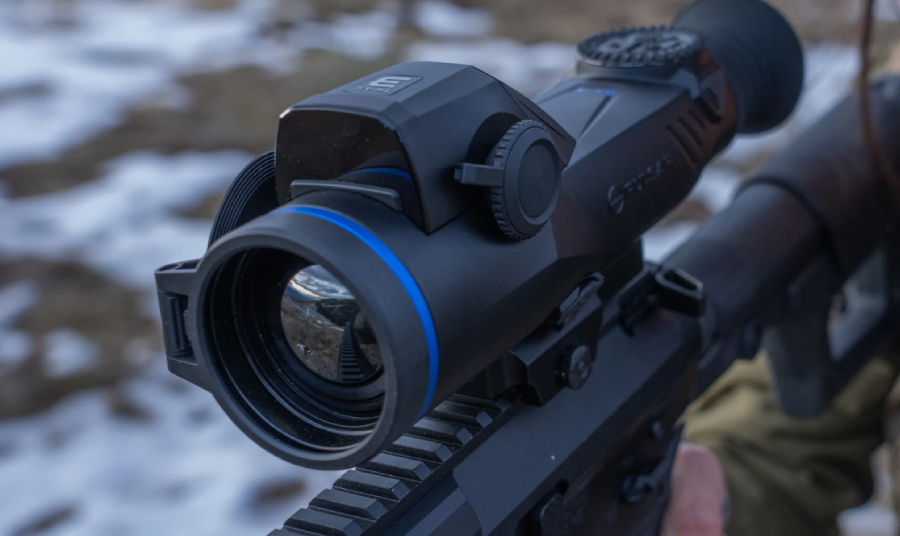

If you want a device that puts everything covered above to work, the new Pulsar Trail 3 LRF XR50 is a strong example of how far the technology has come. It pairs a 640×480 sensor and 3–24x magnification with a detection range out to 2,300 meters and a built-in laser rangefinder, which is exactly the combination of resolution and reach that keeps a target legible at the distances where clarity matters most. On the sensitivity side, Pulsar rates the Trail 3 at a System NETD of less than 18 mK, meaning that once its image-processing algorithms have done their work, the scope is presenting a remarkably clean, low-noise picture even when thermal contrast is working against you in fog or heavy dew.

The Trail 3 also gives you direct, practical control over the contrast principles discussed earlier through its customizable User Mode, which lets you tune brightness and contrast for the conditions in front of you and then saves those settings so the scope is dialed in the next time you power it on. That is the manual side of the same coin as its System NETD figure, and it is the difference between leaving the sensor's sensitivity locked behind a flat default image and actually getting it onto the display where your eye can use it.
