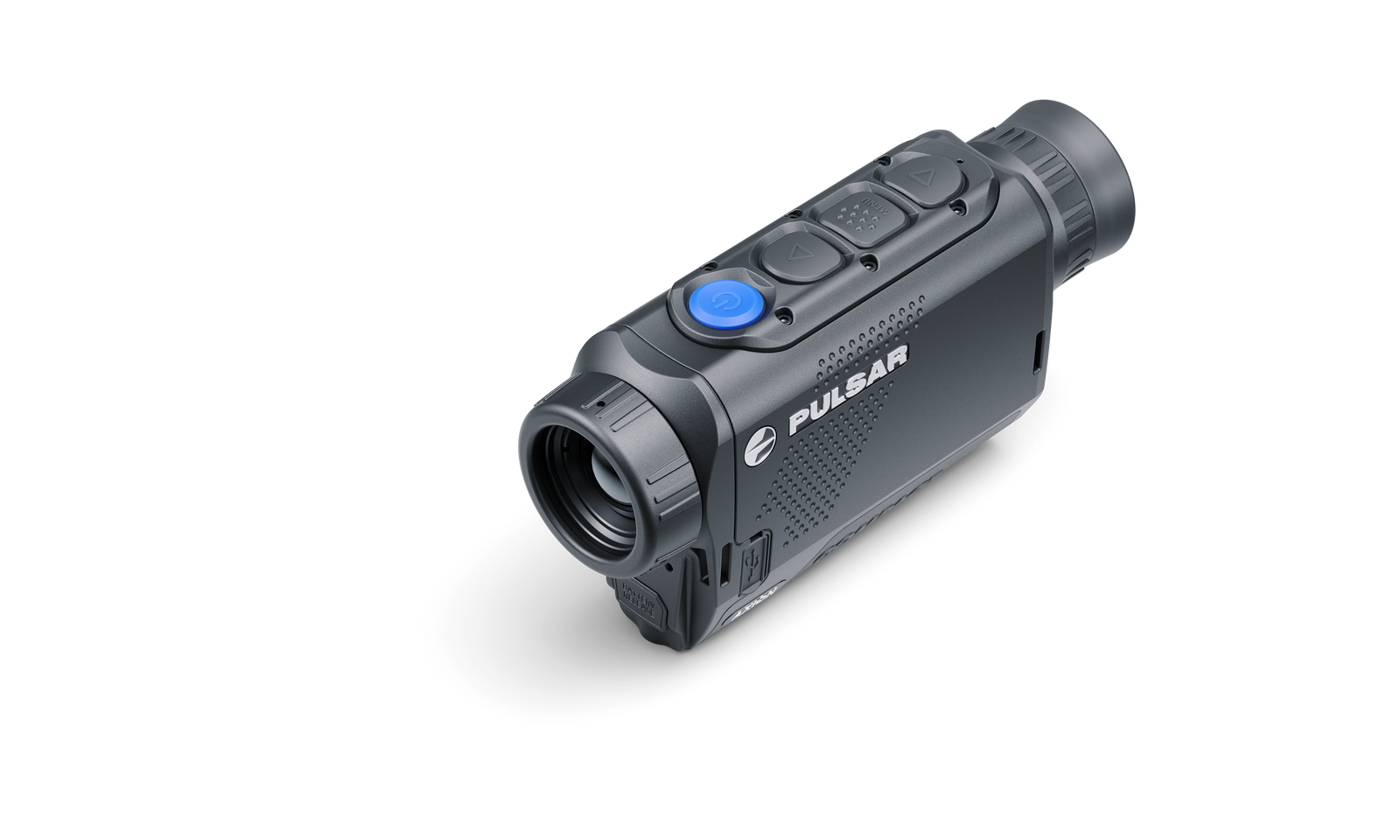

Axion XQ19 Compact Thermal Monocular

Name: Axion XQ19 Compact Thermal Monocular
Brand: Pulsar
SKU: PL77517
Price: 1049.97 USD
Availability: InStock

Price: $1,049.97

$1,049.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL77517

Product variants

Quantity

Description

The Pulsar Axion XQ19 is the entry point to the Axion line and the easiest one to carry. A 384x288 sensor sits behind a fast F19/1.0 objective for an 820 yard detection range, with a wide 19.5° field of view at 1.5x that makes it well suited to scanning close and mid-range cover, tree lines and field edges where a narrow view would cost you movement.

Magnification runs 1.5–6x to a 640x400 AMOLED display with 14 mm of eye relief. Photo and video record to 64 GB of internal memory, and dual-band Wi-Fi connects to the Stream Vision 2 app.

The magnesium alloy body is IPX7 waterproof and rated from -13°F to 104°F. The removable APS3 3200 mAh battery runs up to 8 hours, the longest in the compact Axion range, and charges over USB-C.

Features

384x288 thermal sensor, 17 µm pixel pitch
F19/1.0 objective lens
820 yard detection range
1.5–6x magnification, 19.5° field of view
640x400 AMOLED display, 14 mm eye relief
64 GB internal memory with photo and video recording
Dual-band Wi-Fi and Stream Vision 2 support
Magnesium alloy body, IPX7 waterproof
Up to 8 hours on a removable APS3 battery

Free shipping on orders over $1,000
Ships from Mansfield, Texas in 1–2 business days
3-year warranty, 5 years with registration
15-day returns on new-condition units — details

View full details

Main

Sensor 384x288 pix. @ 17μm (sNETD <18 mK)
Objective lens F19/1.0
Magnification, x 1.5 - 6
Field of view (HxV), degrees 19.5°
Detection range, yds 820

Sensor

Type uncooled
Resolution, pixels 384x288
Pixel pitch, µm 17
NETD, mK <18
Frame rate, Hz 50
sNETD, mK <25

Optics

Objective lens F19/1.0
Magnification, x 1.5-6x
Field of view, degrees 19.5
Eye relief, mm 14

Display

Type AMOLED
Resolution, pixels 640x400

Range Performance

Detection range, yds 820

Video Recorder

Video / photo resolution, pixel 960x600
Video / photo format .mp4 / .jpg
Built-in memory, GB 64

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPХ7(waterproof)
Operating temperature range, °F -13...+104

Connections and Compatibilities

Mount, type 1/4"
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0 – 4.2
Battery type APS3 External
Capacity, mAh 3200
Operating time on battery pack (at t=22°C), h * 8
External power supply, V 5 USB-C

Weight & Size

Body material Magnesium alloy
Dimensions, in 5.3x1.5x2.8
Weight, oz 8.8 (with battery)

Trade Data

SKU (Model #) PL77517

View all specs

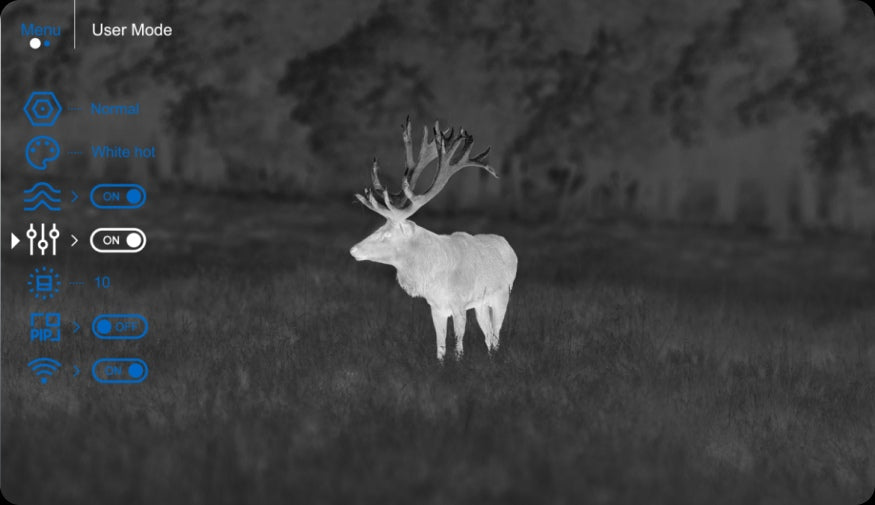

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

European made thermal imaging sensors

The Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions. A 384x288/17 micron sensor provides enough detail for hot object identification.

3 levels of sensitivity amplification

The Axion thermal imaging devices use a new approach to image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

Wide Field Of View For Easy Scanning

Axion Compact monoculars have a wide field of view which simplifies scanning and searching for objects which emit heat. Its wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping much of the landscape within the unit’s peripheral vision.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Pocket-Sized And Light Weight

Axion monoculars have a space-saving, pocket-sized design. Weighing less than 9 ounces, they’re the best thermal imaging monoculars for those who look for a truly compact option, both for hunting and nocturnal observation. The device is easy to grip and operate for both right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Stream Vision 2 App Support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

High-contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
