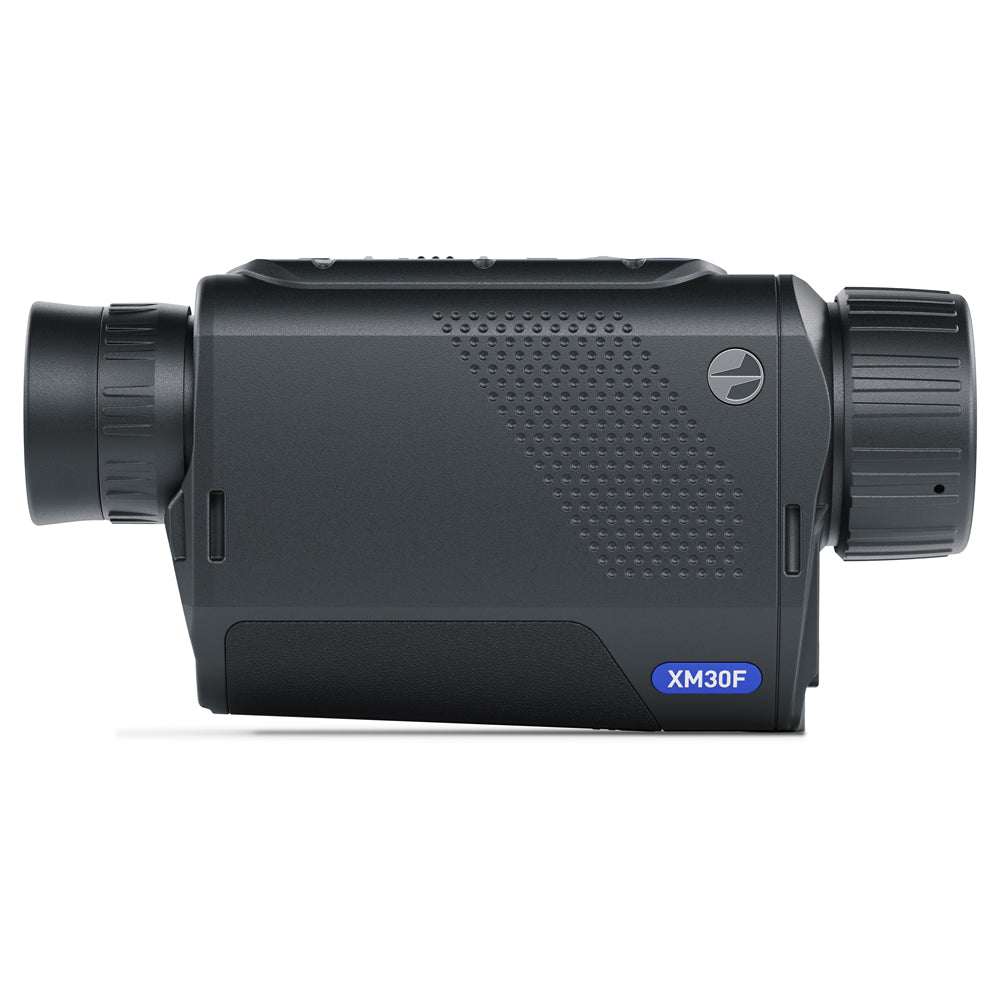

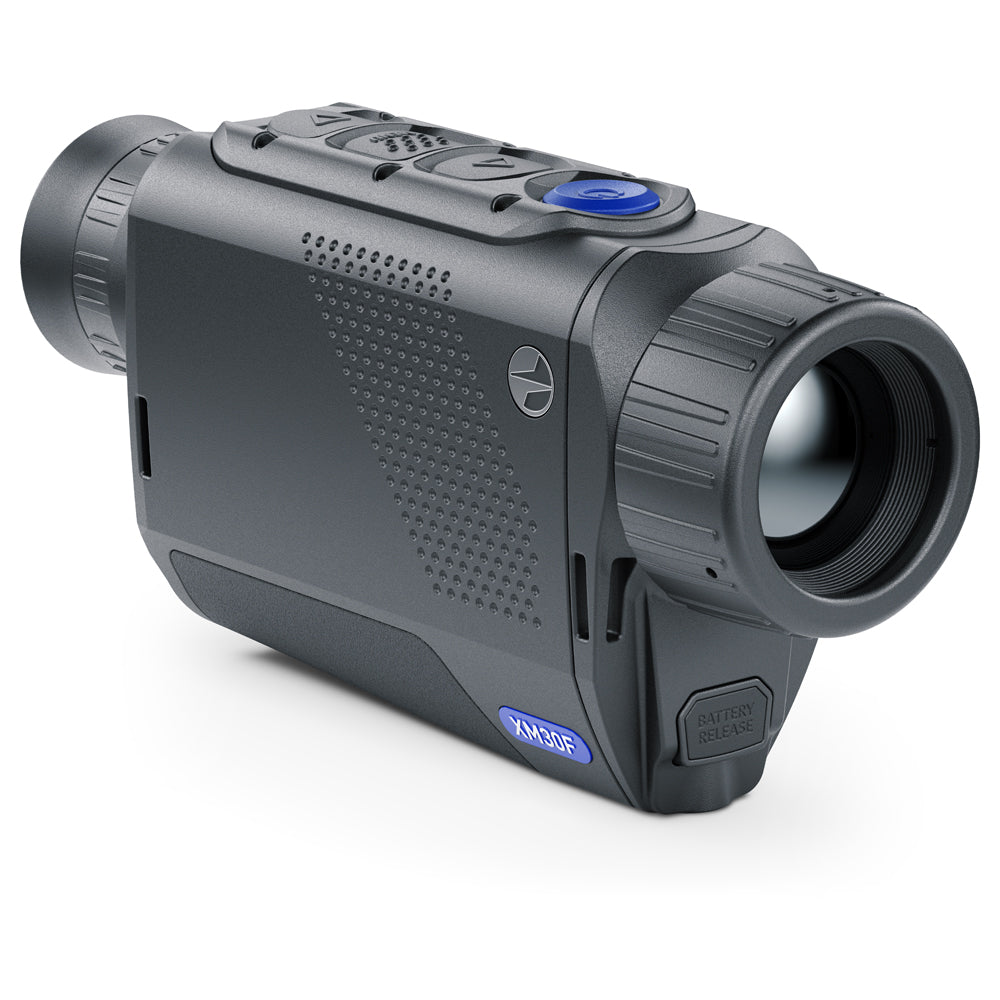

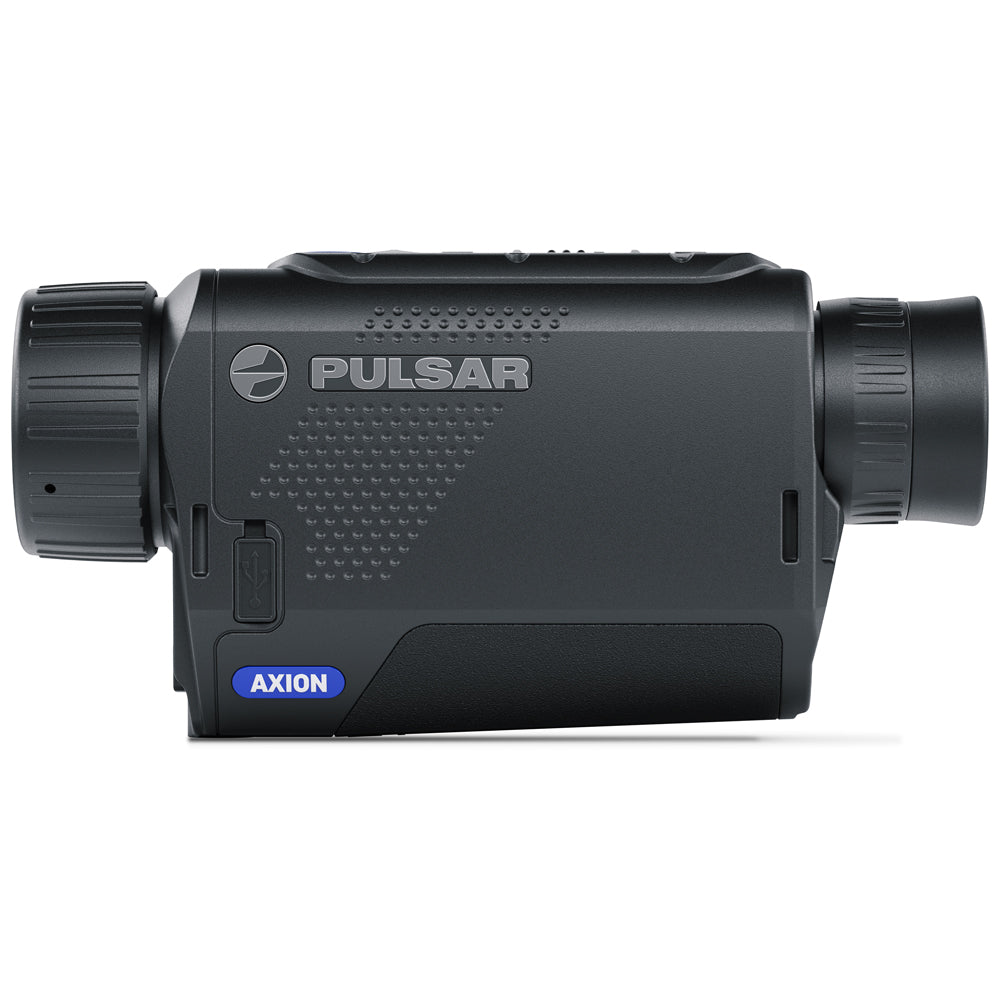

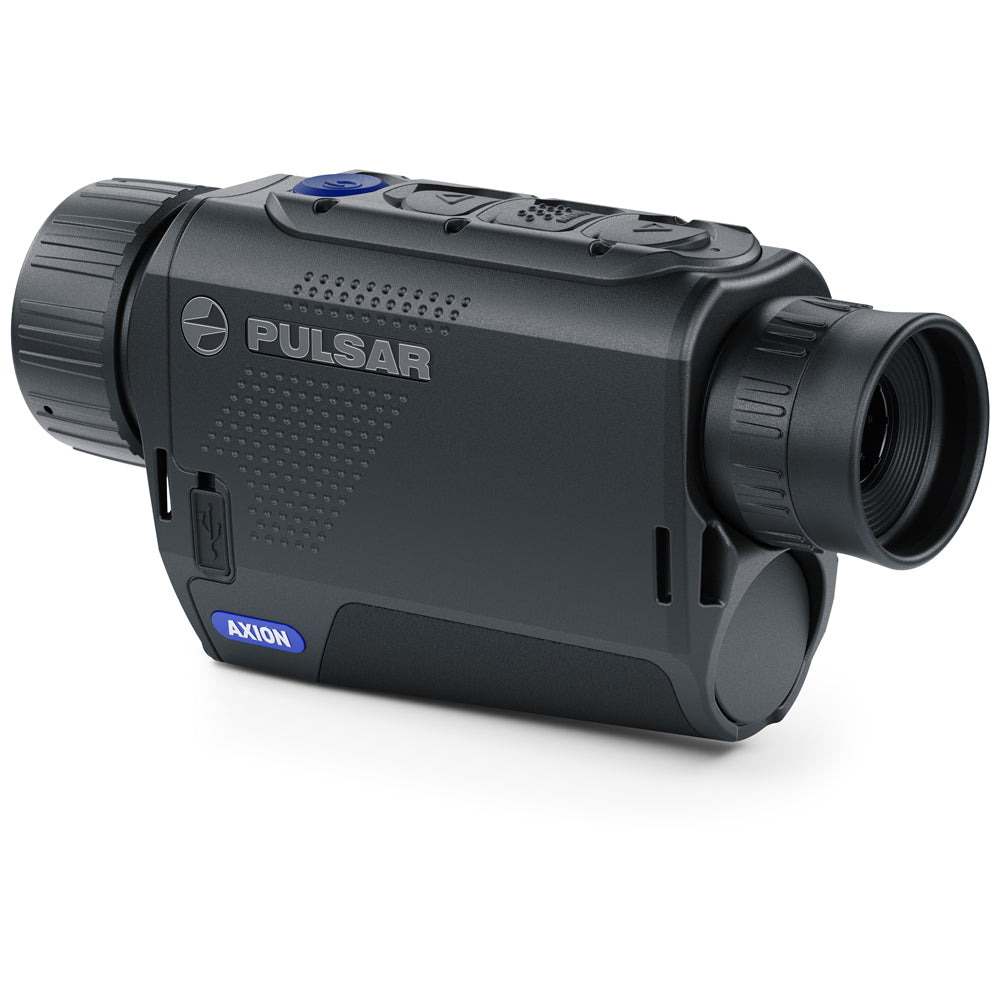

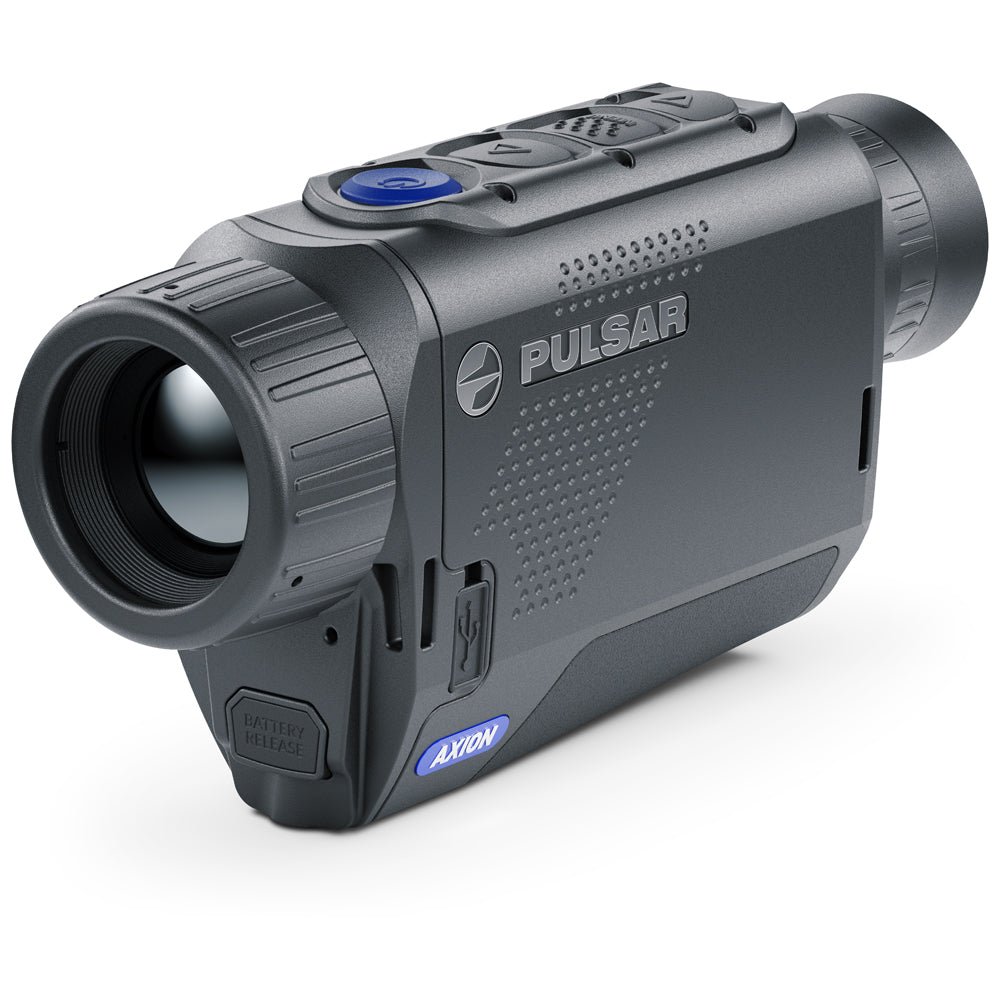

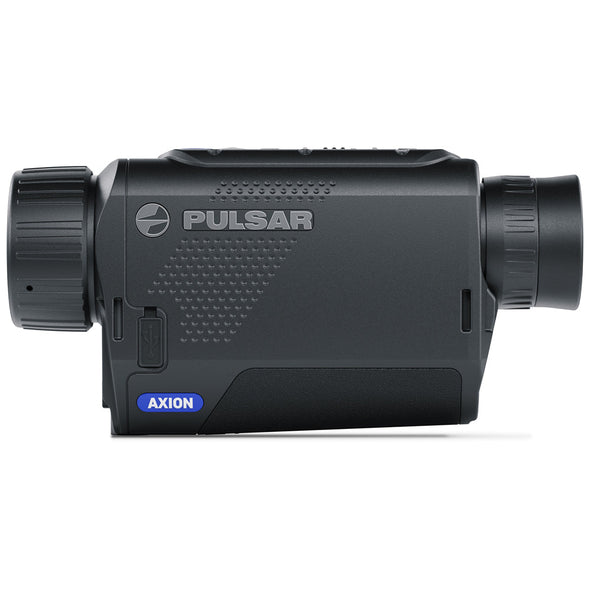

Axion XM30F Thermal Monocular

Sensor 320x240 pix. @ 12 µm (NETD <50 mK)
Objective lens F30/1.2
Magnification, x 3 - 12 (4x zoom)
Field of view (HxV), degrees / m@100m 7.8x5.9 / 13.7
Detection range, m 1300

Sensor

Type uncooled
Resolution, pixels 320x240
Pixel pitch, µm 12
NETD, mK <50 mK
Frame rate, Hz 50

Optics

Objective lens F30/1.2
Magnification, x 3 – 12
Field of view (HxV), degrees / m @ 100 m 7.8x5.9 / 13.7
Eye relief, mm -

Display

Type AMOLED
Resolution, pixels 640x400

Range Performance

Detection range, m 1300

Video Recorder

Video / photo resolution, pixel 528x400
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Bluetooth

Wireless Protocol -
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPХ7
Operating temperature range, °С -

Connections and Compatibilities

Mount, type -
Supported Application -

Power Supply

Output voltage, V 3.0 – 4.2
Battery type Li-Ion Battery Pack APS 3
Capacity, mAh 3200
Operating time on battery pack (at t=22°C), h * -
External power supply, V 5 (USB)

Weight & Size

Body material -
Dimensions, mm 144x40x69
Weight, kg 0.25

Trade Data

SKU (Model #) 77473
Status -

Price: $1,399.97

$1,399.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL77473

Product variants

Quantity

Description

The dynamic Axion XM30F from Pulsar is lightweight, compact and feature-packed. With a powerful 320x240 microbolometer resolution, the pocket-sized Axion XM30F detects heat signatures over 1400 yards away and transmits the images to a pristine 640x400 AMOLED Display.

Possessing 3-12x digital magnification, the Axion XM30F records .mp4 videos and is compatible with the Stream Vision 2 App, so users can capture and preserve precious outdoor memories. The Axion XM30F takes the trusted APS 3 batteries and boasts 5 hours of battery life, and is rechargeable by an external, 5-volt Micro USB. It is rated IPX7 fully-waterproof and weighs a mere .55lbs.

Whether you are hunting, hiking, checking your perimeter or just observing wildlife, the Axion XM30F is the optic of choice. It fits conveniently into a pocket or bag and can be ready-to-work at a moment’s notice. The Axion XM30F can help you make the crucial distinction between a human, wild animal, family pet or livestock. It has a built-in stadiametric rangefinder, so you always know the distance to your target, and its durable housing and IPX7 waterproof-rating mean the Axion XM30F can be used in a wide variety of weather conditions.

Features:

320x240 microbolometer resolution
12 µm pixel pitch
640x400 AMOLED Display
3-12x digital magnification
1420-yard detection range
8 color palettes
Stadiametric rangefinder
Built-in photo and videorecorder
.mp4 videos
16GB built-in memory
Wi-Fi connectivity
Stream Vision 2 compatible
Powered by APS 3 batteries
5 hours of battery life (rechargeable)
.55lbs
IPX7 fully-waterproof

View full details

Detection Range up to 1300 m

In Axion XM30F thermal imaging devices, space-saving dimensions fit together with a high detection potential. High-quality optics and a thermal imaging sensor with a 12-micron pixel will help to observe an object with 1.8 meters high on distant approaches, up to 1300 meters.

User Mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Rugged magnesium alloy housing

Axion XM is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Low power consumption. 5+ hours of battery life on a single charge

A quick-change APS3 rechargeable battery provides 5 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for external power supply of a thermal imaging device.

Ideal optical magnification

Thermal imaging device solves practical problems of observation during the hunting already at the starting magnification. The 3x magnification of Axion XM30F is optimal for a comfortable study of the trophy at short and medium distances, the field of view is sufficient for observing dynamic scenes. The magnification is increased up to 4 times by means of digital zoom to identify distant objects.

Pocket-sized dimensions and light weight

Axion XM has a space-saving and pocket-sized design and weighing less than 250 grams. This is a classic option for a running hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

3 levels of sensitivity amplification

Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range observation in diverse weather and temperature conditions. Amplification setting helps to define animal’s trophy features and ensures clear rendering of objects and background in the field of view.

High-contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2. WiFi integration with iOS and Android devices

The built-in WiFi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 GB of internal memory provide many hours of recorded video and tons of photos.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
