SKU : PL76559
- Description
- Specifications

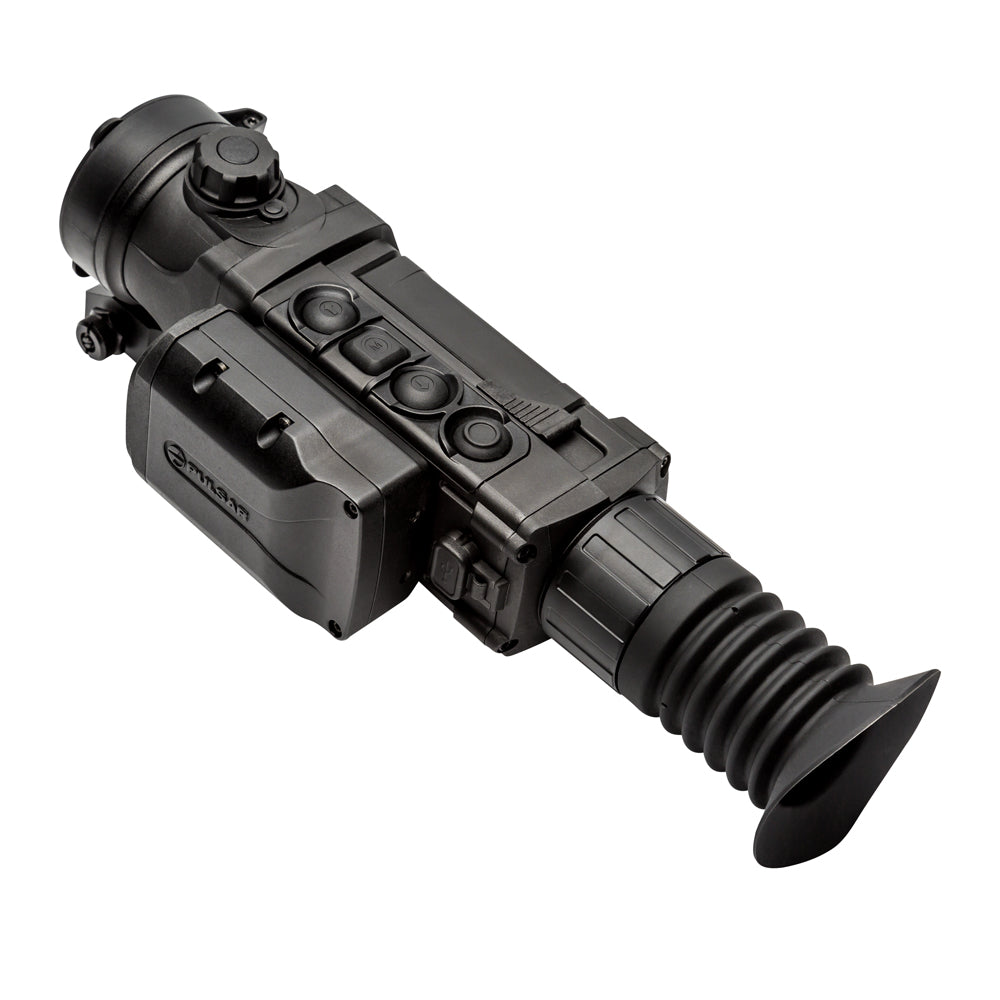

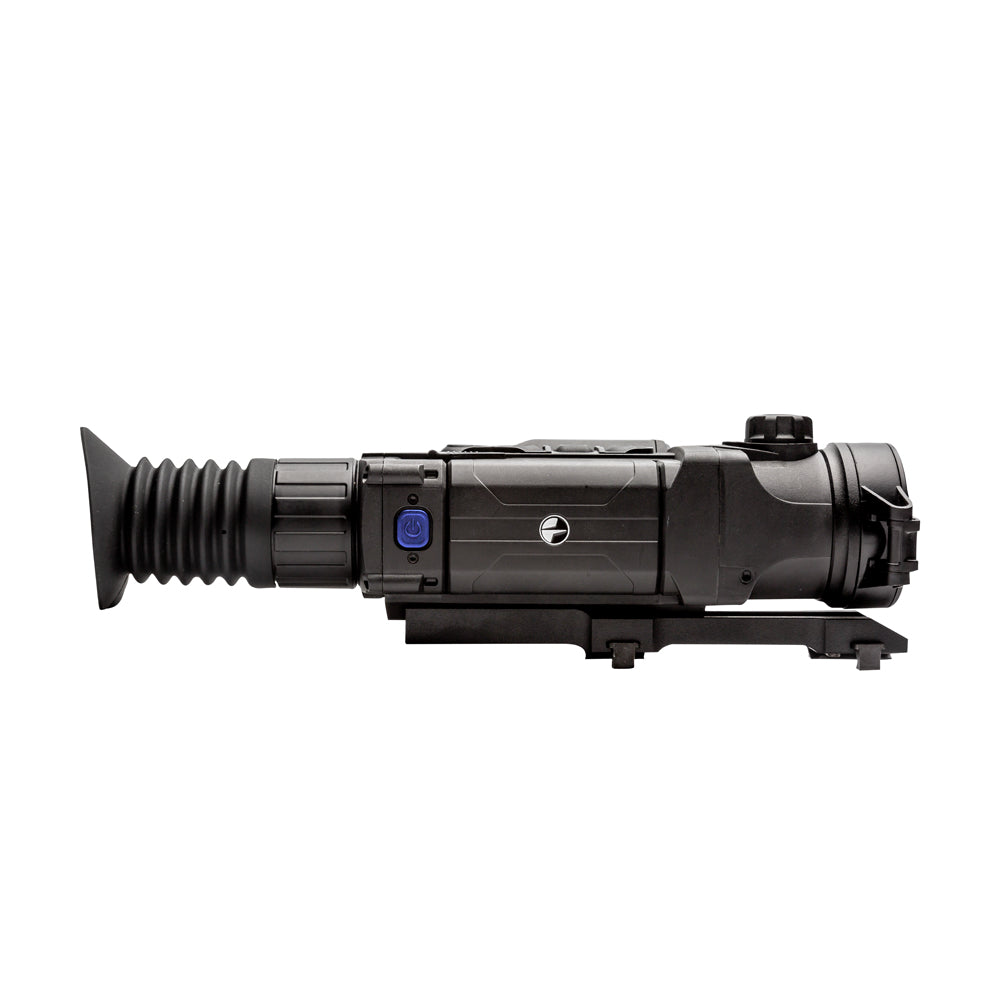

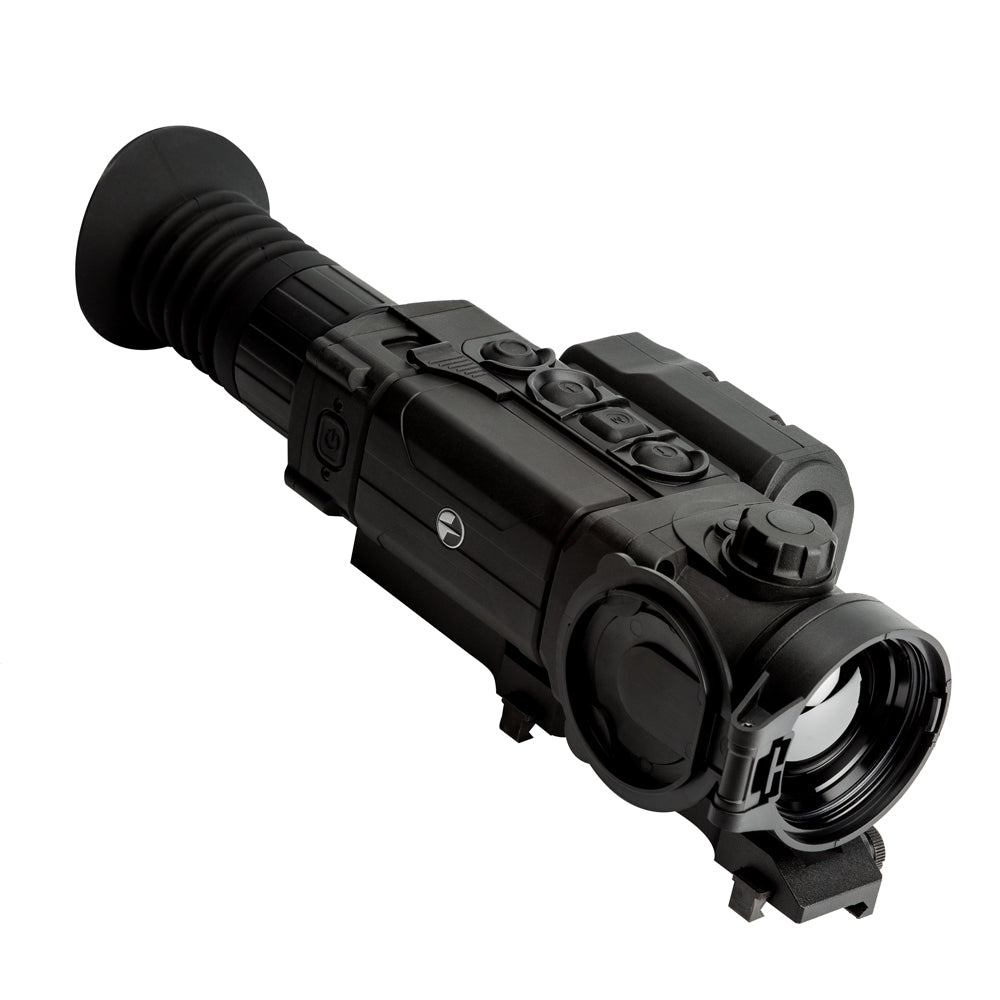

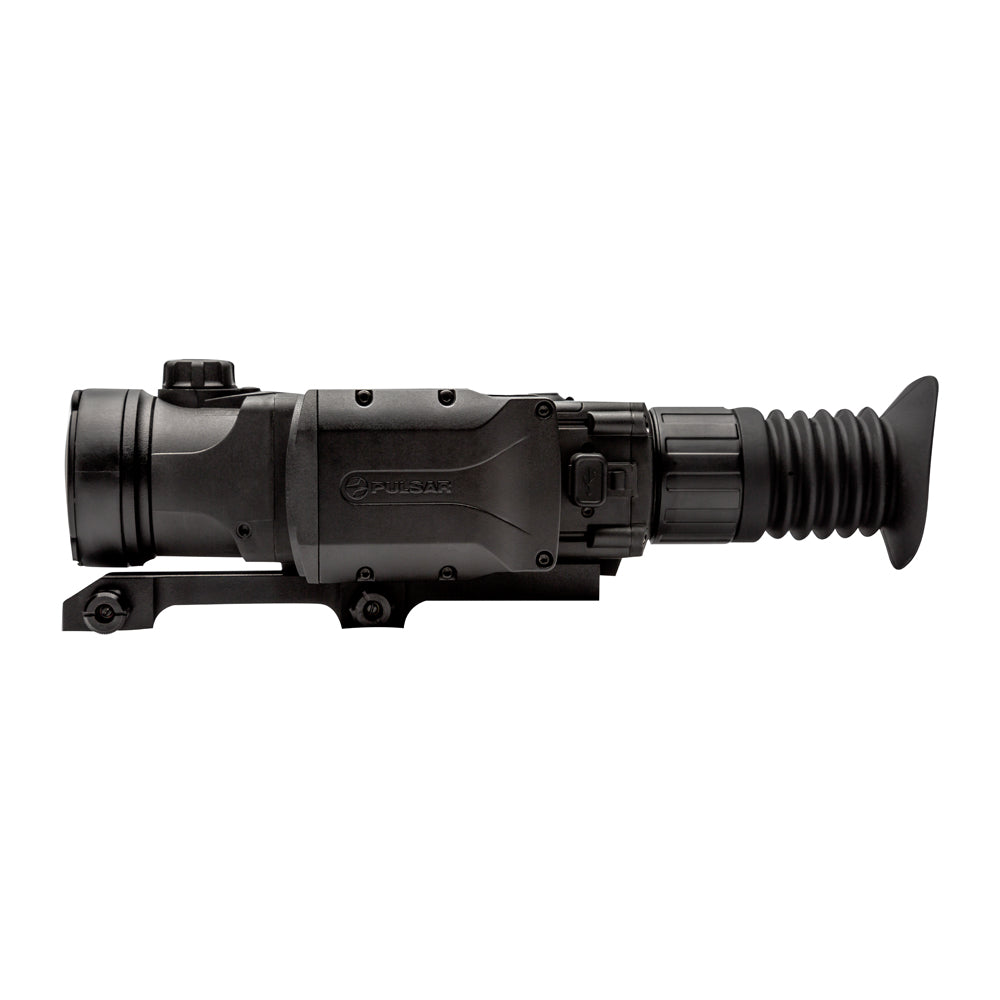

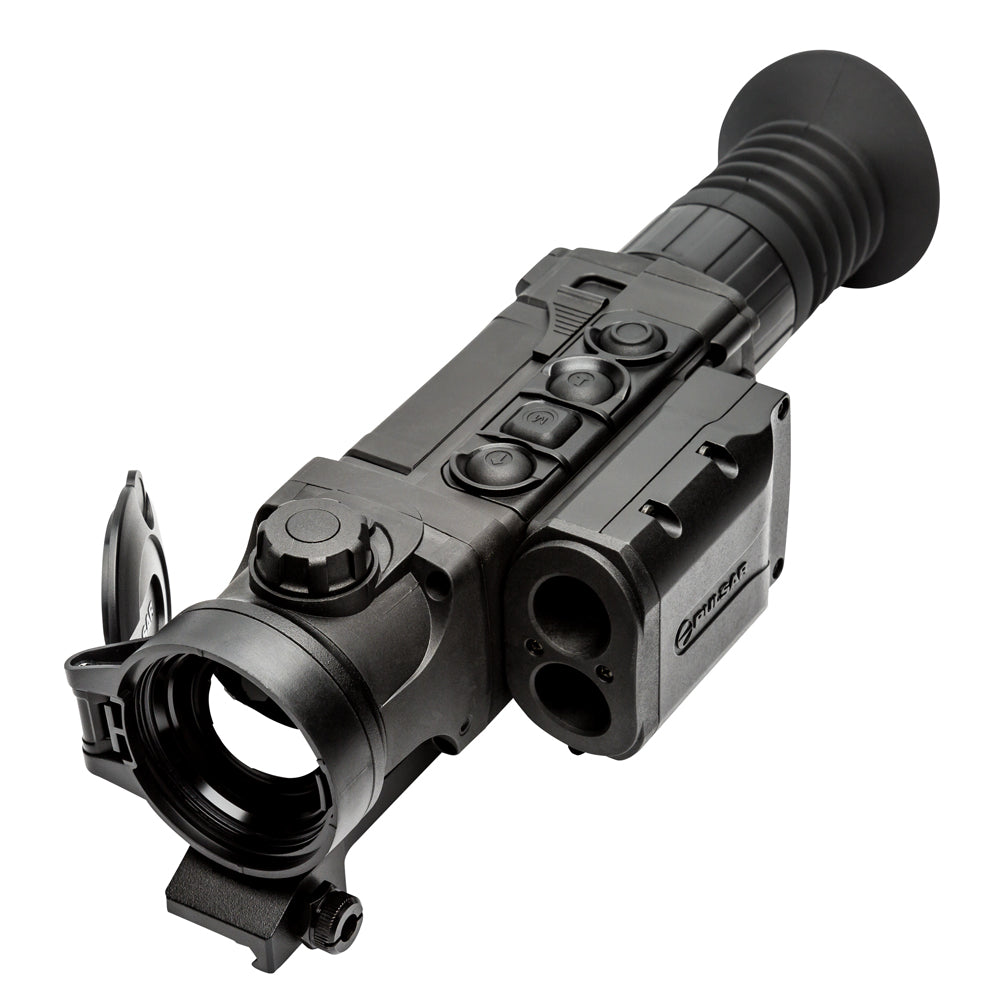

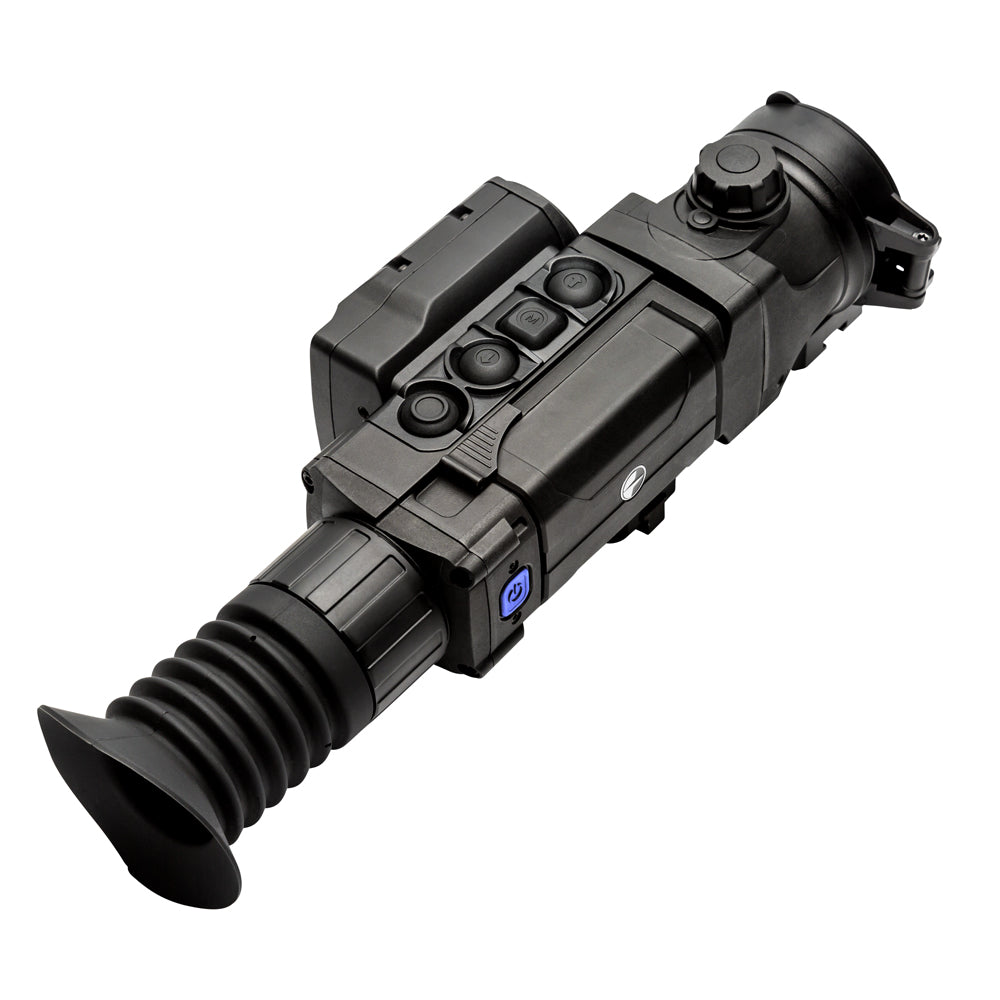

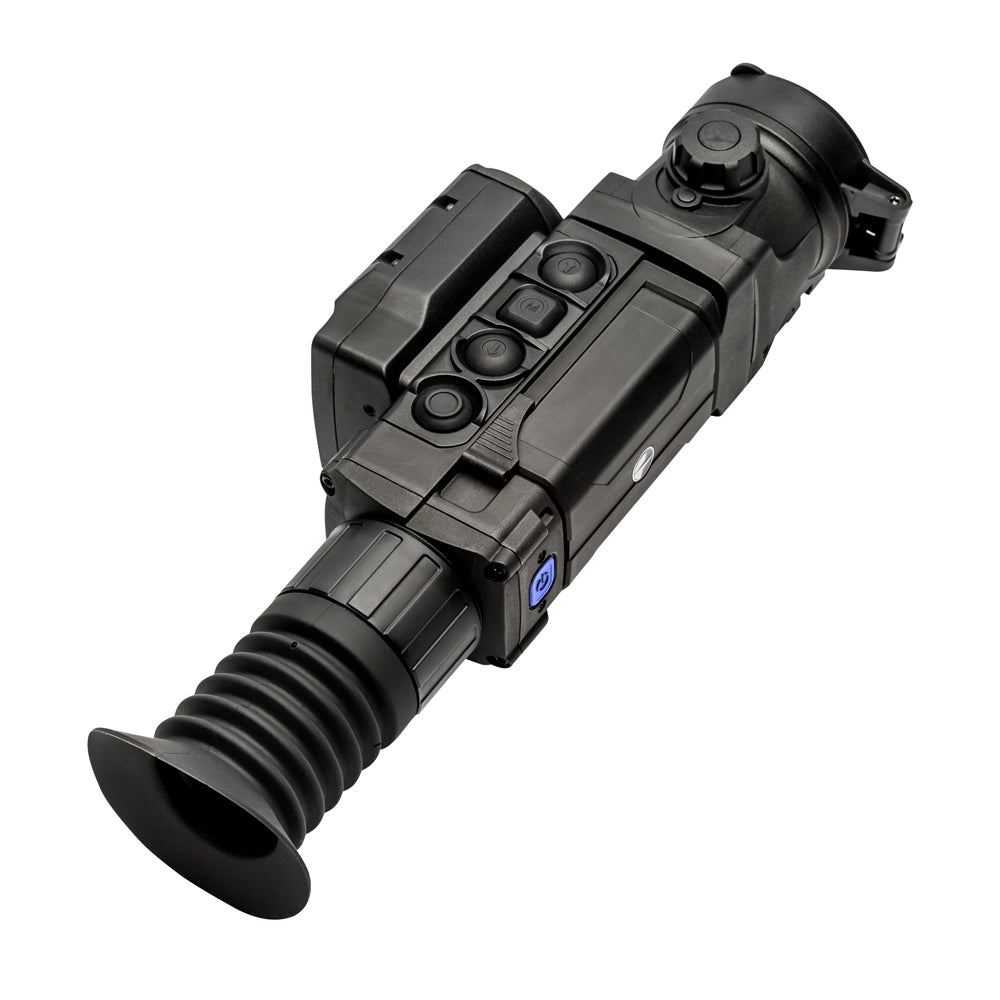

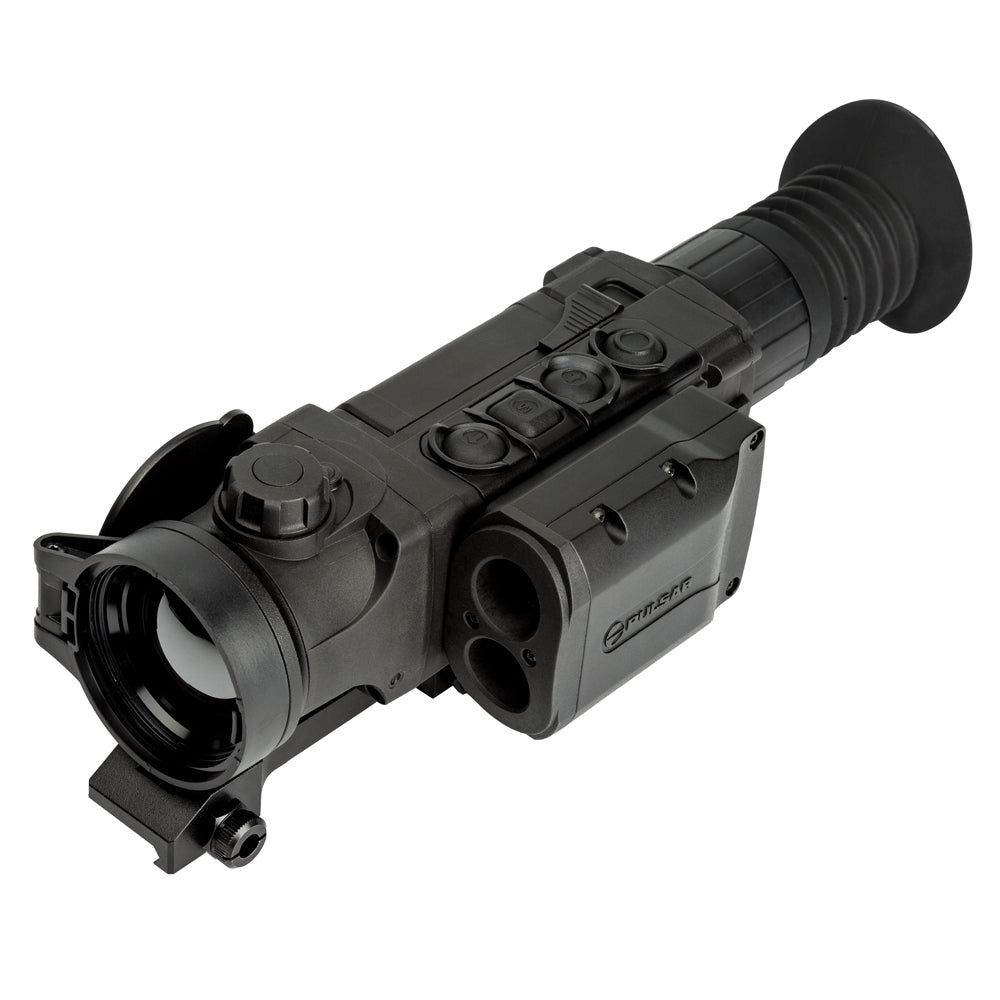

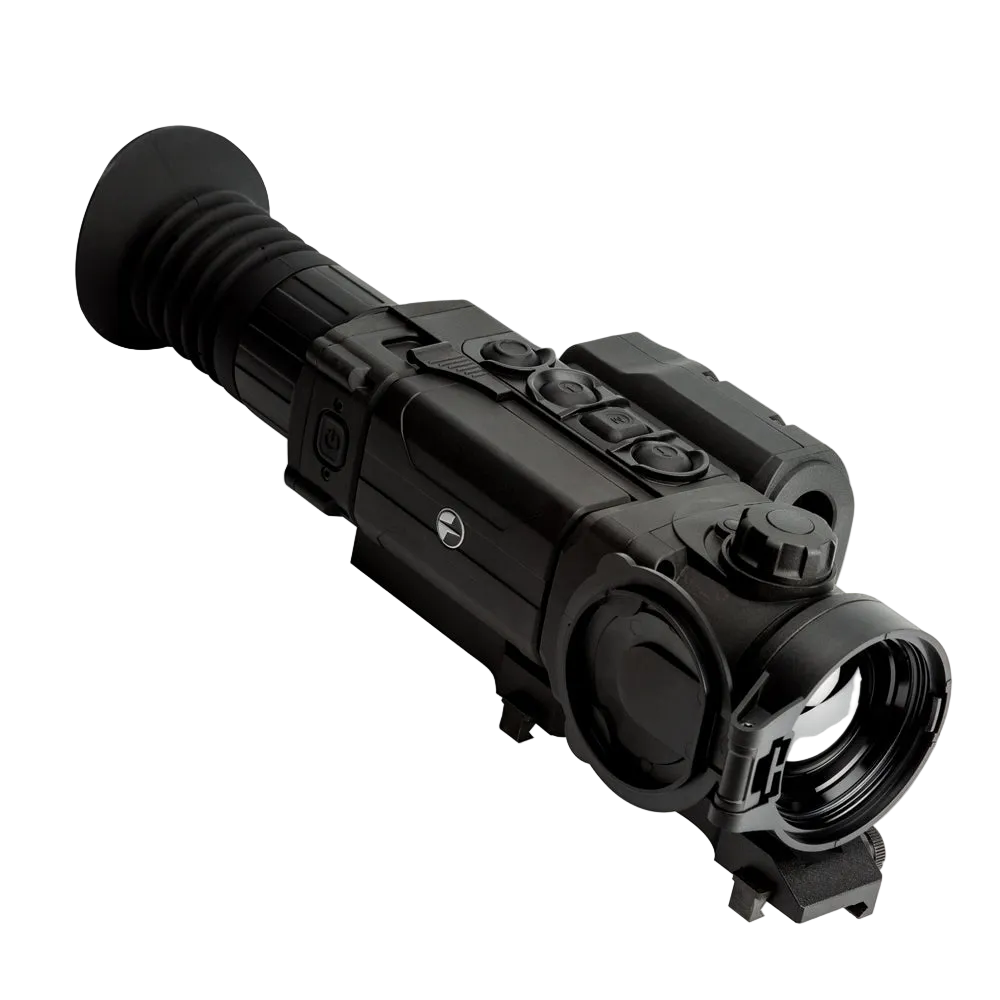

The next generation of thermal imaging sights has arrived with the development of the Pulsar Trail 2 LRF XP50. Utilizing a highly-sensitive 640x480 thermal sensor, the Trail 2 can distinguish miniscule temperature differences during rain, fog, dark or extremely cold conditions. With a full-color 1024x768 AMOLED display and 2x-16x magnification, every tiny detail for up to 2000 yards will appear crystal-clear – and built-in video and still-image recording with 16Gb of internal memory allows users to store footage. Its integrated laser rangefinder is state-of-the-art and features 2 modes: Single Time Measurement and Scanning Mode, allowing the shooter to adjust quickly for changing distances. The Trail 2 also boasts a 3-second startup, variable digital zoom up to 8x, 4 color reticle options, picture-in-picture mode and IPX7 waterproof protection. Additionally, the Trail 2 has Wi-Fi, compatibility with the Stream Vision app, up to 5 zeroing profiles and a recoil rate up to .375 H&H, 12-gauge and 9.3x64. For a reliable, high-tech thermal scope, the Trail 2 XP50 from Pulsar is the best in the business.
Included in Package
- Battery pack
- Battery pack charging kit
- USB cable

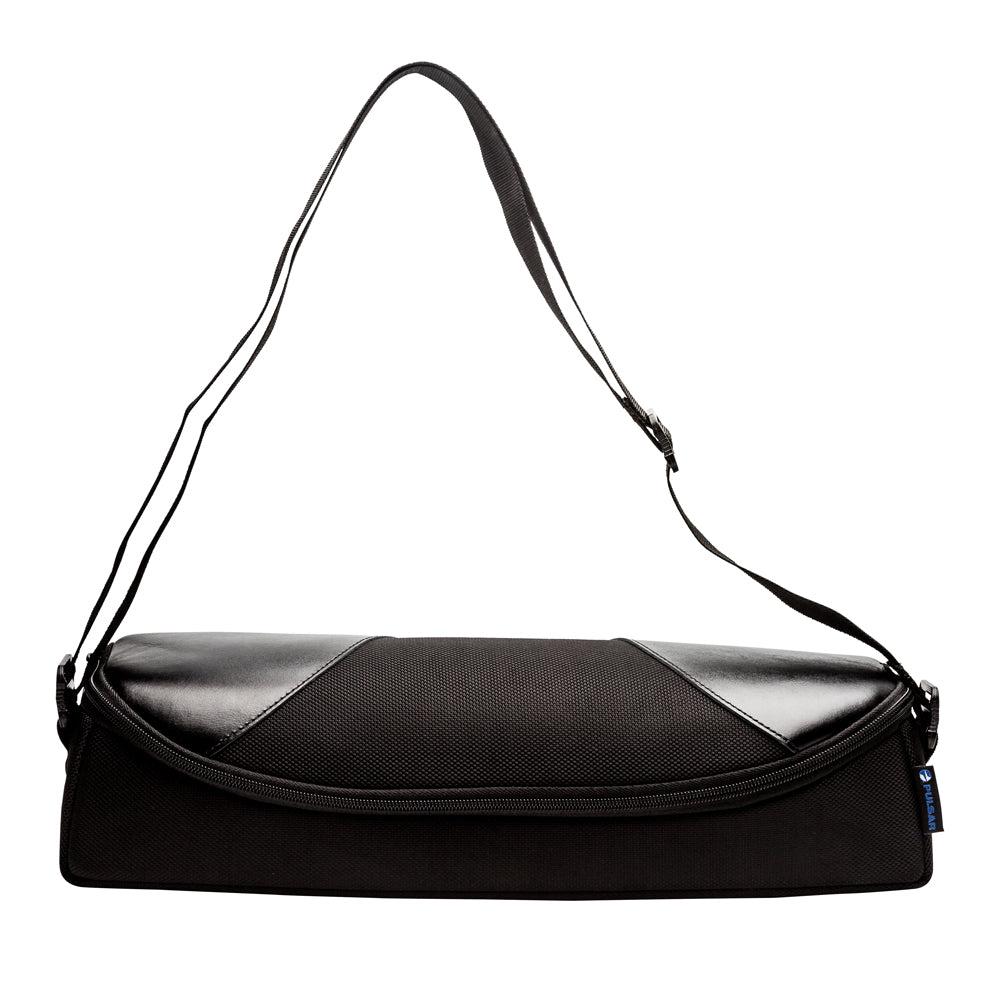

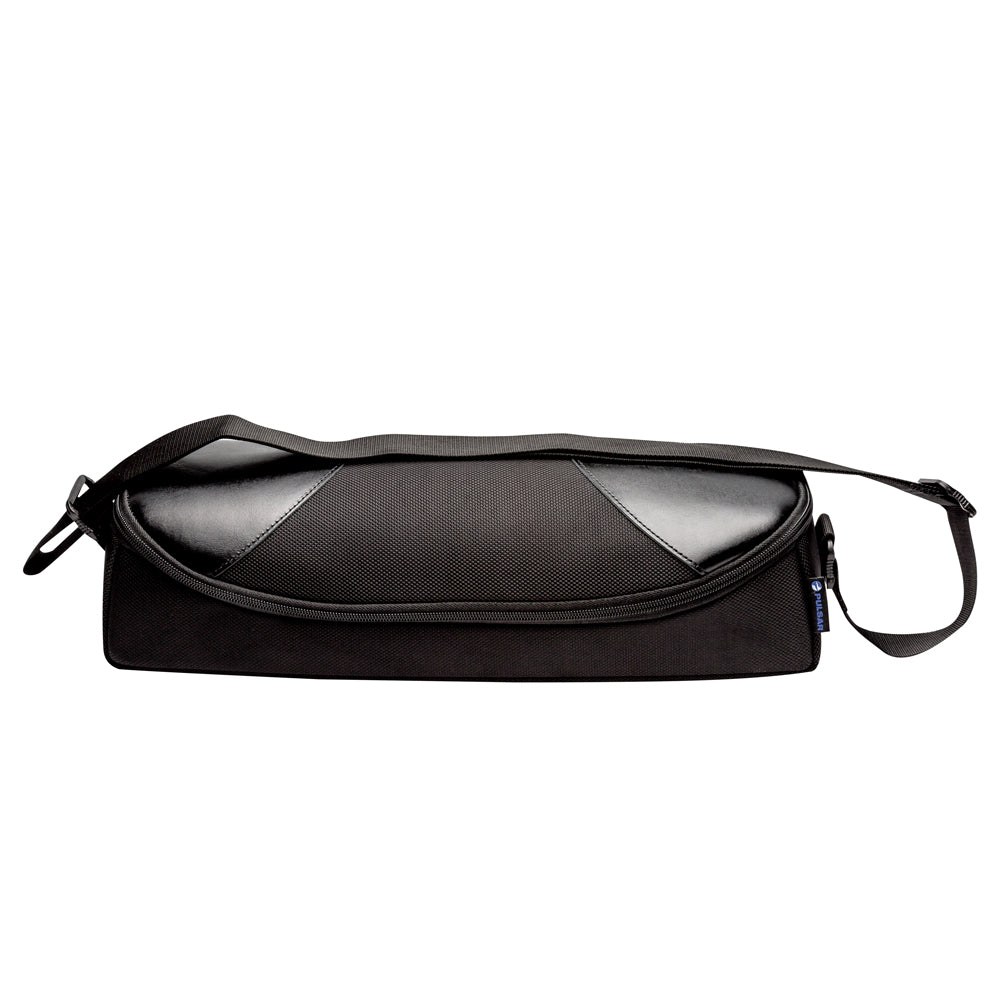

- Carrying case
- Hex wrench
- weaver/picatinny rail
- Cleaning cloth
Product Downloads
Features
- 640x480 resolution - 17um pixel pitch core or 384x288 resolution - 17um pixel pitch core
- Highly sensitive thermal sensor <40mK NETD
- High definition image

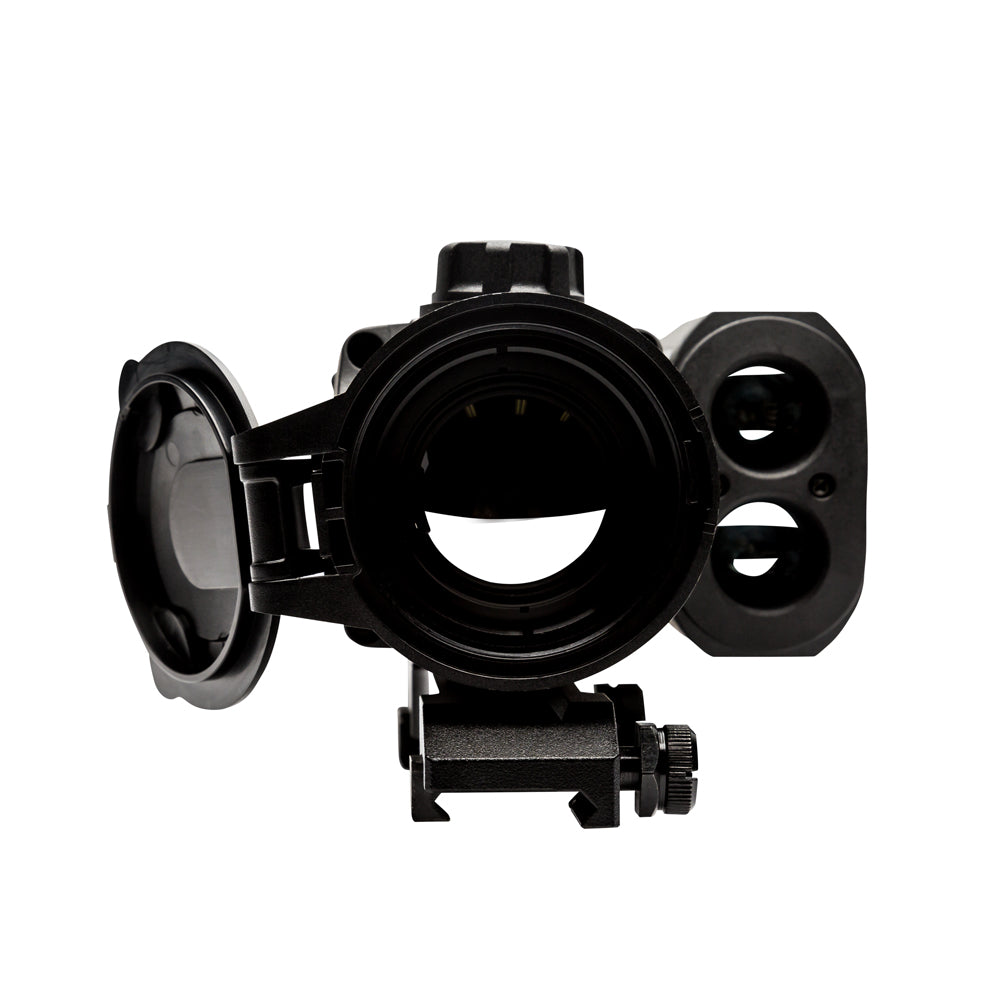

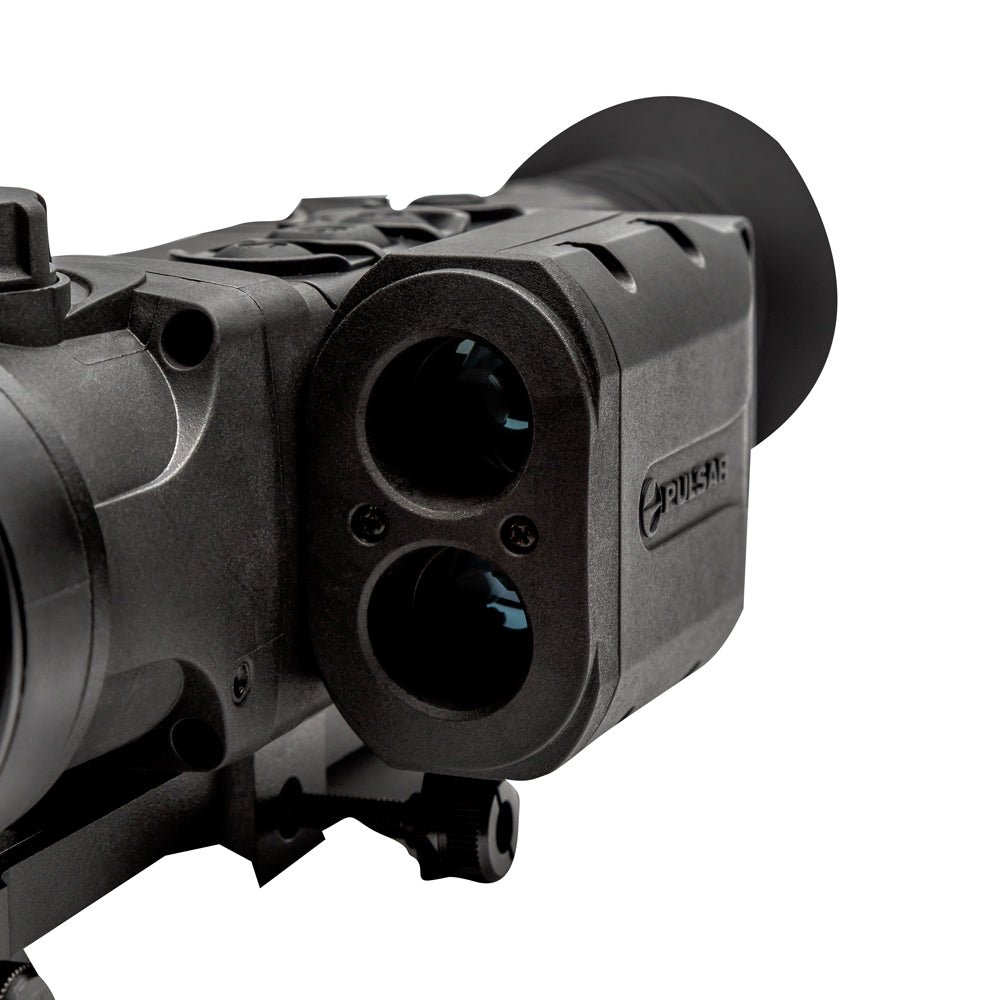

- Built-in precision laser rangefinder
- Shockproof magnesium alloy housing
- Full-color HD AMOLED Display
- Built-in photo and video recorder
- 16Gb Internal memory
- Detection range up to 2000 yd
- 13 variable electronic reticles
- Instant 3 second start-up
- Zeroing profile management
- Variable digital zoom
- Picture-in-picture mode
- Stream Vision app integrates with IOS and Android devices
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
| Frame Rate, Hz | 50 |
|---|---|
| Microbolometer Resolution, pixels | 640x480 |
| Pixel Pitch, µm | 17 |
| Display Type | AMOLED |
| Display Resolution, pix. | 1024x768 |
| The Operation Modes | Rocks, forest, identification |
| Defective Pixel Repair Option | Yes |
| Type of Microbolometer | Uncooled Microbolometer |
| Integrated Wi-Fi | Yes |
| Stream Vision support | Yes |
| Integrated video recorder | Yes |
| NETD, mK | <40 |
| Magnification | 2 - 16 x |
| Field of view, m@100m | 21.8 |
| Field of view, ft@100yd | 65.4 |
| Digital Zoom | 2x / 4х / 8x |
| Diameter, Lens, mm | 42 |
| Relative aperture, D/f' | 1:1.2 |
| Focusing Type of Distance | Objective |
| Eye relief (in/mm) | 2 / 50 |
| Field of View, degree | 12.4 |
| Minimum focusing distance, ft/m | 16 / 5 |
| Lens Focus, mm | 50 |
| Range of Detection | 2000 / 1800 yd / m |
| Laser Wavelength, nm | 905 |
| Measurement Range, yd/m | 1100 / 1000 |
| Accuracy of Range Measurement, yd/m | +-1 |
| Battery Type | B-Pack (Li-Ion) |
| Power Supply | 3.0 - 4.2 |
| Battery life, (with video out off), hours | 8 |
| External Power Supply | 5V - Micro USB |
| Click value, 1 click | 21 (mm@100m) |
| Reticle, Type | Variable electronic reticles |
| Number of Preloaded Reticles | 10 |
| Windage Range of Adjustment | 4200/4200 (mm@100m) |
| Lens Material | Germanium |
| Body Material | Magnesium Alloy |
| Operating Temp,?F/?C | -13 to 122 / -25 to +50 |
| Level of Protection (acc. to IEC 60529) | IP67 100% dustproof and submergible to 1m for 1 hour |
| Calibration | manual, automatic, semi-automatic |
| Type of Mount for Attachment of Additional Accessories | weaver/picatinny rail |
| Recoil Rating | .375 H&H |
| Waterproof | Yes |
| Weight, oz | 25 (without batteries) |
| Length (in/mm) | 11.22 / 292 |
| Width (in/mm) | 4.01 / 102 |
| Height (in/mm) | 2.99 / 76 |
