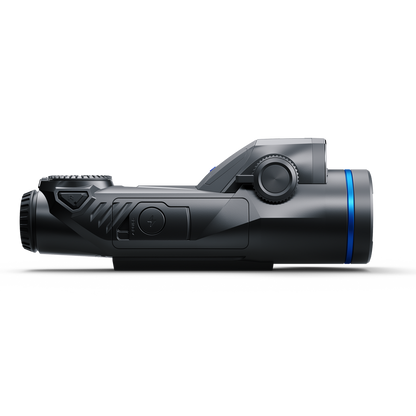

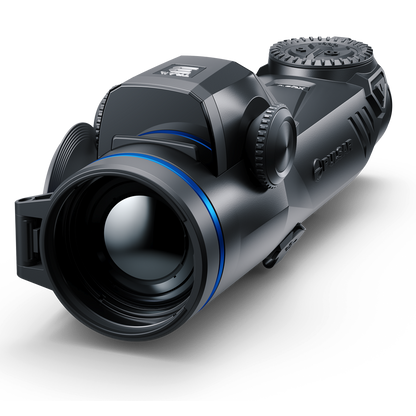

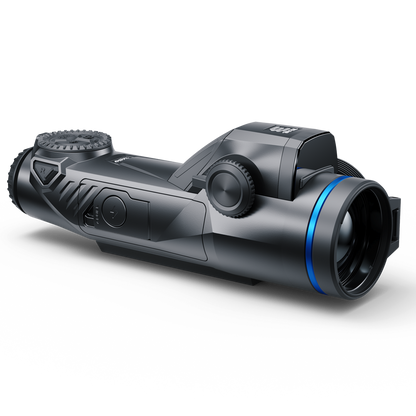

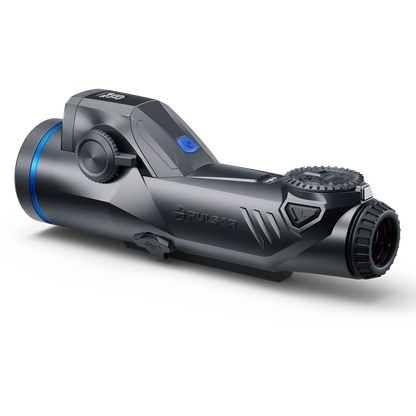

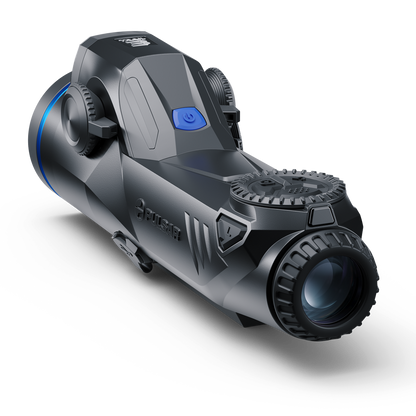

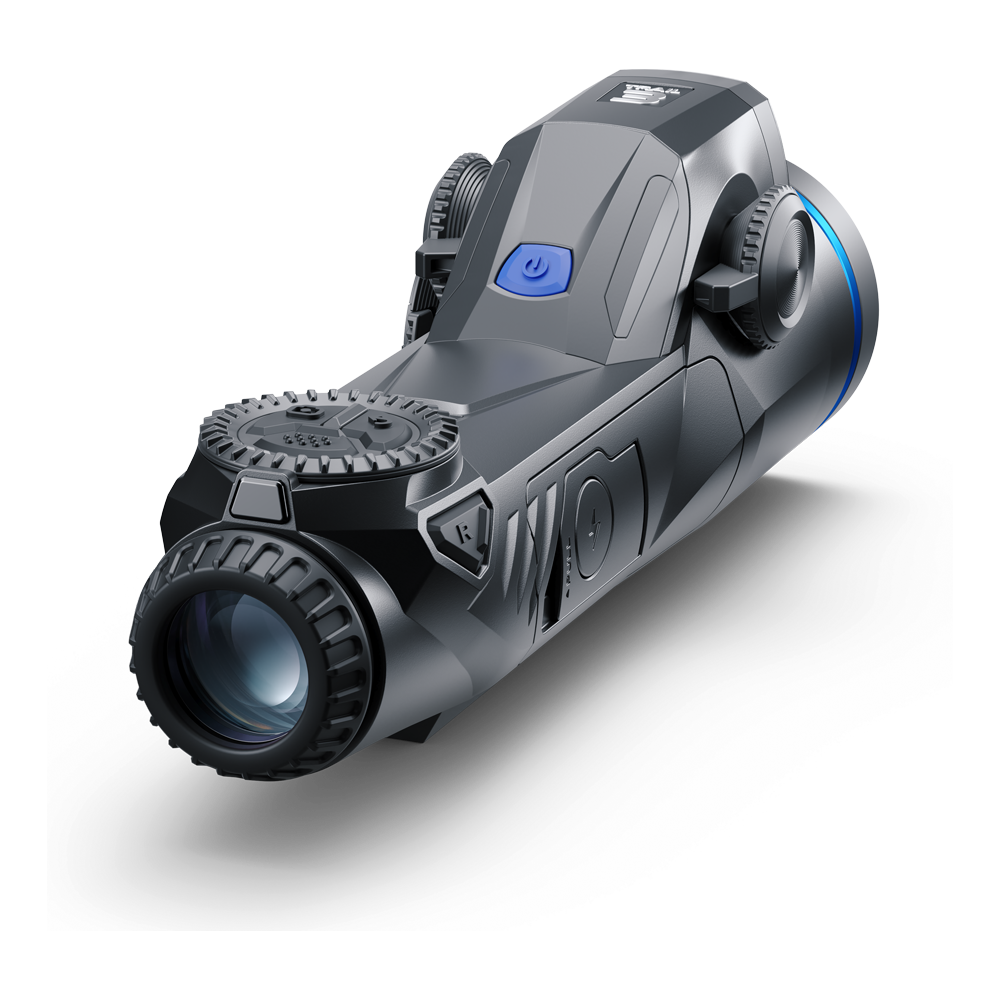

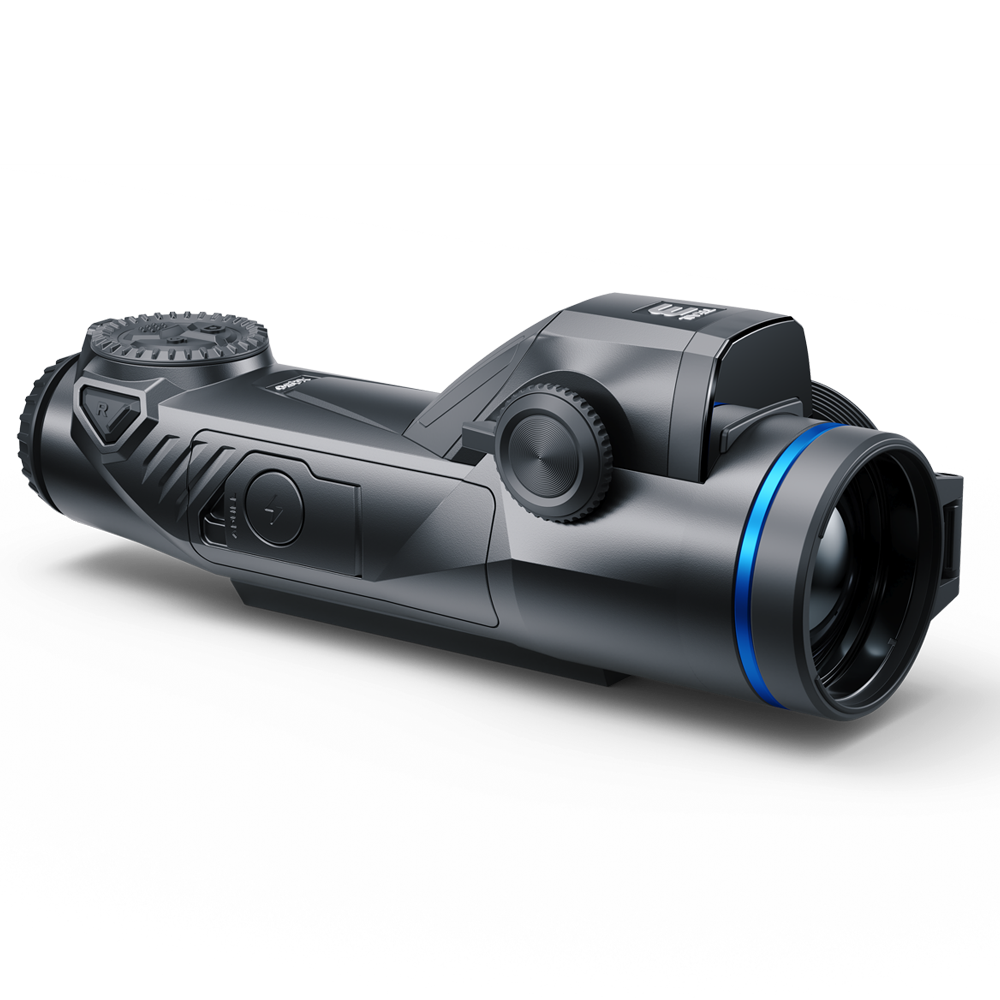

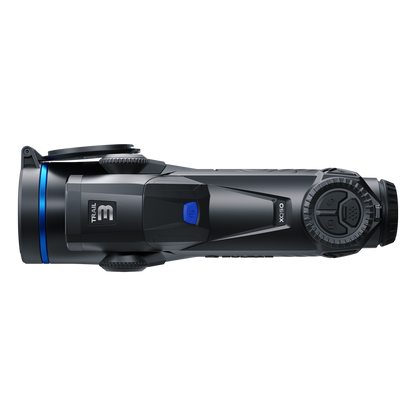

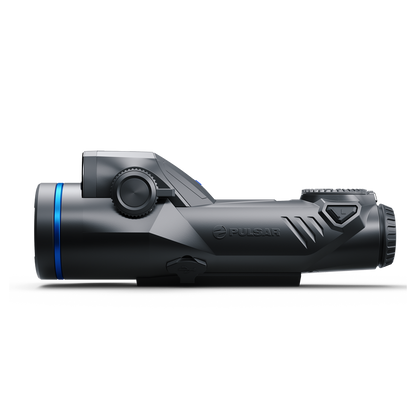

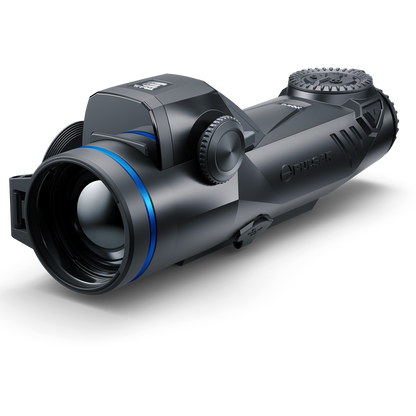

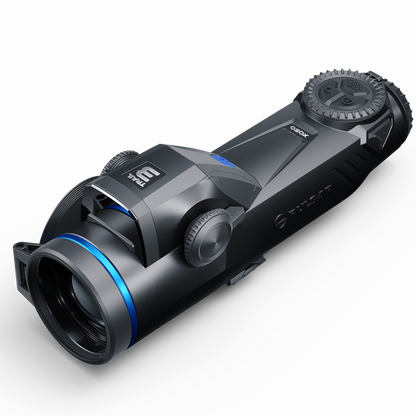

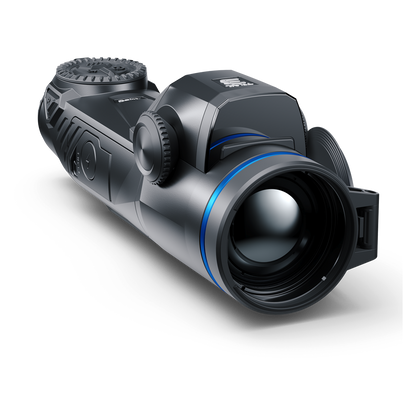

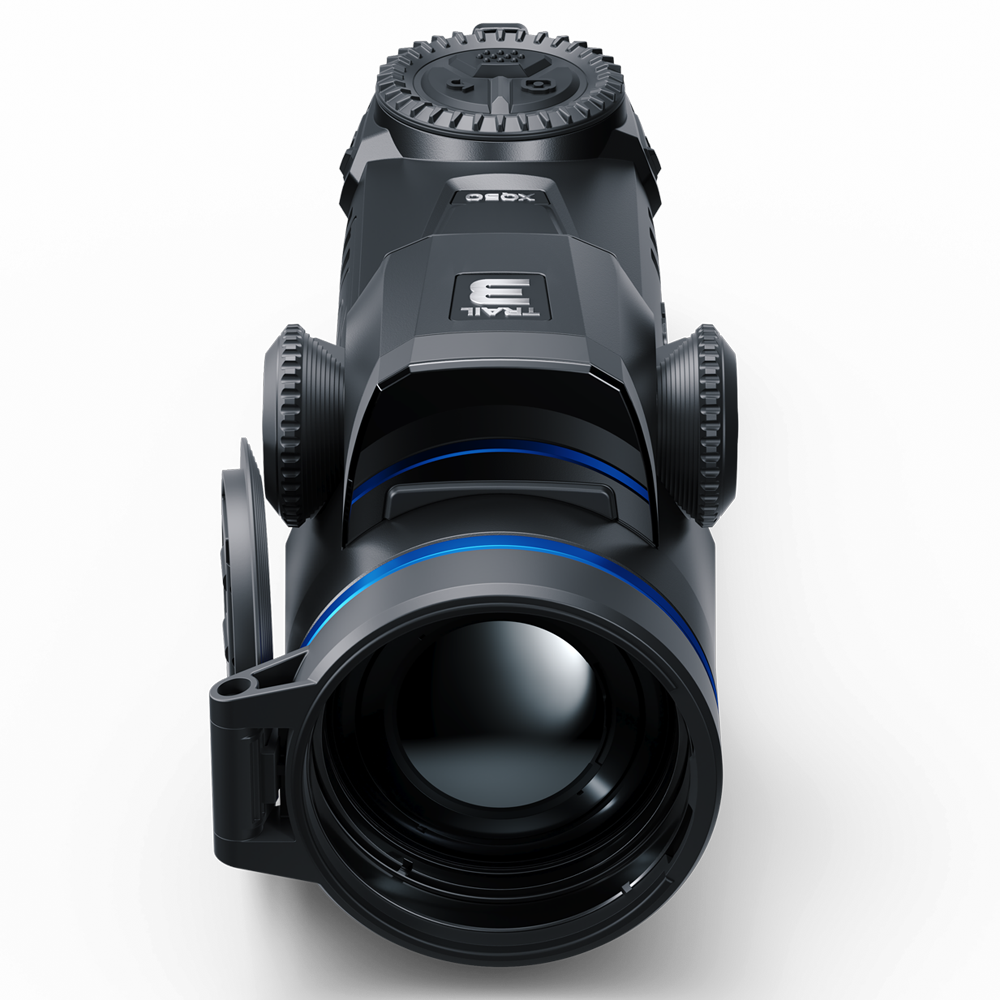

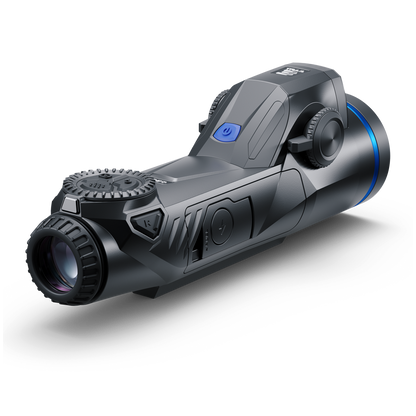

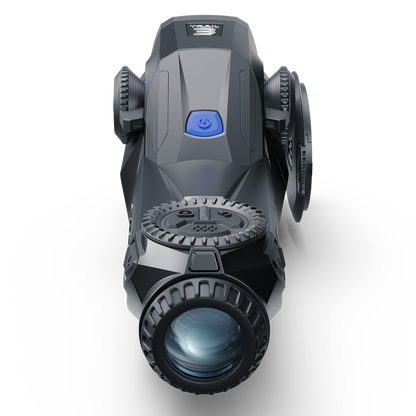

Trail 3 LRF XQ50 Thermal Riflescope

Name: Trail 3 LRF XQ50 Thermal Riflescope
Brand: pulsarnv
SKU: PL76585K
Price: 3199.97 USD
Availability: InStock

Price: $3,199.97

$3,199.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL76585K

Product variants

Quantity

Description

The Pulsar Trail 3 LRF XQ50 brings the Trail 3 platform and its integrated rangefinder to a lower price point. A 384x288 sensor at 17 µm carries a system NETD under 15 mK — the most sensitive figure in the Trail 3 range — which is what holds the image together in humidity and light rain where thermal contrast collapses.

Magnification runs 3.5–14x across a 7.5° field of view, with a detection range of 1,968 yards (1,800 m) and a laser rangefinder measuring to 1,312 yards (1,200 m).

Maximum operating time is 10 hours.

Features

384x288 thermal sensor, 17 µm pixel pitch
System NETD under 15 mK — most sensitive in the Trail 3 range
1,968 yard (1,800 m) detection range
3.5–14x magnification, 7.5° field of view
Integrated laser rangefinder to 1,312 yards
Up to 10 hours of operation

Free shipping on orders over $1,000
Ships from Mansfield, Texas in 1–2 business days
3-year warranty, 5 years with registration
15-day returns on new-condition units — details

View full details

Main

Thermal imaging sensor 384x288
Magnification range, x 3.5 – 14
Field of view, ° 7.5
Field of view, m @ 100 m 13.1
Detection range, m 1800

Sensor

Resolution, pixels 384x288
Pixel pitch, µm 17
System NETD, mK <15

Laser Rangefinder

LRF measurement range, m 1200

Power Supply

Maximum operation time, h 10

Trade Data

SKU (Model #) 76585

View all specs

Customizable user mode for individual image adjustment

Optimize image quality for any observation conditions with brightness and contrast
adjustments, enhancing detail and clarity. The User Mode function saves your
preferred settings, ensuring the thermal imager delivers optimal performance
right from the start without the need for readjustments.

Quick-change rechargeable battery

For power, Trail 3 LRF is equipped with the quick-change, long-life Pulsar LPS7i rechargeable battery pack. The modular battery design allows the pack to be replaced in seconds in the field, ensuring uninterrupted operation during extended use. The battery can be conveniently recharged either inside the device or separately via the integrated USB Type-C port, providing flexible charging options from power banks, vehicle outlets, or standard chargers.

10 shooting profiles / 100 zeroing distances

Zeroing settings are saved in a shooting profile. The Trail 3's memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile holds up to 10 zeroing distances input manually, but can be transformed into automatic ballistic calculations based on measured distance using the Stream Vision ballistics app.

High-Caliber Recoil Resistance

Trail 3 LRF is designed for use with high-caliber firearms generating muzzle energy of up to 6000 J. The reinforced housing and recoil-resistant internal architecture ensure reliable performance on heavy-recoiling rifles and magnum calibers. The sight maintains zero stability and internal integrity under repeated recoil, delivering consistent point-of-impact and repeatable accuracy shot after shot.

Automatic Display Deactivation

An integrated proximity sensor in the eyepiece automatically detects when the riflescope is not in use, switching off the display to prevent backlight exposure and reduce power consumption.

Bilateral Focusing Mechanism

Focusing wheels are positioned on both sides of the riflescope to provide comfortable operation for both right- and left-handed users. Each wheel is equipped with an integrated lever, ensuring improved grip and precise, effortless focusing even when wearing gloves.

Stream Vision 2. Wi-Fi integration with iOS and Android devices

Built-in Wi-Fi connects the Trail 3 series riflescope to Android and iOS devices through the Stream Vision 2 app, enabling wireless updates, real-time image streaming, remote control, and easy sharing of photos and videos. Registered users also get 16 GB of free cloud storage for their recordings and access to the latest Pulsar updates.

Operation in extreme temperatures -25 to +50°C

The housing, power unit, optics and electronic components of the Trail 3 are designed to operate in a wide range of temperatures and adverse environmental conditions. The Trail 3 ensures reliable and effective performance in freezing cold up to -25°C.
