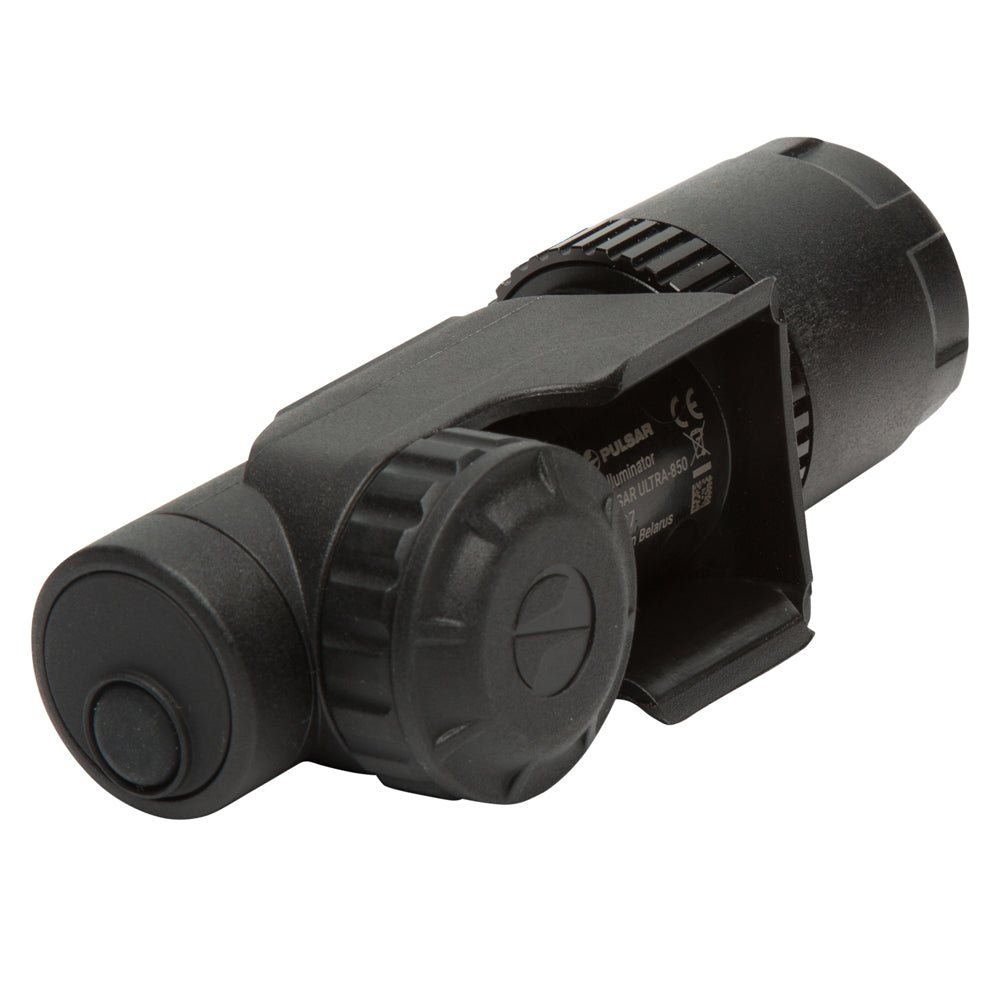

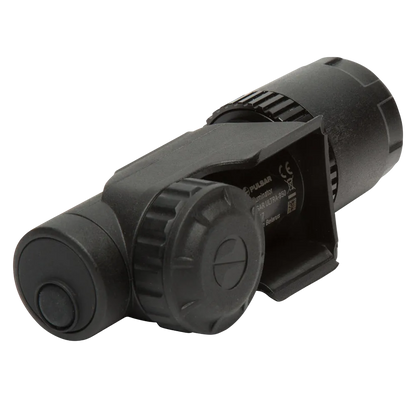

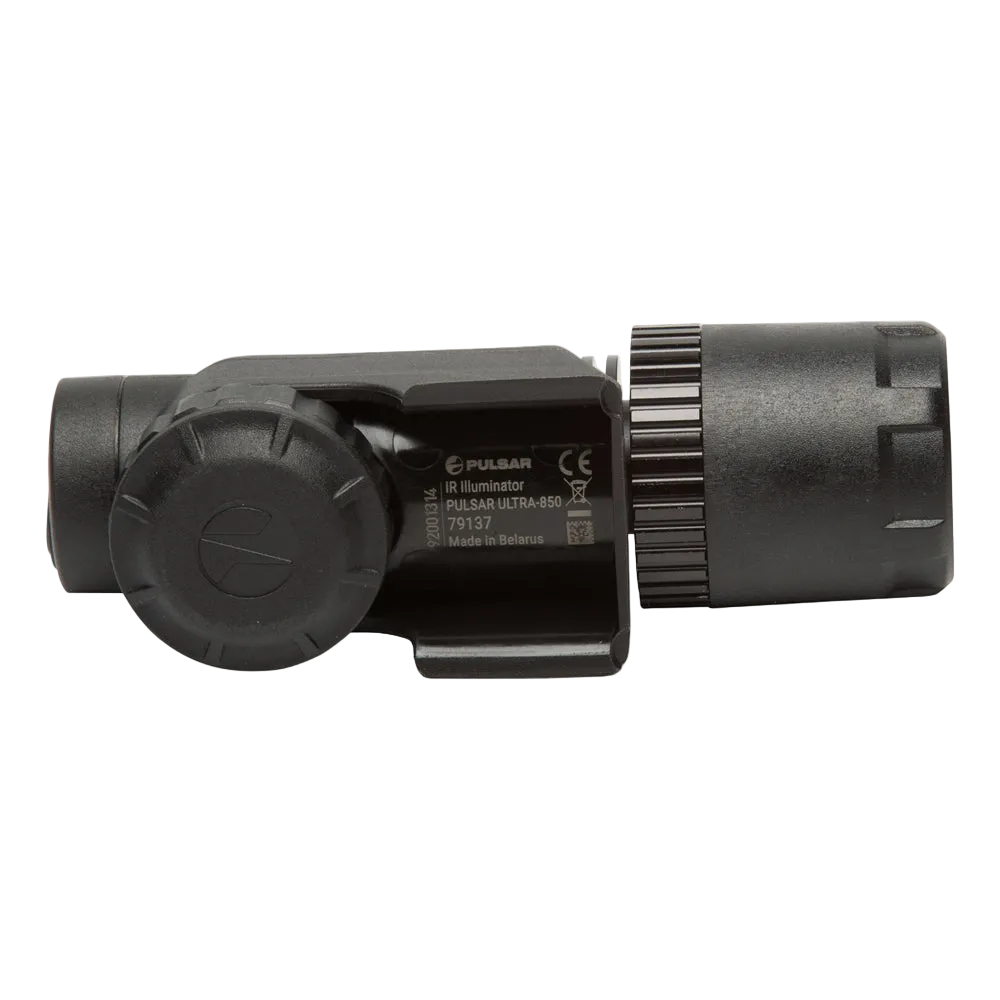

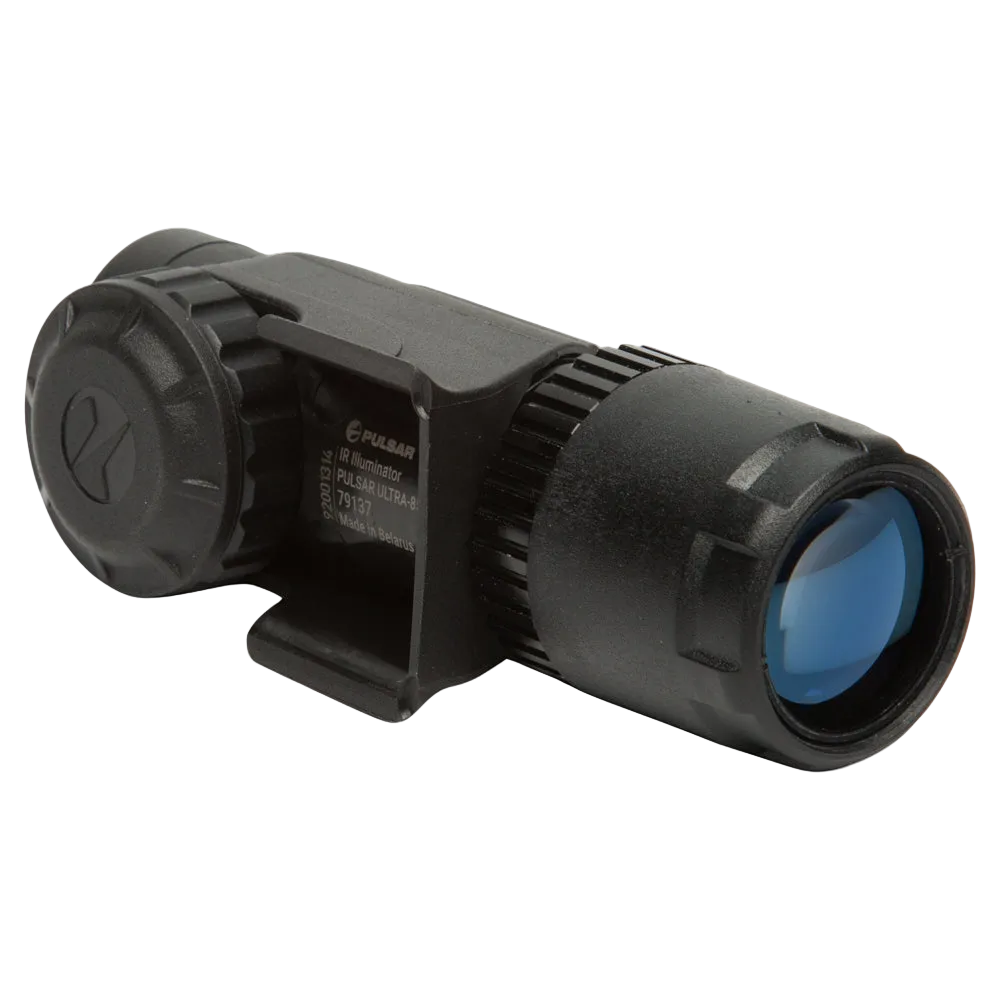

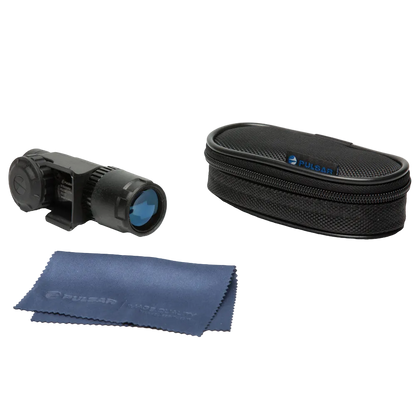

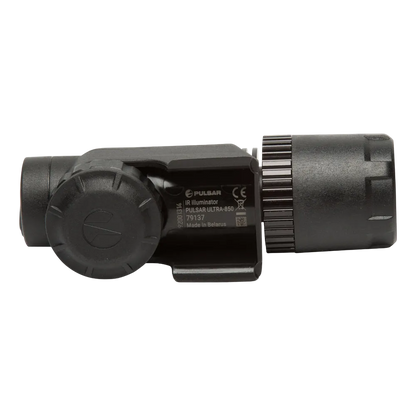

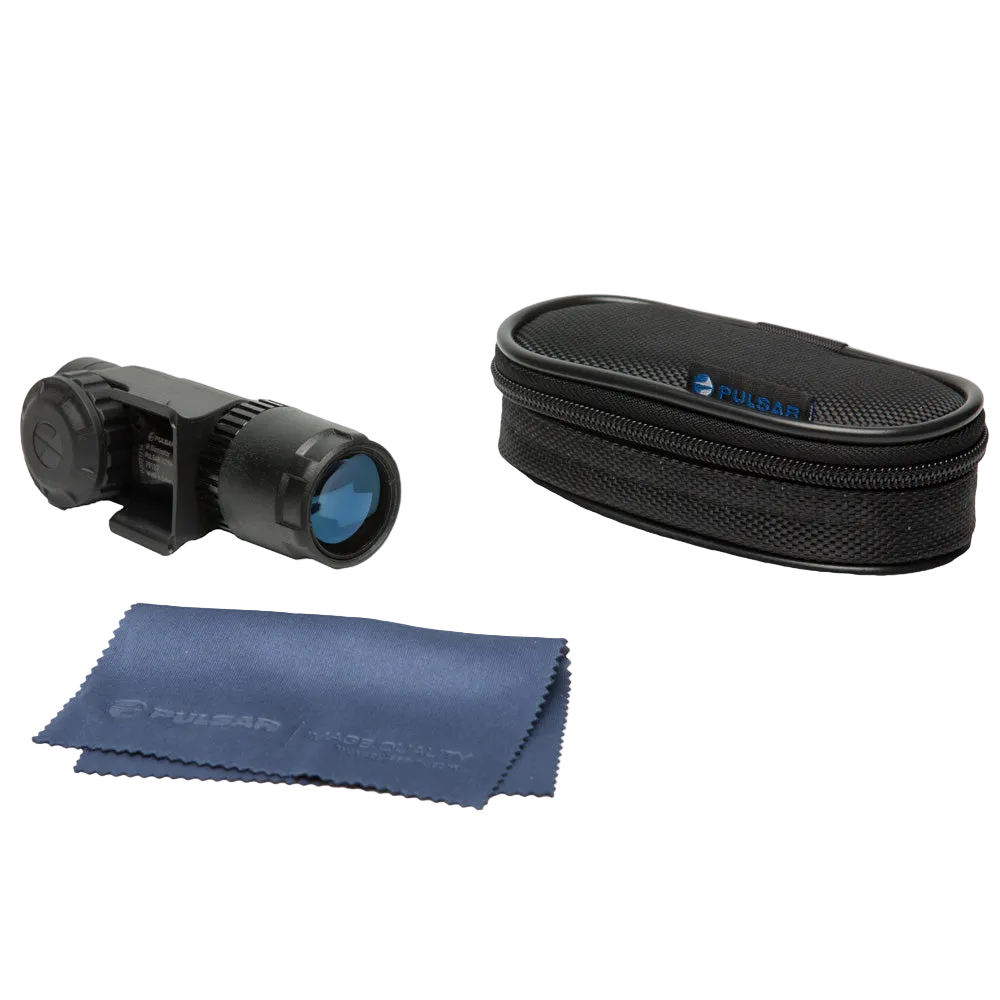

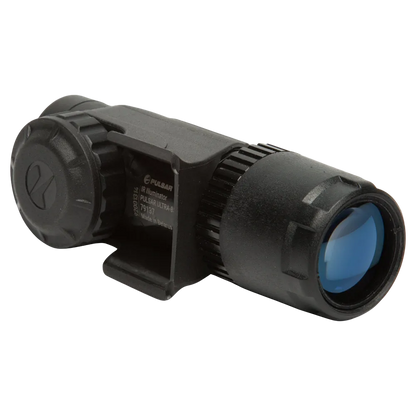

Ultra-940 IR Illuminator
- 940 (invisible)
- 5 – 7
- -25 – +50
Connections and Compatibilities
- NV Device IR Illuminator mounting port
Weight & Size
SKU: SKU : PL79139

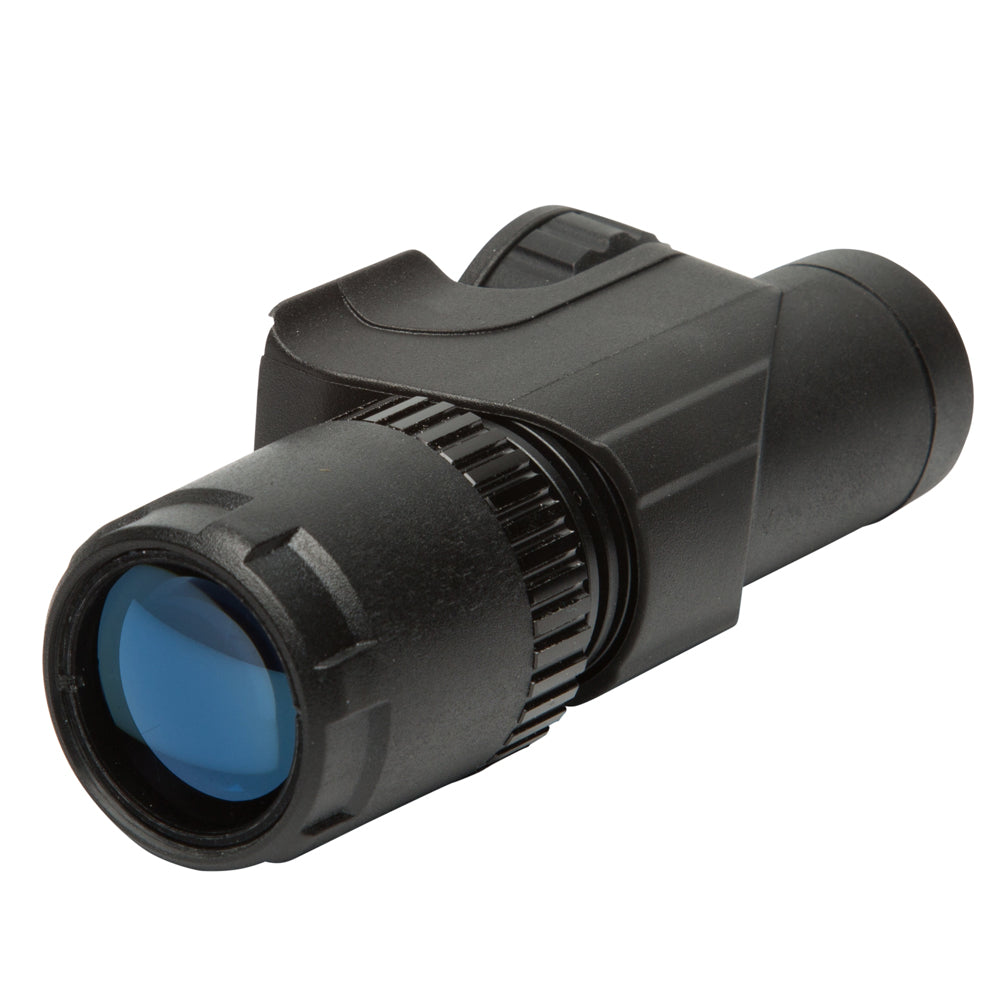

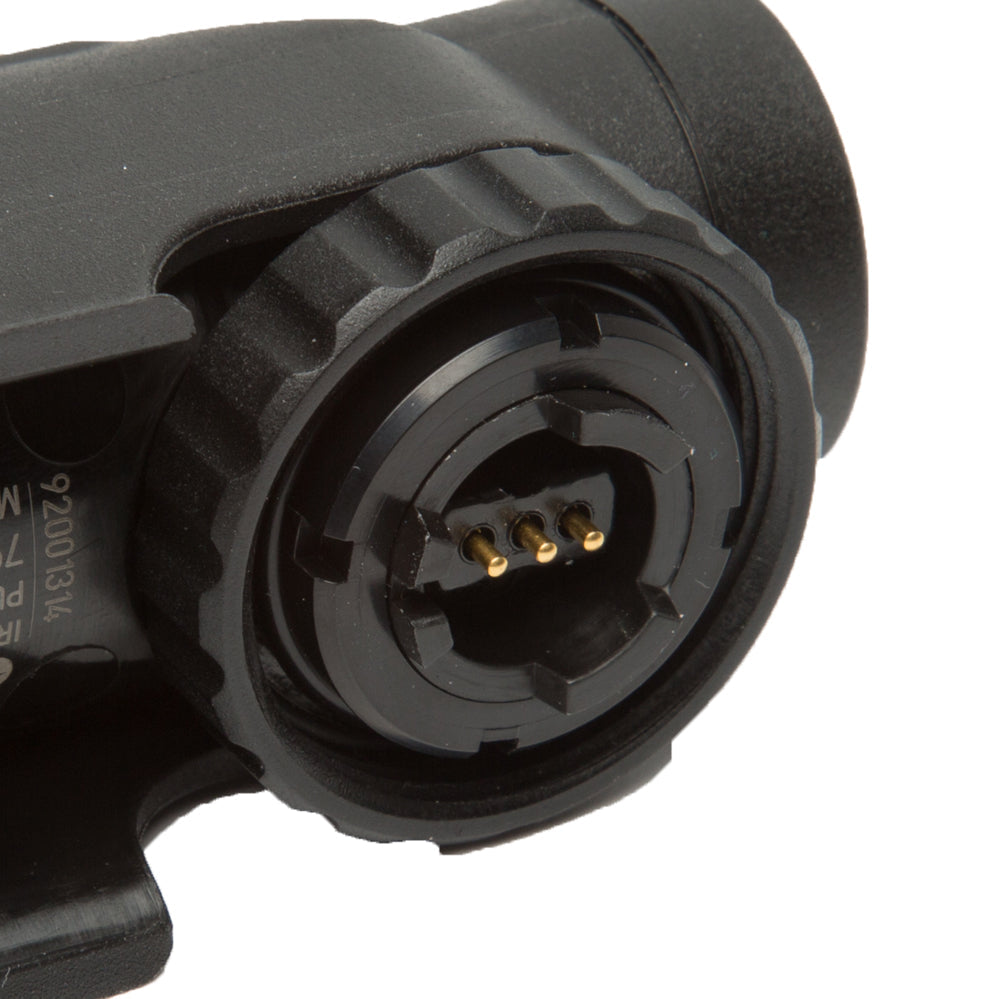

Solely designed for Digisight Ultra riflescopes, the Ultra-940 IR Illuminator is an invisible 940nm LED IR that prevents user detection from targets. Perfect for serious predator and hog hunters, this IR illuminator attaches to the socket on the side of Digisight Ultras and increases detection and identification range at night. Variable beam control allows the IR to focus from spot to flood depending on the scenario and the IR beam’s position is adjustable and able to align perfectly with the Digisight’s field of view. The Ultra-940 also features variable power, providing 3 different brightness settings.
- Designed for use with Digisight Ultra models
- Invisible IR illuminator
- Increases detection and identification range
- Variable beam control, from spot to flood
- Adjustable IR; can position the beam within scope’s field of view
- Variable output power (3 brightness levels)
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
|Equivalent IR Power, mW
|Diameter, Lens, mm
|Range of Beam Divergence
|Attaches to Digisight Ultra
|IP55 - water resistant
|Operating temperature, F/C
|-13 - 104 / -25 - 50 F/C
|4.3 / 109 in / mm
|1.8 / 45 in / mm
|1.4 / 36 in / mm

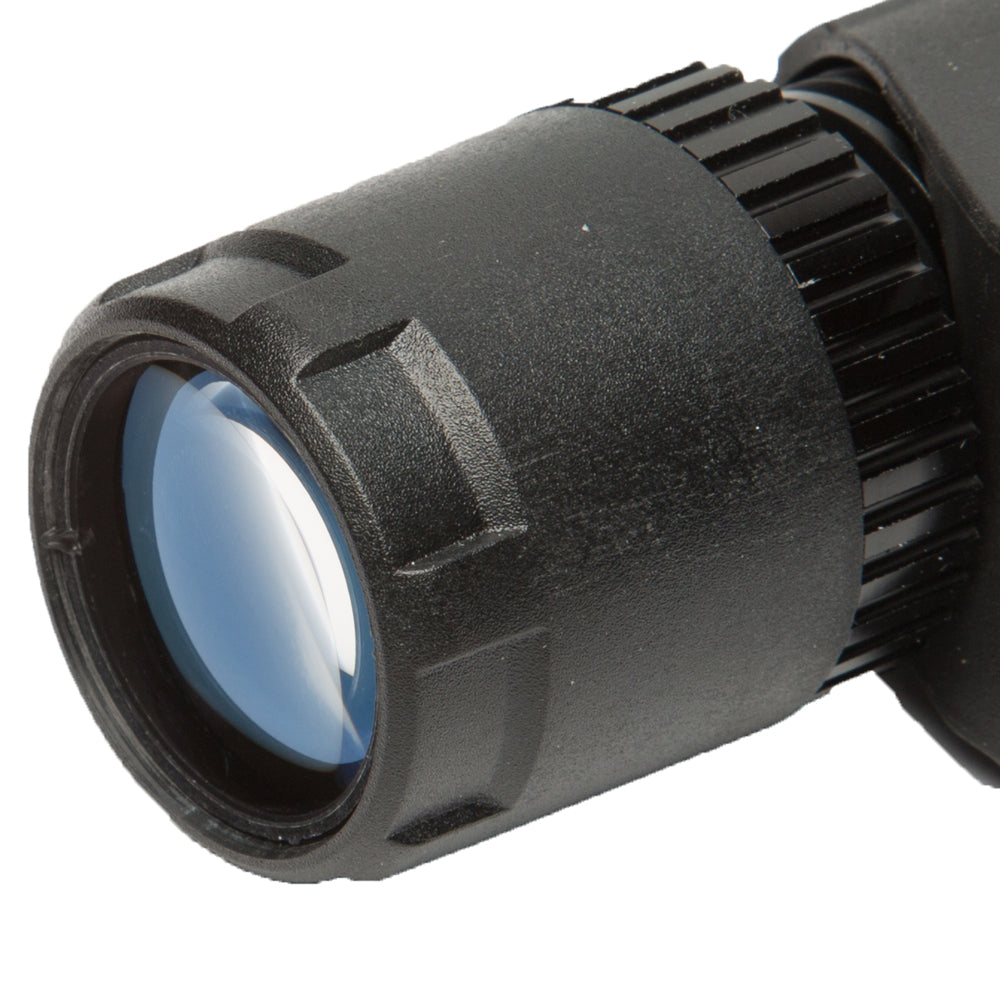

Pulsar IR Illuminator spot can be smoothly adjusted from narrow beam to flood. Unfocused beam illuminates larger area; the narrow beam light ensures longest possible viewing distance.
IR Spot Position
Design of Pulsar IR Flashlights allows spot position to be corrected in the field of view horizontally and vertically. To do this, loosen the ring fixing the optical assembly, adjust the IR spot in the center of the field of view (the NV unit should be on) and tighten the ring again.

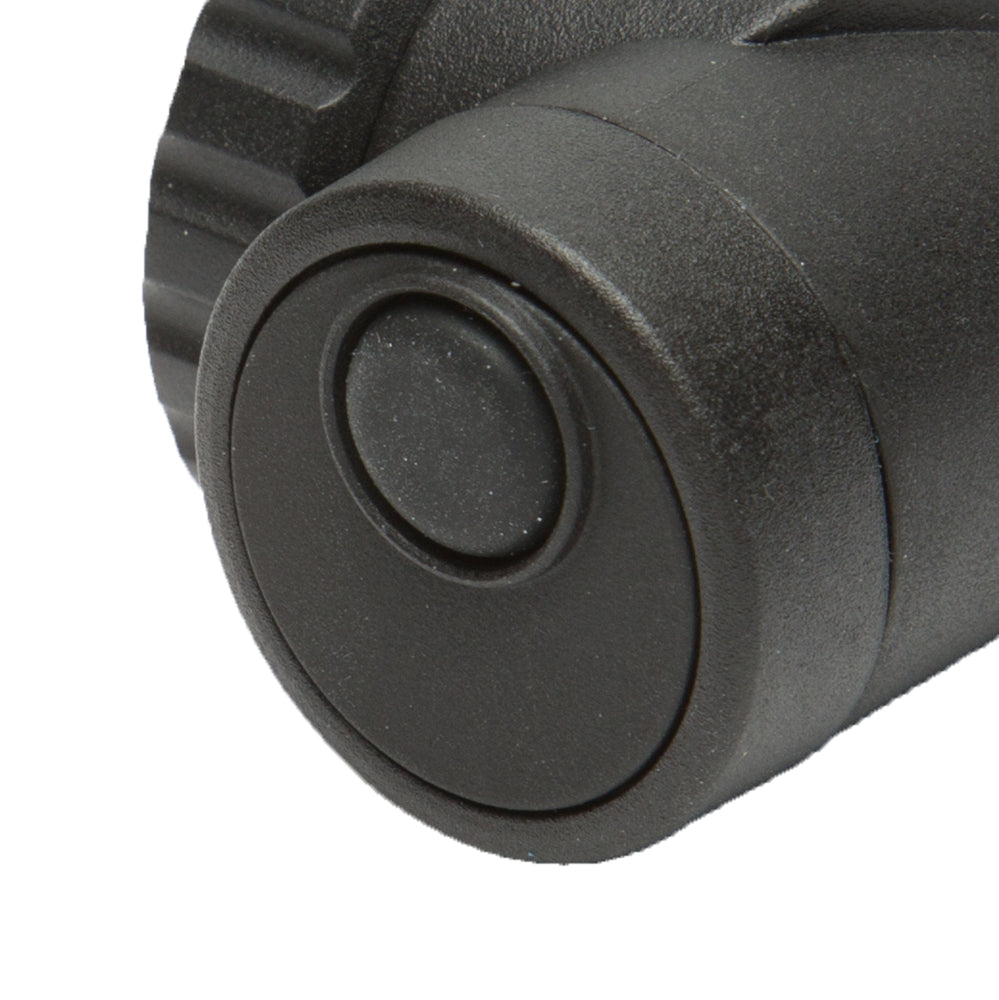

Power is adjusted by rotating the wheel on the body next to the ON button. Adjustment of both – power and spot divergence angle – helps achieve best illumination of an object in specific observation conditions.

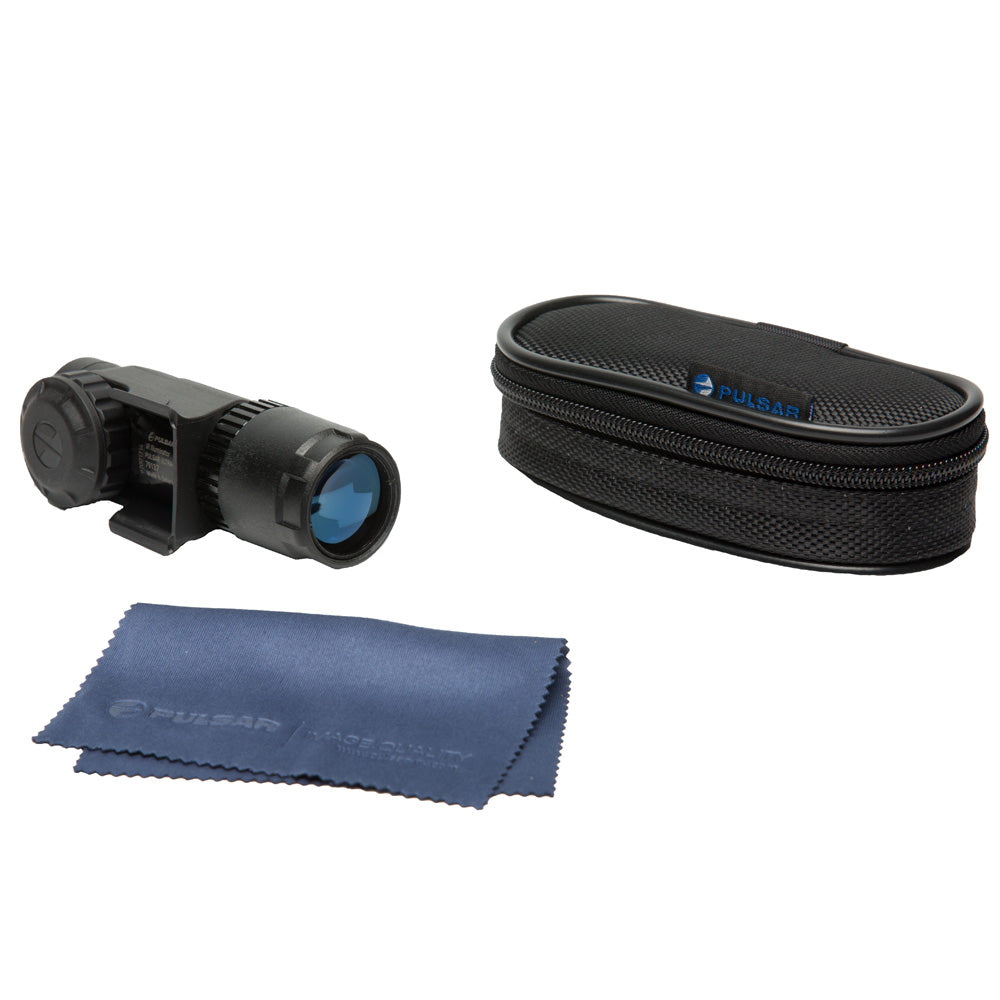

Pulsar IR Flashlights are equipped with a mount adaptable for Weaver rail available in most modern night vision rifle scopes and optical units, as well as hunting or sports and pneumatic weapons. Package also includes an adapter that allows flashlights to be attached to NV units outfittedwith a ¼ inch tripod mount.
