Refurbished Thermion Duo DXP50 Thermal Riflescope

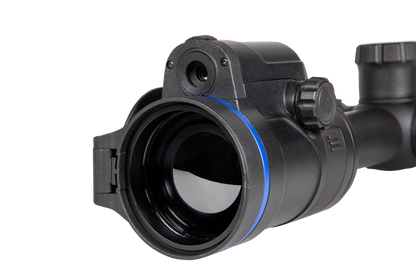

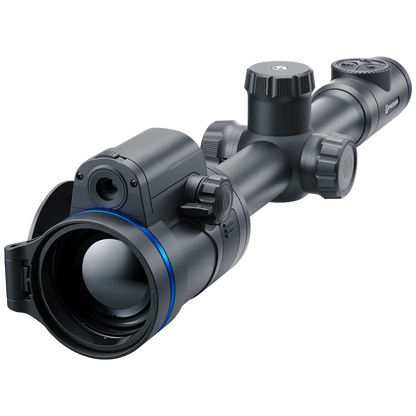

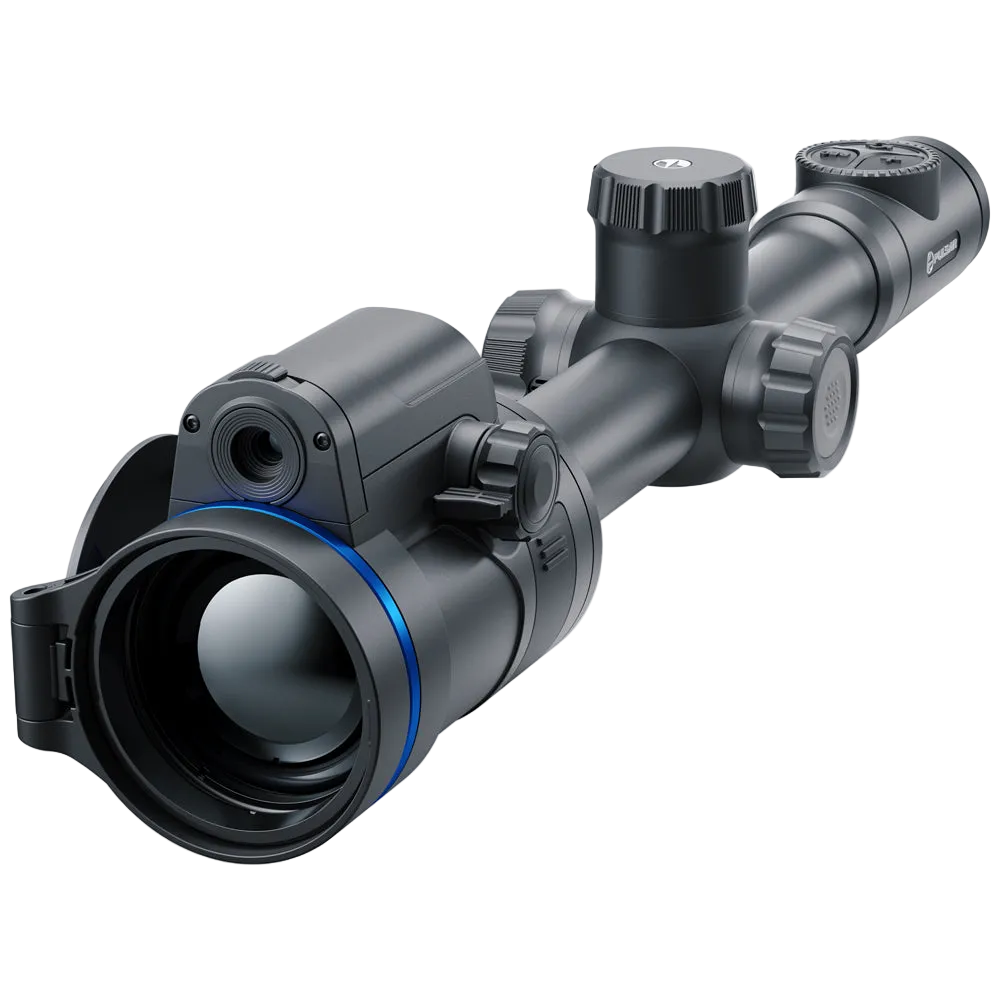

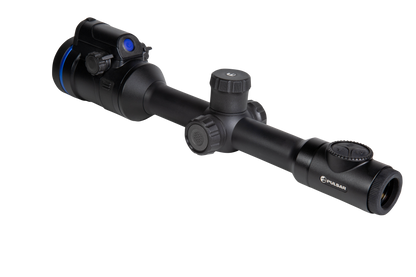

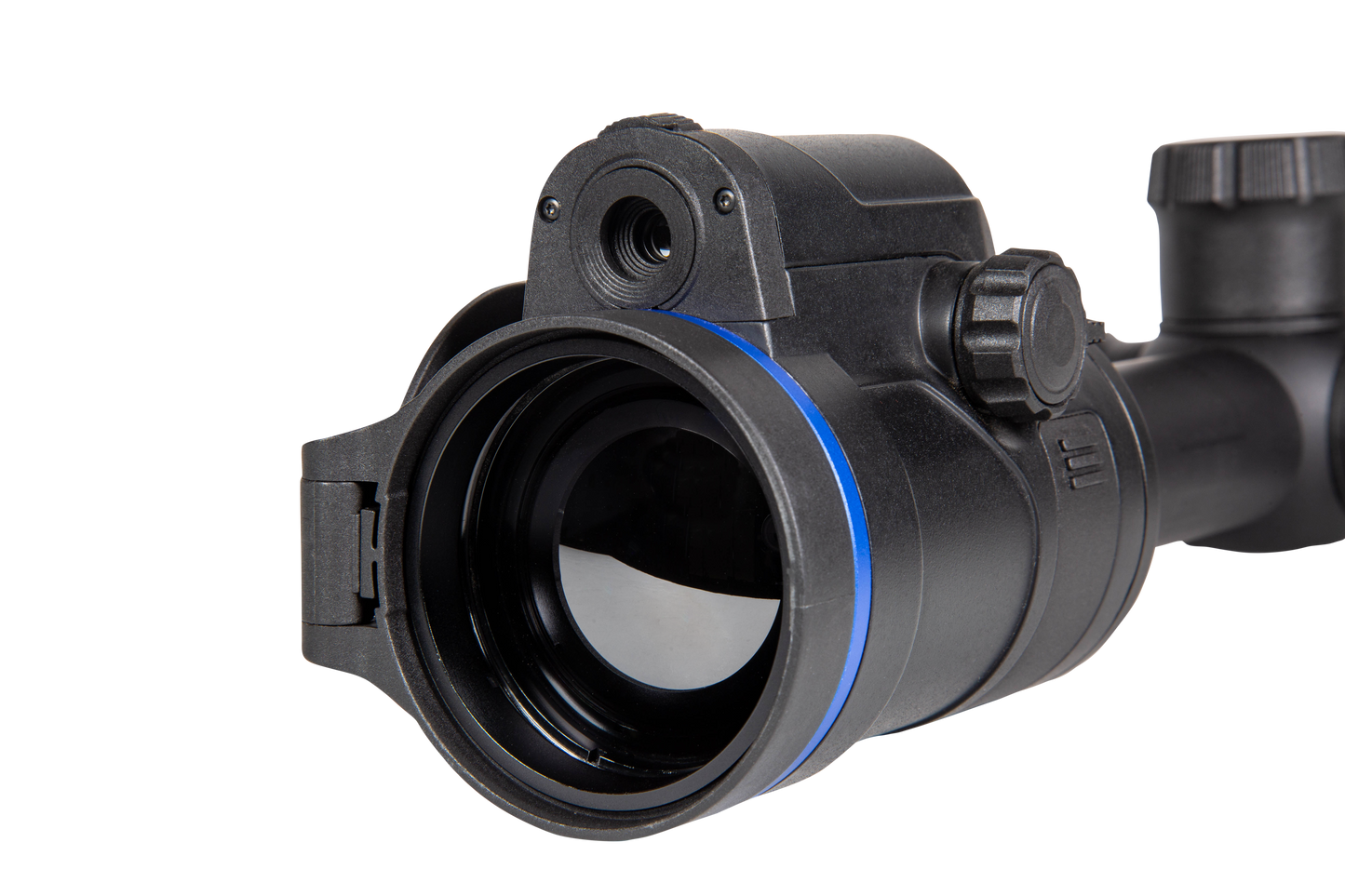

Name: *Refurbished* Thermion Duo DXP50 Thermal Riflescope
Brand: pulsarnv
SKU: R-PL76571
Price: 4319.97 USD
Availability: InStock

Price: $4,319.97

$4,319.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : R-PL76571

Product variants

Quantity

Description

Pulsar is once again at the forefront of innovation with the Thermion Duo DXP50. The world’s first multispectral hunting riflescope, the Thermion Duo combines the high-tech thermal imaging Pulsar is known for with the clarity and vividness of a full-color daytime optic.

Designed primarily for hunting, the Thermion Duo DXP50 has a detection range of 1800 yards. This highly versatile multispectral optic can defeat animal camouflage and fog on thermal mode and judge a prey’s trophy qualities in daylight with its full color mode. With its picture-in-picture feature, a hunter can simultaneously find an animal through dense fog or foliage with its 640x480 high-sensitivity thermal sensor while observing the area around it in full color 4k HD.

The Thermion Duo DXP50 boasts the wide range of practical features Pulsar products are known for, including one-shot freeze zeroing, 1024x768 photo and video recording with audio, Wi-Fi integration with the Stream Vision 2 app, and advanced image processing.

With six hours of battery life and compatibility with USB C chargers, the Thermion Duo DXP50 is both powerful and long-lasting. With its solid aluminum alloy construction, the Thermion Duo DXP50 is both shockproof and waterproof, with an IPX7 rating, capable of withstanding the most rigorous wilderness conditions. With its range of features and capabilities, the Thermion Duo DXP50 represents the future of hunting and digital optics.

Features

The first multispectral Pulsar hunting riflescope
Day & night use
4K full-color sensor for daytime hunting
640x480 @ NETD < 25 mK high-sensitivity thermal imaging sensor
Fast aperture F50/1.0 thermal lens
Advanced image processing: enhanced detail, clarity and contrast
Combined multispectral viewing modes
One-shot freeze zeroing in thermal and digital channels
1800m thermal detection range day & night
Full featured: video recording, Wi-Fi, Stream Vision 2 mobile app compatibility

Specifications

Model	DXP50
SKU	76571
Microbolometer
Type	uncooled
Resolution, pixels	640x480
Pixel Pitch, µm	17
NETD, mK	< 25
Frame refresh rate, Hz	50
Digital Sensor
Type	CMOS
Resolution, pixels	3840x2160
Optical Specifications
Lens, mm: - Thermal imaging channel - Digital channel	F50 F/1.0 F17 F/4.34 (non-focusing lens)
Magnification, x	2-16
Eye relief, mm/inch	50/1.96
Field of view (H), °/m@100	12,4/21,8
Diopter adjustment, D	-3/+5
Detection distance (Thermal imaging channel, object of "deer" type), m/y	1800/1968.5
Aiming Reticle
Click value (H/V), mm@100 m – when magnifying, x	21.3 – 2х 10.7 – 4х 5.3 – 8х 2.7 – 16х
Click range, mm@100 m (H/V)	4250/4250
Display
Type	AMOLED
Resolution, pixels	1024х768
Operating Features
Tube Diameter, mm	30
Power Supply, V	3–4.2
Battery type / Capacity / Rated Output Voltage	Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)* Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in)
External Power Supply	5 V, 9 V (USB Type-C Power Delivery)
Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs**	6
Max. recoil power on rifled weapon, Joules	6000
Max. recoil power on smoothbore weapon, caliber	12
Degree of protection IP code (IEC60529)	IPX7
Operating temperature, °С / °F	-25 – +50 / -13 – +122
Dimensions with an eyecup, mm/inch	420x78x83.5 / 16.54x3.07x3.29
Weight (with APS2 battery), kg/oz	0.96 / 33.86
Video Recorder
Photo / video resolution, pixels	1024x768
Video / photo format	.mp4 / .jpg
Built-in memory	eMMC 16 GB
Wi-Fi Channel***
Frequency	2.4/5 GHz
Standard	IEEE 802.11 b/g/n/ac

Files

Specifications

Manual

View full details

Main

Sensor 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)
Objective lens F50/1.0 (thermal) | F17/4.34 (digital)
Magnification, x 2 – 16 (for both channels)
Field of view (HxV), degrees / m@100m 12.4x9.3 / 21.8x16.4 (for both channels on minimal magnification)
Detection range, m 1800 (thermal detection)

Sensor

Type Uncooled (thermal) | Full-color CMOS (digital)
Resolution, pixels 640x480 (thermal) | 3840x2160 (digital)
Pixel pitch, µm 17 (thermal)
NETD, mK <25
Frame rate, Hz 50

Optics

Objective lens F50/1.0 (thermal) | F17/4.34 (digital)
Magnification, x 2 – 16 (for both channels)
Field of view (HxV), degrees / m @ 100 m 12.4x9.3 / 21.8x16.4 (for both channels on minimal magnification)
Eye relief, mm 50

Display

Type AMOLED HD
Resolution, pixels 1024x768

Range Performance

Detection range, m 1800 (thermal detection)

Reticle

Click value, H/V, mm at 100 m 21.25 / 21.25 (thermal channel) | 21.26 / 21.26 (digital channel)
Click range, H/V, mm at 100 m 4250 / 4250 (thermal channel) | 4252 / 4252 (digital channel)
Number of preloaded reticles 10

Video Recorder

Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPX7
Operating temperature range, °С -25 – +50

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules 6000
Shock resistance on the smooth-bore rifles, caliber 12
Compatible mounts Standard 30 mm rings
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0 – 4.2
Battery type Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal)
Capacity, mAh 2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h * 6
External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Aluminum alloy
Dimensions, mm 420x78x83.5
Weight, kg 0.96 (batteries included)

Trade Data

SKU (Model #) 76571
Status production

View all specs

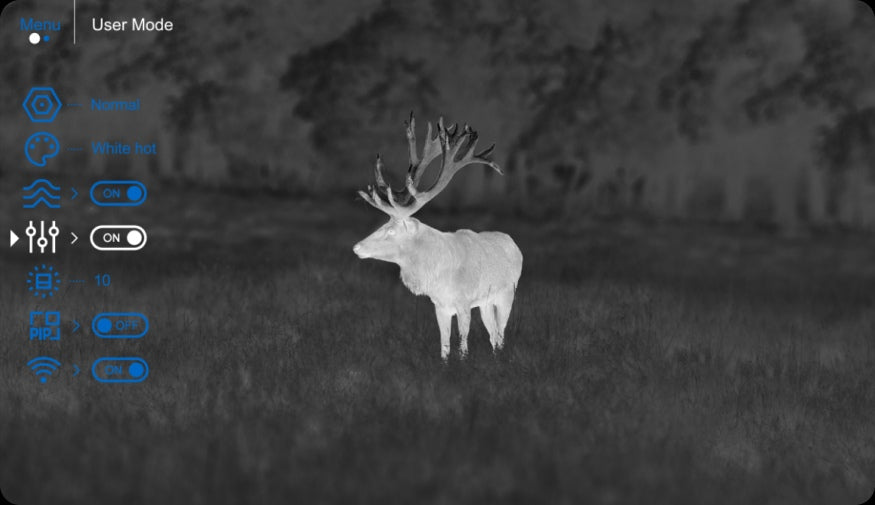

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

640x480 @ Netd < 25 Mk High-Sensitivity Thermal Imaging Sensor

One-Shot Freeze Zeroing In Thermal And Digital Channels

High-precision aiming in the «Picture-in-picture» mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

5 individual shooting profiles / 50 zeroing distances

Zeroing settings are saved in a shooting profile. The Thermion 2 LRF memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.

A selection of 10 reticle shapes in 9 color modes

Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.

Mounting on standard 30 mm rings

The Thermion offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic daytime sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.

A selection of 8 colour palettes in thermal mode

A choice of eight colour palettes enables the user to observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection. Rainbow and Ultramarine help increase the chances of recognition & identification. Red Monochrome, Sepia and Violet are best for extended observation at night.

High-precision ambidextrous lens focusing

Objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.

Wide-angle eyepiece for comfortable observation

Observation with the Thermion Duo does not strain your eyes and enables the hunter to fully concentrate on the hunting process. The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm.

Instant Start-up

Just 4 seconds from the moment you press the power button the Thermion Duo is completely ready for work.

High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H

Thermion 2 LRF thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

6 hours of battery life on a single charge

The Thermion Duo is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 6 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery is designed to determine its position accurately. It enables quick and confident replacement of a flat battery in complete darkness by touch.

Completely waterproof IPX7

With an IPX7 waterproof rating, the Thermion 2 riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.

Operating temperature range: -25 to +50 °C

Thermion 2 LRF riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.
