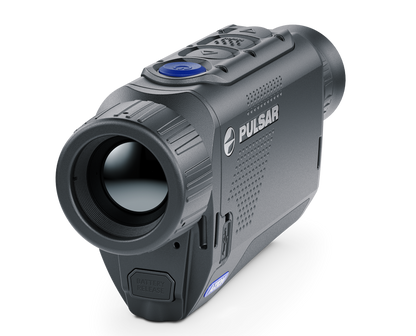

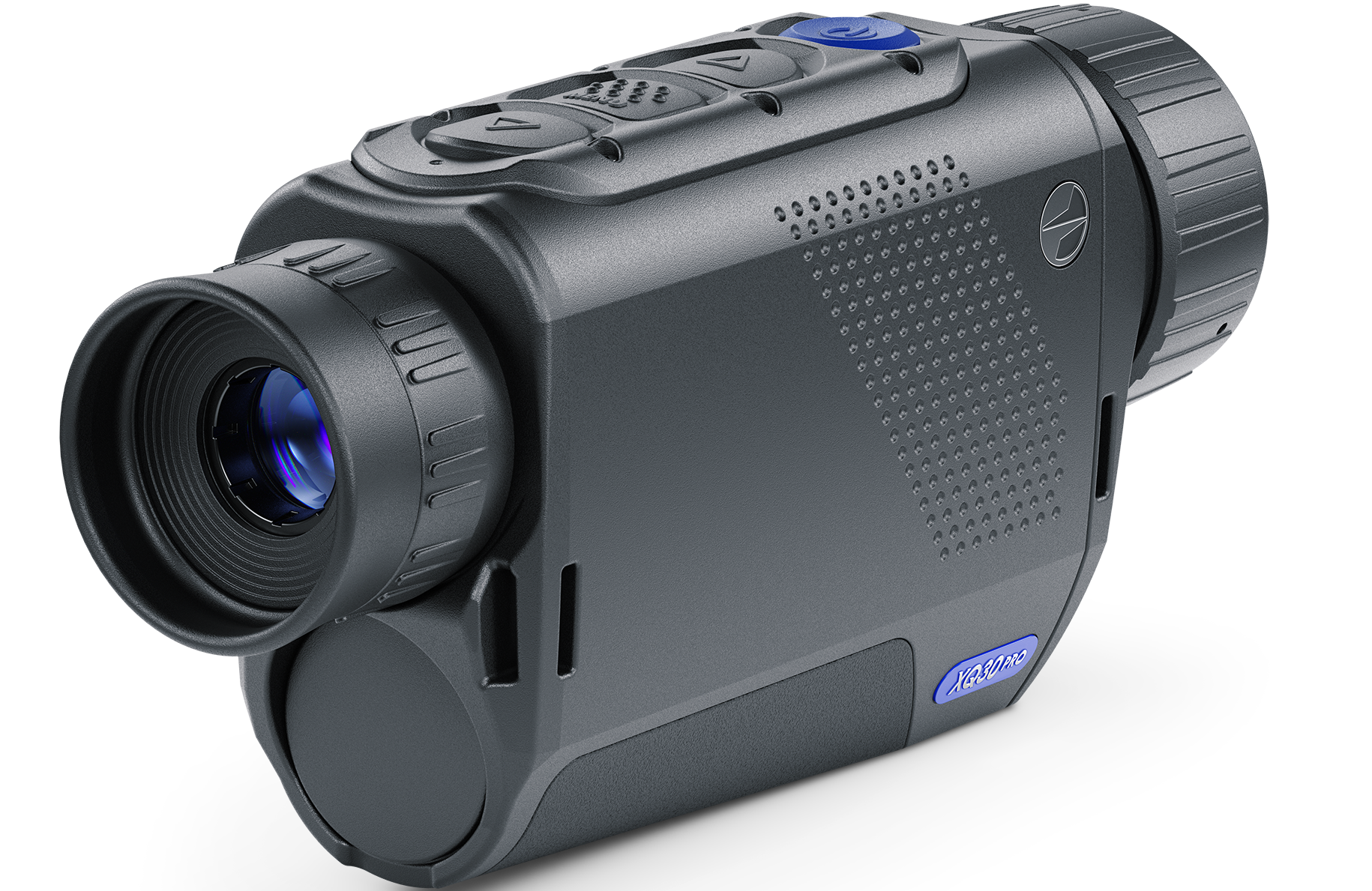

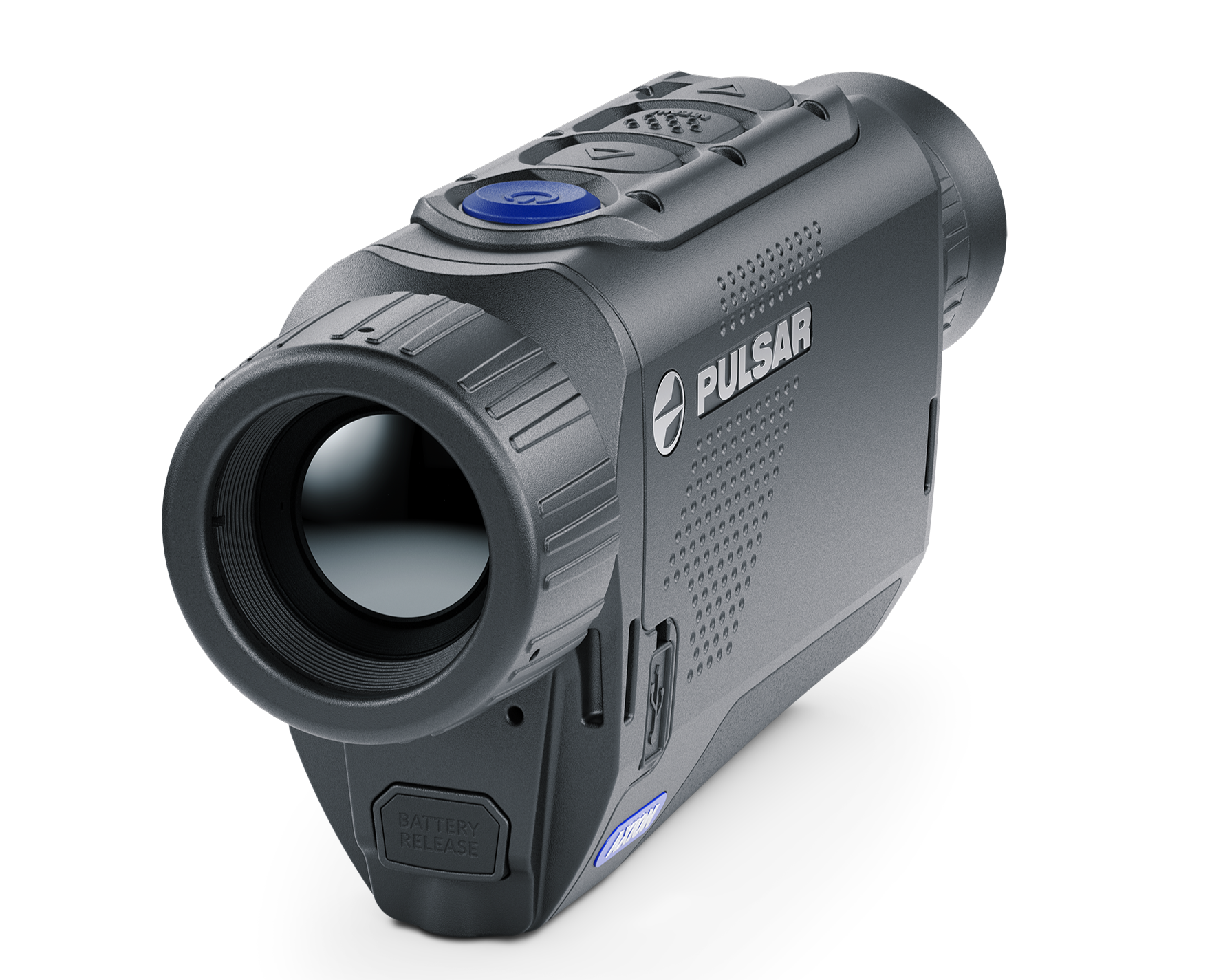

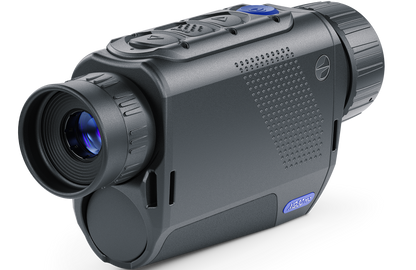

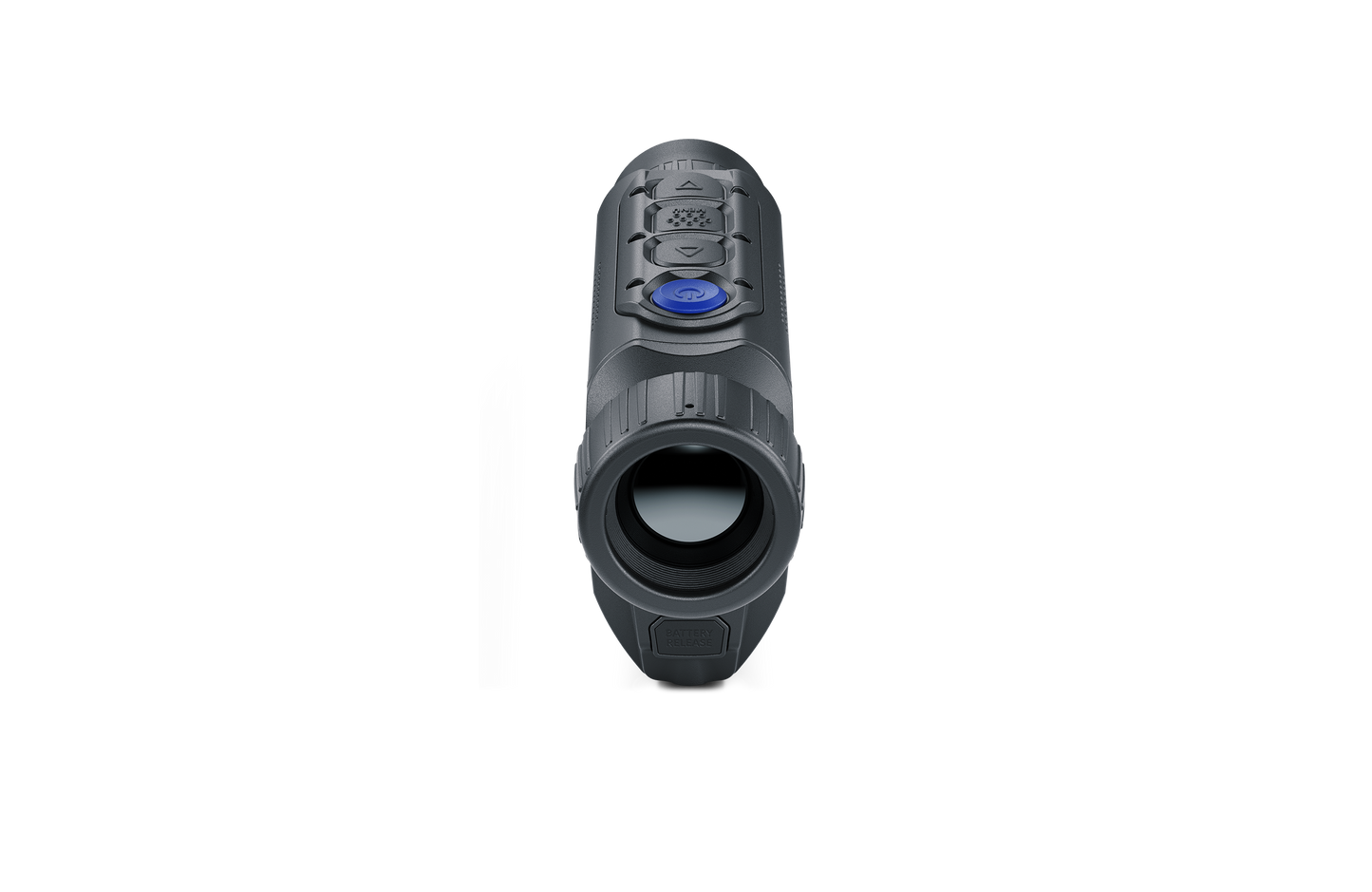

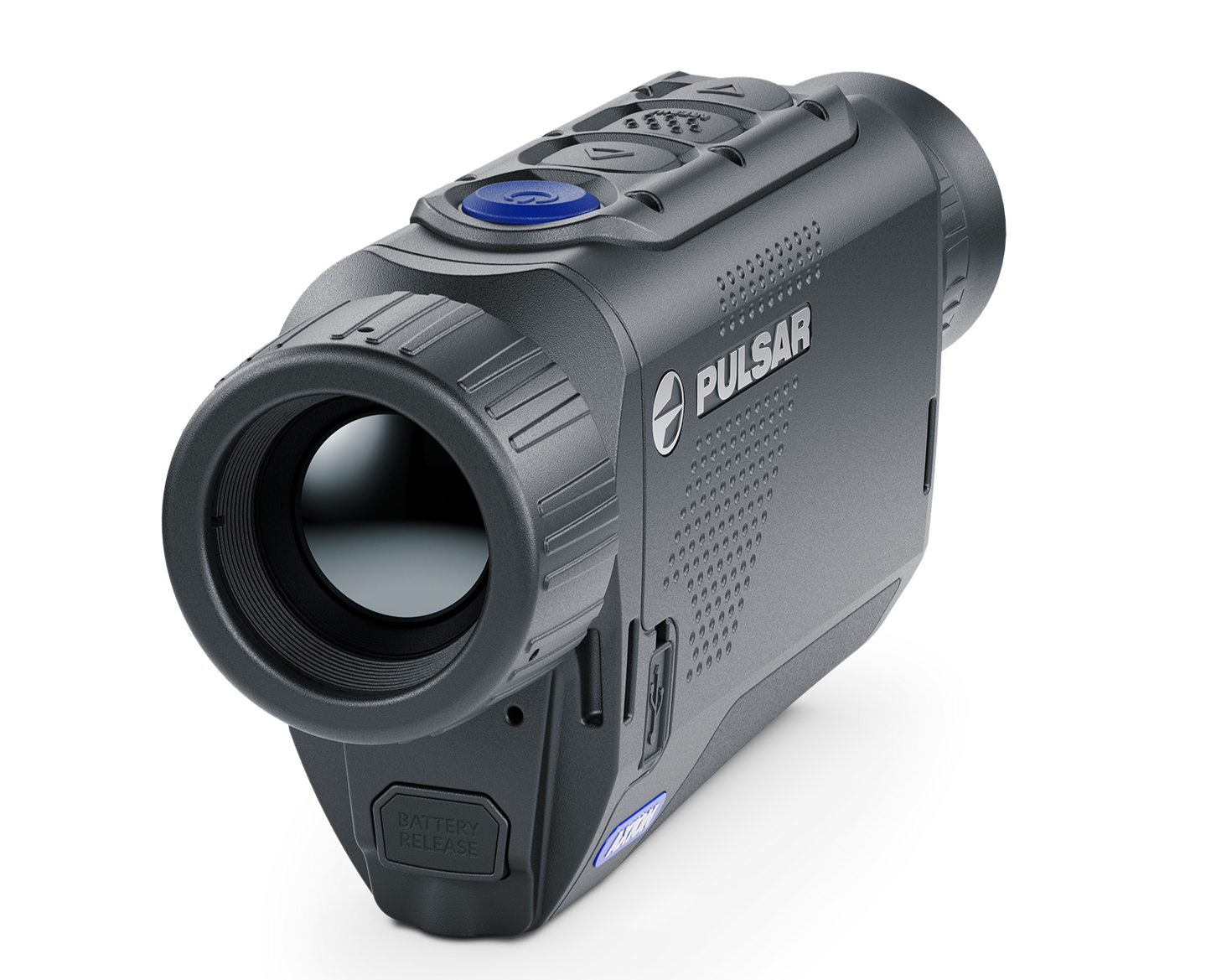

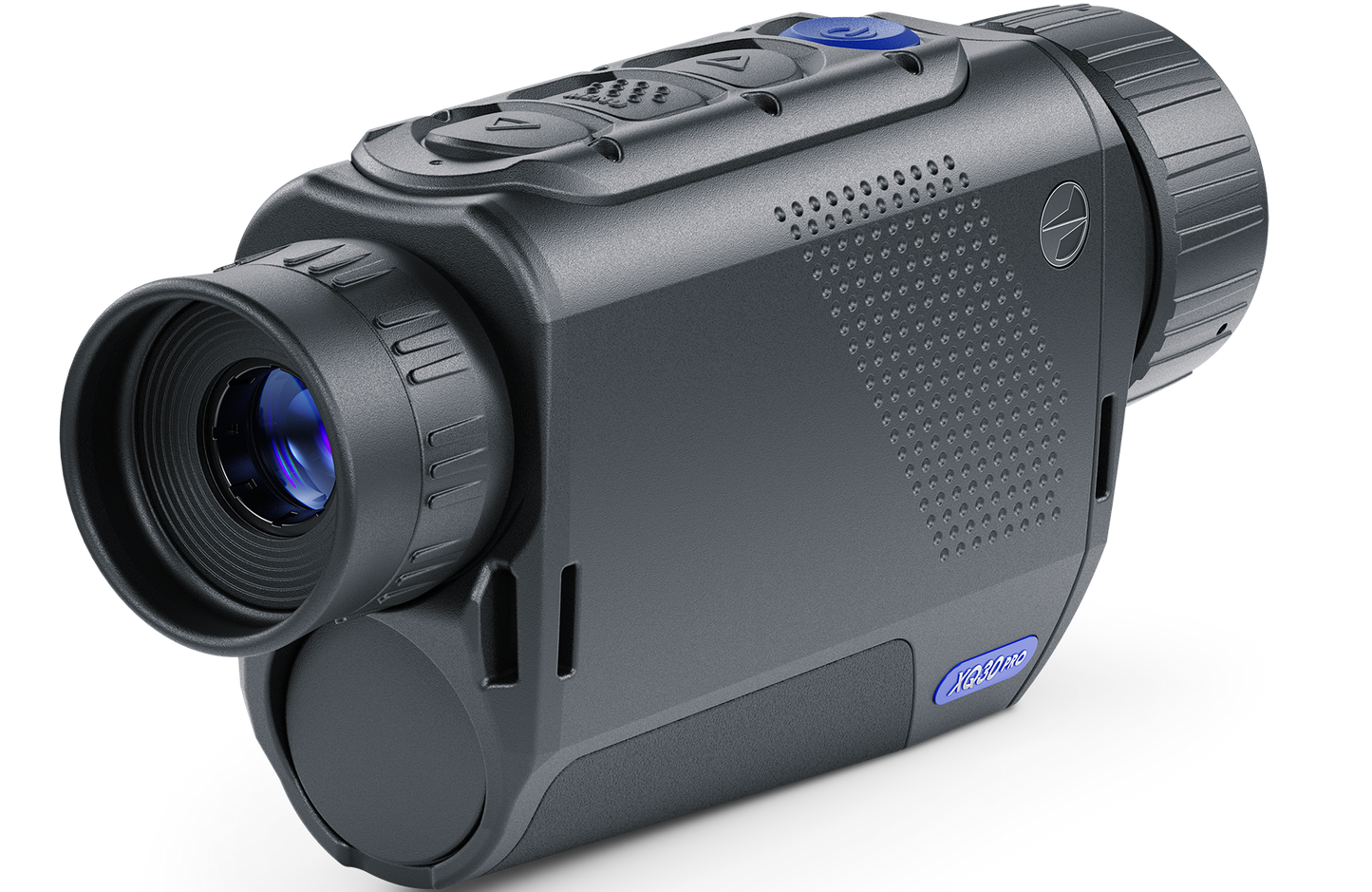

Axion XQ30 Pro Thermal Monocular
Main
- 384x288 pix. @ 17 µm (sNETD <20 mK)
- F35/1.2
- 2 - 8x
- 13.3
- 1150
Sensor
- uncooled
- 384x288
- 17
- <25
- 50
- <20
Optics
- F35/1.0
- 2-8x
- 13.3
- 14
Display
- AMOLED
- 640x400
Range Performance
- 1150
Video Recorder
- 640x400
- .mp4 / .jpg
- 16
Wi-Fi
- Wi-Fi
- IEEE 802.11 b/g/n/ac (WPA)
- 2.4 / 5
Environmental Characteristics
- IPХ7(waterproof)
- -13...+122
Connections and Compatibilities
- 1/4"
- Stream Vision 2
Power Supply
- 3.0 – 4.2
- APS 3 Battery Pack
- 3200
- 8
- 5V (USB Type-C)
Weight & Size
- Magnesium alloy
- 144x41x69
- 0.31
Trade Data
- PL77506
- production
SKU: SKU : PL77506
Couldn't load pickup availability
Description
Compact thermal imaging scope for hunting and outdoor applications. Axion XQ30 Pro offers full set of features including Digital Zoom, Picture in Picture mode, Stadiametric rangefinder, 8 colour palettes, photo and video capture, Wi-Fi connection to smartphones or tablets with the help of Stream Vision 2 app. Professional-grade thermal imaging sensor with 384x288 pixels resolution and less the 25 mK thermal sensitivity, power-efficient AMOLED screen provide excellent image even in the most unfavorable conditions. Ideally fitted for hand Axion’s magnesium housing is rugged and fully waterproof.
Battery Used
- Type: Pulsar APS5 Li-ion
- Quantity: 1
Product Downloads
Features
• Highly sensitive thermal imaging sensor
• Wide field of view for easy scanning
• Compact pocket-sized design
• Rugged magnesium alloy housing
• Photo and video recording
• Sensitivity amplification levels
• A selection of 8 color palettes
• Frost-resistant AMOLED display
• Stream Vision 2 app support for iOS and Android
• Long-life removable battery
• Fast charging with USB Type-C
• IPX7 Fully waterproof
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Model # (SKU) | PL77476 |
| Microbolometer resolution, pix | 640x480 |
| Frame rate, Hz | 50 |
| Sensor NETD, mK | <40 |
| Pixel pitch, µm | 12 |
| Display type and resolution, pix | AMOLED 1024x768 |
| Built-in photo & video recorder | Yes |
| Built-in memory, GB | 16 |
| Stream Vision 2 app support | Yes |
| Magnification, x | 2.5-20x |
| Digital zoom, x | 2/4/8 |
| Lens focus, mm | 35 |
| Relative aperture, D/f' | 1:1 |
| Field of view, ° | 12.5 |
| Eye relief, mm | 14 |
| Diopter adjustment, dptr. +4/-5 | +4/-5 |
| Detection range, m | 1300 |
| Battery type | Pulsar APS5 Li-ion |
| Battery life, h | 7 |
| External power supply | 5V (USB Type-C) |
| Operating temperature, °С | -025… + 40 |
| Level of protection (acc. to IEC 60529) | IPX7 |
| Dimensions, mm | 152x50x74 |
| Weight, kg | 0.3 |
User mode
Fast aperture F35/1.0 lens
Extended battery life. Up to 7 hours on a single charge
3 levels of sensitivity amplification
Pocket-sized dimensions and light weight
Axion XQ30 Pro Thermal Monocular
Main
- 384x288 pix. @ 17 µm (sNETD <20 mK)
- F35/1.2
- 2 - 8x
- 13.3
- 1150
Sensor
- uncooled
- 384x288
- 17
- <25
- 50
- <20
Optics
- F35/1.0
- 2-8x
- 13.3
- 14
Display
- AMOLED
- 640x400
Range Performance
- 1150
Video Recorder
- 640x400
- .mp4 / .jpg
- 16
Wi-Fi
- Wi-Fi
- IEEE 802.11 b/g/n/ac (WPA)
- 2.4 / 5
Environmental Characteristics
- IPХ7(waterproof)
- -13...+122
Connections and Compatibilities
- 1/4"
- Stream Vision 2
Power Supply
- 3.0 – 4.2
- APS 3 Battery Pack
- 3200
- 8
- 5V (USB Type-C)
Weight & Size
- Magnesium alloy
- 144x41x69
- 0.31
Trade Data
- PL77506
- production
