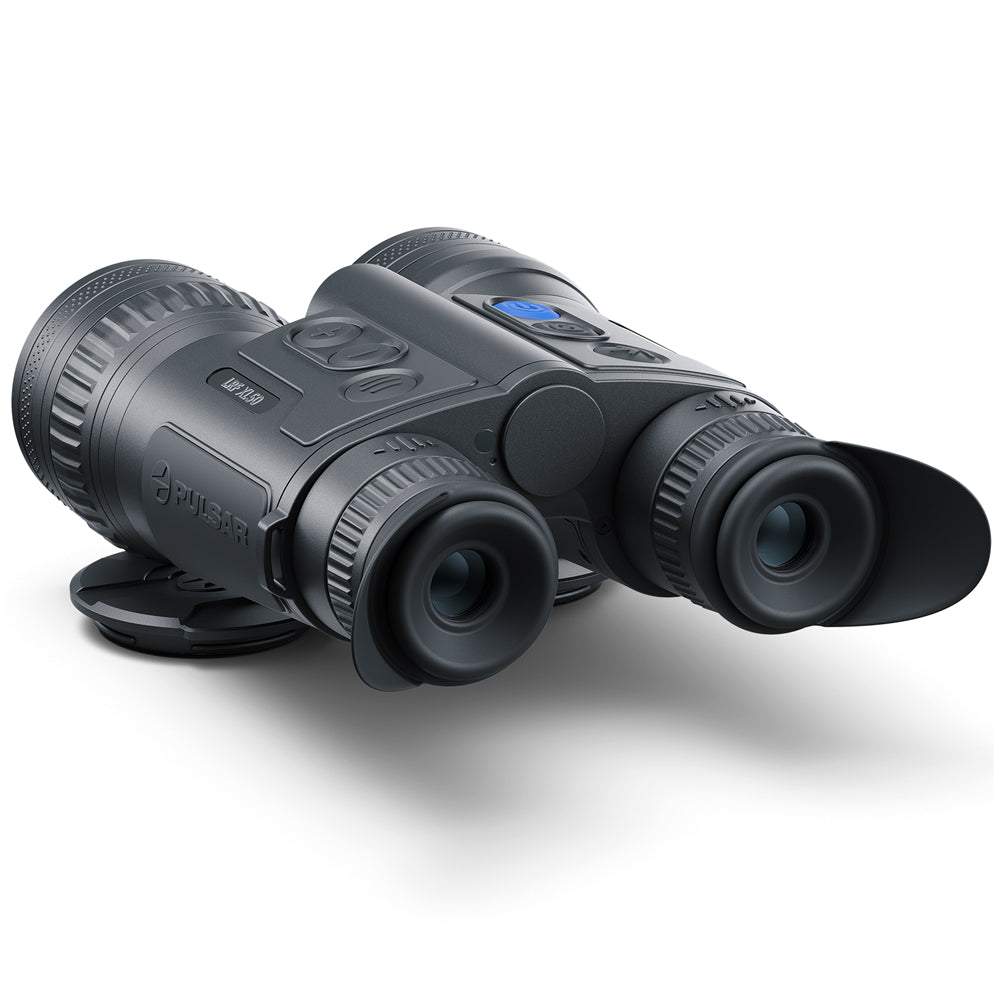

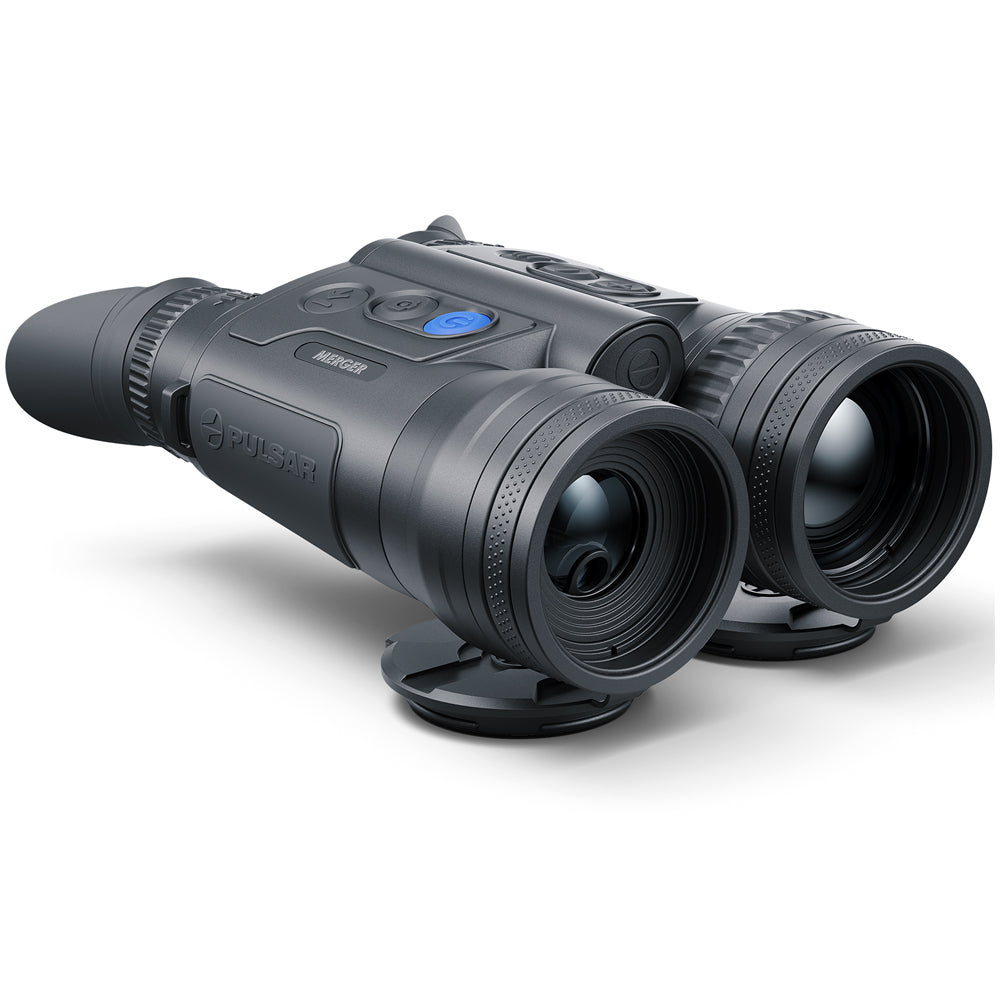

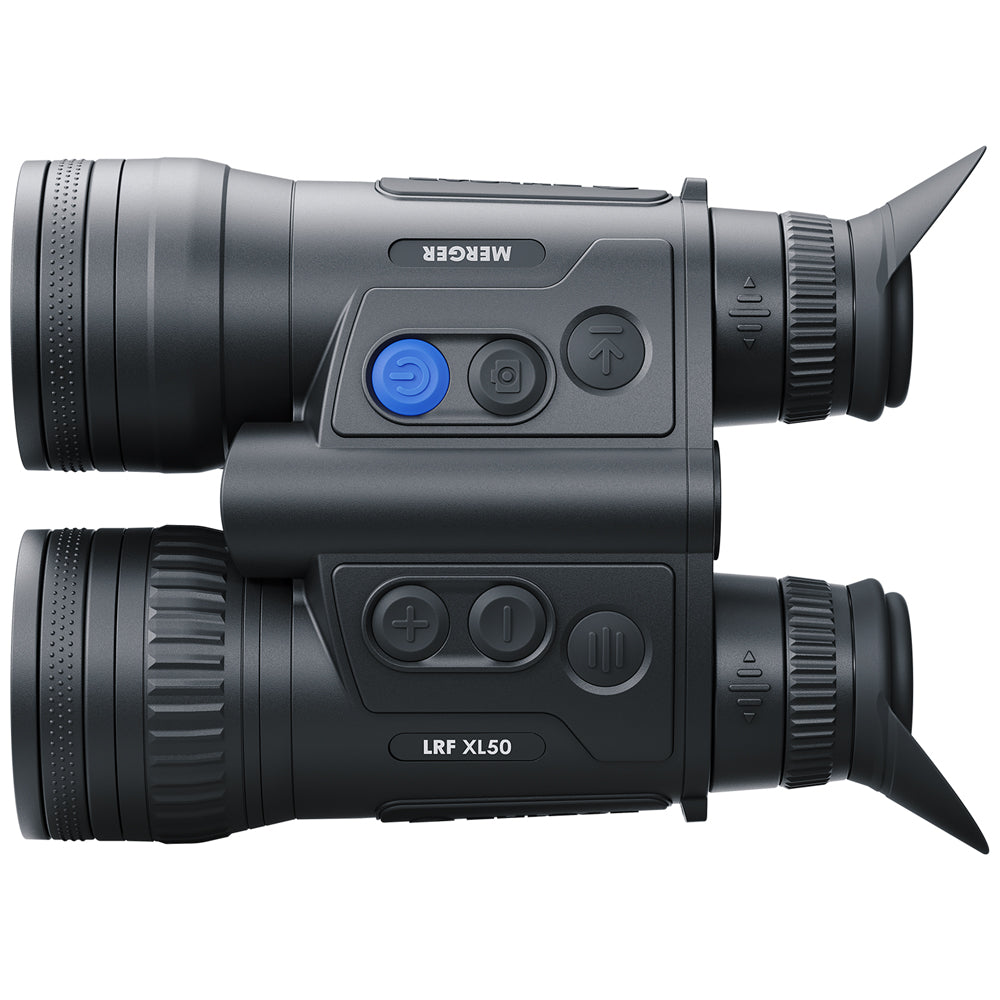

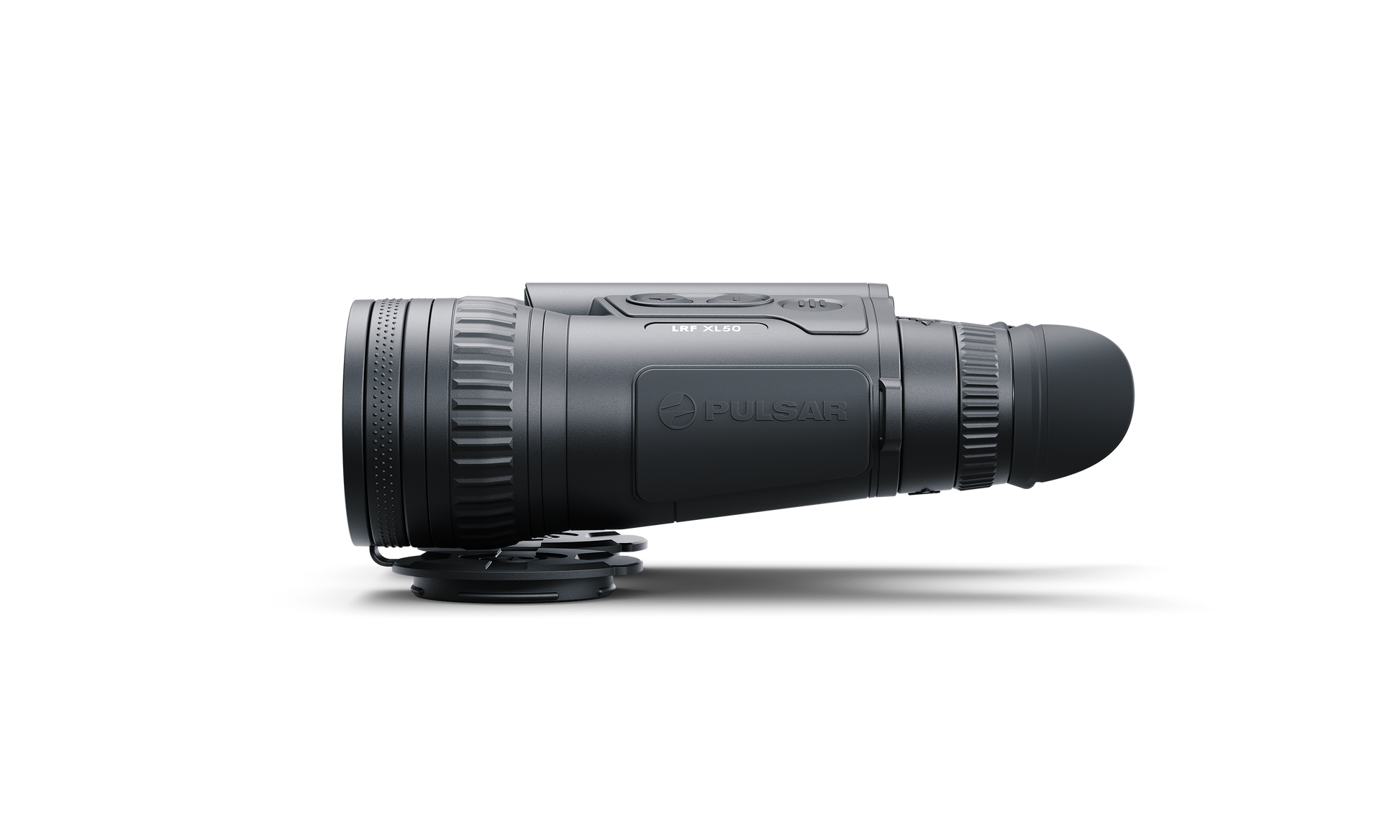

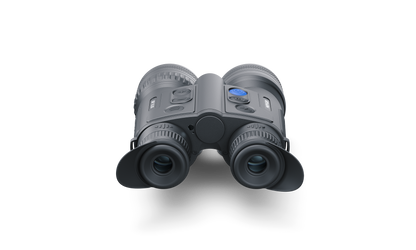

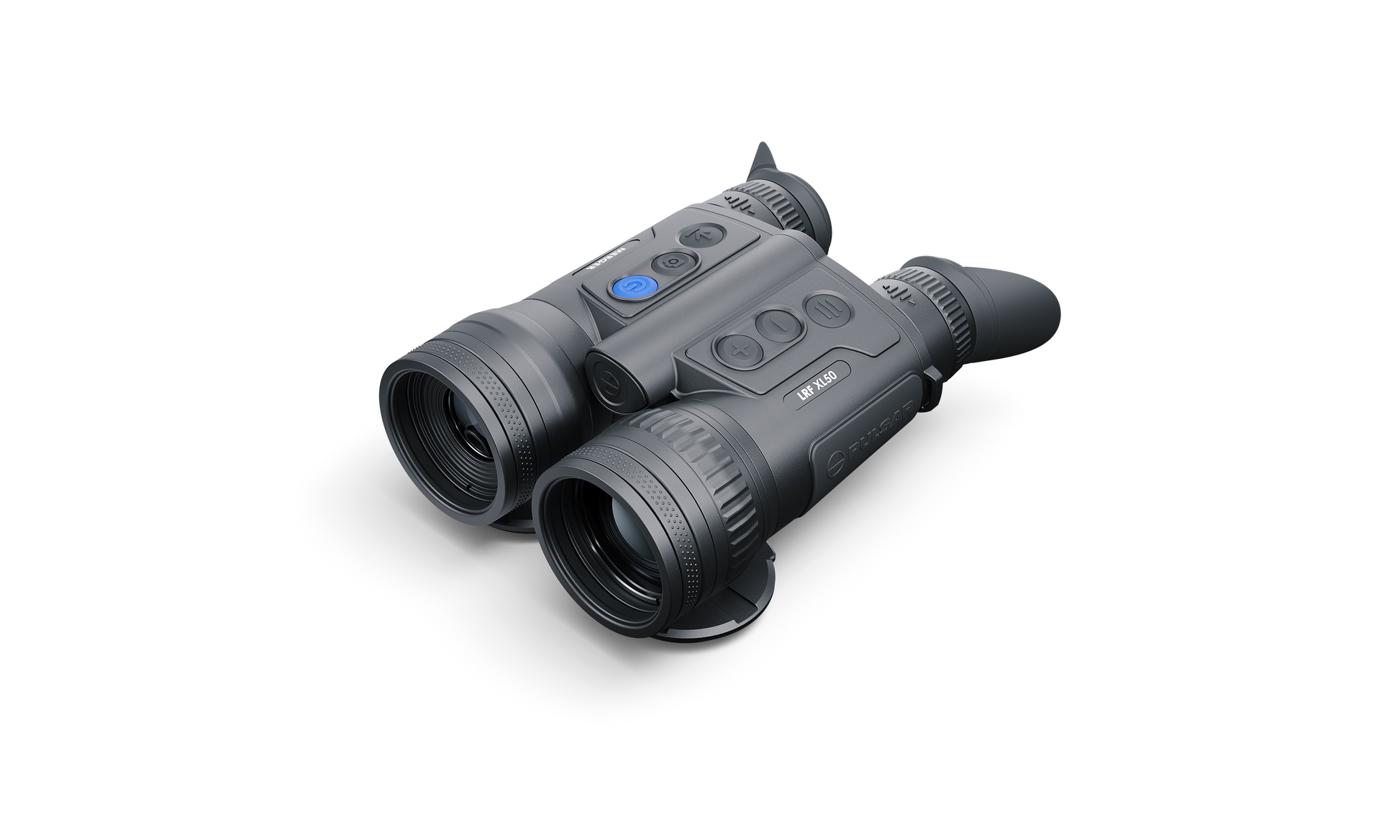

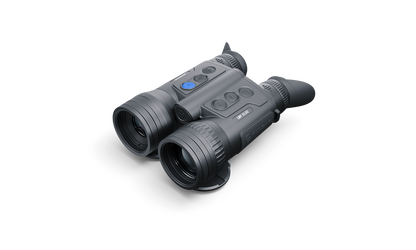

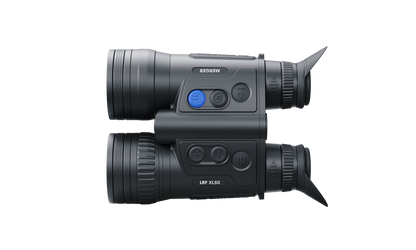

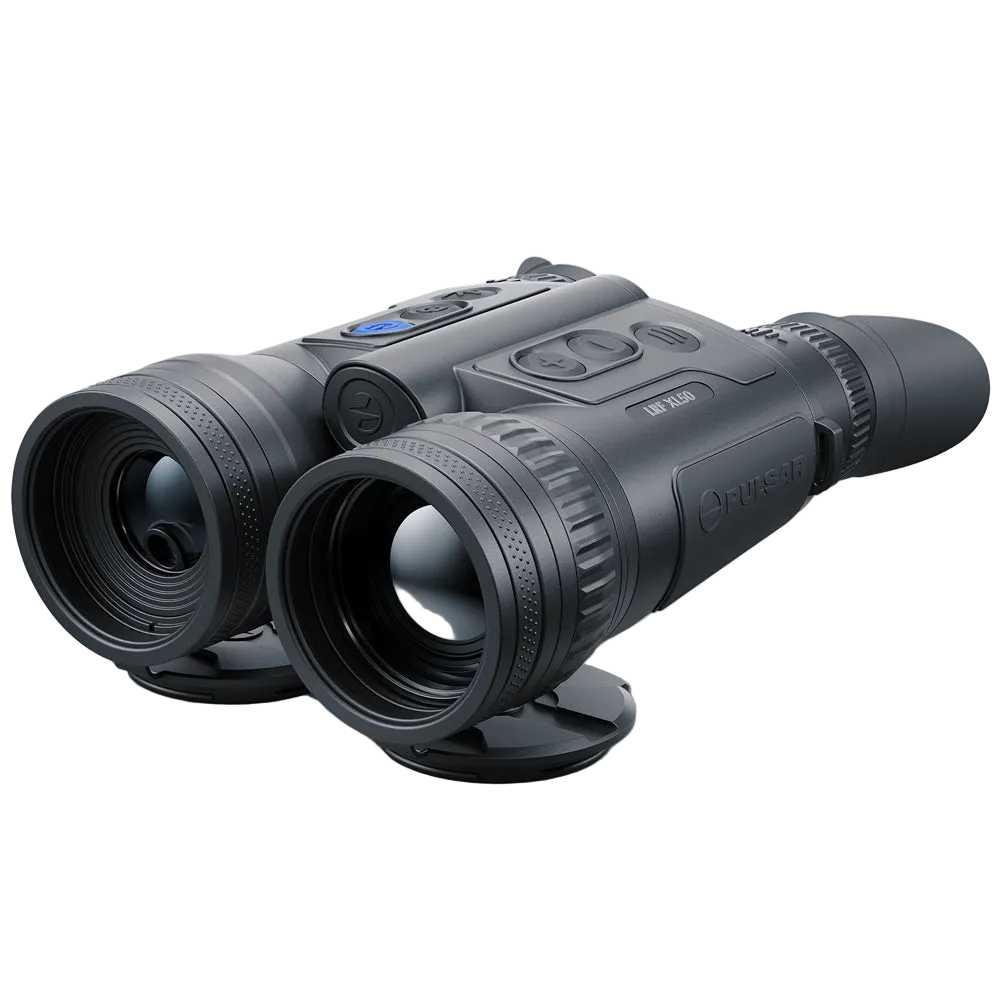

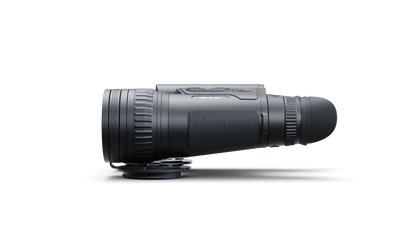

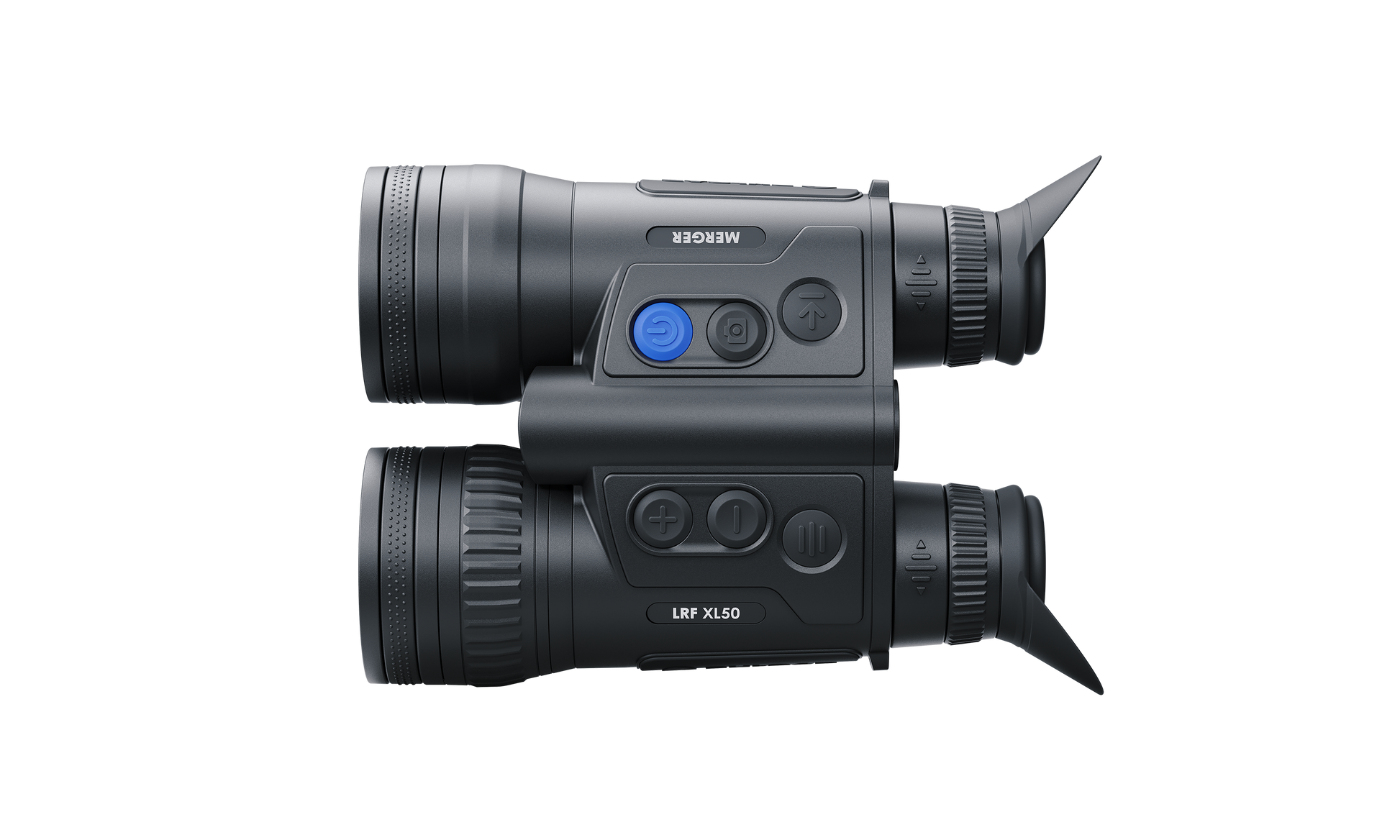

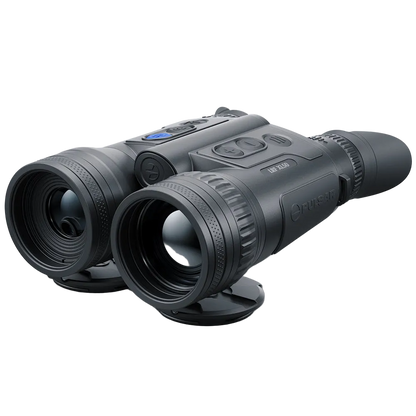

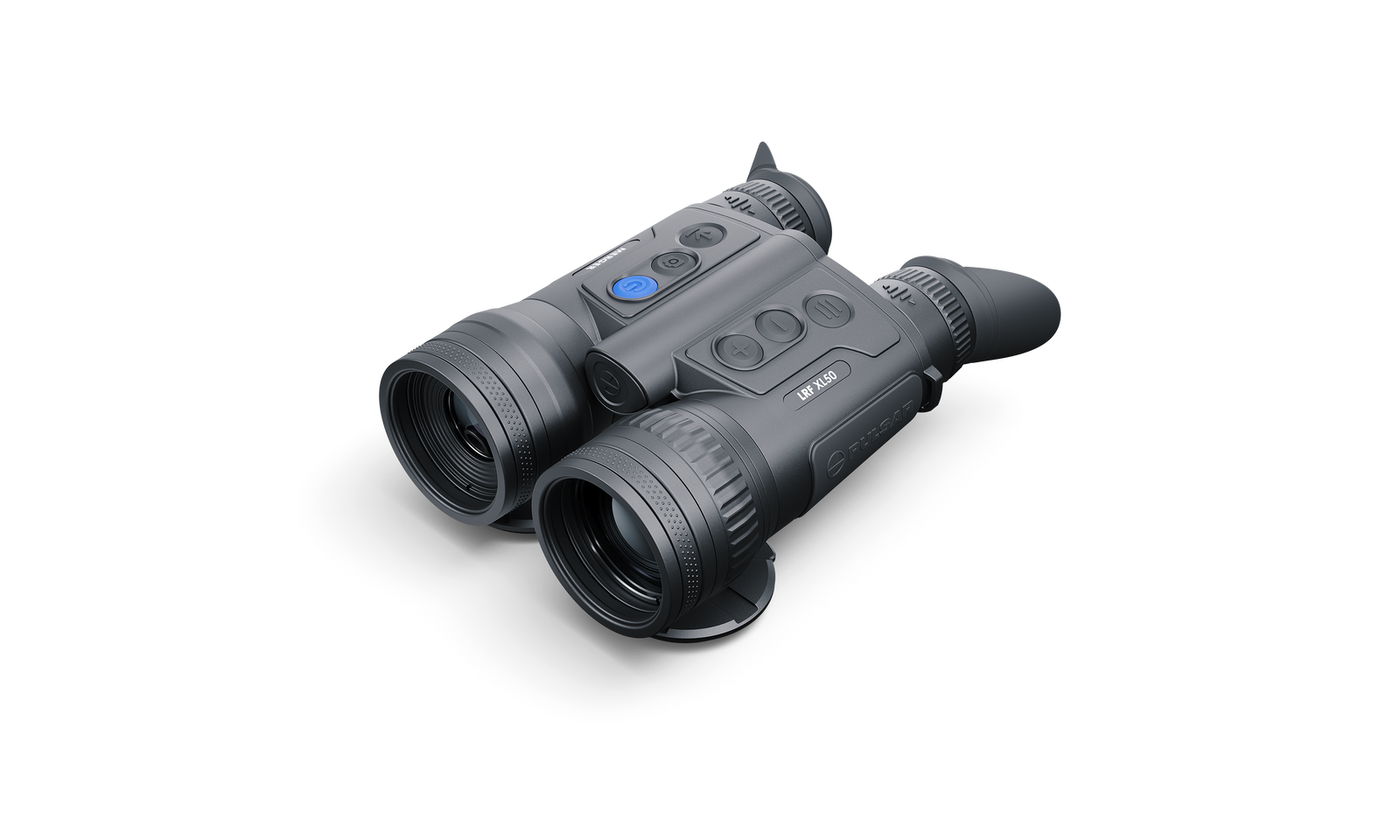

Merger LRF XL50 Thermal Binocular

Name: Merger LRF XL50 Thermal Binocular
Brand: pulsarnv
SKU: PL77481
Price: 7999.97 USD
Availability: OutOfStock

Price: $7,999.97

$7,999.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL77481

Product variants

Quantity

The Merger LRF XL50 is a cutting-edge thermal imaging binocular from Pulsar that delivers an exceptional viewing experience. It features a new HD 1024x768 @ 12 µm thermal sensor with <40mK NETD of thermal sensitivity, providing high-definition images with rich detail for uncompromised trophy identification. With a variable magnification range of 2.5-20x, users can enjoy high image detail across the entire range and easily recognize objects even at significant distances, while the powerful objective lens and professional-grade sensor provide an extra-long detection range of over 2,500 yards in complete darkness.

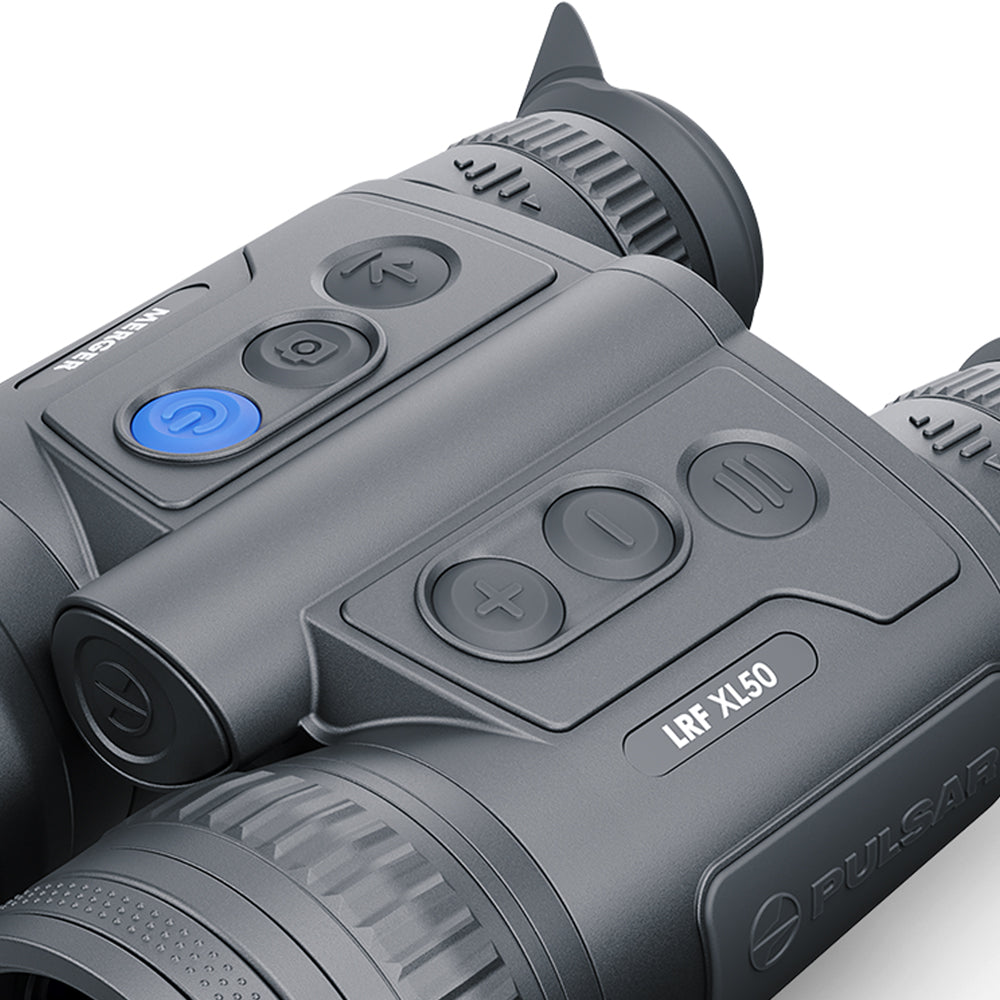

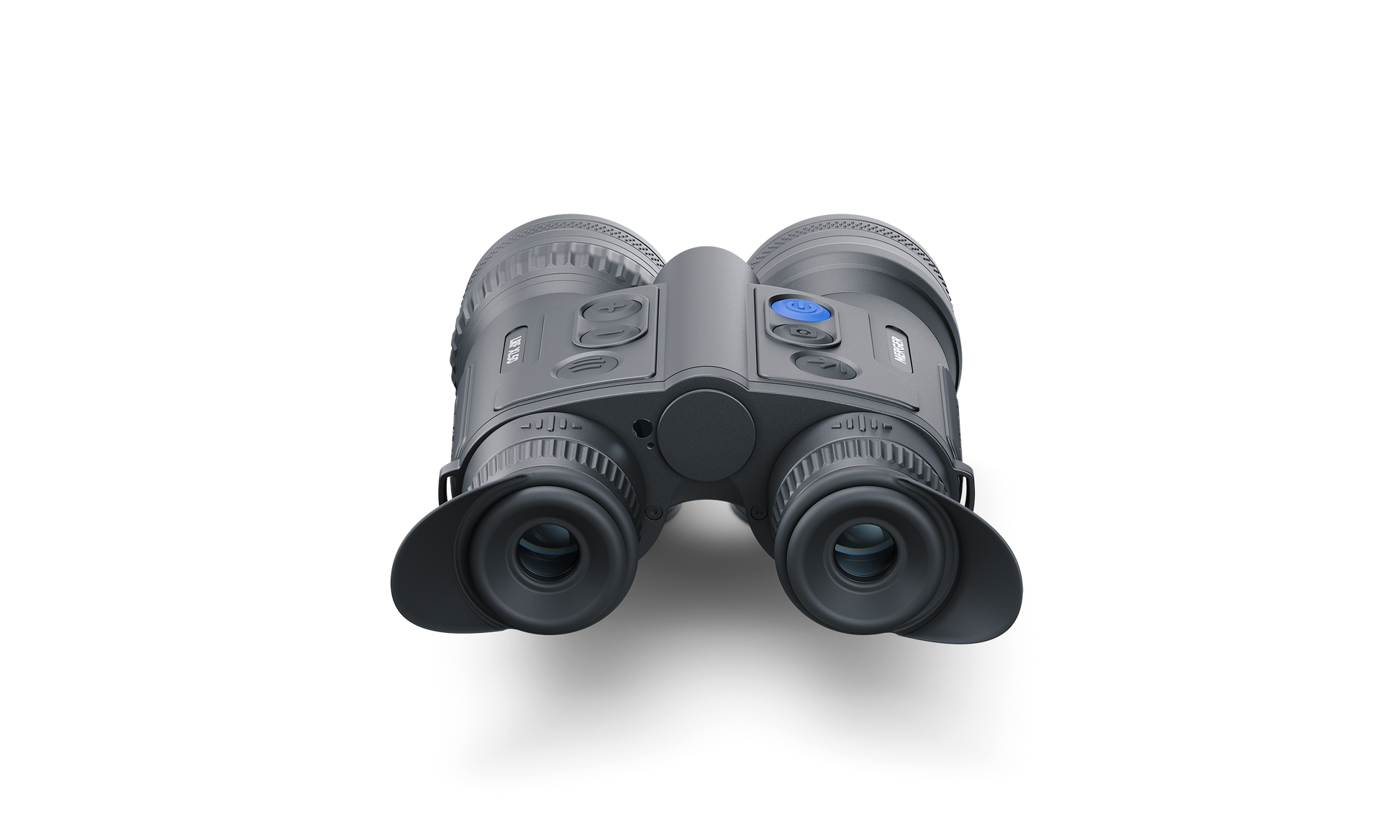

The Merger LRF XL50 boasts a classic binocular design, combining comfort, aesthetics, and functionality. Its ergonomic design and strategically placed function buttons enable easy access to frequently used features with a single touch. The binocular's optical design allows for comfortable viewing with both eyes, reducing eye strain and enhancing detection capabilities in low-contrast scenarios. It also includes a precise laser rangefinder with a measuring distance of more than 1000 yards, ensuring accurate target assessment.

Durability is a key feature of the Merger LRF XL50, with a rugged magnesium alloy housing that protects the internal components from shocks, drops, and harsh environmental conditions. The binocular is equipped with a combined dual battery system, providing 8 hours of combined battery life on a chargeable external battery operating with an equally powerful internal power source. It also features a built-in photo and video recorder with ample internal memory, allowing users to capture and store hours of video and thousands of photos. Wi-Fi integration with iOS and Android devices through the Stream Vision 2 mobile application enables wireless connectivity, real-time image transmission, remote control of device functions, and access to cloud storage for recorded media.

The Merger LRF XL50 thermal imaging binocular offers an unmatched viewing experience with its HD thermal sensor, versatile magnification range, wide field of view, and exceptional detection capabilities, making it a reliable and powerful choice for outdoor enthusiasts and professionals.

Features:

Classic design. Compact size.
Comfortable viewing experience
Precise laser rangefinder with over 1000 yd range
High definition thermal imaging with 1024x768 pixel @ < 40 mK NETD sensor
Latest image processing algorithms
Fast aperture F50/1.0 germanium lens
Detection range up to 2,500 yards
Two independent batteries. Up to 8 hours of continuous work
2.5-20x variable magnification
Rugged magnesium alloy housing
Built-in photo and video recorder
Stream Vision 2. Wi-Fi integration with iOS & Android devices
Improved Wi-Fi connectivity with 2.4/5 GHZ waveband support
High-contrast HD AMOLED displays
A selection of 8 color palettes
IPX7 waterproof rated
Wide range of operating temperature (-13.00 to +122°F)
APS 3 Battery Type

Downloads:

View full details

Main

Sensor HD 1024x768 @ 12 µm (sNETD <20 mK)
Objective lens F50 / 1.0
Magnification, x 2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m@100m 14x10.5 / 24.6x18.5
Detection range, m 2300

Sensor

Type uncooled
Resolution, pixels 1024x768
Pixel pitch, µm 12
NETD, mK <40
Frame rate, Hz 50
sNETD, mK <20

Optics

Objective lens F50 / 1.0
Magnification, x 2.5 – 20
Field of view (HxV), degrees / m @ 100 m 14x10.5 / 24.6x18.5
Interpupillary distance adjustment, mm 62 – 74
Eye relief, mm 15
Type AMOLED HD

Display

Resolution, pixels 1024x768

Range Performance

Detection range, m 2300

Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. measuring range, m 1000
Measurement accuracy, m ± 1

Video Recorder

Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 64

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPХ7 (waterproof)
Operating temperature range, °С -25 – +50

Connections and Compatibilities

Mount, type 1/4" socket
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.7
Battery type Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh 3200 (external) + 4000 (internal)
Operating time on battery pack (at t=22°C), h * 8
External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Magnesium alloy
Dimensions, mm 197x140x72
Weight, kg 0.95 (batteries included)

Trade Data

SKU (Model #) 77481
Status production

View all specs

THERMAL IMAGING

New HD 1024x768 @ 12 mm thermal sensor

Merger LRF XL50 offers the next level of thermal imaging experience. The image generated by new 1024x768 pixels thermal sensor features high definition and rich detail. It is ideal for uncompromised trophy identification. Silhouettes, anatomy & behavioural peculiarities of animal are well visible clearly distinguishable.

High image detail across the whole magnification range 2.5-20x

Variable 2.5-20x magnification provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain high level of image detail over the entire magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.

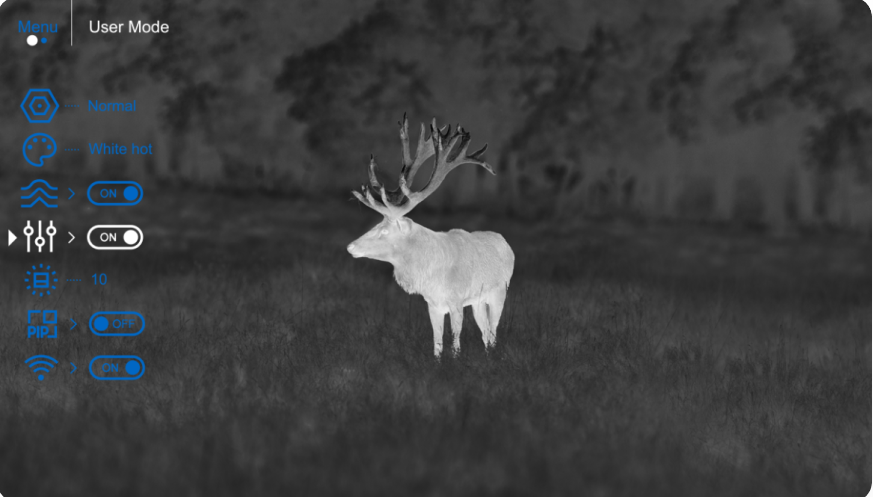

User Mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Extra-Long Detection Range

Powerful objective lens in combination with professional grade 12 µm / 1024x768 pix HD thermal imaging sensor provides exceptional detection capabilities. A standard 1,8m tall object can be detected at a 2300 m distance in complete darkness.

Precise Laser Rangefinder With 1000 M Measuring Distance

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Combined Dual Battery System

The Merger LRF XL50 is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other, a replaceable APS 3, with a capacity of 3.2 Ah. A single charge guarantees long battery life. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.

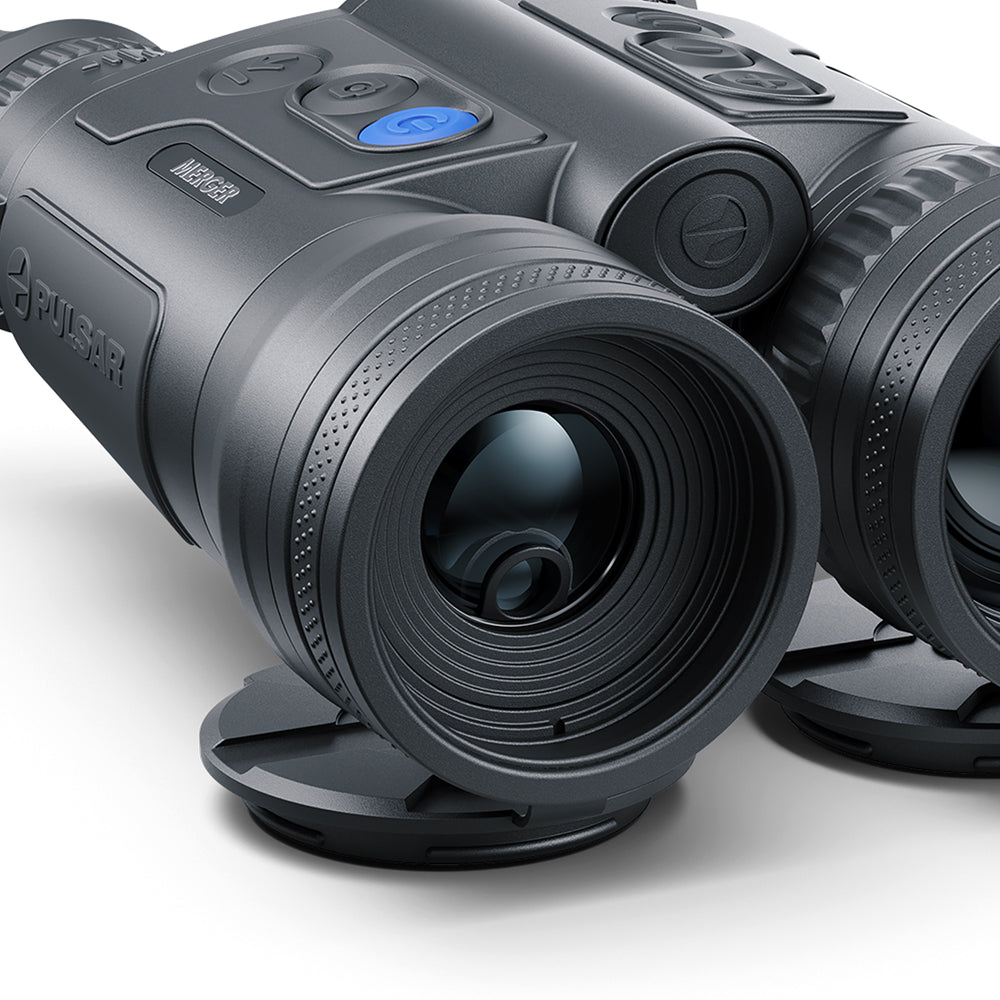

Fast aperture F50/1.0 germanium lens

Germanium F50/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Merger LRF thermal imaging binoculars sensor is distinguished for its clarity and detailing.

Rugged magnesium alloy housing

3 levels of sensitivity amplification

Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range observation in diverse weather and temperature conditions. Amplification setting helps to define animal’s trophy features and ensures clear rendering of objects and background in the field of view.

Proximity sensor for covert use

Observation in the dark requires being covert, so that hunted animals are not alerted by your presence. Going to stand-by using Display Off feature is a usual way to prevent backlight from the eyepieces. To simplify this task Merger LRF has a built-in proximity sensor.It acts as a display switch for preventing backlight exposure in the dark. When the unit is taken away from the eyes, proximity sensor switches both displays off and when the unit is brought closer both displays are switched on offering excellent image quality.

Operation in extreme temperatures -25 to +50°C

Housing, power unit, optics and electronics of Merger LRF are designed with regard to applications in wide range of temperatures. Merger ensures reliable and effective performance in freezing cold up to -25°C.

A selection of 8 color palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

High-contrast HD AMOLED displays

While the Merger’s HD AMOLED displays deliver crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution image, and power saving.

Dual Wi-Fi waveband support 2.4 / 5 GHz

In Merger LRF thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

Built-in photo and video recorder

The Merger LRF has a built-in video recorder. The internal memory of Merger LRF can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video. The footage is copied to a computer hard drive via a USB-C port. The Merger LRF owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via Wi-Fi.

Stream Vision 2. Wi-Fi integration with iOS and Android devices

Built-in Wi-Fi connects the Merger LRF to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.
