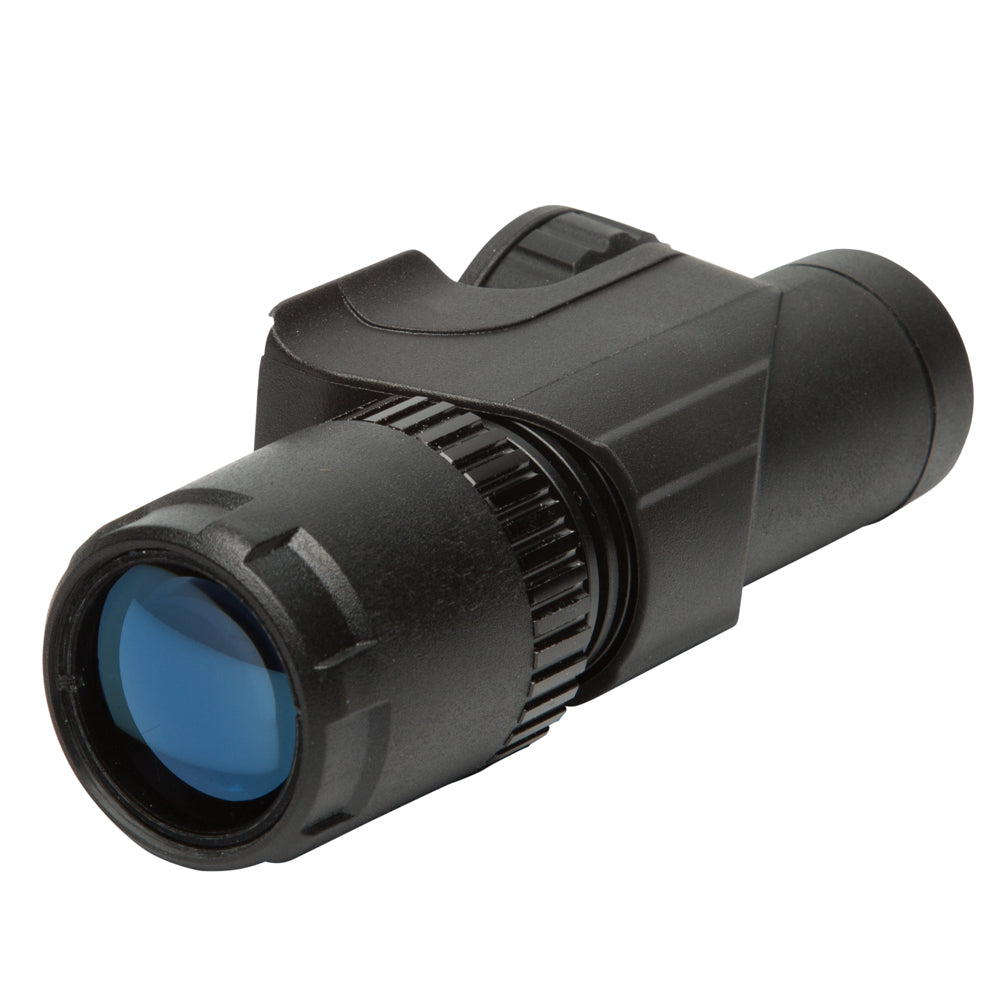

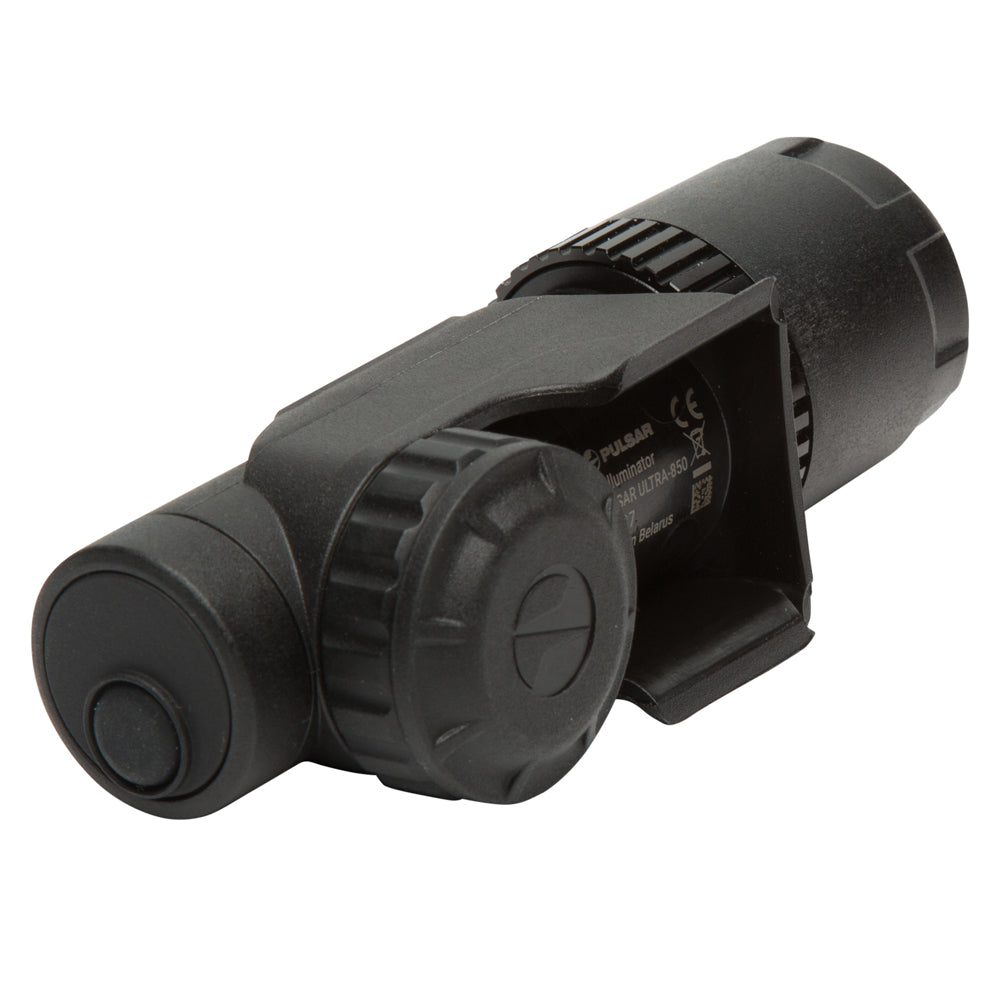

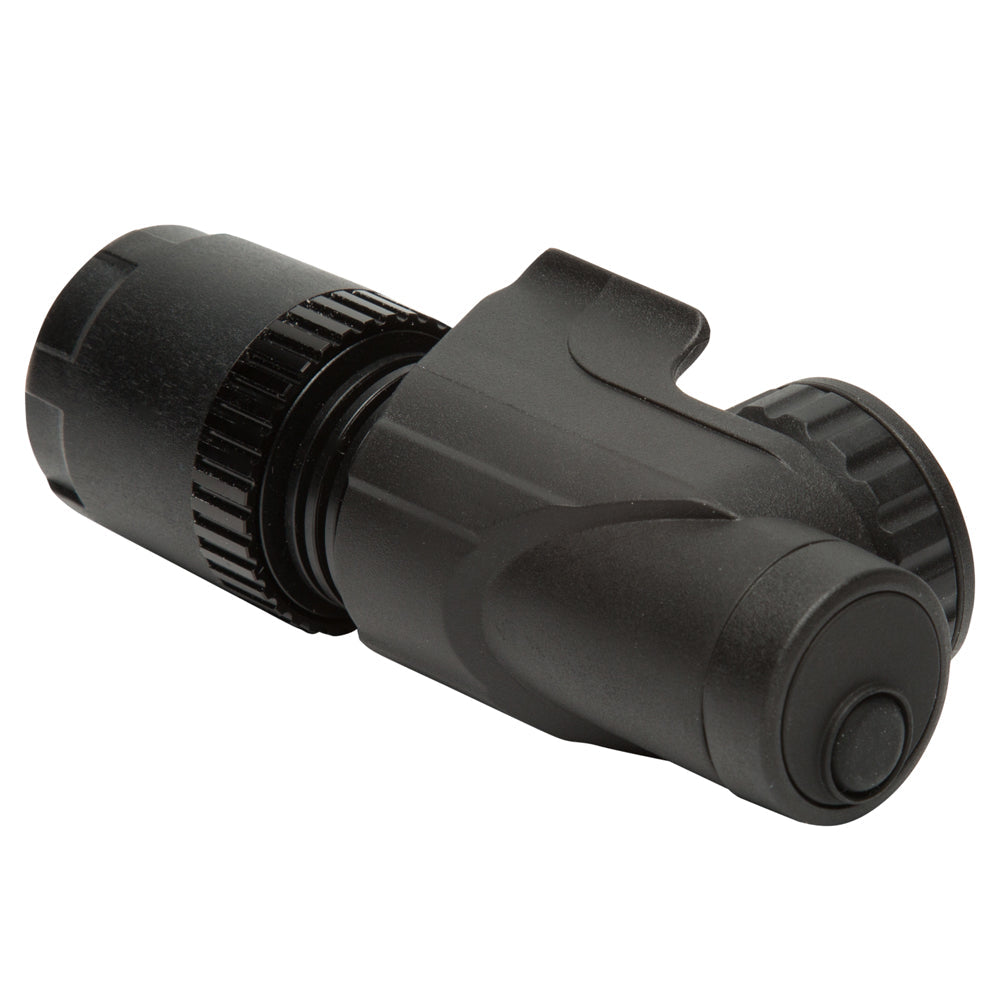

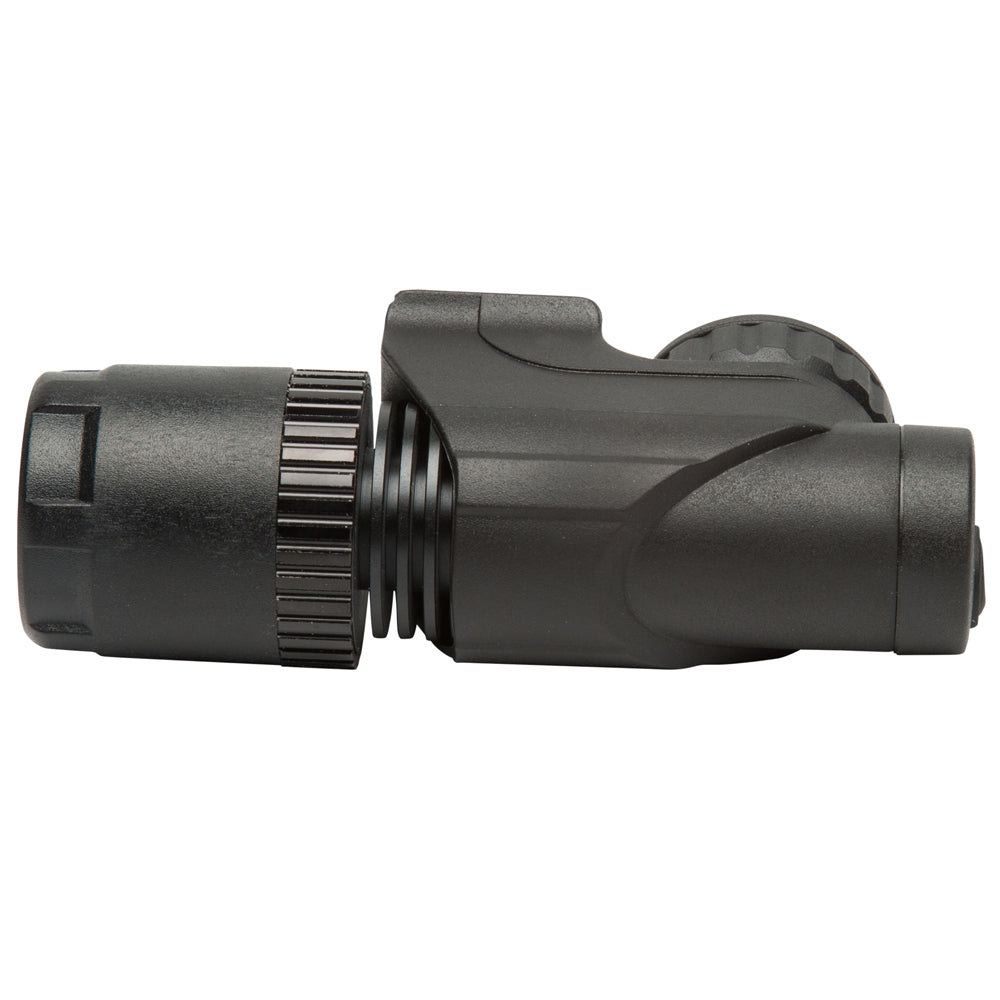

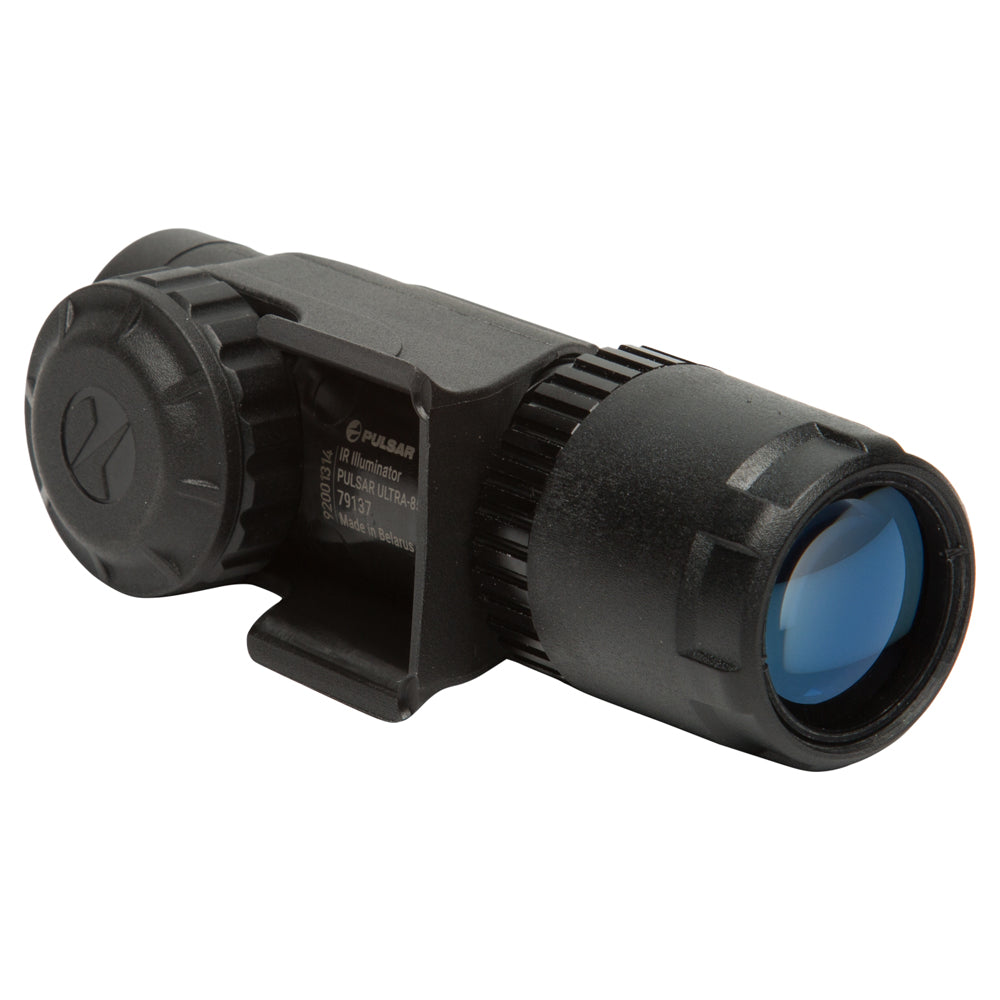

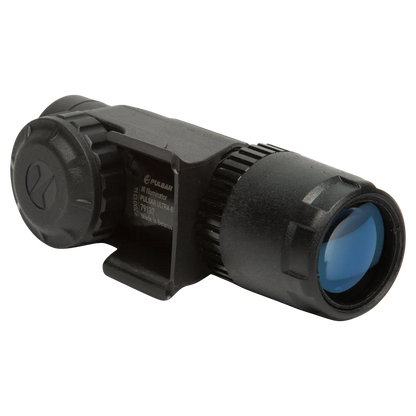

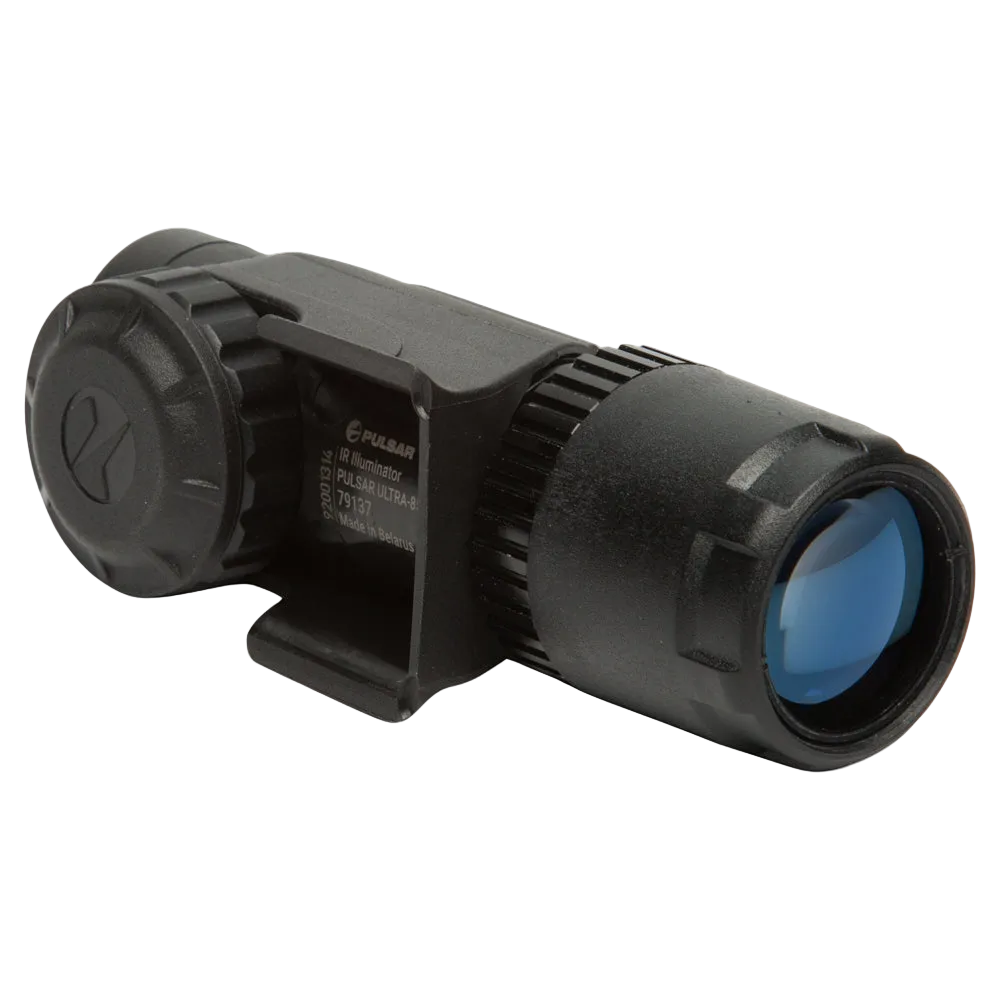

Ultra-850 IR Illuminator

Name: Ultra-850 IR Illuminator
Brand: Pulsar
SKU: PL79137
Price: 149.97 USD
Availability: InStock

Infrared Illuminator

Emitter LED
IR wavelength, nm 850 (long-range)
Beam divergence, degree 5 – 7

Connections and Compatibilities

Mount, type NV Device IR Illuminator mounting port

Weight & Size

Dimensions, mm 109x36x45
Weight, kg 0.08

Trade Data

SKU (Model #) 79137
Status discontinued

Price: $149.97

$149.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL79137

Product variants

Quantity

Description

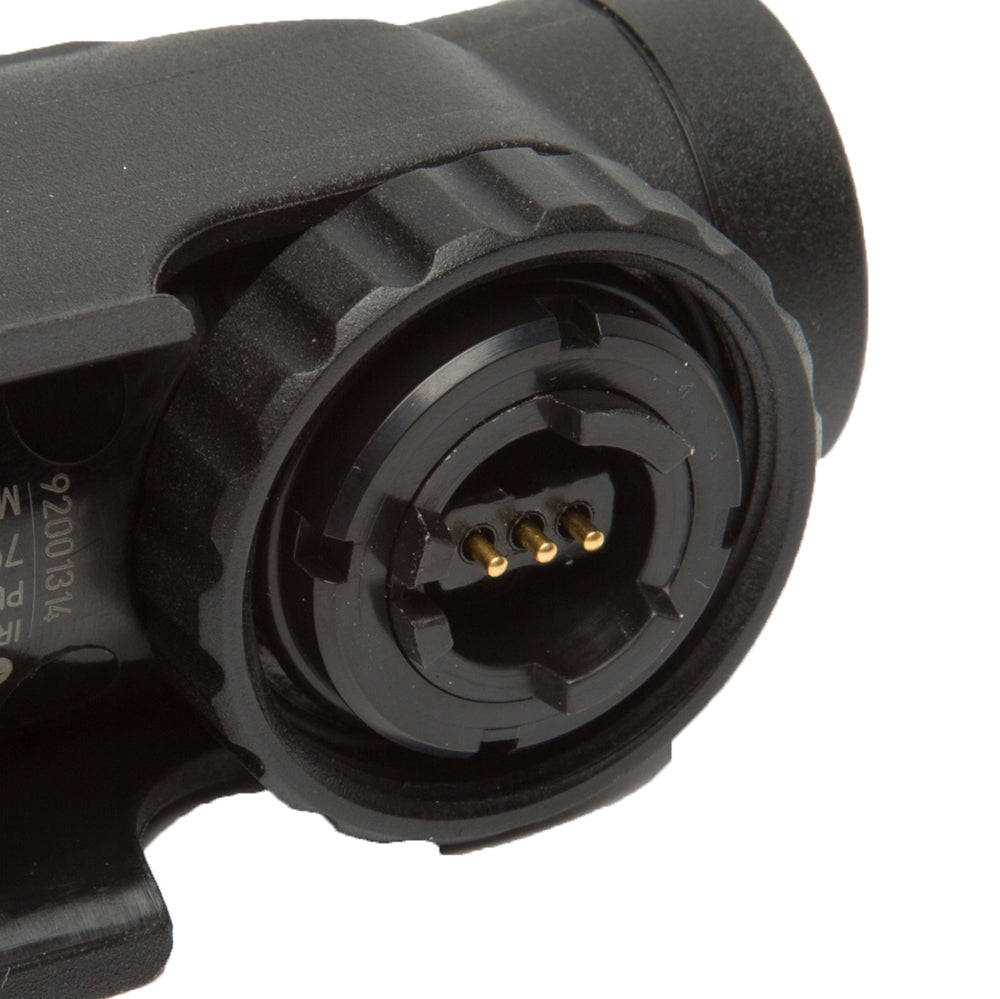

Designed specifically for Digisight Ultra models, the Ultra-850 IR Illuminator attaches directly to the side socket of the Digisight Ultra’s housing. Useful for those trying to increase their night time detection and identification range, this IR features variable beam control able to focus from spot to flood. The Ultra 850-IR Illuminator is also adjustable to position the beam within the scope’s field of view and has 3 different variable brightness settings.

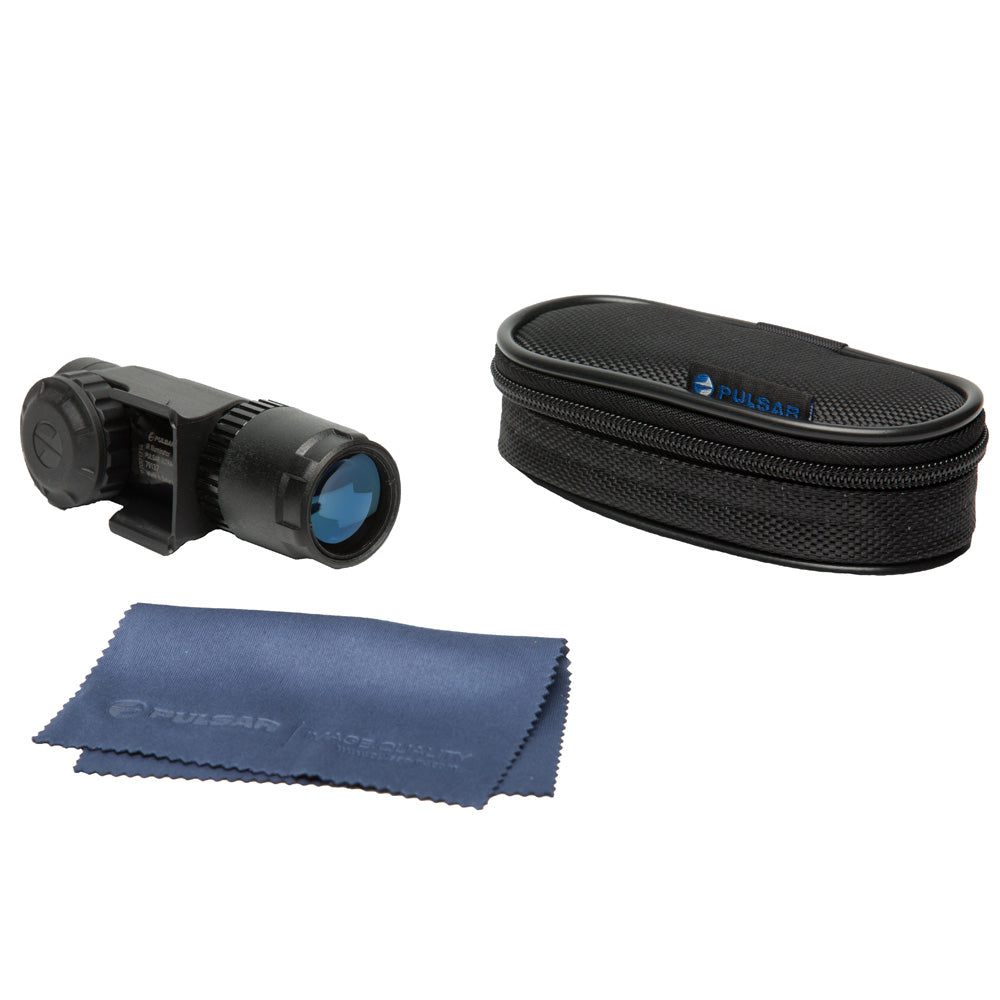

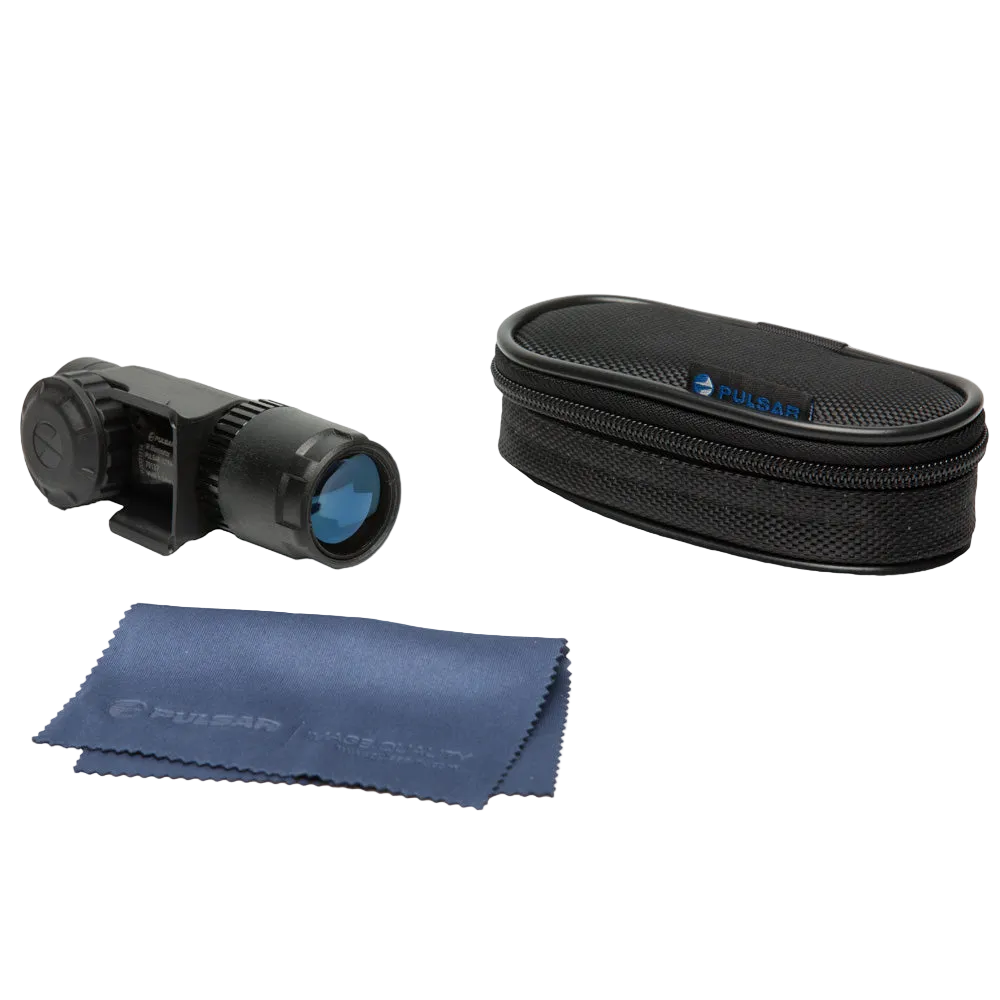

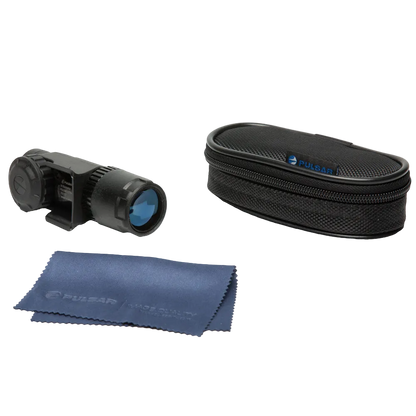

Included in Package

Carrying case
Cleaning cloth

Product Downloads

Features

Designed specifically for use with Digisight Ultra models
High-powered LED IR illuminator

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Equivalent IR Power, mW	200
Diameter, Lens, mm	24 mm
Range of Beam Divergence	5.5-6.5 Degree
Rifle Mount	Attaches to Digisight Ultra
Waterproof Rating	IP55 - water resistant
Body Material	Plastic
Operating temperature, F/C	-13 - 104 / -25 - 50 F/C
Width (in/mm)	1.8 / 45 in / mm
Height (in/mm)	1.4 / 36 in / mm
Length	4.3 / 109 in / mm
Weight	3.03 oz

View full details

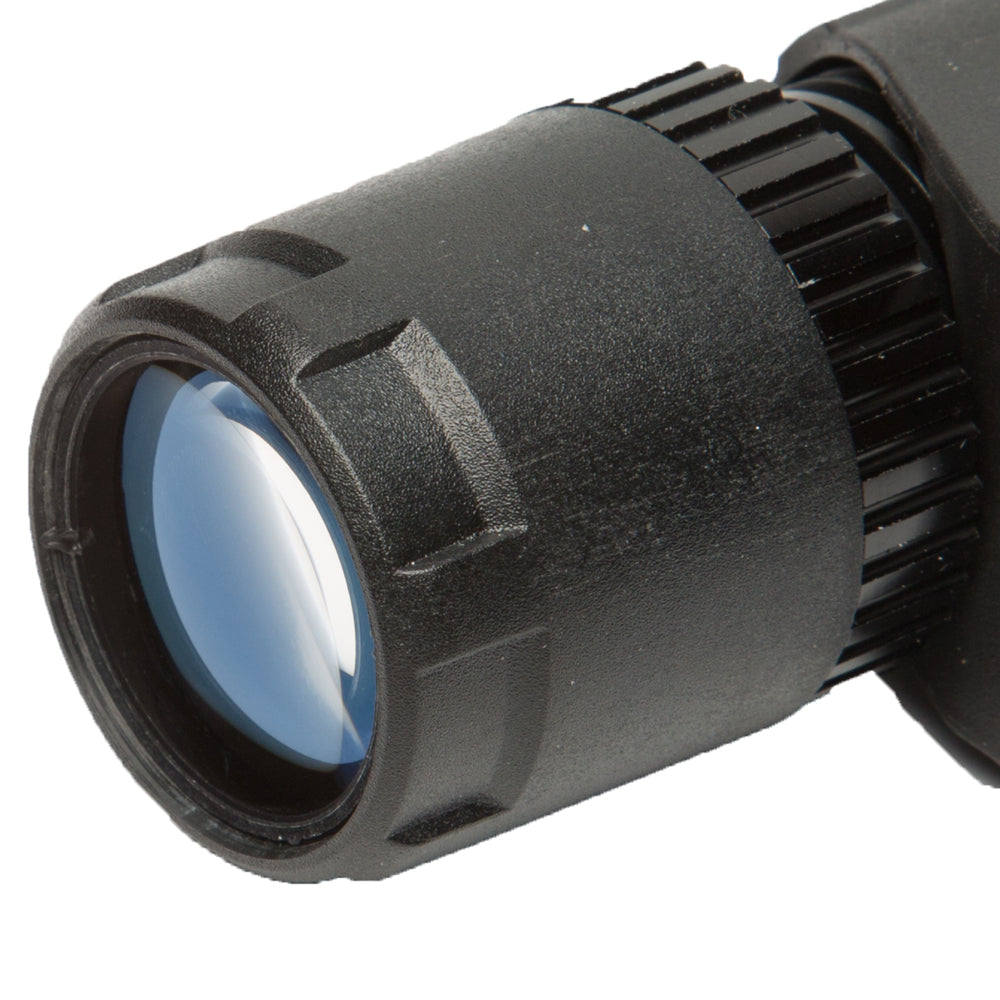

Focusing

Pulsar IR Illuminator spot can be smoothly adjusted from narrow beam to flood. Unfocused beam illuminates larger area; the narrow beam light ensures longest possible viewing distance.

IR Spot Position

Design of Pulsar IR Flashlights allows spot position to be corrected in the field of view horizontally and vertically. To do this, loosen the ring fixing the optical assembly, adjust the IR spot in the center of the field of view (the NV unit should be on) and tighten the ring again.

Power Adjustment

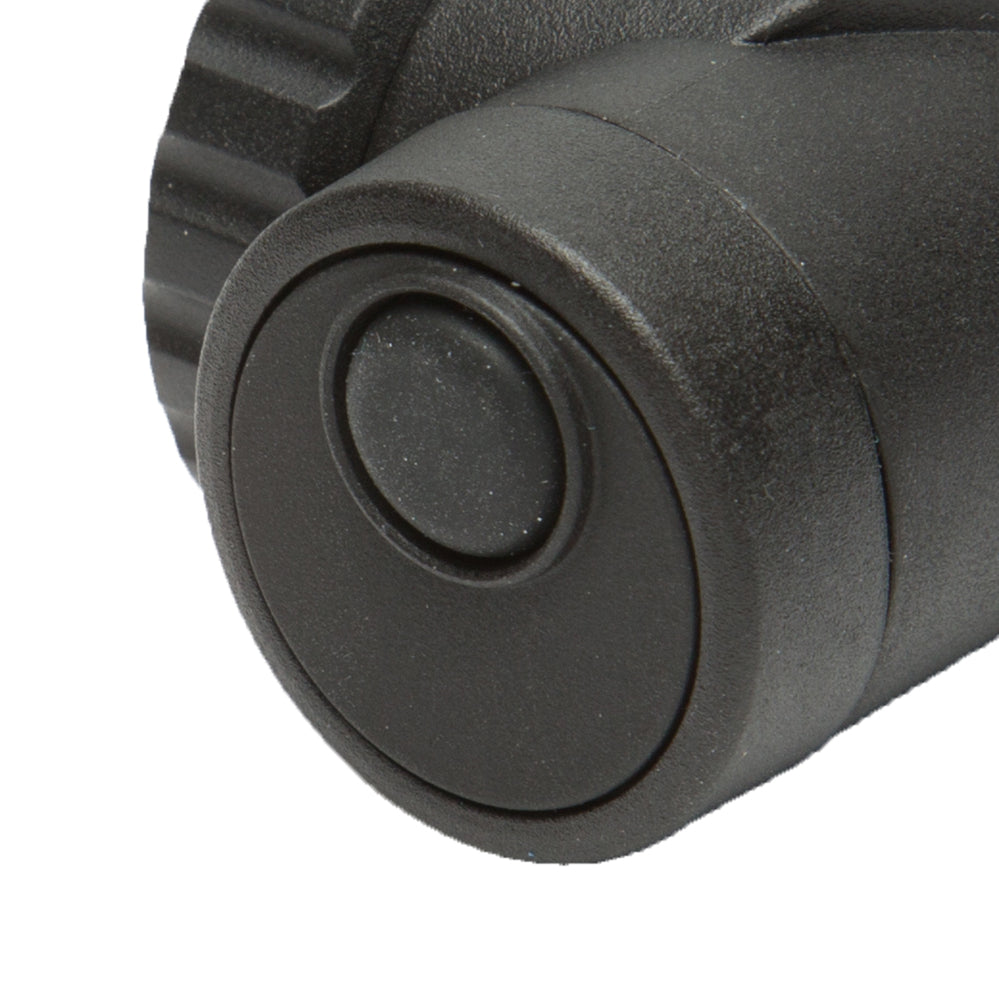

Power is adjusted by rotating the wheel on the body next to the ON button. Adjustment of both – power and spot divergence angle – helps achieve best illumination of an object in specific observation conditions.

Mounting

Pulsar IR Flashlights are equipped with a mount adaptable for Weaver rail available in most modern night vision rifle scopes and optical units, as well as hunting or sports and pneumatic weapons. Package also includes an adapter that allows flashlights to be attached to NV units outfittedwith a ¼ inch tripod mount.
