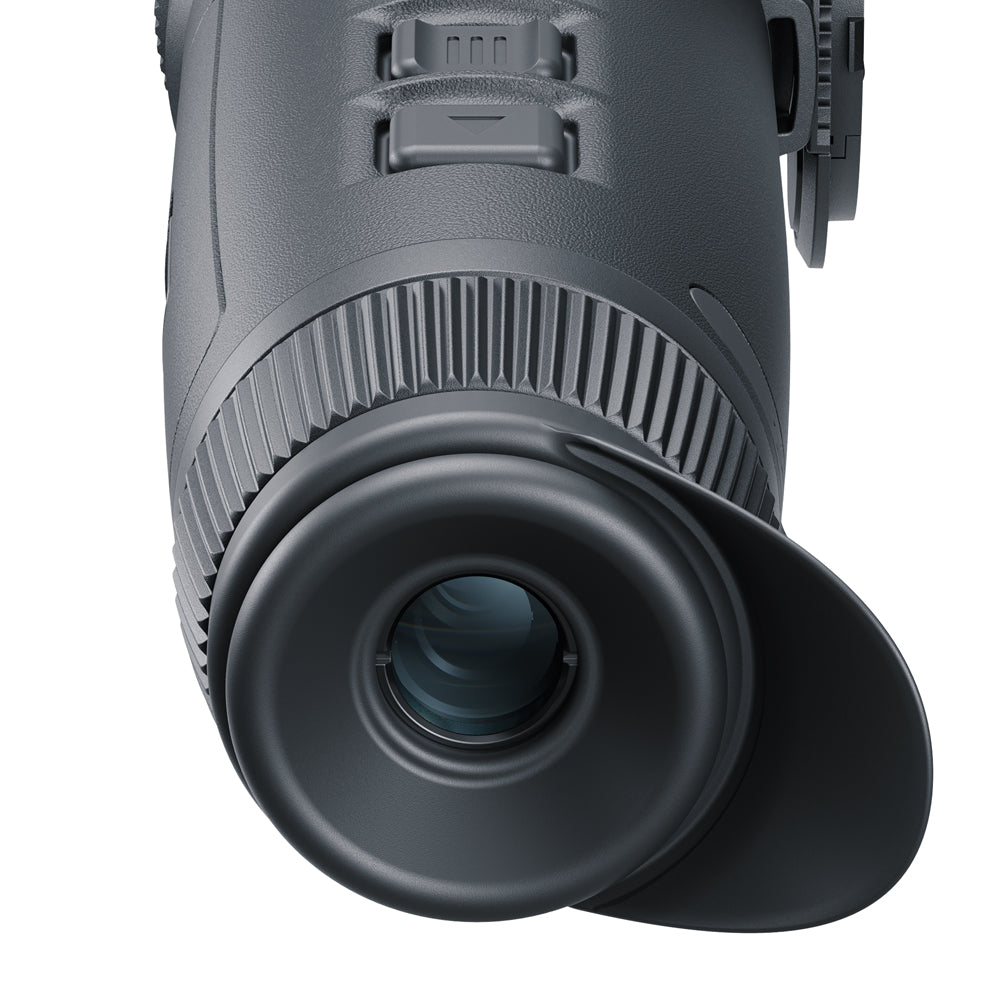

Telos LRF XL50 Thermal Monocular
Main
- 1024x768 @ 12 µm (sNETD <20 mK)
- F50 / 1.0
- 2.5 – 20 (x8 digital zoom)
- 14x10.5 / 24.6х18.5
- 2300
Sensor
- uncooled
- 1024x768
- 12
- <40
- 50
- <20
Optics
- F50 / 1.0
- 2.5 – 20 (x8 zoom)
- 14x10.5 / 24.6х18.5
- 14
Display
- AMOLED
- 1024x768
Range Performance
- 2300
Laser Rangefinder
- 1
- 905
- 1000
- ± 1
Video Recorder
- 1024x768
- .mp4 / .jpg
- 64
Wi-Fi
- Wi-Fi
- IEEE 802.11 b/g/n/ac (WPA)
- 2.4 / 5
Environmental Characteristics
- IPХ7 (waterproof)
- -25 – +40
Connections and Compatibilities
- 1/4"
- Stream Vision 2
Power Supply
- 3.0 – 4.2
- LPS 7i Li-Ion Battery Pack
- 6400
- 7
- 5V, 9V (USB Type-C Power Delivery)
Weight & Size
- rubber armored reinforced plastic
- 243x72x90
- 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
SKU: SKU : PL77515
Couldn't load pickup availability
Pulsar is once again at the forefront of innovation with the new Telos LRF XP50 digital thermal monocular. The rapid rate of technological advancement in today’s world requires modularity and precision. Pulsar has designed its new Telos LRF XP50 with this in mind. With components and parts that are capable of being upgraded and customized according to the user’s needs, The new Telos LRF XP50 ensures cutting edge thermal technology is at your fingertips for years to come.
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Main
- Sensor1024x768 @ 12 µm (NETD <40 mK)
- Objective lensF50 / 1.0
- Magnification, x2.5 – 20 (x8 digital zoom)
- Field of view (HxV), degrees / m@100m14x10.5 / 24.6х18.5
- Detection range, m2300
Sensor
- Typeuncooled
- Resolution, pixels1024x768
- Pixel pitch, µm12
- NETD, mK<40
- Frame rate, Hz50
Optics
- Objective lensF50 / 1.0
- Magnification, x2.5 – 20 (x8 zoom)
- Field of view (HxV), degrees / m @ 100 m14x10.5 / 24.6х18.5
- Eye relief, mm14
Display
- TypeAMOLED
- Resolution, pixels1024x768
Range Performance
- Detection range, m2300
Laser Rangefinder
- Safety class for laser equipment according to IEC 60825-1:20141
- Wavelength, nm905
- Max. measuring range, m1000
- Measurement accuracy, m± 1
Video Recorder
- Video / photo resolution, pixel1024x768
- Video / photo format.mp4 / .jpg
- Built-in memory, GB64
Wi-Fi
- Wireless ProtocolWi-Fi
- Wireless StandardIEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz2.4 / 5
Environmental Characteristics
- Degree of protection, IP code (IEC60529)IPХ7 (waterproof)
- Operating temperature range, °F-25 – +40
Connections and Compatibilities
- Mount, type1/4"
- Supported ApplicationStream Vision 2
Power Supply
- Output voltage, V3.0 – 4.2
- Battery typeLPS 7i Li-Ion Battery Pack
- Capacity, mAh6400
- Operating time on battery pack (at t=22°C), h *7
- External power supply, V5V, 9V (USB Type-C Power Delivery)
Weight & Size
- Body materialrubber armored reinforced plastic
- Dimensions, mm243x72x90
- Weight, kg0.58 (w/o battery) / 0.72 (with the LPS7i battery)
User mode
Display resolution: 1024x768
