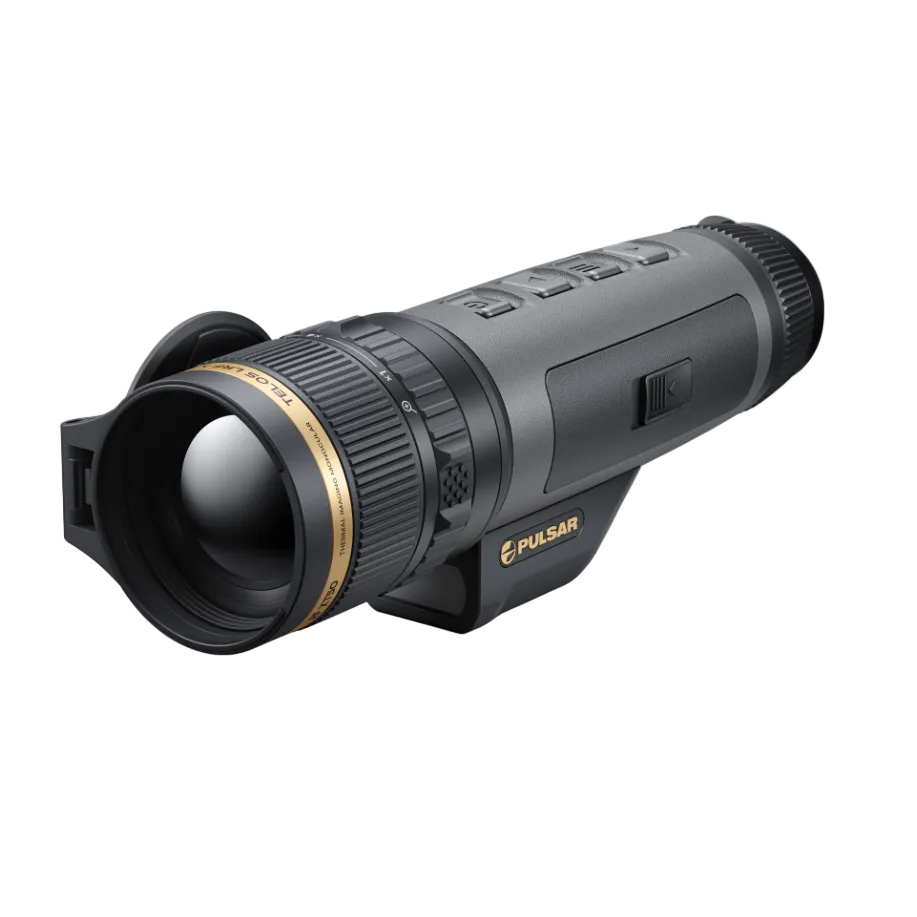

Telos LRF XT50 Monocular

Main

• Sensor 1280x1024 @ 12 µm (sNETD <20 mK)
• Objective lens F50 / 1.0
• Magnification, x 2 – 16 (Zoom Boost – 24)
• Field of view (horizontal), degrees / m@100m 17.5 / 30.7
• Detection range, m 2300

Sensor

• Type uncooled microbolometer
• Resolution, pixels 1280x1024
• Pixel pitch, µm 12
• Sensor NETD, mK < 40
• System NETD, mK < 20
• Frame rate, Hz 50

Optics

• Objective lens F50 / 1.0
• Magnification, x 2 – 16 (Zoom Boost – 24)
• Field of view (horizontal), degrees / m @ 100 m 17.5 / 30.7
• Eye relief, mm 13
• Diopter adjustment, dptr +4 / -5

Display

• Type AMOLED
• Resolution, pixels 1920x1080

Range Performance

• Detection range, m 2300
• Built-in rangefinder measurement range, m 1200

Video Recorder

• Built-in memory, GB 128

Wi-Fi

• Wireless Protocol Wi-Fi
• Frequency, GHz 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529) IPX7 (waterproof)
• Operating temperature range, °С -25 – +50

Connections and Compatibilities

• Supported Application Stream Vision 2 / Stream Vision Ballistics
• NFC Yes
• Bluetooth Yes

Power Supply

• Battery type LPS7i
• Operating time on battery pack, h 8
• External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

• Dimensions with an eyecup, mm 242x72x77
• Weight (with battery), kg 0.73
