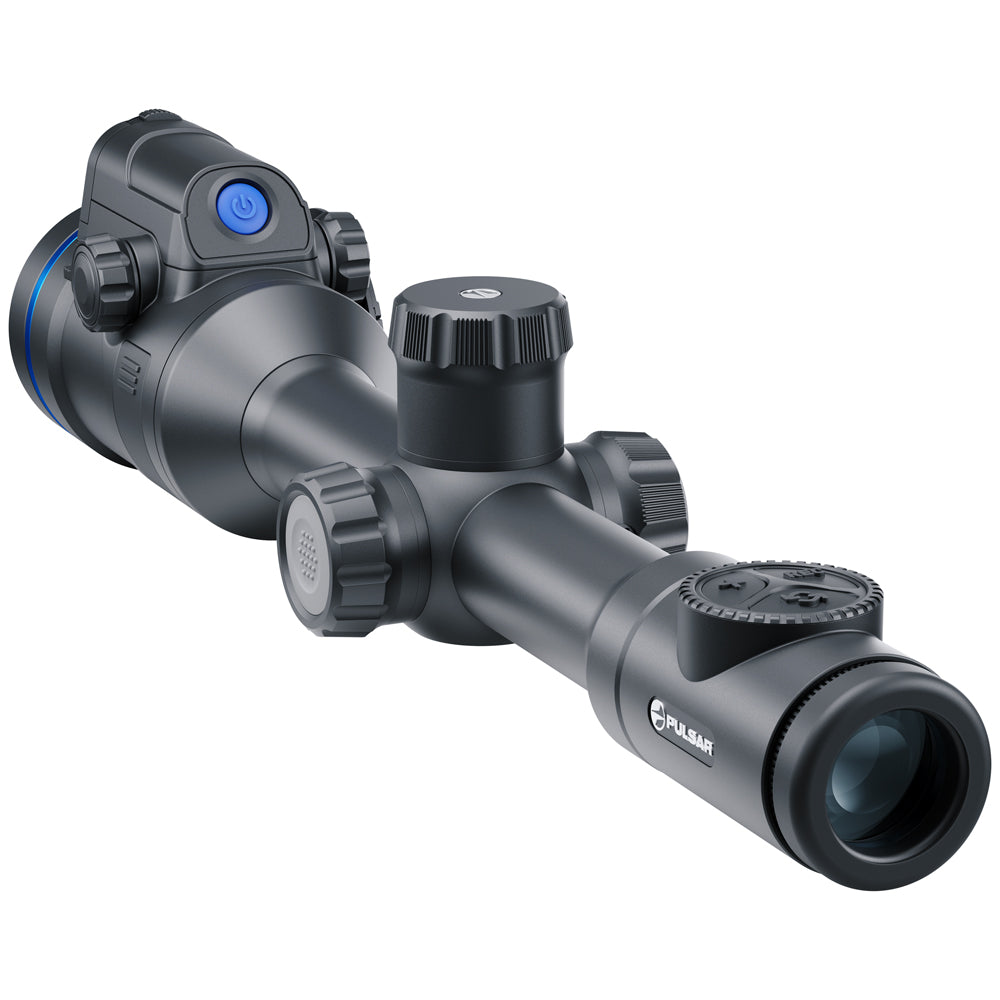

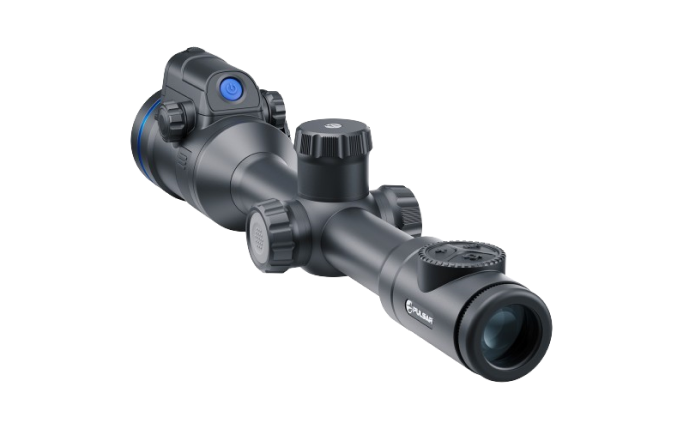

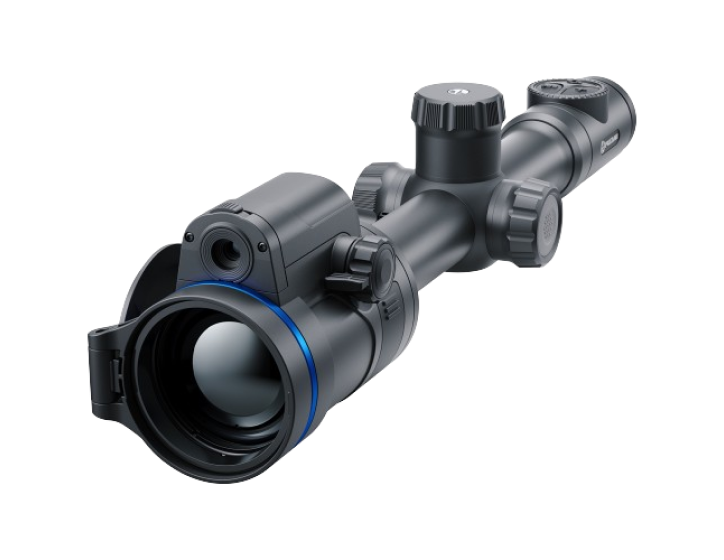

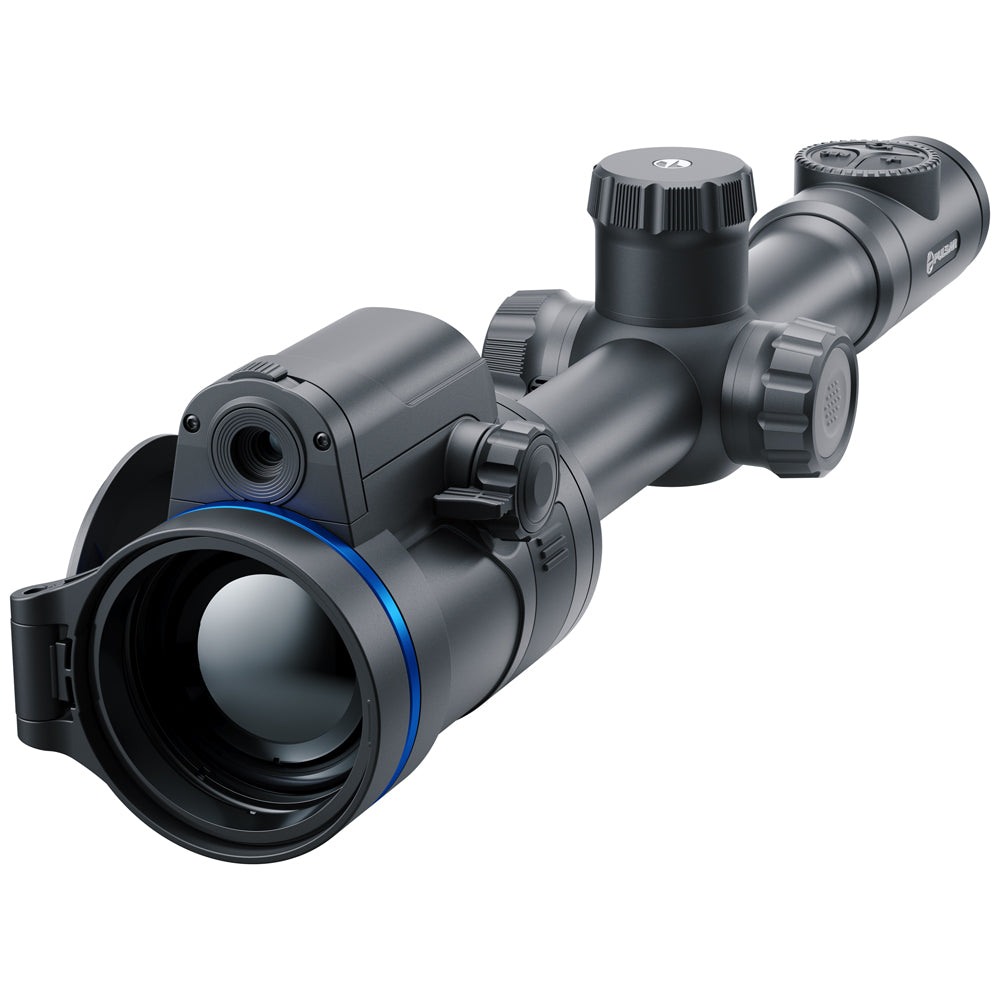

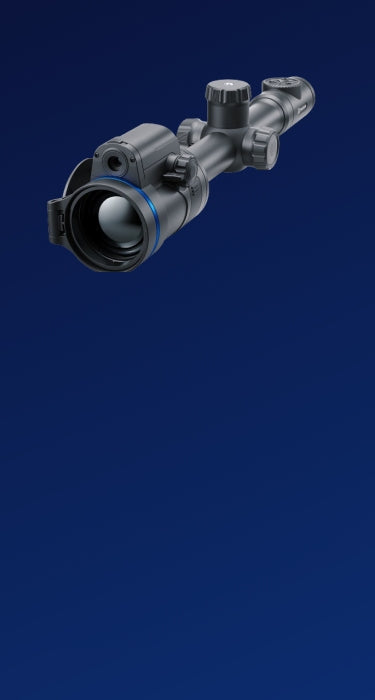

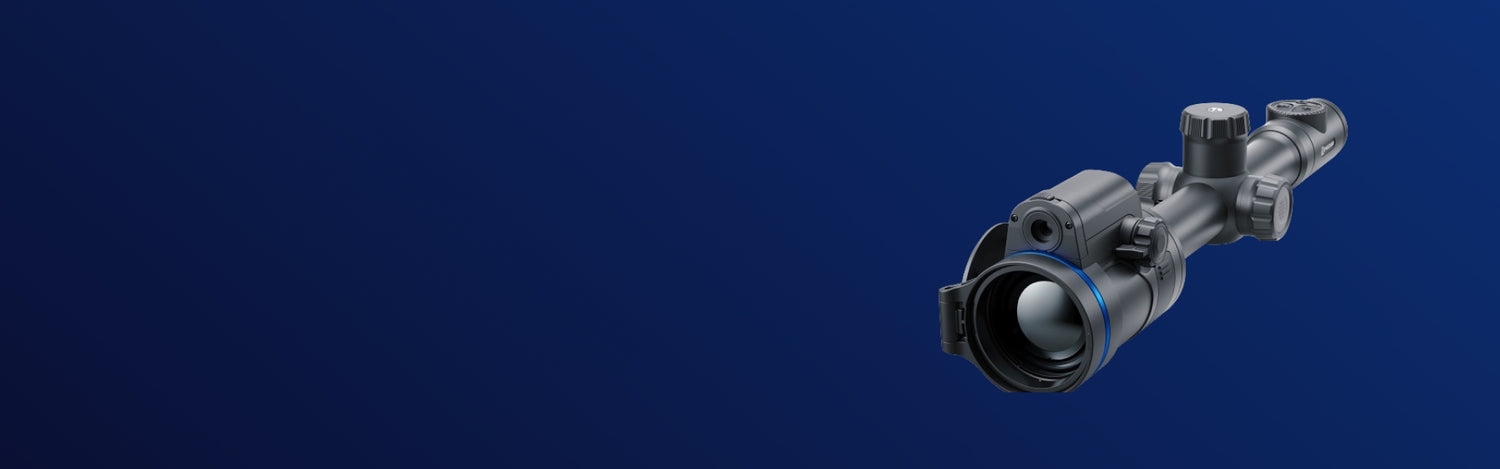

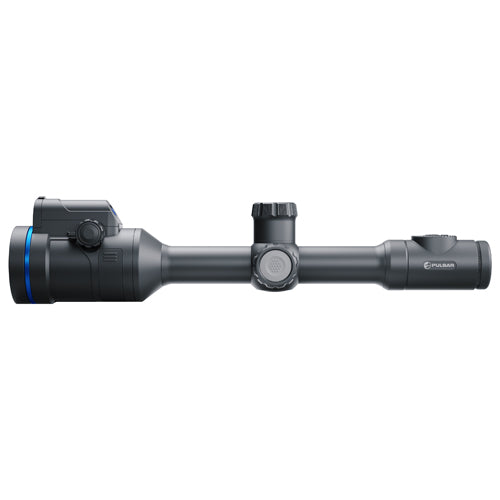

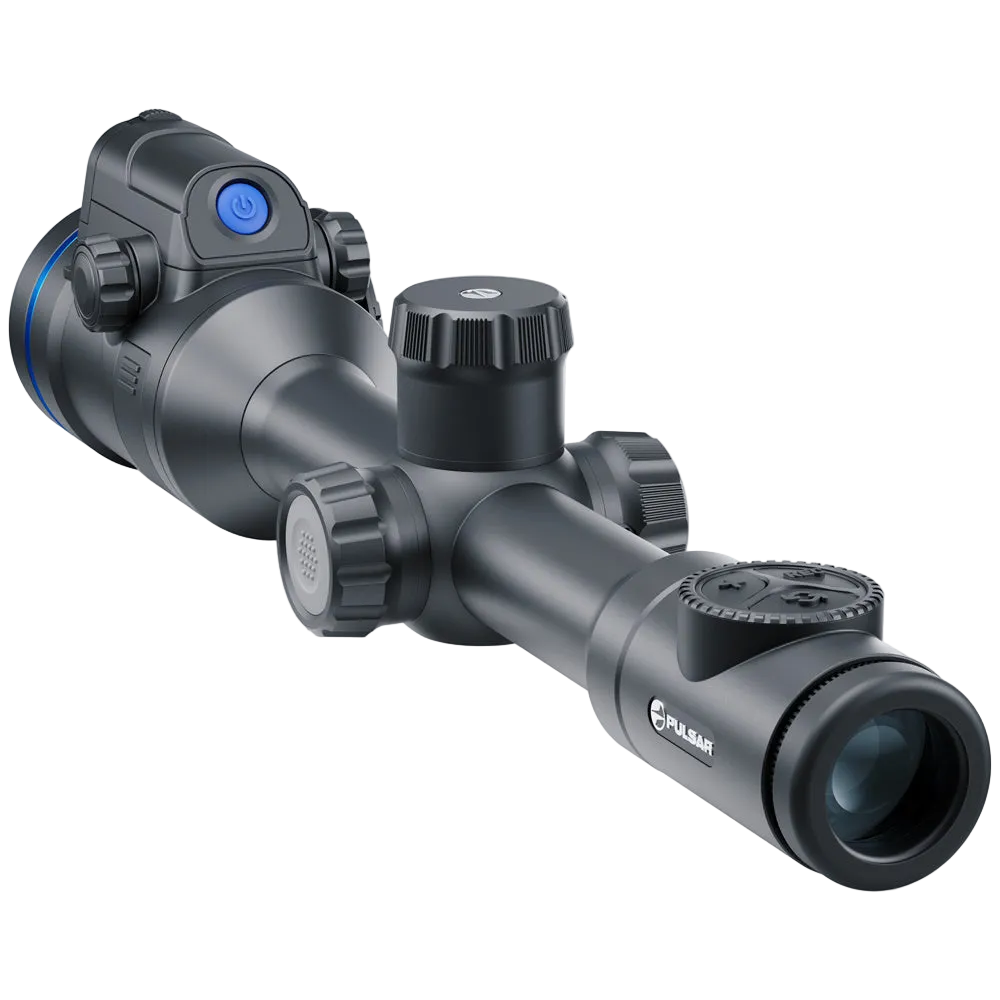

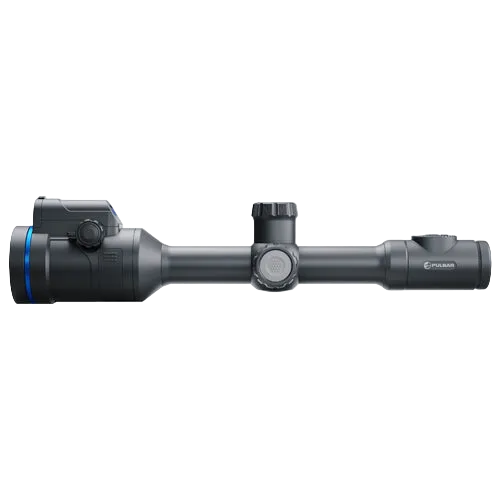

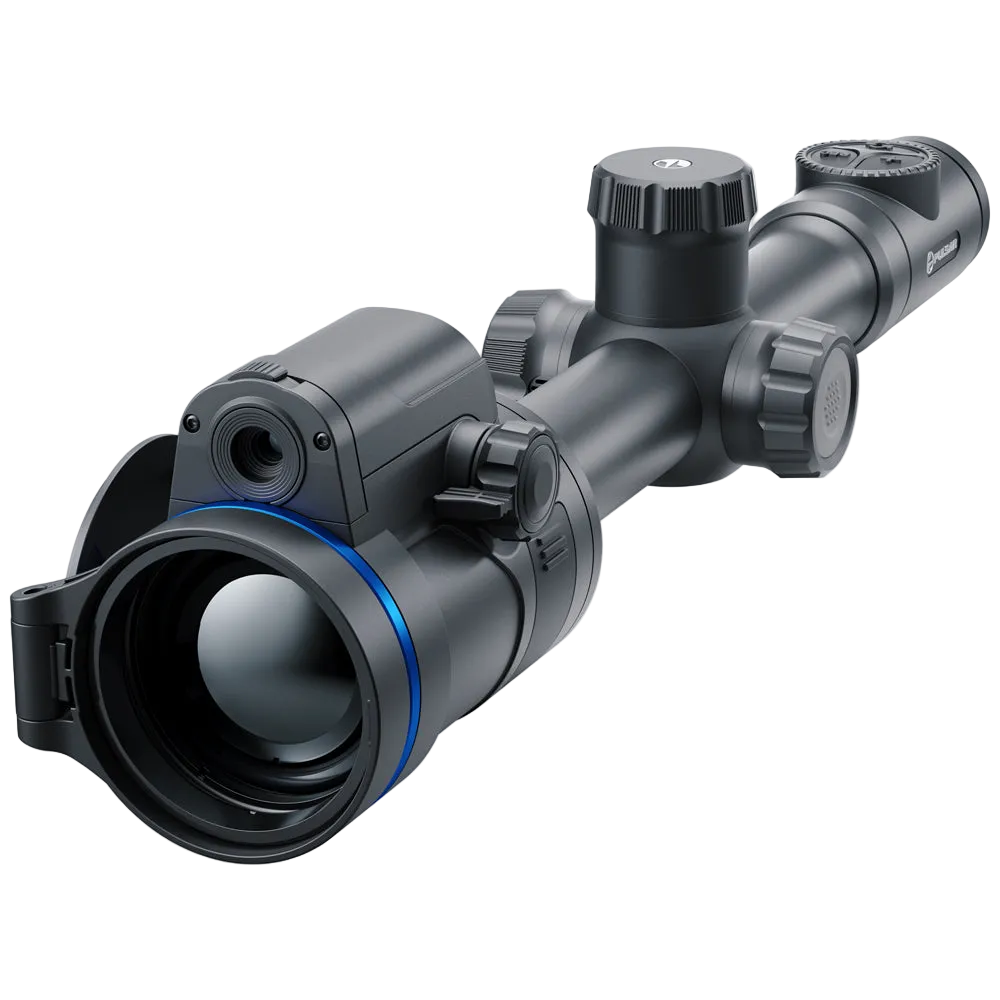

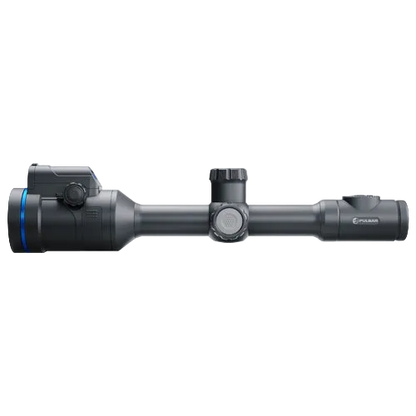

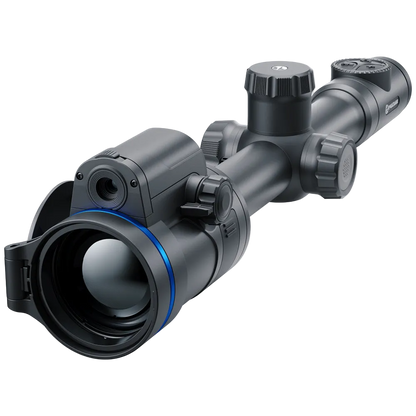

Thermion Duo DXP55 Thermal Riflescope

Name: Thermion Duo DXP55 Thermal Riflescope
Brand: pulsarnv
SKU: PL76572
Price: 5199.97 USD
Availability: OutOfStock

Price: $5,199.97

$5,199.97

Sale Sold out

Shipping calculated at checkout.

SKU: SKU : PL76572

Product variants

Quantity

The Thermion Duo DXP55 multispectral riflescope is a true game-changer in the world of optics. This exceptional riflescope offers a rare combination of thermal vision and full-color daytime vision capabilities, making it ideal for either day or night use. With its 4K full-color sensor, you can experience unparalleled clarity during daytime hunting, capturing every detail with precision.

Designed for extended hunting sessions, the Thermion Duo DXP55 boasts an impressive 6-hour battery life, ensuring you won't miss any crucial moments in the field. Equipped with a highly sensitive thermal imaging sensor with a resolution of 640x480 and thermal sensitivity of < 25 mK, this riflescope provides unparalleled thermal detection even in challenging conditions. The fast aperture F50/1.0 thermal lens enhances performance, allowing for exceptional image quality, enhanced detail, clarity, and contrast through advanced image processing.

Experience the power of multispectral viewing modes, seamlessly combining thermal and digital channels for comprehensive visibility. With the one-shot freeze zeroing feature, you can quickly and accurately zero your riflescope in both thermal and digital channels simultaneously. Enjoy a thermal detection range of over 1900 yards day or night, enabling you to spot targets with remarkable precision.

The Thermion Duo DXP55 is a full-featured riflescope equipped with video recording capabilities, Wi-Fi connectivity, and compatibility with the Stream Vision 2 app. Share your hunting adventures to any smart device in real-time or record footage to review it at your own leisure. The high-contrast AMOLED display ensures crisp and vivid visuals, while the eight color palettes offer customization to suit various scenarios. Moreover, with its IPX7 waterproof rating, this riflescope can withstand any weather conditions you may encounter.

Unleash the full potential of your hunting experience with the Thermion Duo DXP55 multispectral riflescope. Its unparalleled combination of thermal and digital vision, extended battery life, advanced image processing, and versatile features make it a must-have tool for any avid hunter or outdoor enthusiast.

Features

Day & night use
4K full-color sensor for daytime hunting
Extended battery life
640x480 @ NETD < 25 mK sensitivity
thermal imaging sensor
Fast aperture F50/1.0 thermal lens
Advanced image processing
Combined multispectral viewing modes
One-shot freeze zeroing in thermal & digital channels
1900+ yd thermal detection range day & night
Full-featured: video recording, Wi-Fi, Stream Vision 2 app compatibility
High-contrast AMOLED Display
8 Color palettes
IPX7 fully waterproof
30mm tube diameter

Downloads

Thermion DUO DXP55 Spec Sheet

View full details

Main

Sensor 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)
Objective lens F50/1.0 (thermal) | F35/4.34 (digital)
Magnification, x 2 – 16 (thermal) | 4 – 32 (digital)
Field of view (HxV), degrees / m@100m 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
Detection range, m 1800 (thermal detection)

Sensor

Type Uncooled (thermal) | Full-color CMOS (digital)
Resolution, pixels 640x480 (thermal) | 3840x2160 (digital)
Pixel pitch, µm 17 (thermal)
NETD, mK <25
Frame rate, Hz 50

Optics

Objective lens F50/1.0 (thermal) | F35/4.34 (digital)
Magnification, x 2 – 16 (thermal) | 4 – 32 (digital)
Field of view (HxV), degrees / m @ 100 m 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
Eye relief, mm 50

Display

Type AMOLED HD
Resolution, pixels 1024x768

Range Performance

Detection range, m 1800 (thermal detection)

Reticle

Click value, H/V, mm at 100 m 21.25 / 21.25 (thermal channel) | 10.33 / 10.33 (digital channel)
Click range, H/V, mm at 100 m 4250 / 4250 (thermal channel) | 2066 / 2066 (digital channel)
Number of preloaded reticles 10

Video Recorder

Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529) IPX7
Operating temperature range, °С -25 – +50

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules 6000
Shock resistance on the smooth-bore rifles, caliber 12
Compatible mounts Standard 30 mm rings
Supported Application Stream Vision 2

Power Supply

Output voltage, V 3.0 – 4.2
Battery type Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal)
Capacity, mAh 2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h * 6
External power supply, V 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Aluminum alloy
Dimensions, mm 420x78x83.5
Weight, kg 0.96 (batteries included)

Trade Data

SKU (Model #) 76572
Status production

View all specs

Thermal Imaging Sensor

1900+ yd thermal detection range day & night

High-precision aiming in the «Picture-in-picture» mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

5 individual shooting profiles / 50 zeroing distances

Zeroing settings are saved in a shooting profile. The Thermion 2 LRF memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.

A selection of 10 reticle shapes in 9 color modes

Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.

Mounting on standard 30 mm rings

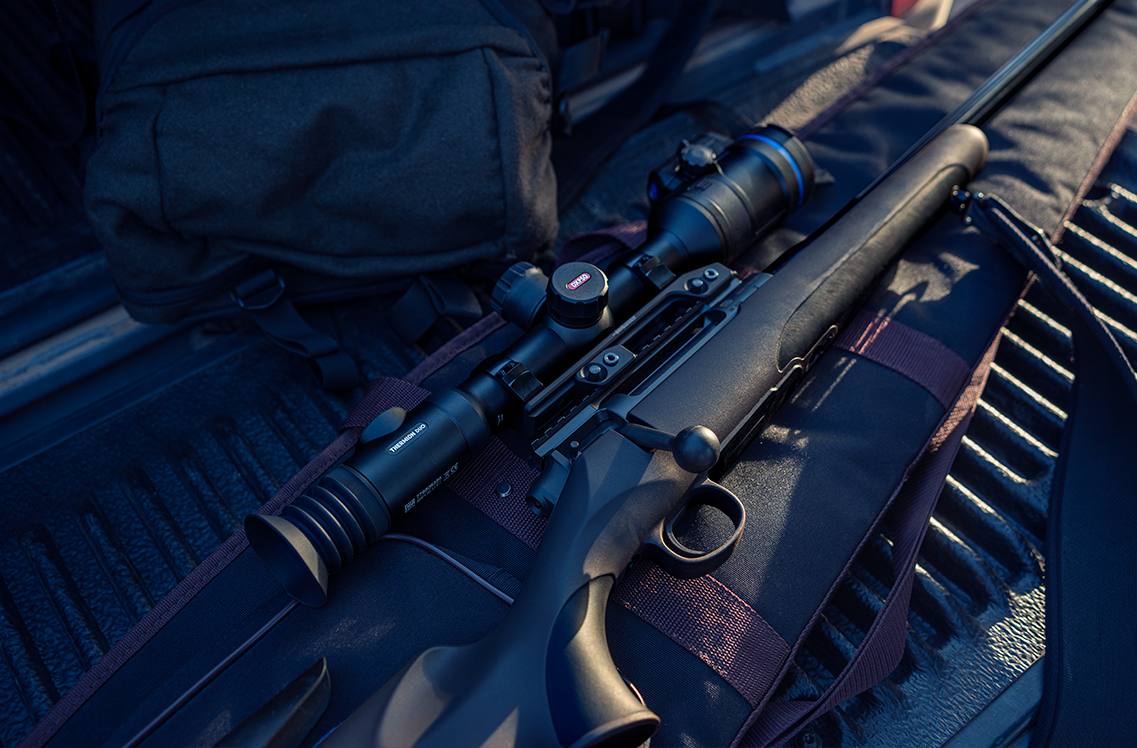

The Thermion offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic daytime sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.

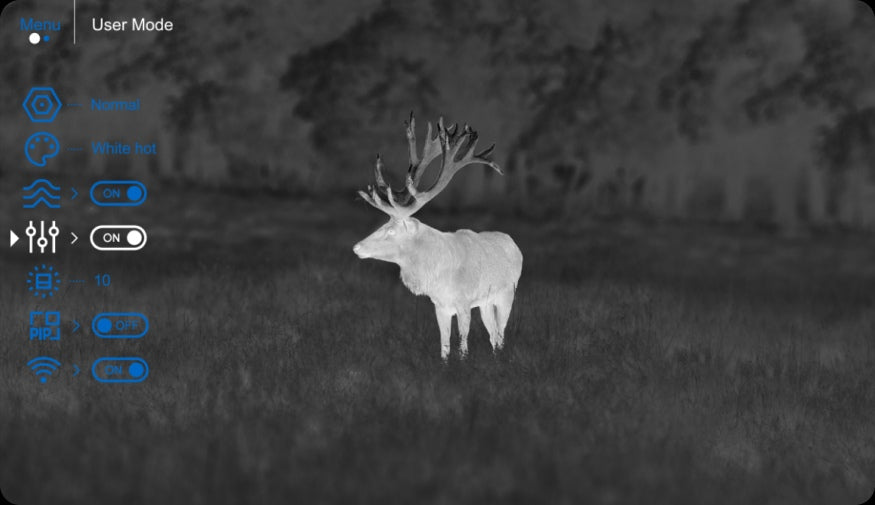

A selection of 8 colour palettes in thermal mode

A choice of eight colour palettes enables the user to observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection. Rainbow and Ultramarine help increase the chances of recognition & identification. Red Monochrome, Sepia and Violet are best for extended observation at night.

High-precision ambidextrous lens focusing

Objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.

Wide-angle eyepiece for comfortable observation

Observation with the Thermion Duo does not strain your eyes and enables the hunter to fully concentrate on the hunting process. The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm.

Instant Start-up

Just 4 seconds from the moment you press the power button the Thermion Duo is completely ready for work.

High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H

Thermion 2 LRF thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

6 hours of battery life on a single charge

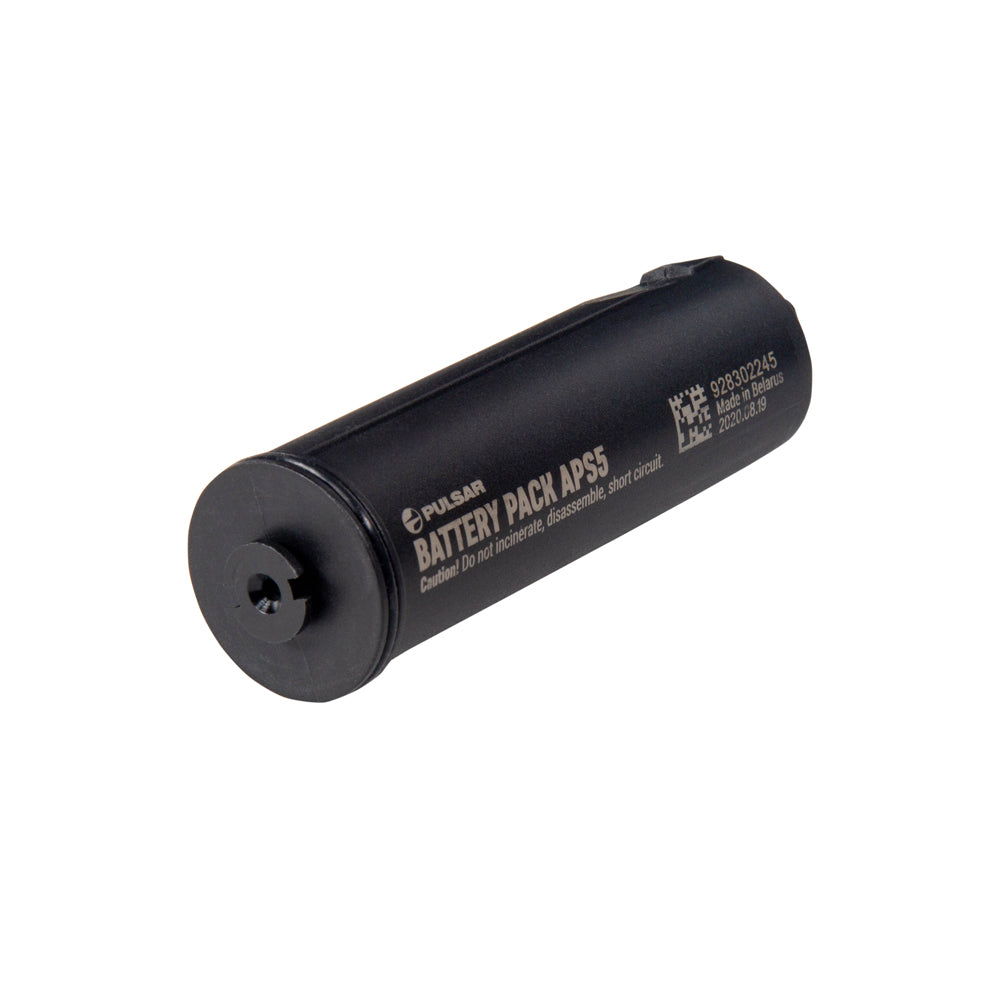

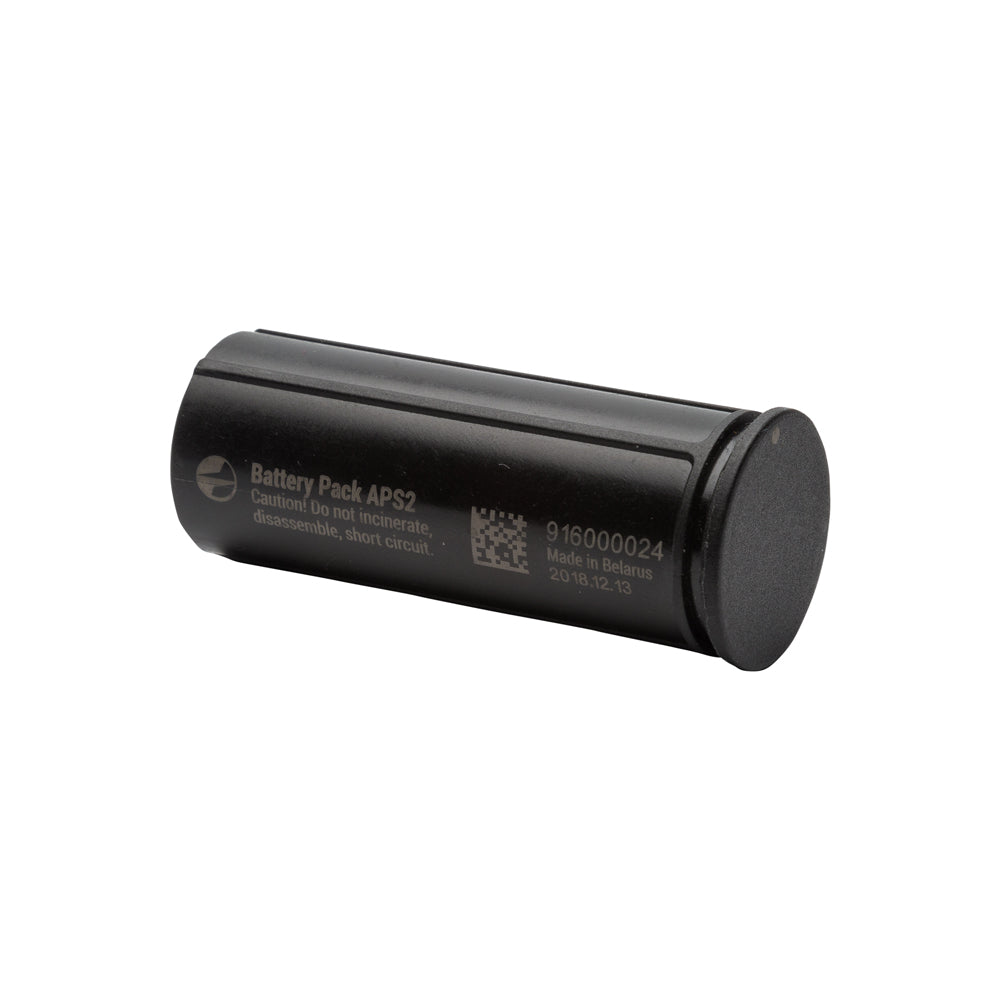

The Thermion Duo is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 6 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery is designed to determine its position accurately. It enables quick and confident replacement of a flat battery in complete darkness by touch.

Completely waterproof IPX7

With an IPX7 waterproof rating, the Thermion 2 riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.

Operating temperature range: -25 to +50 °C

Thermion 2 LRF riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.
