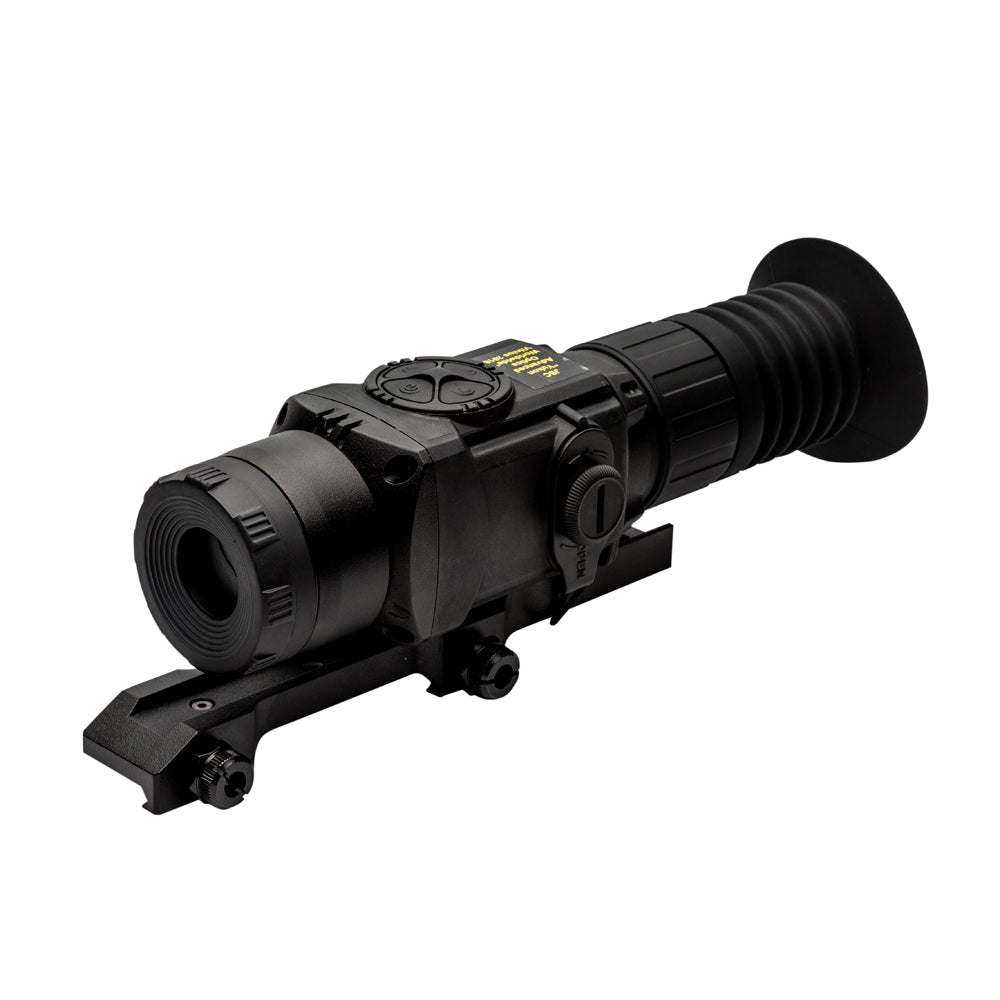

Pulsar Core RXQ30V 1.6-6.4x22 Thermal Riflescope
Main
- 384x288px @ 17μm
- 640x480px
- 1.6-6.4x
- 65.4 Feet @ 100 yards
- 985 yards
- AMOLED 640x480
- 2x CR123A
- 4 hours
- 9.4in x 2.6in x 2.4in
- 17.6oz
SKU: SKU : PL76483Q
Couldn't load pickup availability
Description
An extremely resourceful riflescope, the Core RXQ30V delivers exceptional thermal imaging in a compact no-frills package. Featuring a 985 yard detection range, the Core RXQ30V's 640x480 AMOLED screen displays heat signatures in black and white that prevents eye fatigue and creates outstanding contrast. A 384x288 resolution sensor and 17µm pixel pitch create a vivid image of surrounding landscape and wildlife at 1.6-6.4x magnification. Two CR123A supply 4 hours of battery life while the Core's QD mount allows the sight to removed and returned to zero quickly. The RXQ30V boasts Pulsar's popular Picture-in-Picture (PiP) function, allowing precise shot placement while maintaining a wide field-of-view. Core RXQ30V's include wireless remote control, QD Weaver/picatinny rail mount, carrying case and hex wrench.
Included in Package
- External power adapter
- Weaver / picatinny rail
- Carrying case
- Hex wrench
Battery Used
- Type: CR123A
- Quantity: 2
Product Downloads
Features
- Compact size
- Picatinny / weaver mount
- 384x288 resolution and 17µm pixel pitch core
- 985 yd detection range
- 2x/4x digital zoom with stepped zoom
- Picture in picture digital zoom
- External power supply adaptable
- 3 rifle profiles with 3 zero saves
- 10 variable electronic reticles
- One-shot zeroing with freeze function
- White-hot / black-hot viewing mode
- Rock / forest / identification viewing modes
- IRIS technology and increased recognition and detection software
- Manual / automatic / semi-automatic calibration modes
- Defective pixel repair feature
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
Microbolometer Type | Uncooled Microbolometer |
---|---|
Focusing Type of Distance | Fixed |
Power Supply | 4-6 |
Battery Type | 2 x CR123A |
Battery life, hours | 4 |
External Power Supply | Yes with adapter |
Material, Lens | Germanium, glass |
Body Material | Glass-nylon composite |
Level of Protection (acc. to IEC 60529) | IP67 100% dustproof and submersible to 1m for 1 hour |
Calibration | Manual, automatic, and semi-automatic |
Operating temperature, F/C | -13 to 122 / -25 to 50 |
Weight (without batteries) oz | 17.6 |
Eye Relief, mm | 50 mm |
Microbolometer Resolution, pixels | 384 x 288 |
Pixel Pitch, µm | 17 |
Display Type | AMOLED |
Display Resolution, pix. | 640 x 480 |
The Operation Modes | Rocks, forest, identification |
Defective Pixel Repair Option | Yes |
Magnification | 1.6 - 6.4 x |
Digital Zoom | 2x, 4x |
Relative aperture, D/f' | 1 / 1.6 |
Lens Focus, mm | 30 |
Diameter, Lens, mm | 22 |
Range of Detection | 985 / 900 yd / m |
Windage & Elevation click value | 1 MOA |
Field of view, ft@100yd | 65.4 |
Waterproof | Yes |
Recoil Rating | .375 H&H |
Type of Mount for Attachment of Additional Accessories | Weaver / picatinny rail |
Spectral Sensitivity, µm | 7.5 - 13.5 |
Field of view, m@100m | 21.8 |
Diopter Adjustment | 18 mm |
Field of View, degrees | 12.4 |
Frame Rate | 50 Hz |
Minimum focusing distance, ft/m | 16 / 5 |
Exit Pupil, mm | 5 |
Width | 2.6 / 65 mm |
Length | 9.4 / 240 mm |
Height | 2.4 / 60 mm |
