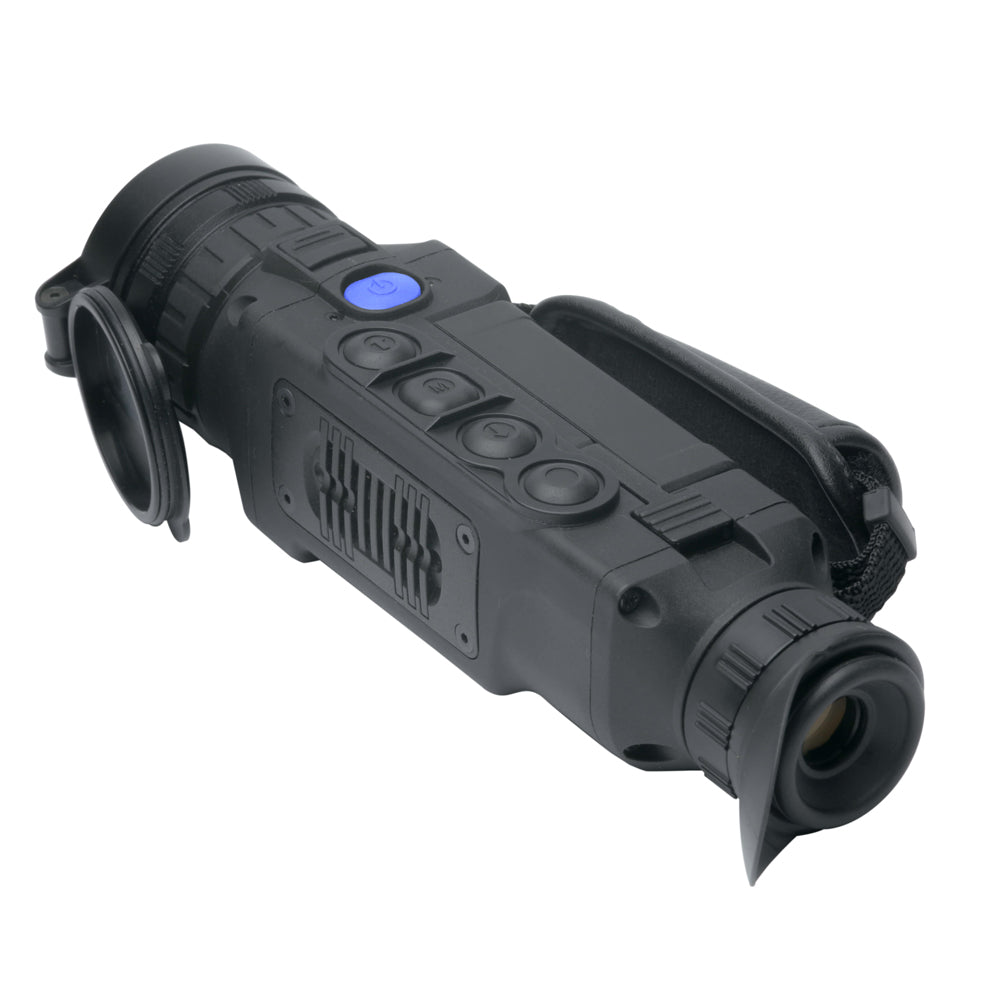

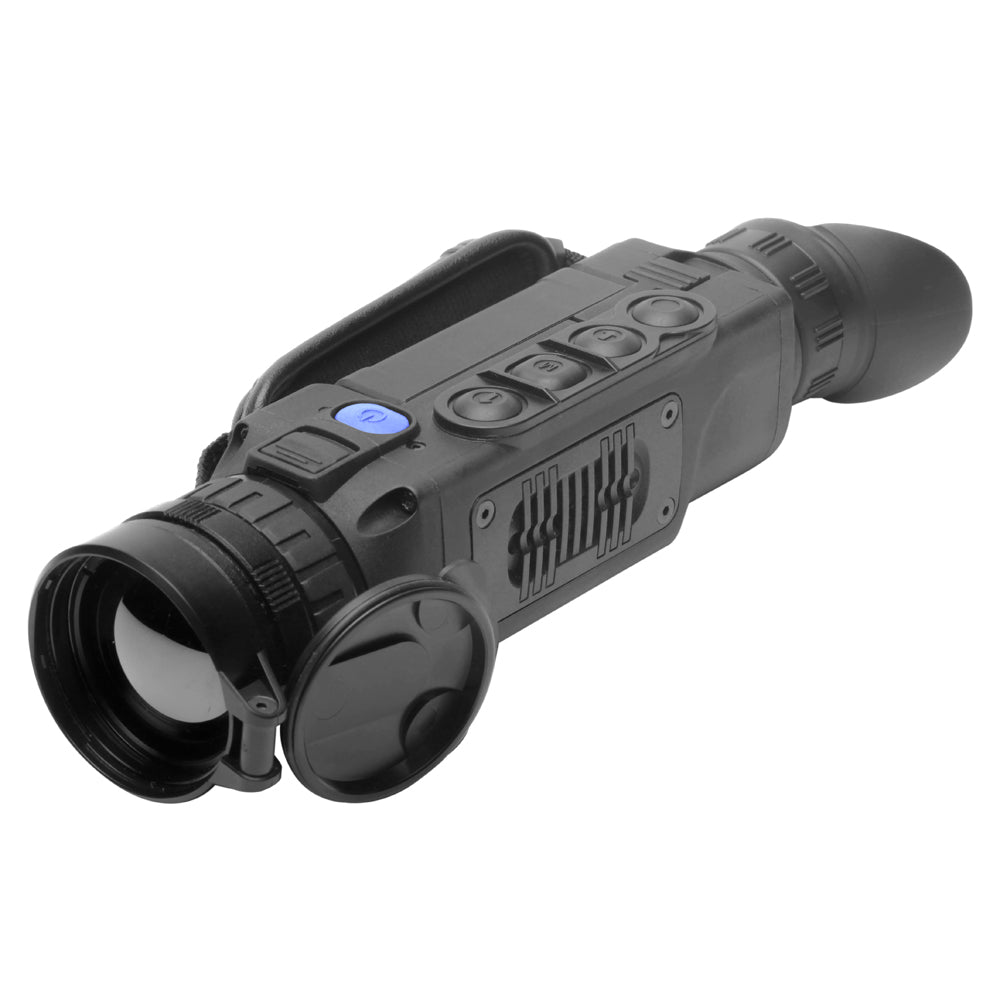

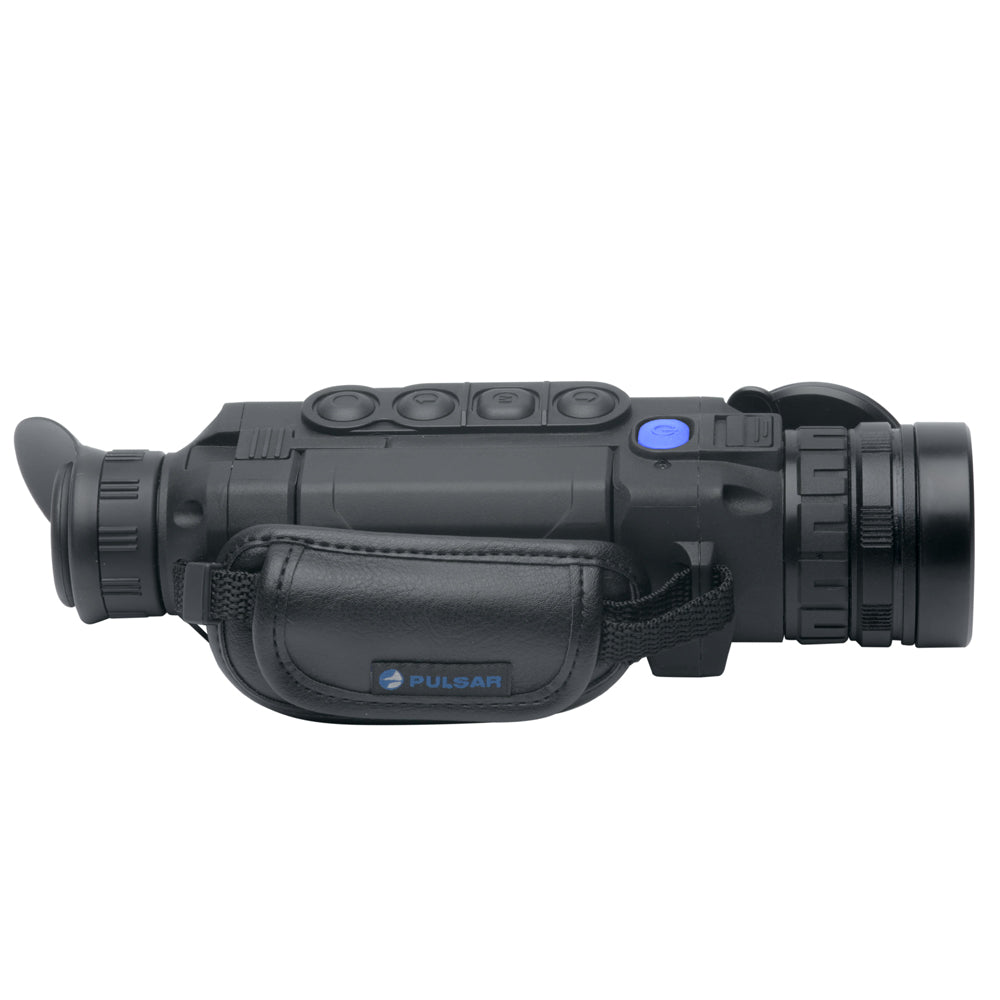

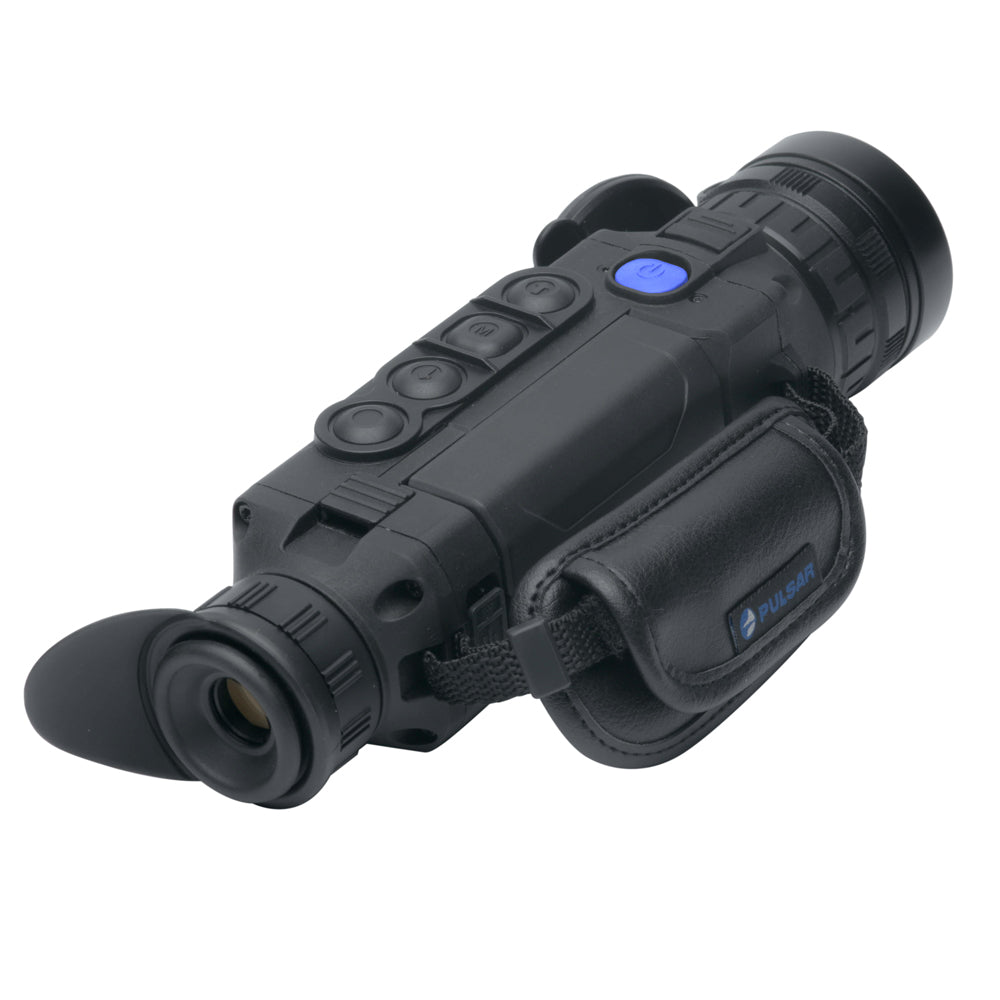

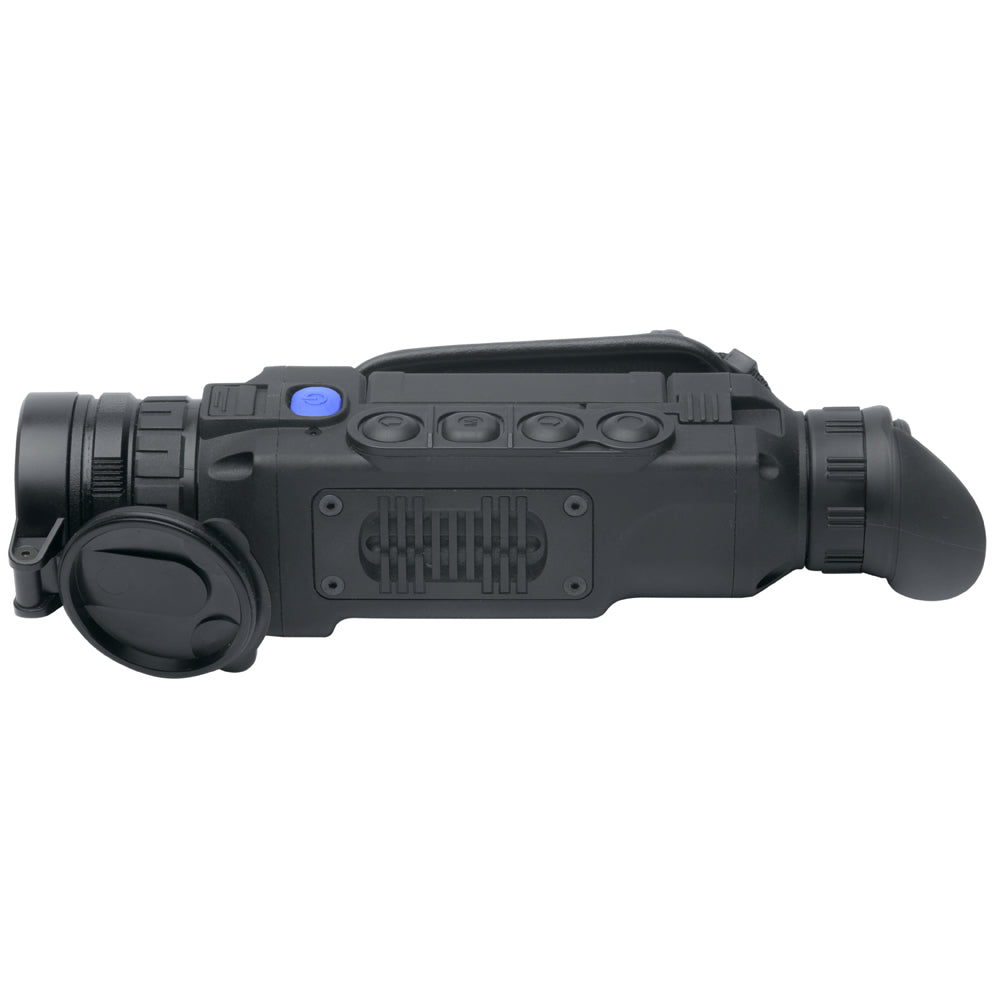

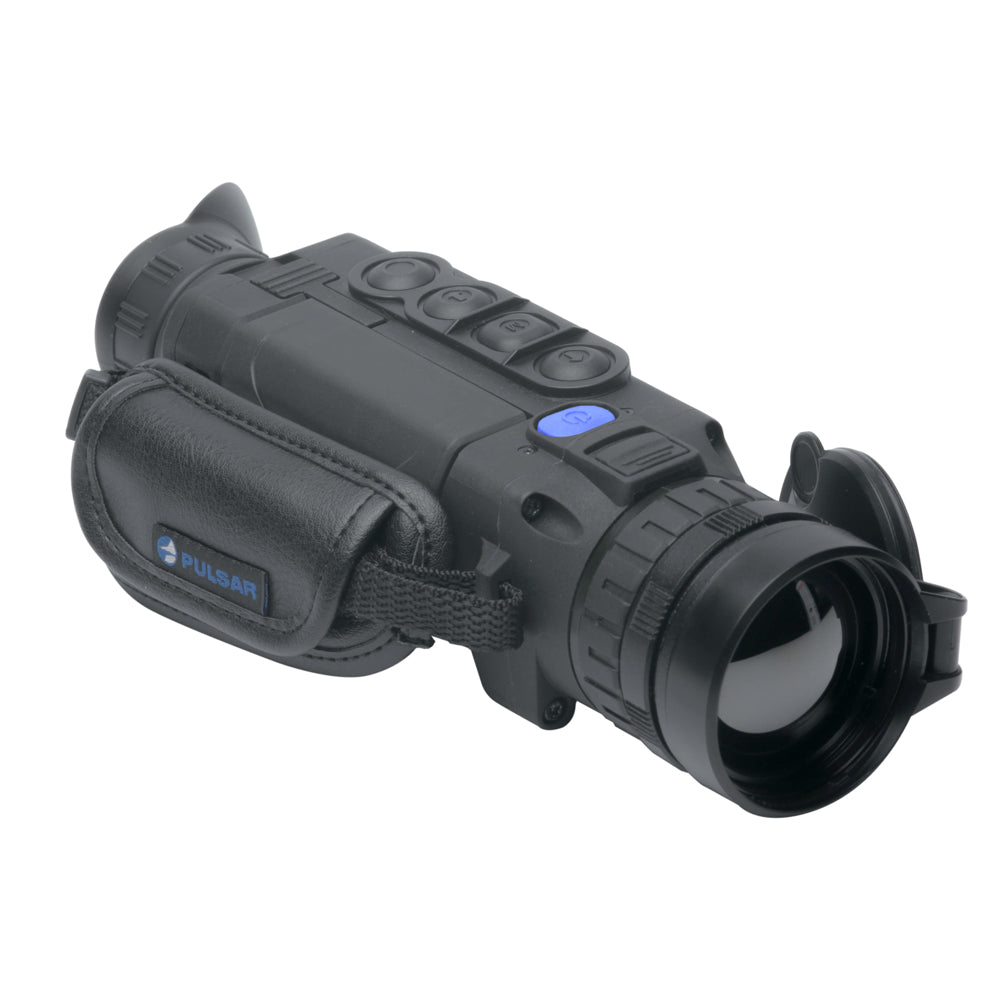

Helion 2 XP50 2.5-20 Thermal Monocular
SKU: SKU : PL77402
Couldn't load pickup availability
Description
Pulsar’s Helion 2 XP50 has finally been unveiled! This ultramodern monocular has a NETD (noise-equivalent temperature difference) of <40mK, which means the Helion 2 can detect slight variations in thermal radiation of an adult-sized object up to 2,000 yards away. The Helion 2 also has a 640x480 AMOLED display, 8 color palettes and 2.5x-20x base digital magnification, to capture every image with stunning clarity. With Wi-Fi connectivity, a built-in video recorder and camera, the Helion 2 enables users to livestream their ventures via the Stream Vision app. Additionally, the Helion 2 can operate in temperatures ranging from -25C(-13F) to 50C(122F). Along with an IPX7 waterproof rating, updatable software and rechargeable IPS7 battery with life up to 10 hours, the Helion 2 is the undisputed standard of modern monocular technology.

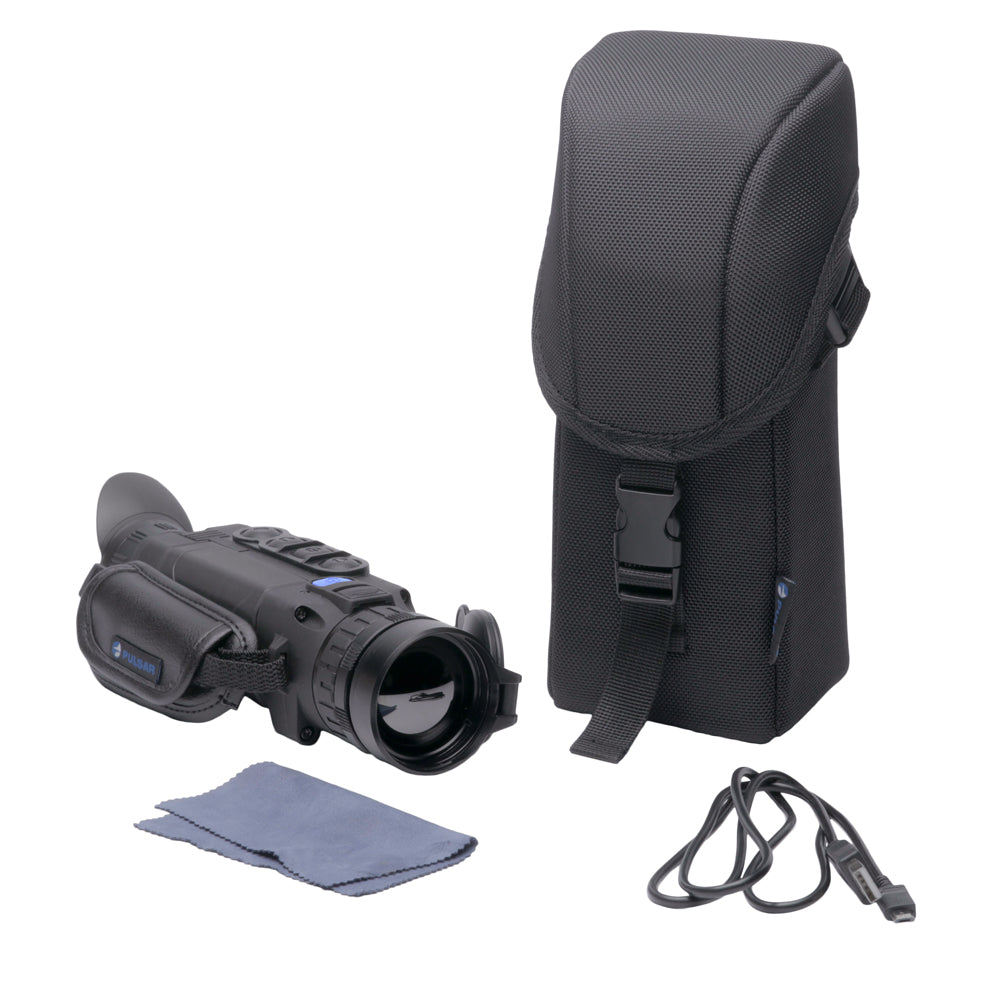

Included in Package
- Battery pack
- Battery pack chargring kit
- USB cable
- Hand strap
- Lens Cleaning Cloth
- Carrying Case
Battery Used
- Type: B-Pack (18650 Li-ion)
- Quantity: 1
- Battery Life (w/o video out): 10 Hours
Product Downloads
Features
- Highly sensitive thermal imaging sensor <40 mK
- 640x480 resolution / 17um pixel pitch core
- 2000 yd detection range
- Full-color AMOLED Display
- Built-in photo and video recorder
- 4 observation modes
- Variable digital zoom
- Picture-in-picture
- 8 color palettes
- Wi-fi integration with IOS and Android devices
- Up to 10 hours operating time
- Waterproof
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Frame Rate, Hz | 50 |
|---|---|
| Microbolometer Resolution, pixels | 640x480 |
| Pixel Pitch, µm | 17 |
| NETD, mK | <40 |
| Display Type | AMOLED |
| Display Resolution, pix. | 640x480 |
| Built-in Video Recorder Availability | Yes |
| Built-In Memory, Gb | 16 |
| Integrated Wi-Fi | Yes |
| Stream Vision support | Yes |
| Magnification | 2.5 - 20 x |
| Digital Zoom | 2/4/8 x |
| Lens diameter, mm | 42 |
| Lens Focus, mm | 50 |
| Relative aperture, D/f' | 1:1.2 |
| Field of View, degrees | 12.4 |
| Field of view, m@100m | 21.8 |
| Field of view, ft@100yd | 65.4 |
| Minimum focusing distance, ft/m | 10 / 3 |
| Eye relief (in/mm) | .6 / 16 |
| Exit Pupil, mm | 5 |
| Diopter Adjustment | ± 5 |
| Focusing Type of Distance | Objective |
| Range of Detection | 2000 / 1800 yd / m |
| Power Supply | 3 - 4.2 V |
| Battery Type | B-Pack (18650 Li-ion) |
| Battery Life (w/o video out), hours | 10 |
| External Power Supply | 5B - USB |
| Lens Material | Germanium |
| Body Material | Glass-nylon composite |
| Tripod Mount, inch | 1/4 |
| Operating Temp,?F/?C | -13 to 122 / -25 to +50 |
| Level of Protection (acc. to IEC 60529) | IP67 100% dustproof and submergible to 1m for 1 hour |
| Calibration | Manual, automatic, semi-automatic |
| Length (in/mm) | 9.2 / 234 |
| Width (in/mm) | 2.2 / 55 |
| Height (in/mm) | 2.3 / 58 |
| Weight, oz | 17.6 |
