        SKU : PL77452

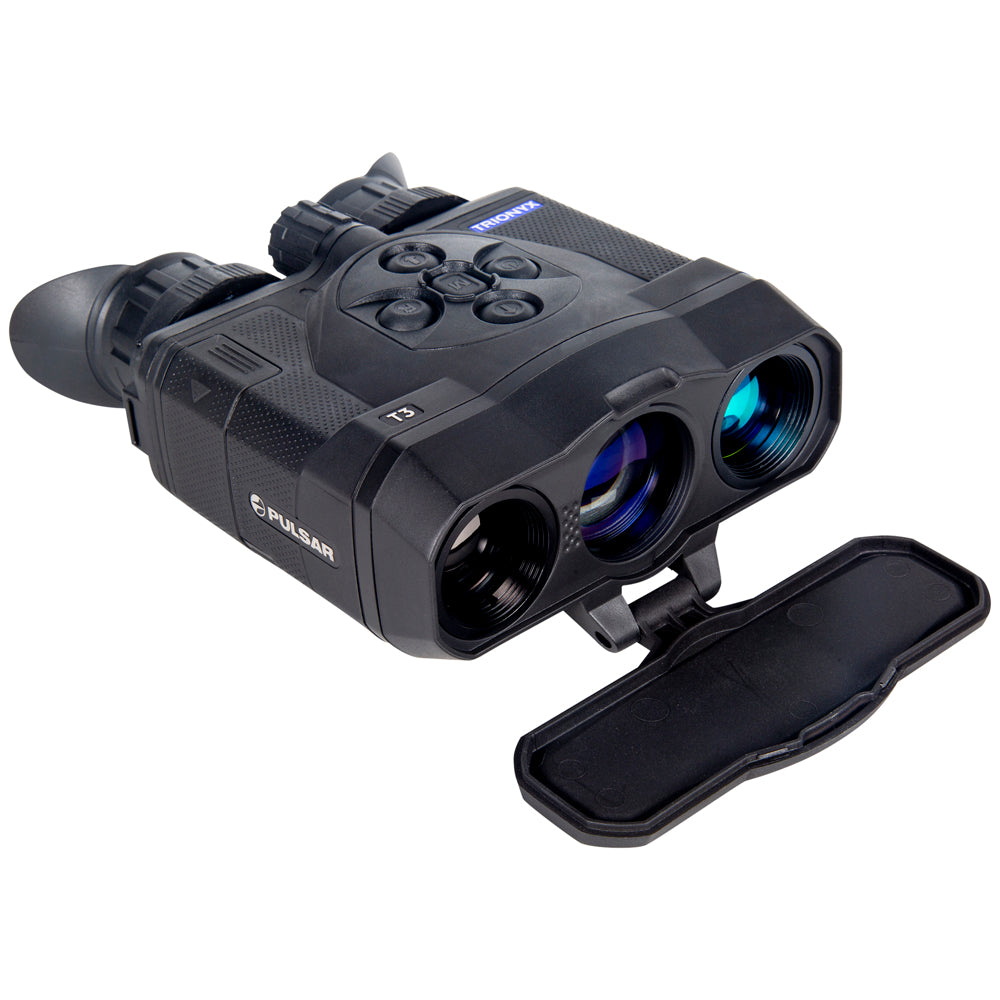

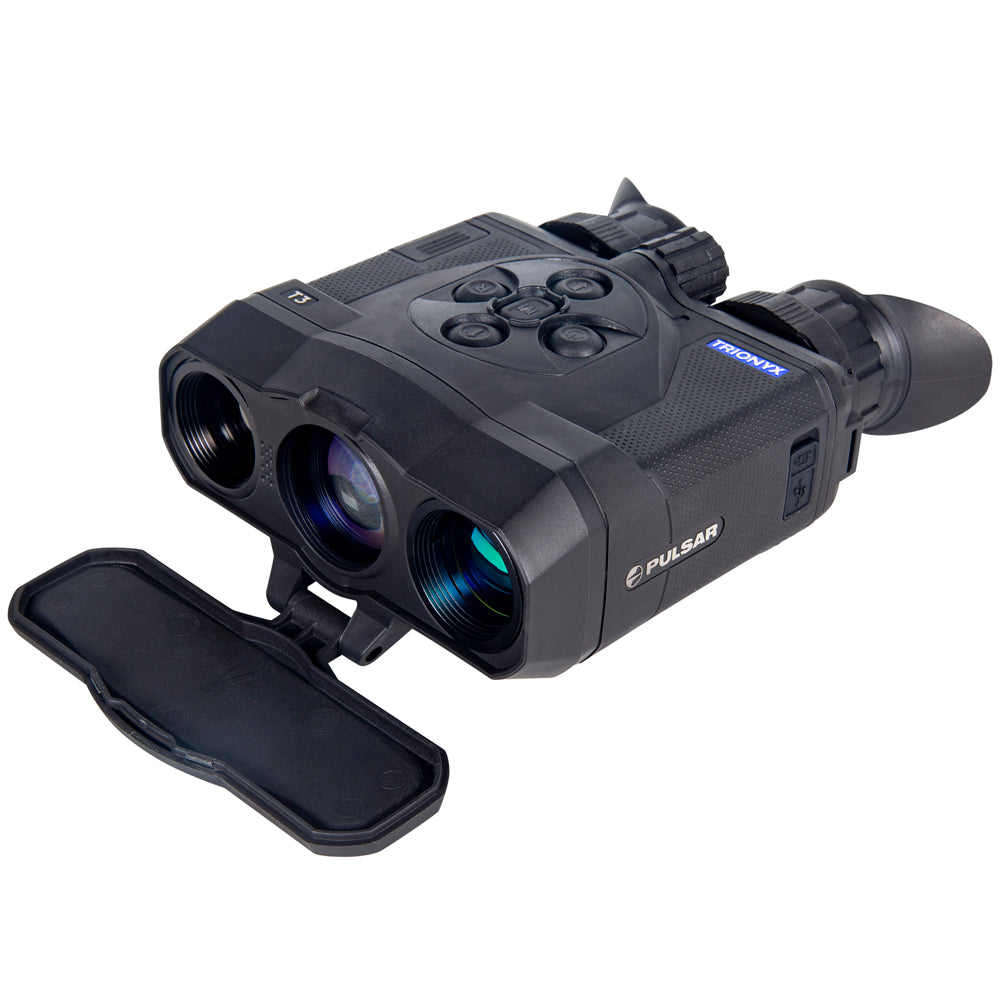

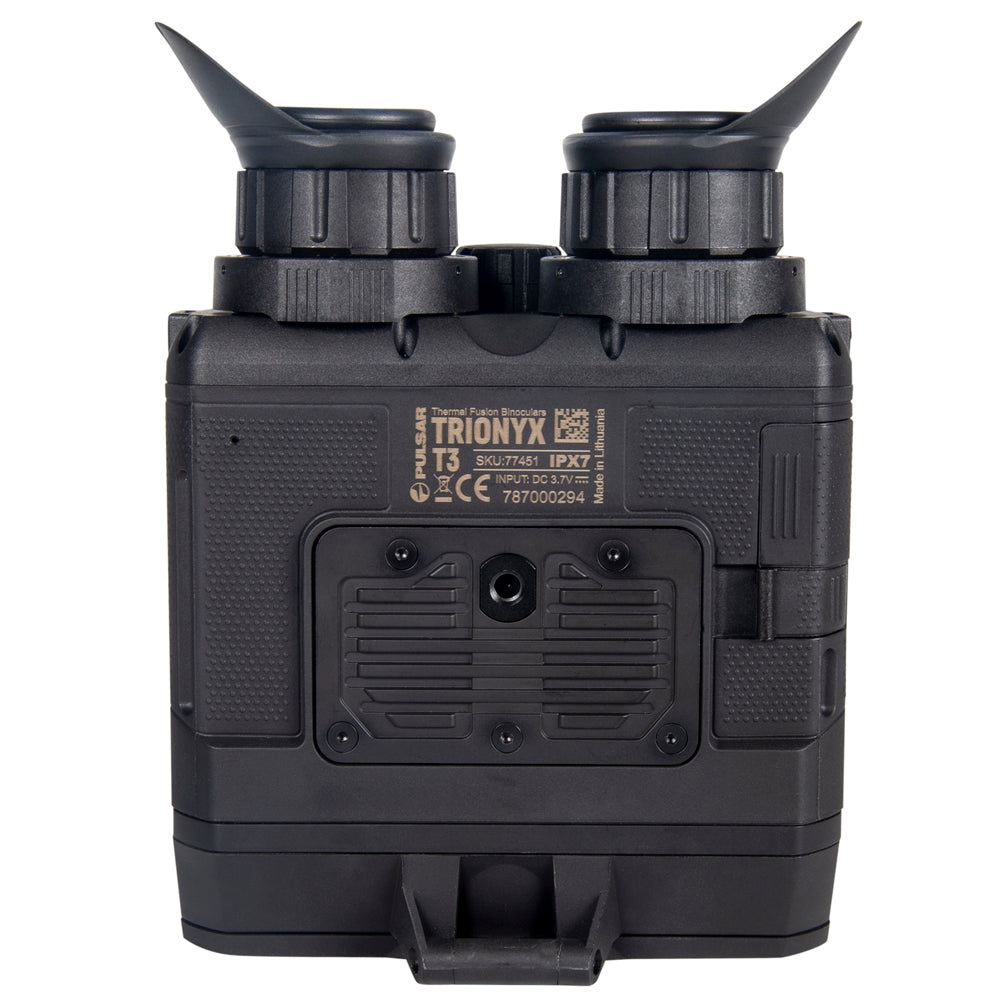

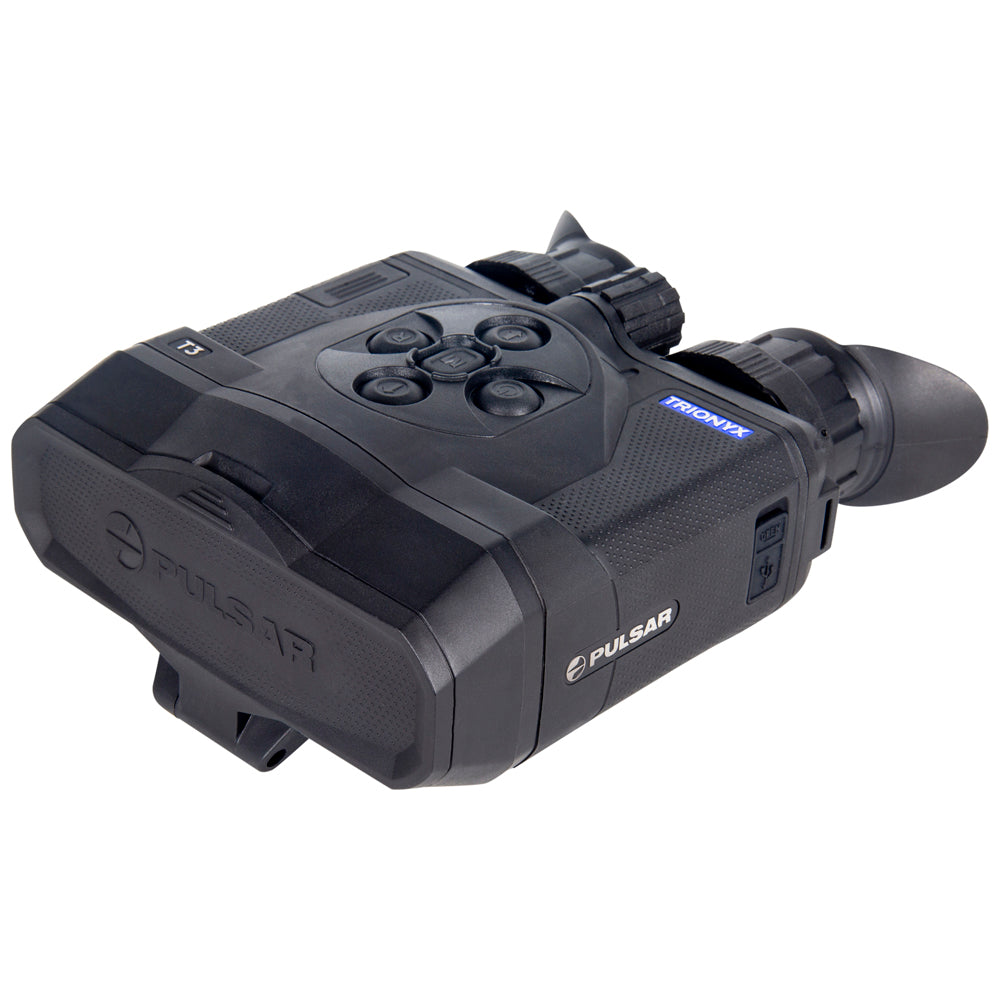

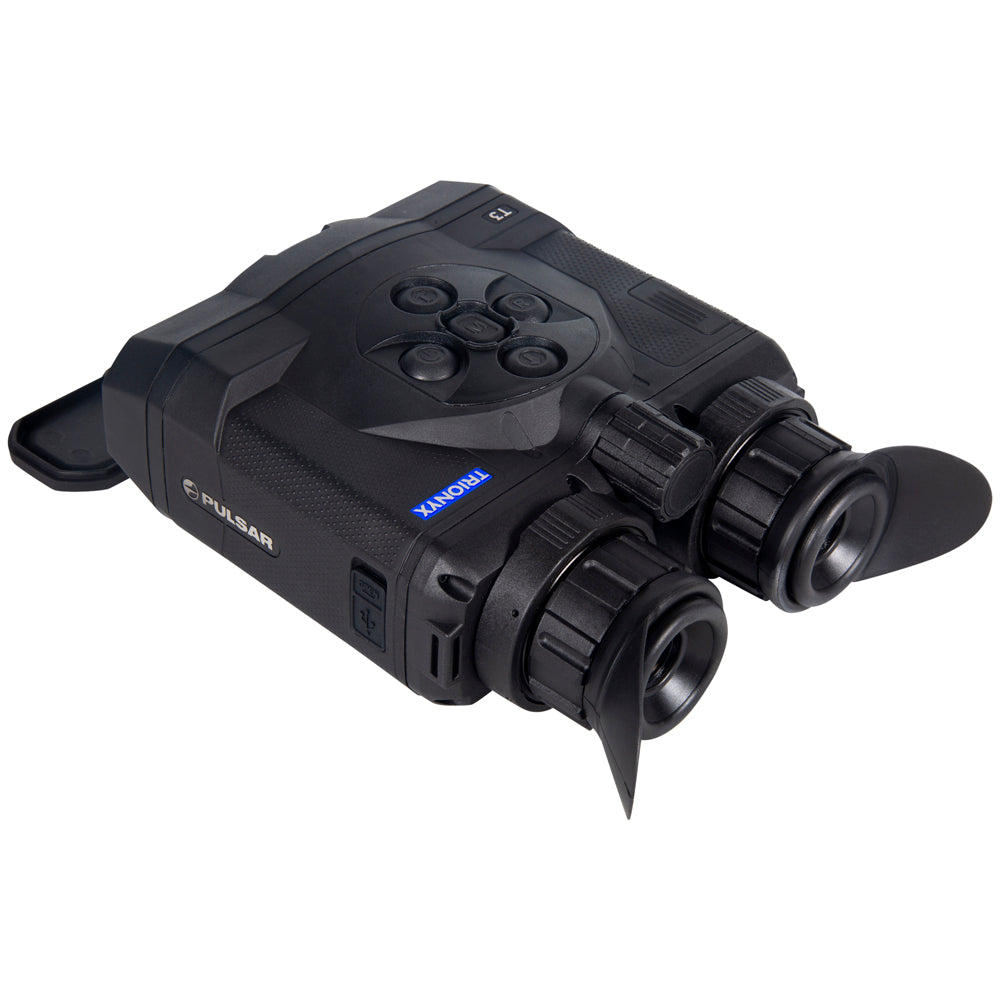

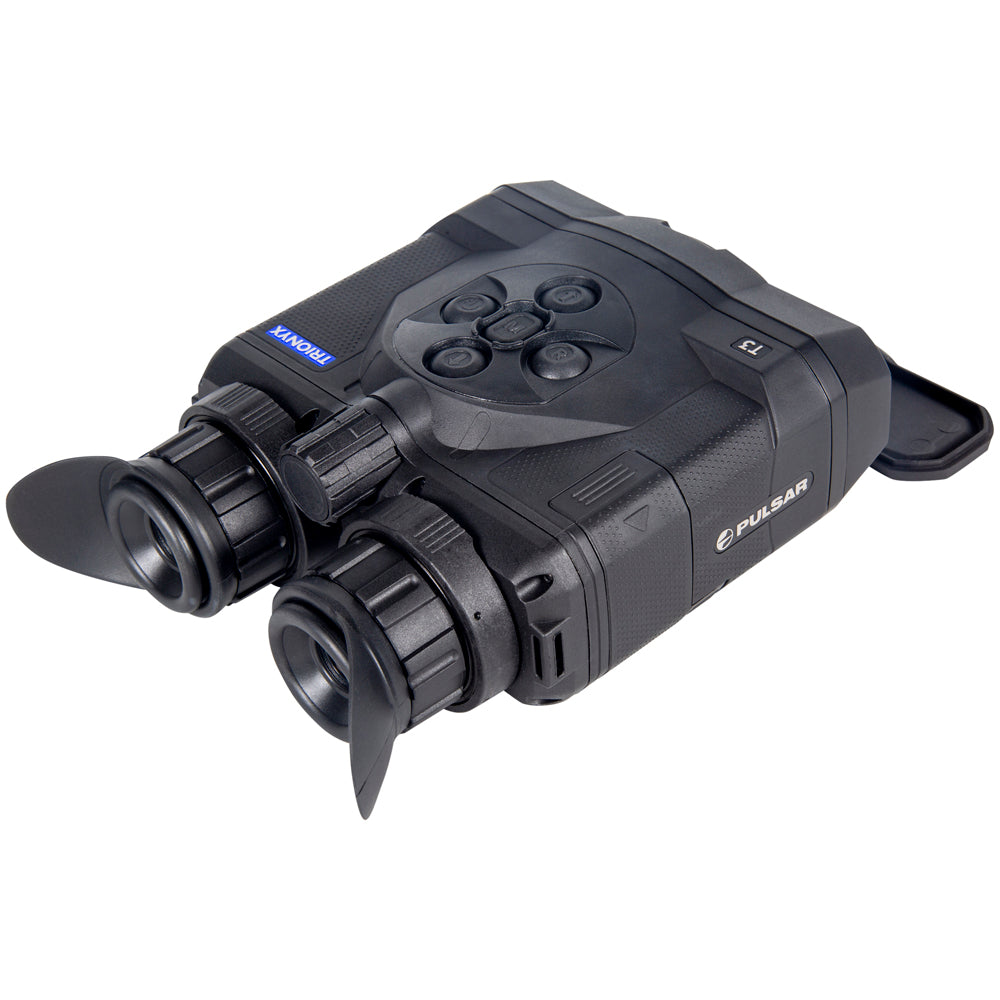

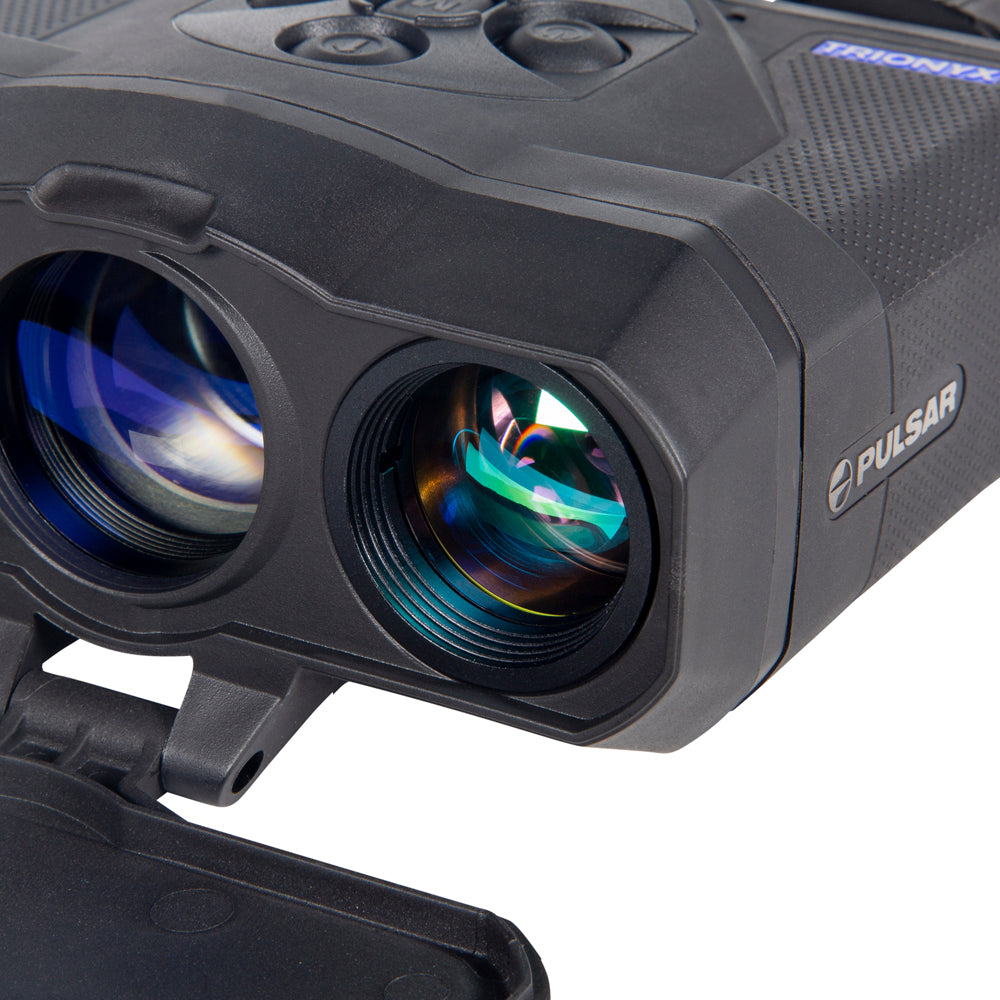

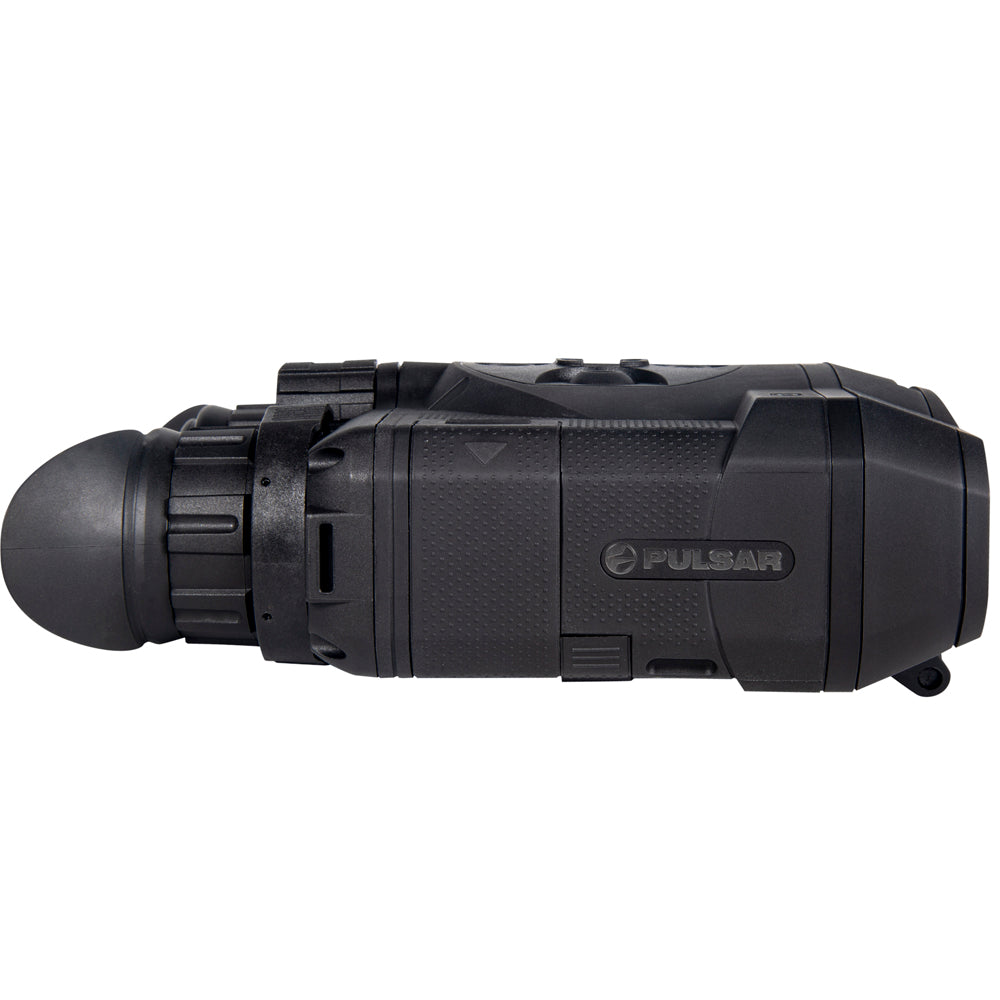

        Trionyx multispectral binoculars are a massive technological innovation – thermal and digital night vision imaging combined in a single unit. Trionyx binoculars boast the detection range of a fixed focus 384x288 thermal sensor—over 1,000 yards—while also maintaining the target-identification capability of focusable digital night vision. Using the included 940nm IR Illuminator, virtually nothing can escape the Trionyx’s detection.

        The Trionyx’s thermal imaging has 2.5-10x magnification, and the digital night vision has 3.5-14x, so users can customize their view on its high-def AMOLED display. Its eight unique color palettes only add to the Trionyx’s distinct versatility.

        Beyond the Trionyx’s multispectral capabilities, it is loaded with stunning technological features. Utilizing the built-in video recording, 16GB of internal memory and Wi-Fi connectivity, users can capture and save all their exciting memories. Robust and hardy from inception, Trionyx binoculars have a 6-hour battery with the Pulsar TPS7 Li-Ion and an IPX7 waterproof rating.

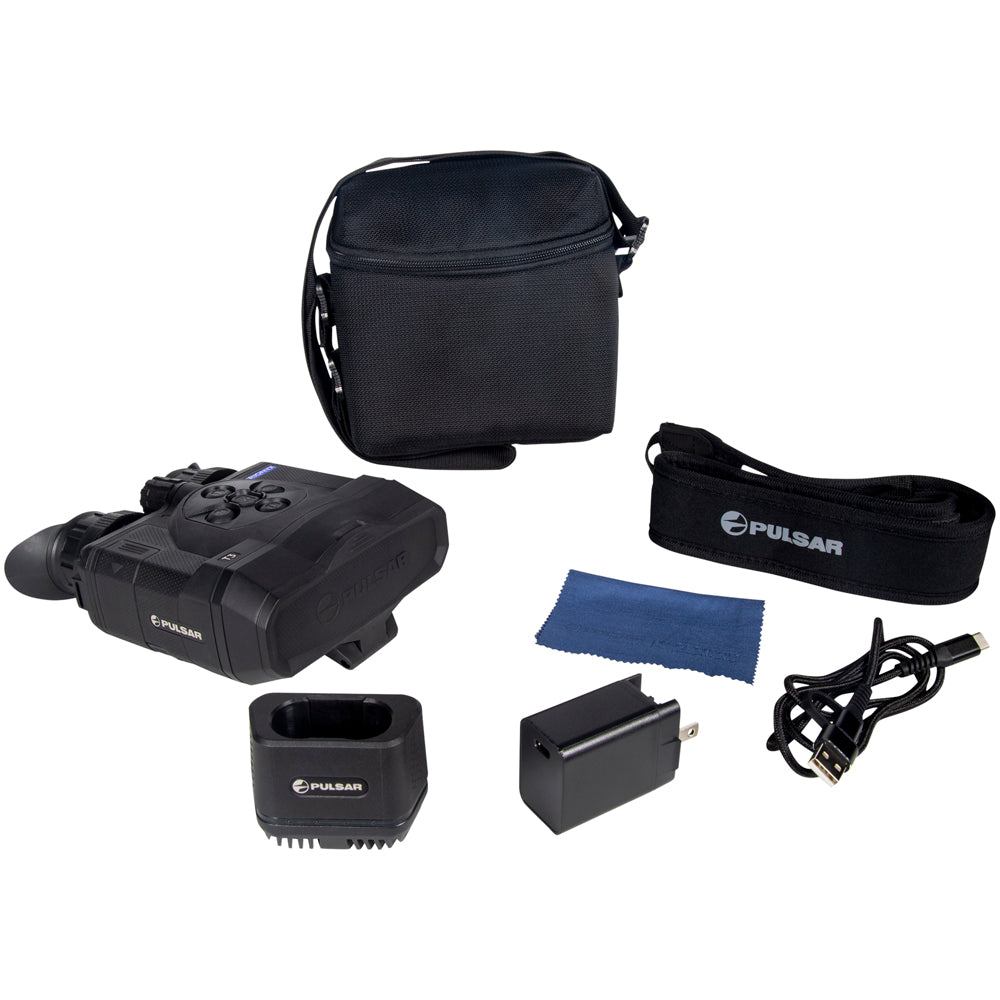

        Included in Package

        • Multispectral Fusion Binoculars
        • Carrying Case
        • User manual
        • Battery Pack TPS 7
        • Lens Cleaning Cloth
        • USB Type-C cable
        • Neck strap
        • TPS7 Battery charger
        • 220V USB charger

        Battery Used

        • Type: 79183 Battery Pack TPS 7
        • Quantity: 1


        • Multi-channel thermal/digital/fusion overlay imaging modes
        • 384x288 thermal resolution sensor
        • 1280x720 AMOLED display
        • 1280x720 CMOS Sensor
        • 1000yd Thermal Detection Range
        • 350yd Digital NV Detection Range
        • Built-in 940nm IR Illuminator
        • Built-in Recording & Wi-fi capability
        • IPX7 Waterproof Rating
        • Shockproof Glass-Nylon Composite Body

        EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

        California Disclaimer

        Sensor resolution (pixels) 384x288
        Frame rate (Hz) 50
        Sensor Response LWIR
        Pixel pitch (µm) 17
        Display type AMOLED
        Display resolution (pixels) 1280x720
        Built-in video recorder availability (yes/no) Yes
        Format of video clip .mp4
        Resolution of video clip 1024x768
        Resolution of photo files 1024x768
        Type & max capacity of memory card eMMC 16 Gb
        Approximate capacity of memory card (minutes / Gb) 25min/1Gb
        Video out availability (yes/no) NA
        Type of video output NA
        Magnification (x) Digital Channel - 3.5-14X, Thermal Channel - 2.5-10X
        IR Illuminator 940nm
        Objective lens diameter (mm) 26 (1in)
        Digital zoom (x) 2/4
        Lens focus (mm)  30 (1.2in)
        Relative aperture (D/f') F/1.25
        Field of view (°, horizontal x vertical) 9.1 degrees horizontal
        Field of view (m@100m) 21.8 horizontal
        Field of view (yd@100m) NA
        Close focus distance (ft./m) Thermal - Fixed focus, Digital - 5m minimum
        Eye relief (in/mm) .59/15
        Exit pupil diameter (mm) 3.5
        Diopter adjustment (dptr) +/-5
        Range of detection, (yd./m) (human = 1.7mx.5m) Thermal - 1000m (1093 yards), Digital - 350 (383 yards)
        Power supply (v) 3.7
        Battery type Li-Ion
        Battery life, w/o IR (hour) 6
        Battery life,with IR (hour) 4.5
        External power supply (yes/no) Yes - 5V USB Type-C
        Nitrogen filled (yes/no) NA
        Fogproof (yes/no) Yes
        Shockproof (yes/no) Yes
        IP Standard (water rating)  IPX7
        Body material Glass-Nylon Composite
        Operating temperature (°F/°C) -13 to 104 / -25 to 40
        Length (in/mm) 6.5in/165mm
        Width (in/mm) 5.2in/131mm
        Height (in/mm) 2.6in/66mm
        Weight (oz.) 26.81
